Frame Partizan Edition PT7 V3

Product detailed description

Frame Partizan Edition PT7 V3

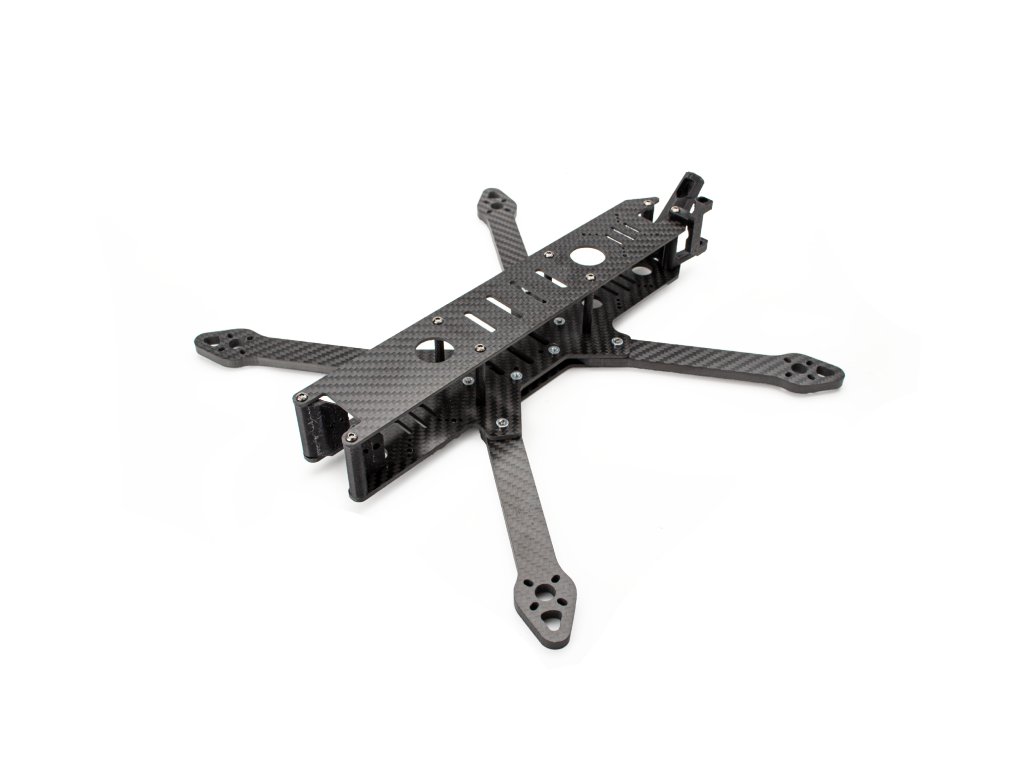

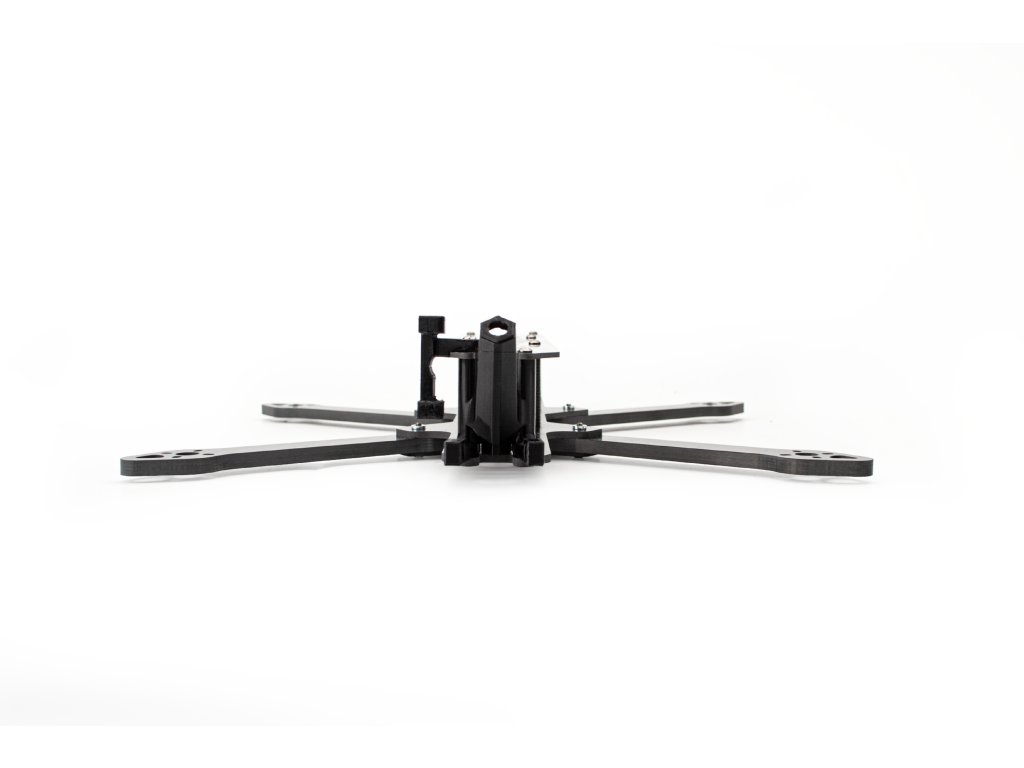

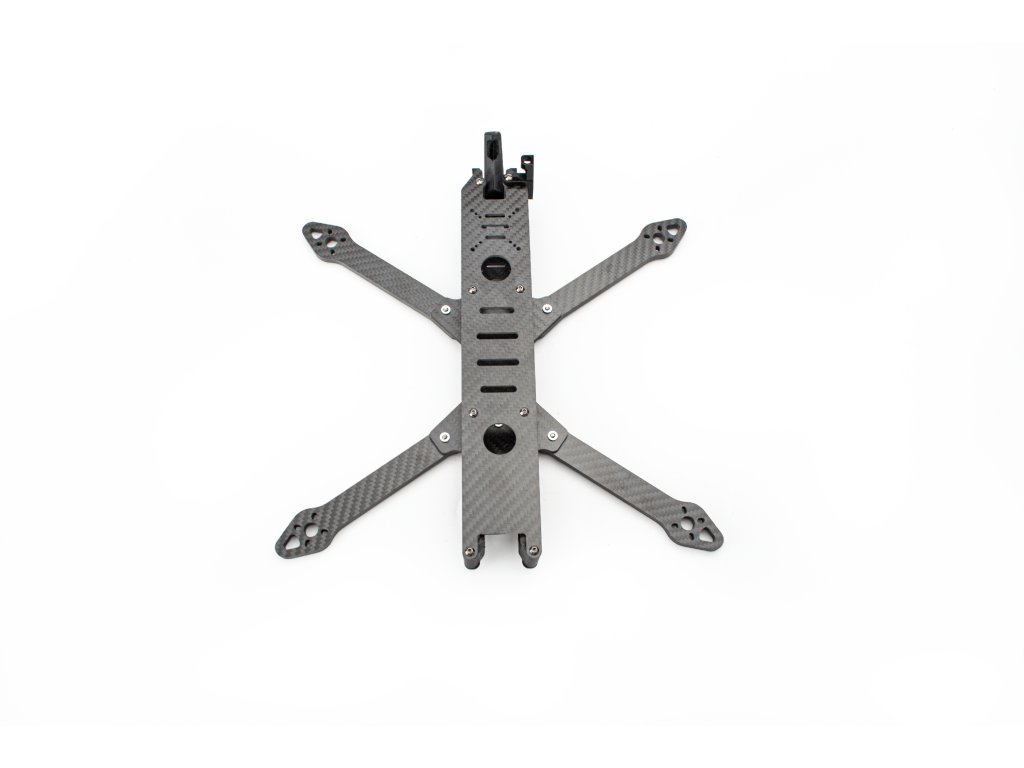

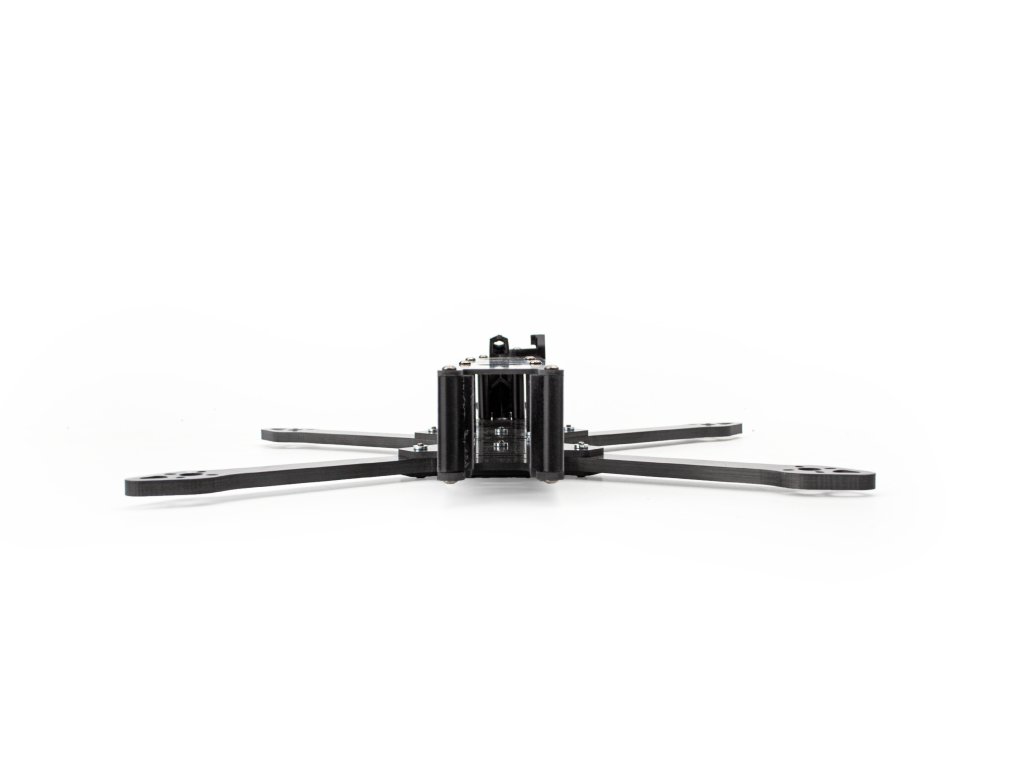

The Partizan Edition PT7 V3 is a 7-inch carbon fiber FPV frame with a well-thought-out geometry. It features a standard 30.5x30.5 mm flight controller mounting pattern, allowing compatibility with a wide range of existing FCs, and supports 19 mm micro cameras. The design ensures stability and minimizes vibrations thanks to strong, well-balanced arms and rigid top and bottom plates. The kit includes all necessary mounting hardware for quick and hassle-free assembly. The frame is designed for use with 6S batteries, powerful motors, and high-output video transmission systems.

Specifications:
Model: PT7 V3
Wheelbase: 320mm
Arm thickness: 6mm
Top plate width: 45mm
Top plate length: 270mm
Top plate thickness: 2mm
Bottom plate width: 45mm
Bottom plate length: 270mm
Bottom plate thickness: 3mm
Camera mounting size: 19mm
Propeller size: 7040
FC mounting holes: 30.5x30.5mm
Compatible motor size: 2807
Width: 284mm
Length: 270mm
Material: Carbon fiber

Recommend Parts:
Flight Control: F405 V4 ICM42688P
ESC: AM32 60A 4in1 ESC
Motor: 2807-1300KV
Camera: Ratel2 Night Version/ Ratel Pro/H1
VTX: 5.8Ghz 2.5W
Receiver: ELRS 915Mhz
Antenna: RHCP SMA 160mm
Propeller: 7040-3 blades
Battery: 6S 8000mah lipo

Package Included:
1x Frame kit Partizan Edition PT7 V3
1x Aluminum column kit
1x Screws kit
1x Nuts kit
1x Prints kit
1x PT Battery pad
2x 7 in Battery strap
