FPV Drone GEPRC Vapor-X5 Analog TBSNanoRX

Product detailed description

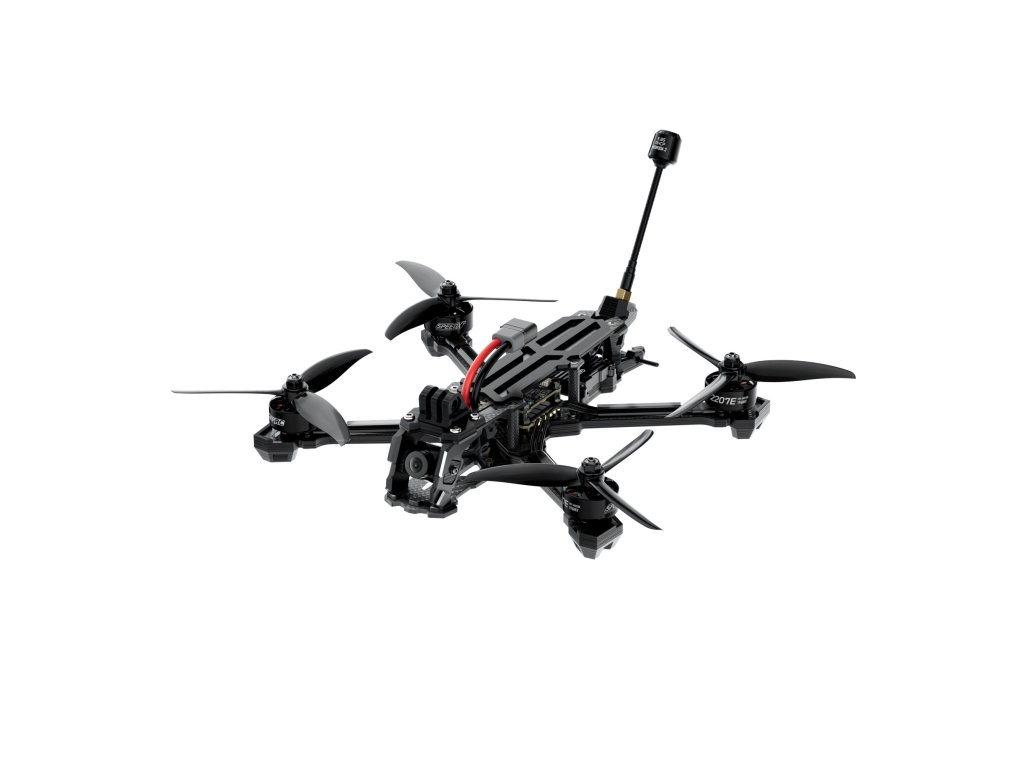

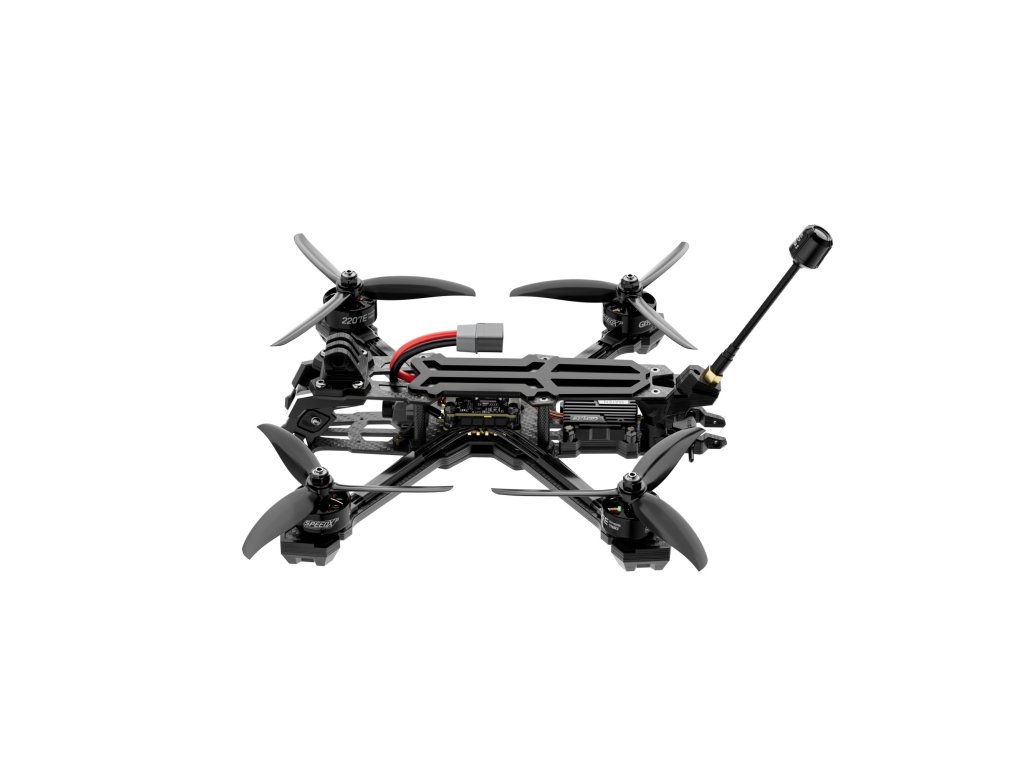

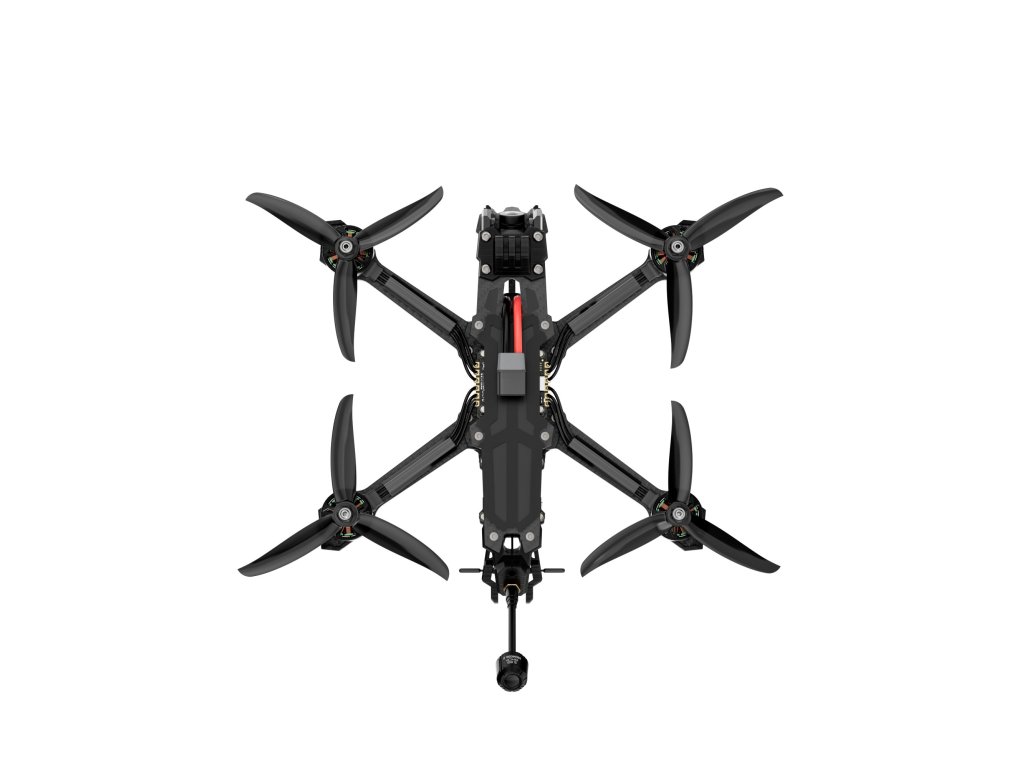

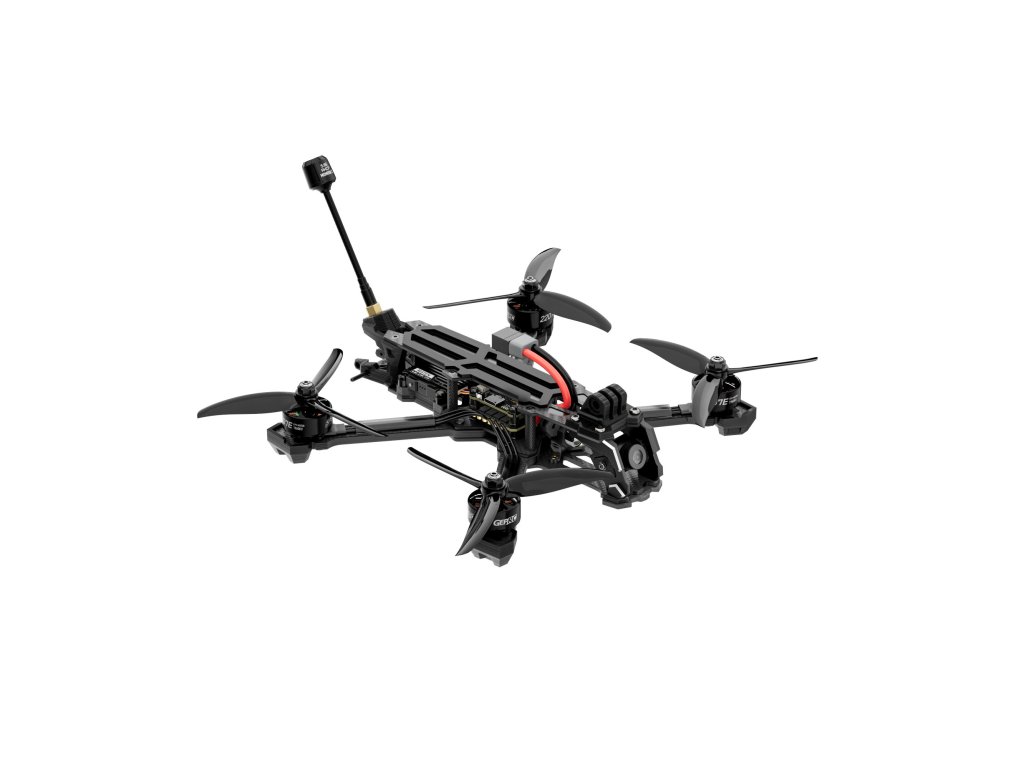

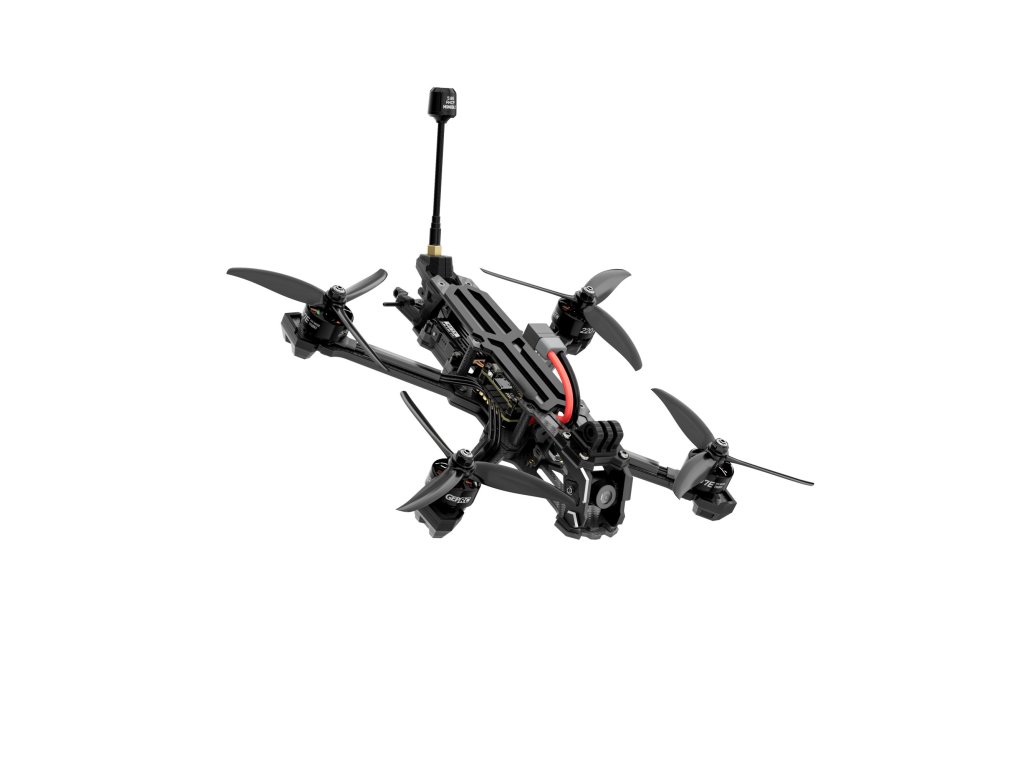

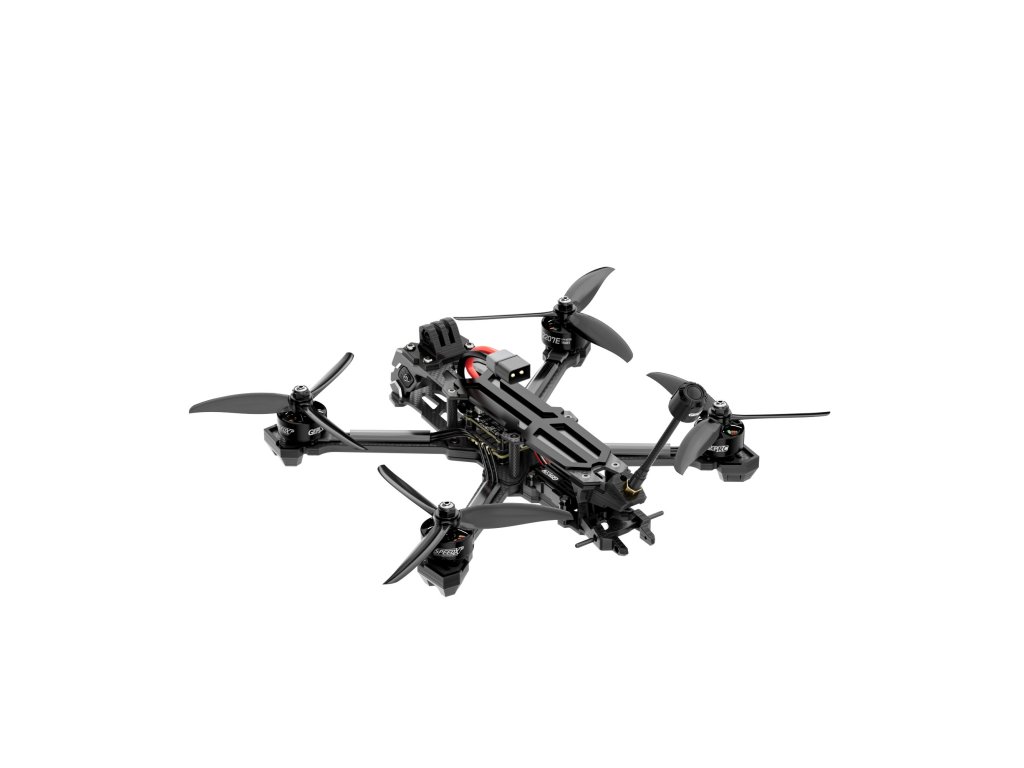

 FPV Drone GEPRC Vapor-X5 Analog TBSNanoRX

The Vapor-X is a robust and agile FPV designed for freestyle flying. The name “Vapor-X” is inspired by the pursuit of freestyle flying and the distinctive wide X-shaped design.
It features the TAKER H60_BLS 60A 4IN1 ESC and the GEP-F722-HD v2 FC, ensuring exceptionally smooth flight performance. The CNC aluminum alloy camera protection side plates enhance both durability and aesthetics.
Available in 5-inch and 6-inch models, catering to various flying preferences, the Vapor-X offers an unparalleled flying experience for every pilot.

Features:
- Equipped with the TAKER H60_BLS 60A 4IN1 ESC and the GEP-F722-HD v2 FC, ensuring exceptionally smooth flight performance.
- Paired with GEPRC SPEEDX2 series motors to deliver robust power for freestyle flying.
- The CNC aluminum alloy camera protection side plates enhance durability and aesthetics.
- The front lens protection design provides reassuring protection for flying.
- The increased width of the 5mm carbon fiber arms enhances frame aesthetics and strength.
- Available in 5-inch and 6-inch models, catering to various flying preferences.

Specifications:

Model: Vapor-X5 Analog
Frame: GEP-Vapor-X5 frame
Wheelbase: 230 mm
Top Plate: 2.0 mm
Middle Plate: 2.0 mm
Bottom Plate: 2.5 mm
Arm Thickness: 5.0 mm
FC: GEP-F722-HD v2
MCU: STM32F722
Gyro: ICM42688-P(SPI)
Barometer: BMP280
OSD: Betaflight OSD w/AT7456E
ESC: TAKER H60_BLS 60A 4IN1 ESC
VTX: MATEN 5.8G 1.6W VTX
Camera: Caddx Ratel2
Antenna: GEPRC Momoda2 5.8G Antenna RHCP SMA 90mm
Connector: XT60
5-inch Motor: GEPRC SPEEDX2 2207E 1960 KV
5-inch Propeller: GEMFAN 5136
Vapor-X5 Analog PNP Version Weight: 409g±5g
Receiver: TBS Nano RX
Recommended Battery: LiPo 1550mAh – 2200mAh
Flight Time: 14-19  min

Package Includes:
1 x Vapor-X5 Analog
2 x GEMFAN 5136
2 x Battery anti-slip pads
1 x Spare screw pack
2 x M20*250mm battery straps
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2.0mm
1 x GoPro mount
