Receiver Cyclone Diversity ELRS868/915MHz with 2 antennas
Code: 4111Product detailed description

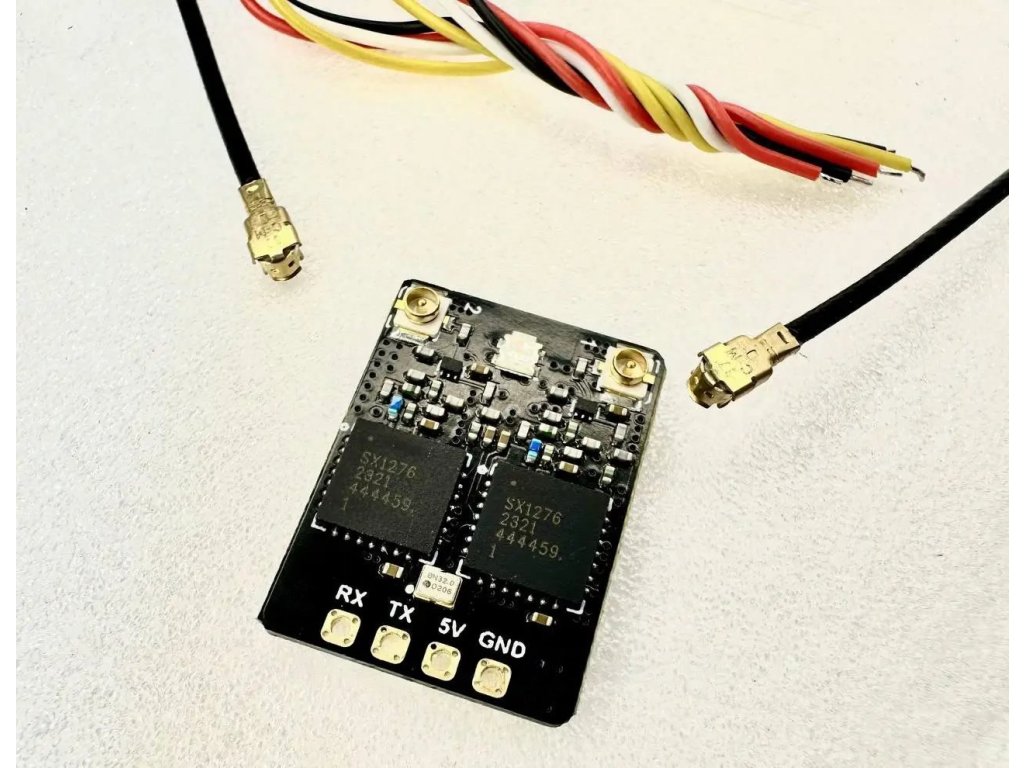

Cyclone ELRS915 diversity with 2 antennas Specifications Model: CYCLONE ELRS 915MHz/868MHz Diversity Receiver Weight without antenna: 1.4g Antenna: IPEX MHF1 + T antenna MCU: ESP32-PICO-D4 RF Chip: Dual SX1276 (915/868MHz) RF Frequency: 915MHz/868MHz Antenna connector: IPEX MHF 1/U.FL Input voltage: +5V DC @ “+” pad Telemetry Power: 100mW / 17dBm (915MHz/868MHz) Serial Output Protocol: CRSF PCB Size: 22mm x 16mm Package includes: 1x Cyclone ELRS915 diversity with 2 antennas
Additional parameters
| Category: | Drone Receivers |
|---|---|
| Weight: | 0.03 kg |
| Protocol: | ELRS 868/915MHz |
| The item has been sold out… | |
