Controller SkyDroid H16 PRO Transmission Telemetry

Product detailed description

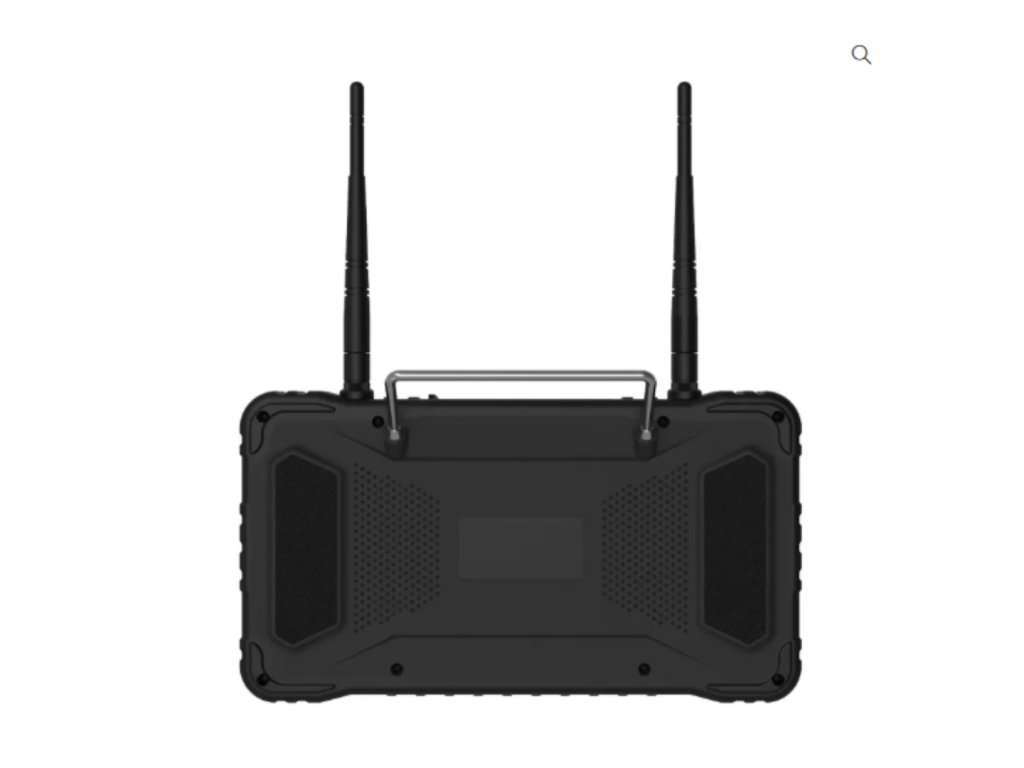

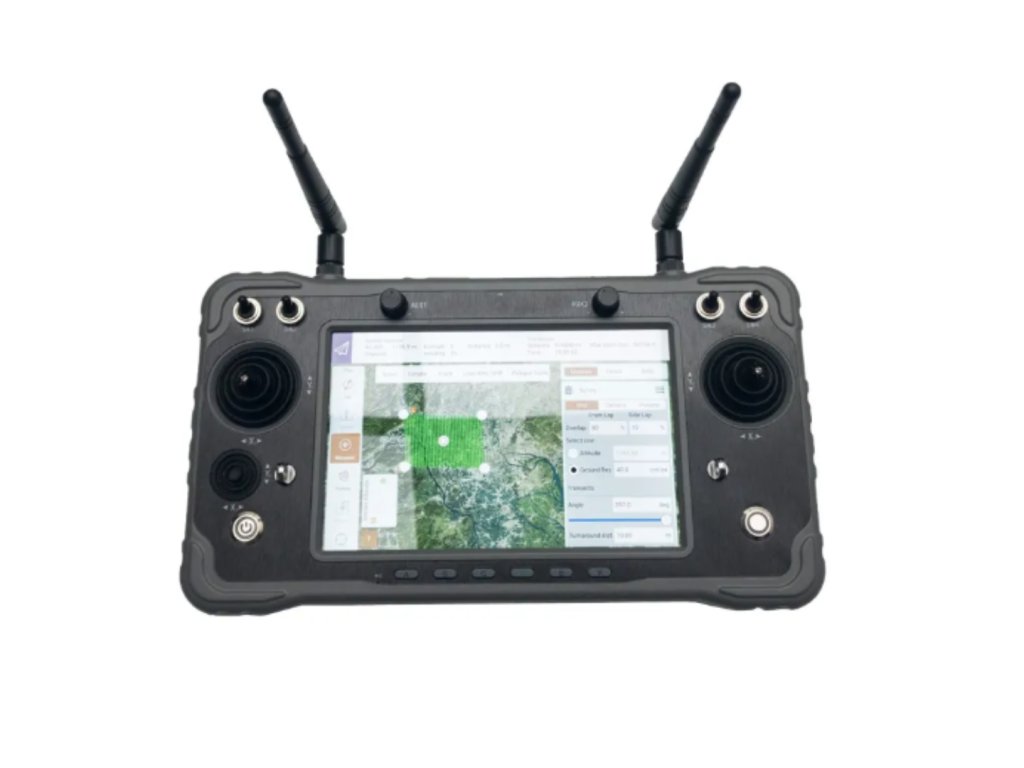

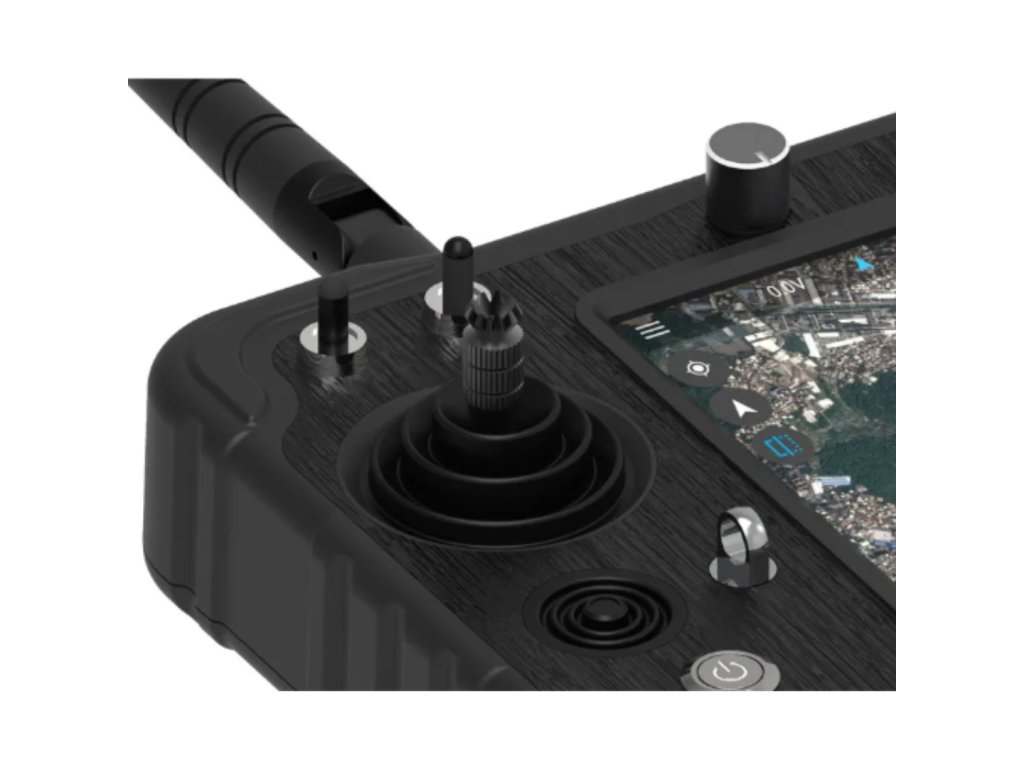

SkyDroid H16 Pro HD Video Transmission System

SkyDroid H16 Pro is an all-in-one drone remote control solution for long-range HD video transmission, which can realize video, data transmission and radio control. Featuring low latency, good anti-interference performance, and a long transmission range. The H16 Pro video transmission system uses the newest surging processor, equipped with an Android embedded system and advanced SDR technology, also with a super protocol stack to make the image clearer, lower latency, longer distance transmission, and stronger anti-interference. Applied for drones, aerial photography, FPV security, fire protection, power, mapping, border control, Robots, industrial controlled equipment, etc.

SkyDroid H16 Pro All-in-one Portable Ground Control Station supports rich interfaces such as HDMI, RJ45, sensor interface, dual serial port pass-through transmission, SBUS, IP67 design, based on waterproof, dust free and drop-resistant materials and structure to ensure its great experience and durability.

H16 Pro Features:

- 7-inch HD highlight display, the sun is still clearly the real-time information display, operators can use it in full sunlight,1080p high-definition digital video transmission.

- Supports rich interfaces such as HDMI, network port, sensor interface, dual serial port transparent transmission, sbus, etc. And supports more cameras, pan-tilts, pods and other video equipment.
- Development kit SDK, supports video suspension, supports the mainstream flight control ground station, supports QGC RTSP video streaming and wireless sharing.

- The use of IP67 grade waterproof, dust-proof and drop-proof materials and structure ensure not only good hand feeling, but also durability.

- High-energy density lithium-ion battery, support for 18w fast charge, full power can work for 8–15 hours, always thinking of wilderness survival equipment reliability give you no care.

- SkyDroid H16 Pro digital data image control three-in-one remote controller can set Chinese, English, Korean and other languages.

- It is compatible with most drones, which can be used for mapping, surveillance and power line inspection, police patrol, search and rescue etc.

H16 PRO remote controller controlling distance is 20km-30km.

Specifications:

Controller Model: H16 Pro
Channels: 16
Working Voltage: 4.2V
RF Power: 20DB@CE / 23DB@FCC
Frequency: 2.400–2.483GHz
Frequency Hopping: Newest FHSS
Update Way: APP Update Online
Weight: 1034g
Size: 272×183×94 mm
Battery: 20000mAh
Endurance: 6–20 hrs
Charging Port: Type-C
Applications: Helicopter, fixed wing, multi-rotor, unmanned vehicle, unmanned boat, etc.

Package Includes:
1x Controller SkyDroid H16 Pro
