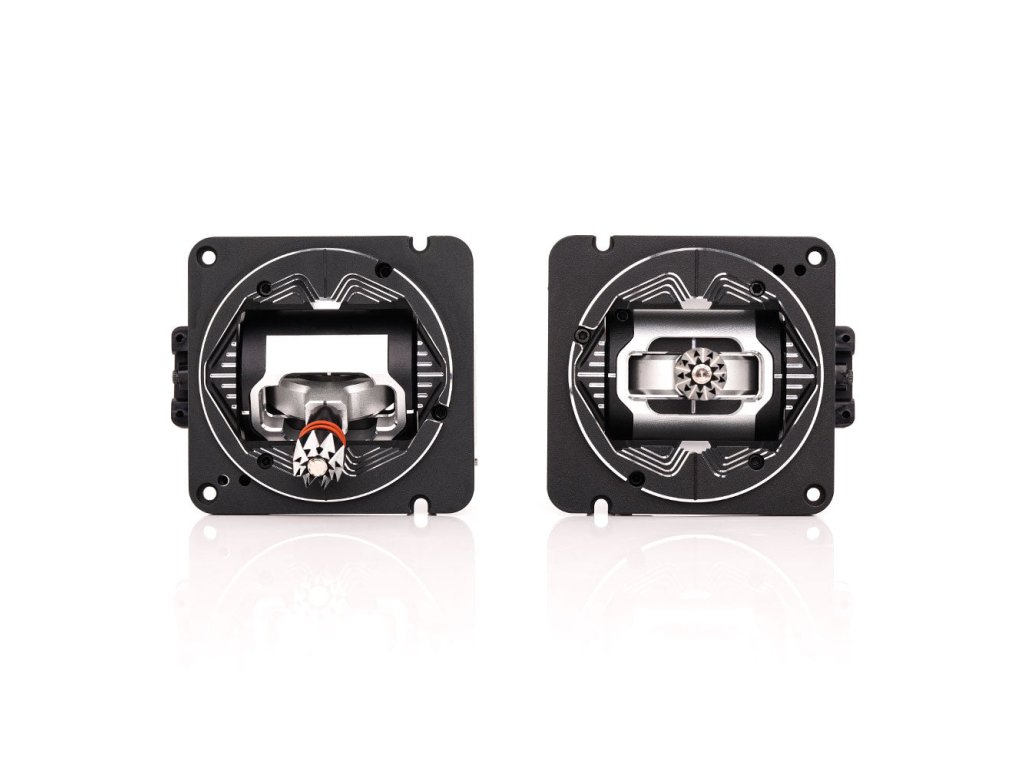

AG01 CNC Hall Gimbal Set RadioMaster
Code: HP0157.AG01-SETProduct detailed description
AG01 CNC Hall Gimbal - Set Made from high-quality aviation-grade aluminum using CNC milling, the AG01 CNC Hall Gimbals offer a smooth and precise feel with quad-ball bearings. The gimbals feature convenient front-accessible tension and travel adjustments for easy fine-tuning, ensuring precise control inputs and accurate centering. Key Features: - Made with CNC processed aviation grade aluminum - Ergonomic stick ends - Non-contact hall sensors, for accurate control inputs and precise centering. - Quad precision bearings, for unparalleled stick feel. Specification: Item: AG01 CNC Hall Gimbal Sets Sensing type: Hall Working voltage: DC 3.3V Linearity: Real-time (No delay) Adjustable travel range: 38°-54° Adjustable mode: Yes Adjustable tension: Yes Quad bearing: Yes Temperature range: -20°c-85°c Size: 60x53x56mm Weight: 125g/pc
Additional parameters
| Category: | RC Accessories |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.125 kg |
Product rating
Be the first who will post an article to this item!
Only registered users may submit ratings. Please log in or sign up.
Discussion
List of discussions
V
Do this have throttle with ratchet?
Val
Do this have throttle with ratchet?
Val
Are this suitable for throttle with ratchet and self center on the other one - fixed wing scale plane application?
Please and thank you!
J
Jakub
Jakub
Hi,
Absolutely! The AG01 gimbals are a perfect fit for fixed-wing scale planes.
One of the best features of the AG01 is that they are fully adjustable from the front. You can easily set one stick to have a ratcheted or smooth throttle by adjusting the straps and keep the other one self-centering. You don't even need to open the radio to switch between these modes or adjust the tension.
