Controller RadioMaster TX16S MKII MAX Joshua Bardwell Edition LBT

Product detailed description

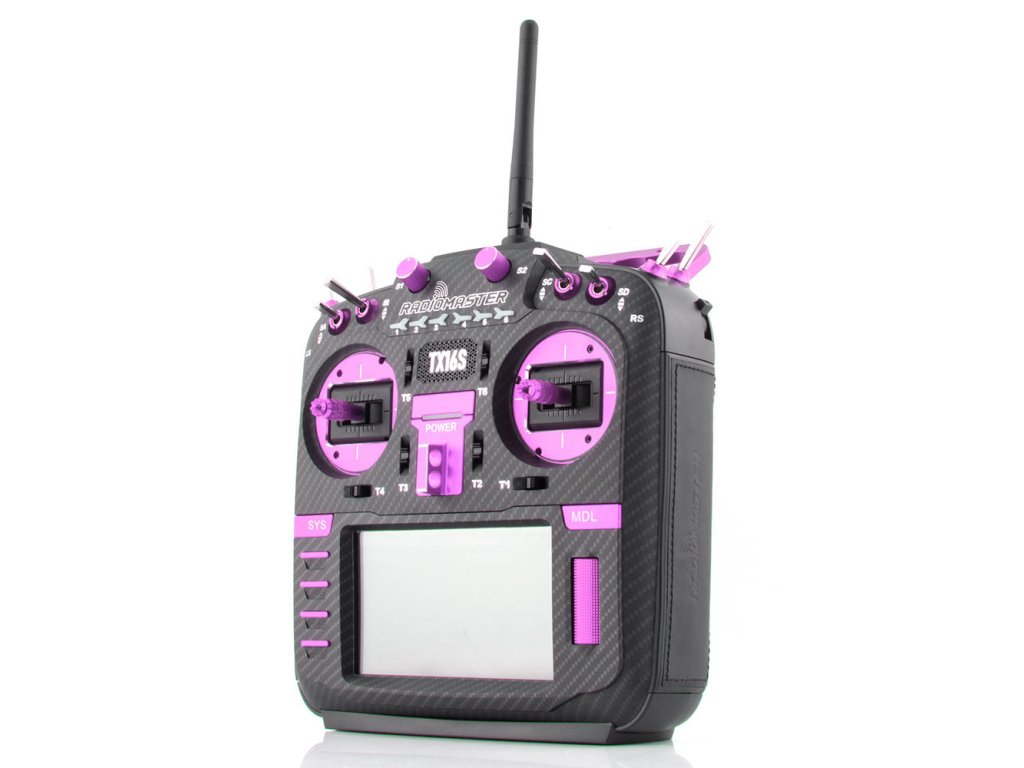

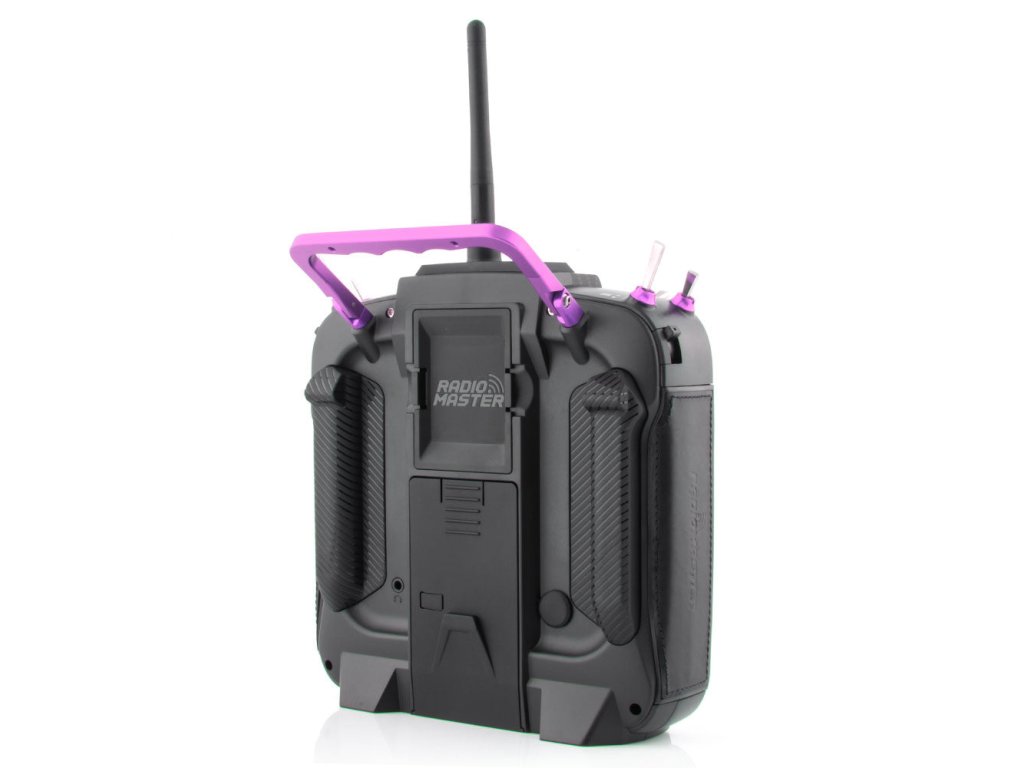

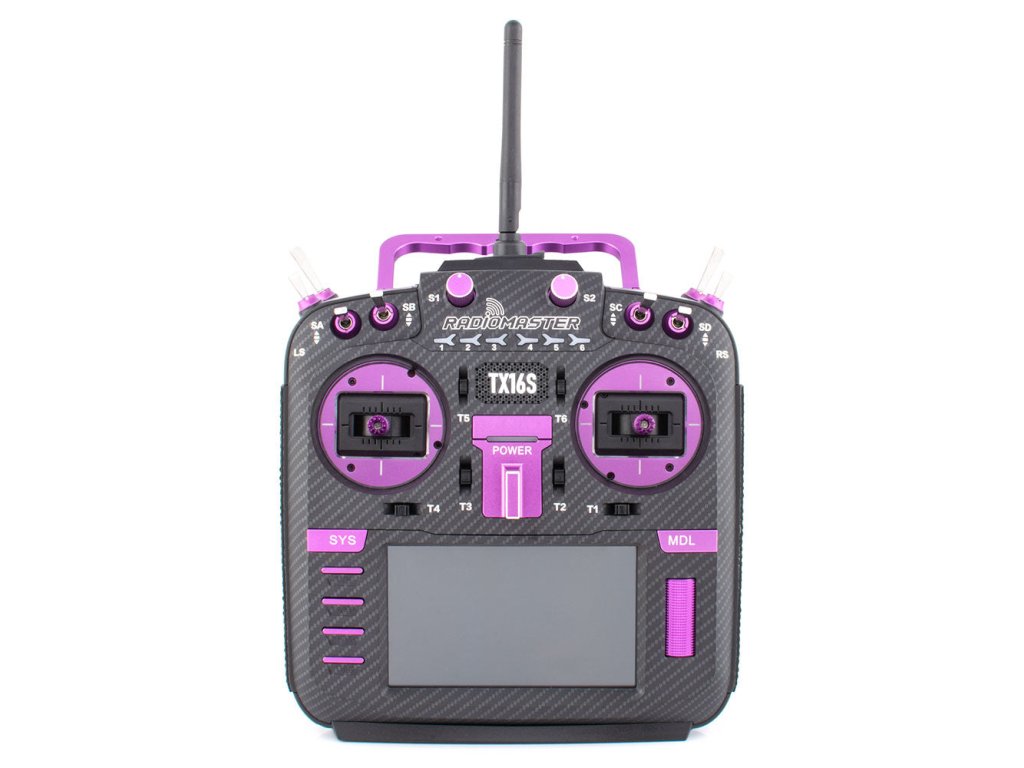

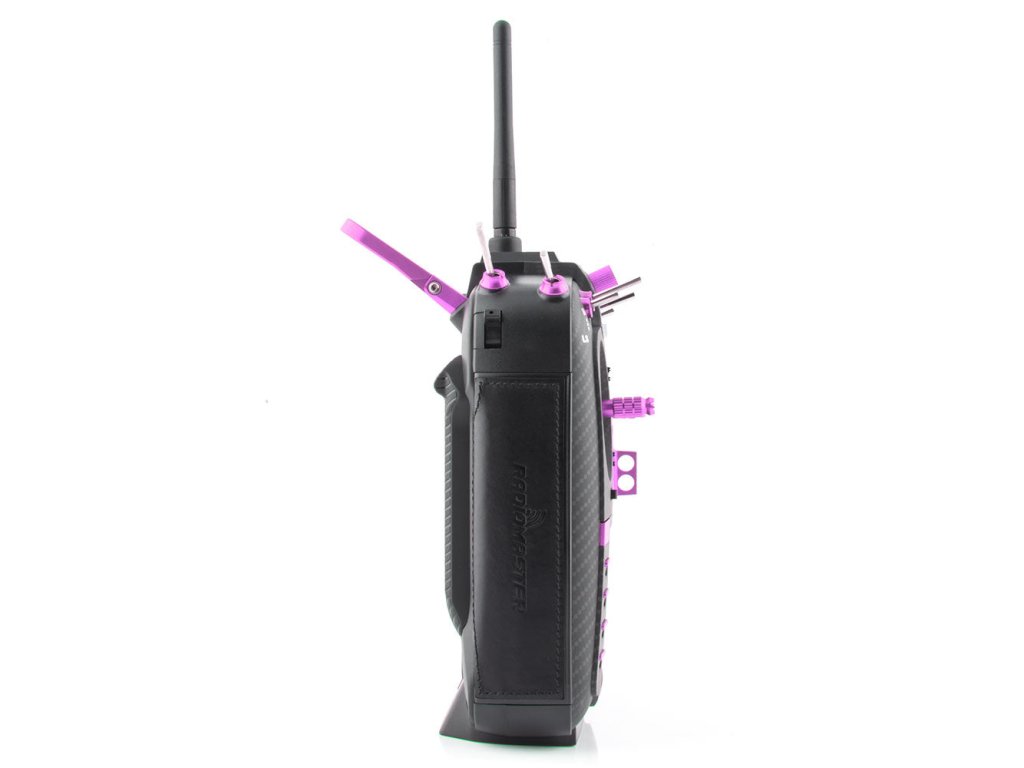

TX16S MKII MAX Joshua Bardwell Edition

Special JB edition in the Carbon and Purple JB color scheme with JB sound pack pre-installed and V4.0 Hall Gimbals. Comes with internal ExpressLRS module.

-Improved internal circuity and optimized power supply.
-New charge circuitry with integrated reverse-polarity protection.
-Optimized charge IC now allows up to 2.2A internal USB-C charge current.
-Rear mounted audio jack provided headphone output.
-V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).
-Optional high/low rear grips included for improved ergonomics.
-Improved S1/S2 knobs with clear centre-detents.
-Improved LS/RS Sliders with smoother feel and better centre-detents.
-Redesigned battery cover for improved battery access.
-Retooled body shell with improved fit and finish.
-Trainer socket changed to standard TRS 3.5mm socket.
-Rear DIY Socket added for personalised mods.
-Improved internal plastics for better longevity.

Item: TX16S Mark II Max Radio Controller (Joshua Bardwell Edition)
Version: ELRS (LBT)
Gimbal: V4.0 Hall Gimbal
Mode: Mode 2
Note: ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

Specification:
Size: 287x129x184mm
Weight: 750g (without battery)
Transmission frequency: 2.400GHz-2.480GHz
Transmitter module:  Internal ELRS (SX1280)
Transmitting power: Internal ELRS: Max 250mw (transmitting power is adjustable)
SD card: 256MB by default, 8GB maximum
Antenna gain: 2db (transmit power adjustable)
Working current: 400mA
Working voltage: 6.6-8.4v DC
Remote control distance:> 2km @ 22dbm
Radio firmware: EdgeTX
Module Firmware: ExpressLRS (ELRS)
Channels: Up to 16 channels (depending on the receiver)
Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
Gimbal: V4.0 Hall sensor with Aluminium fascia
Module Bay: JR compatible module bay
Upgrade method: Supports USB-C online / SD card offline upgrade
