VRX SKYZONE SteadyView X 4.9-5.8G IPS

Product detailed description

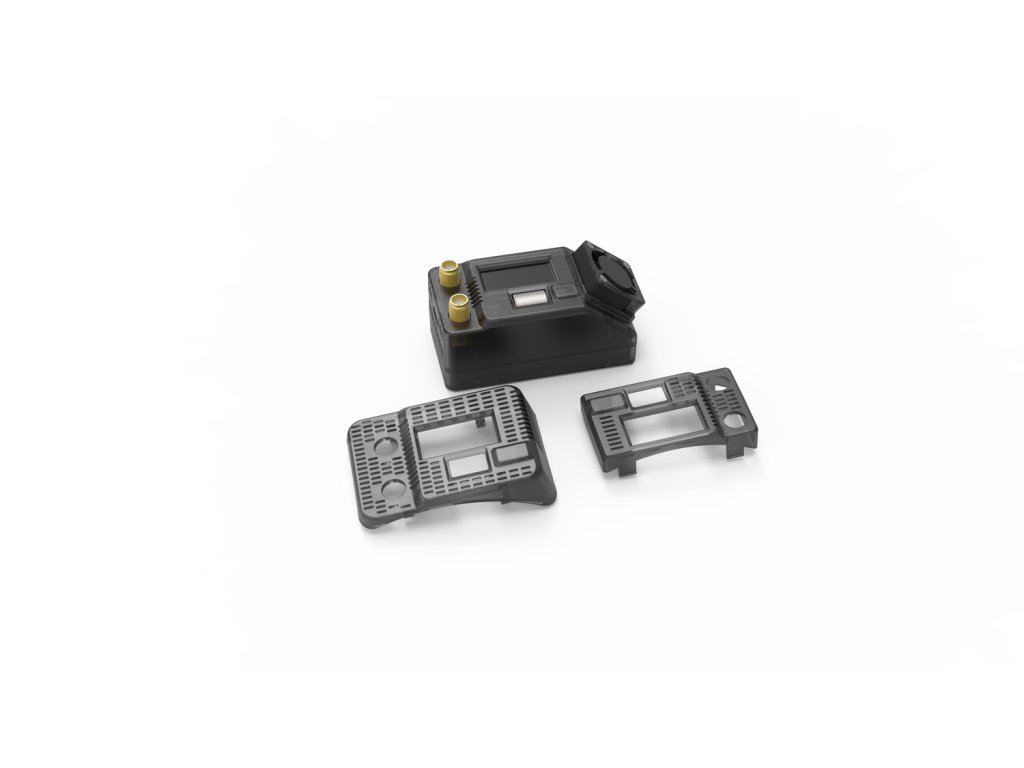

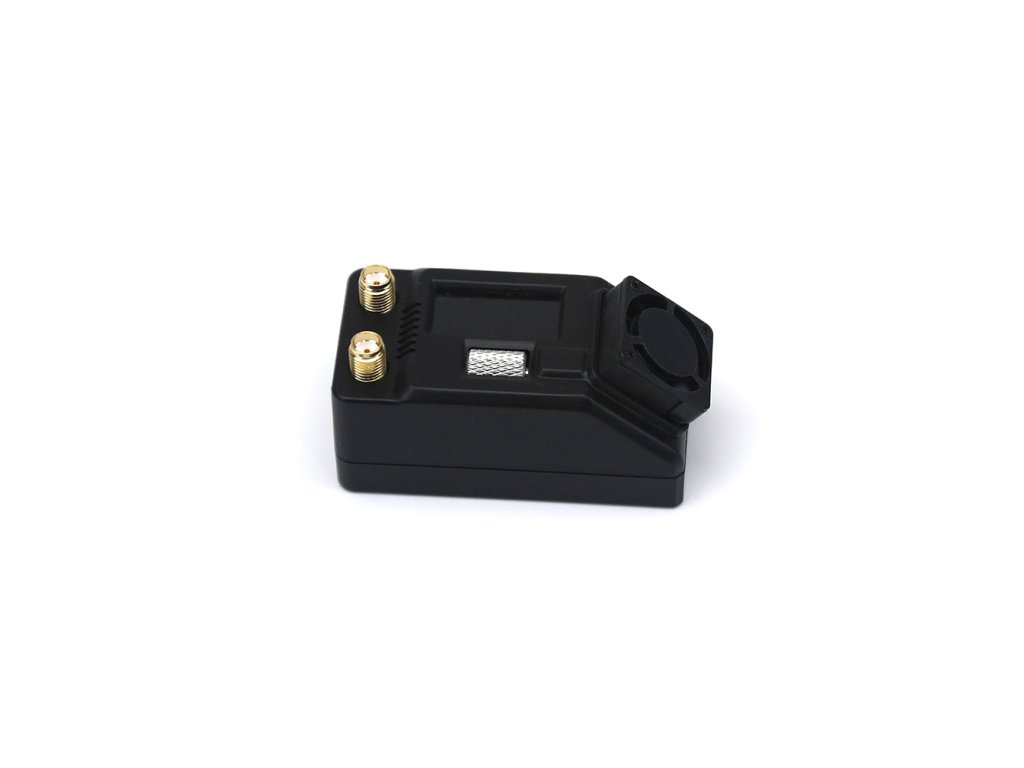

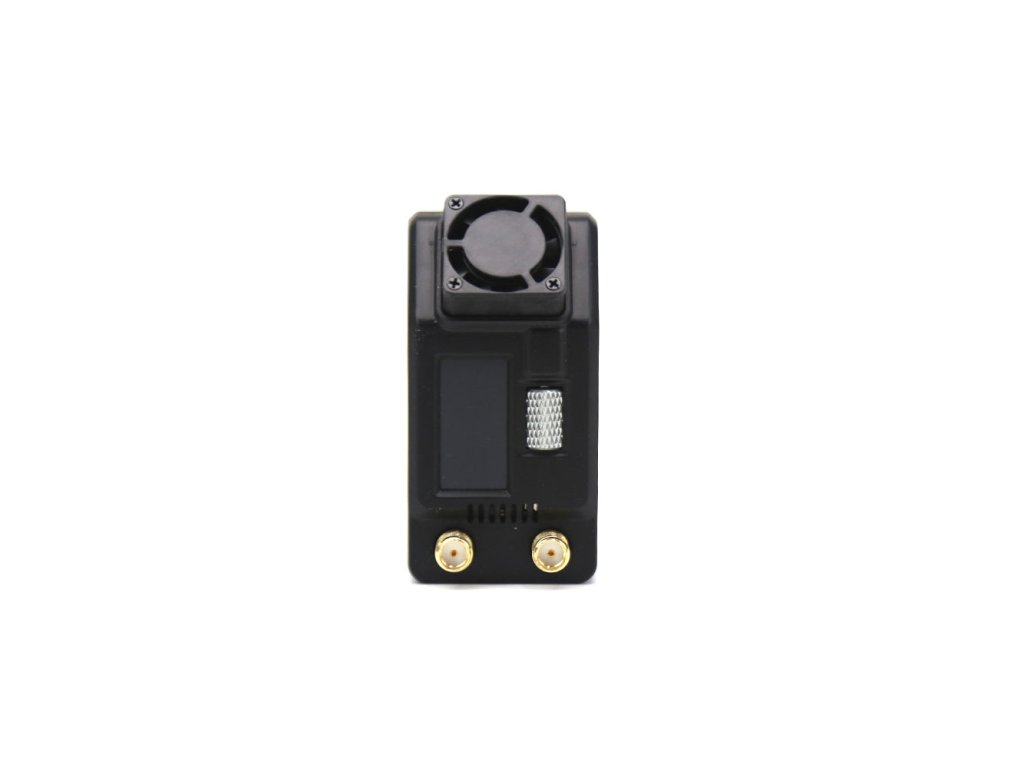

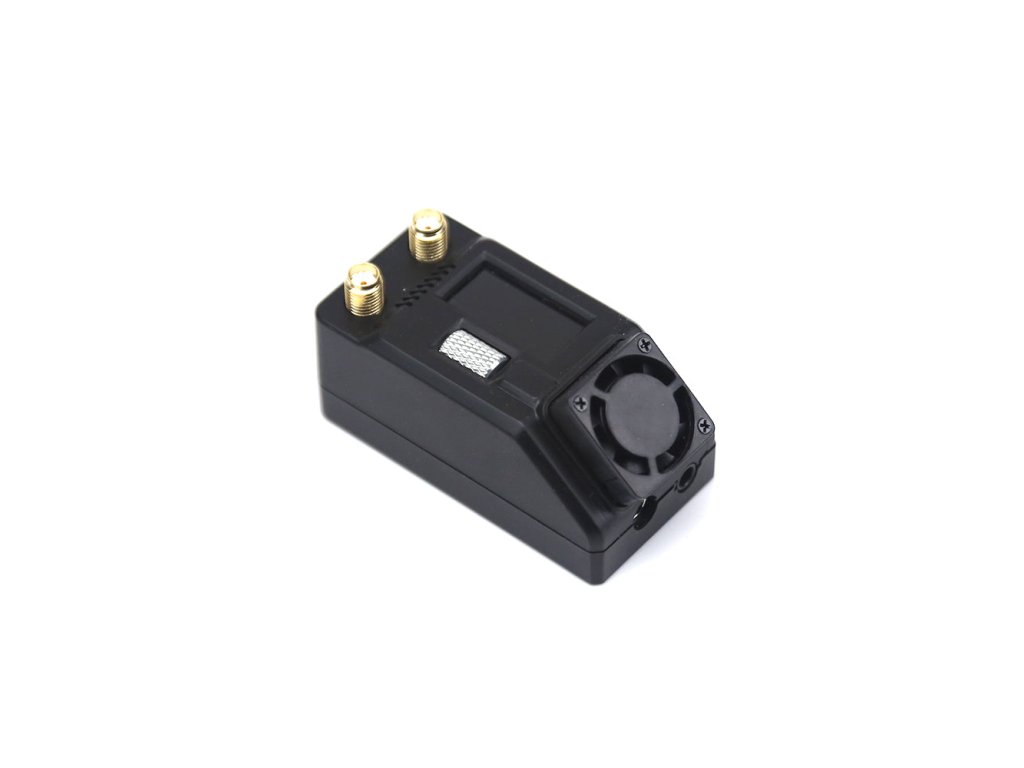

SKYZONE SteadyView X 4.9-5.8G IPS Screen Receiver Module

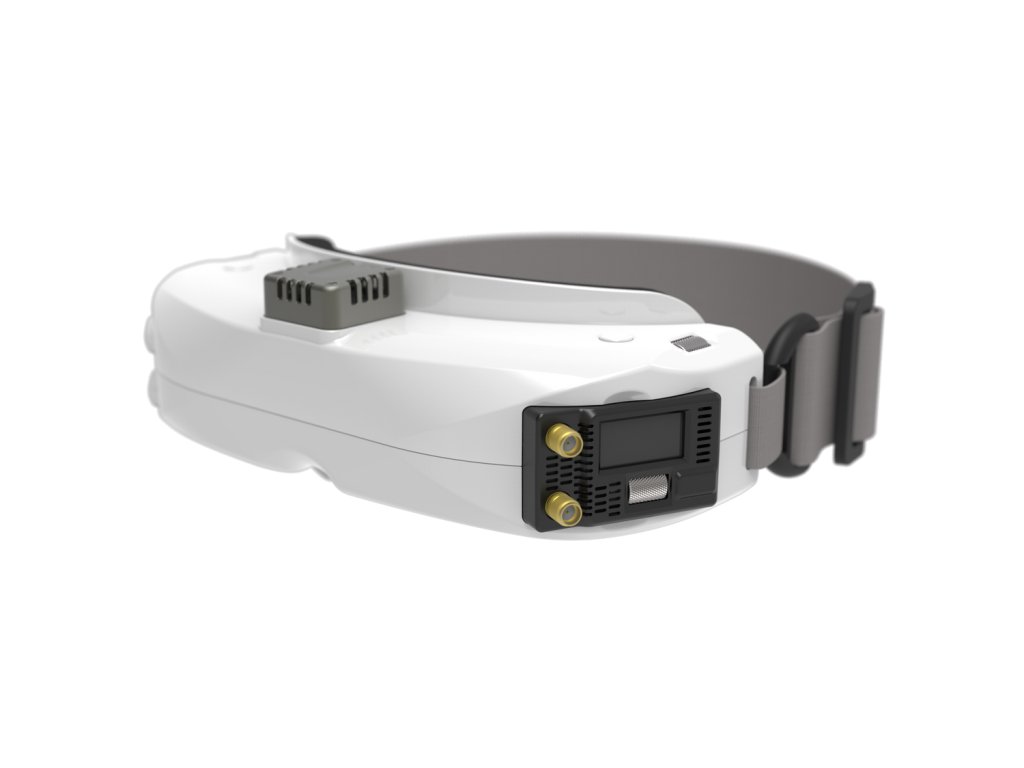

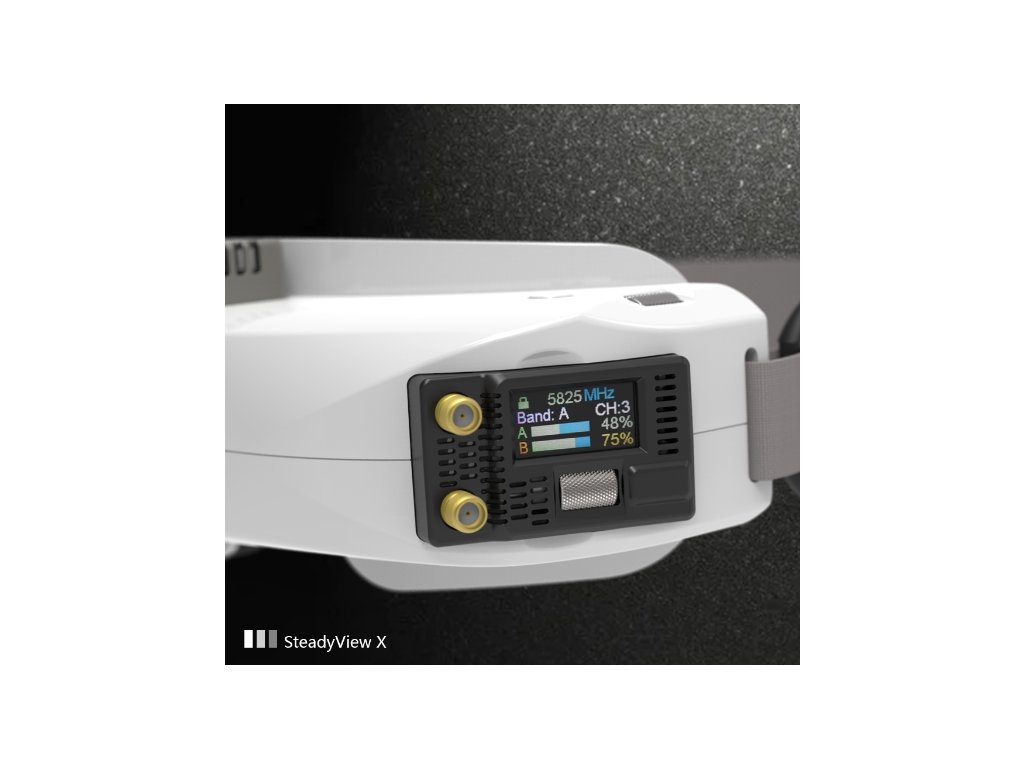

Steadyview X Screen receiver is the upgraded V3.3 version of Steadyview receiver, the receiver merges two signals into one, avoids image tearing and rolling in the multi-path environment, and makes the image more stable and clear in challenging conditions. The RX has an IPS screen and a shuttle wheel to set. The SteadyView X receiver has ground station KIT, user can use it on any monitor or goggles which have an AV IN port. Also, the Steadyview X has an ELRS backpack built-in, the user can use the ELRS TX backpack and Lua script to synchronize the VTX and VRX. It supports diversity.

The "patch antenna" in the kit is RHCP.

Features:
- IPS Screen
- Shuttle Wheel Control
- Ground Station Kit
- USB C
- ELRS backpack integrated

Specifications:
Frequency: 4.9-5.8G
High sensitivity receiver: -98dBm±1dBm
Wild range voltage input: 2-6S lipo
USB C: support firmware update or power on the RX
3.5mm: Video and Audio output
Weight: 250g
Package size: 15*15*8cm

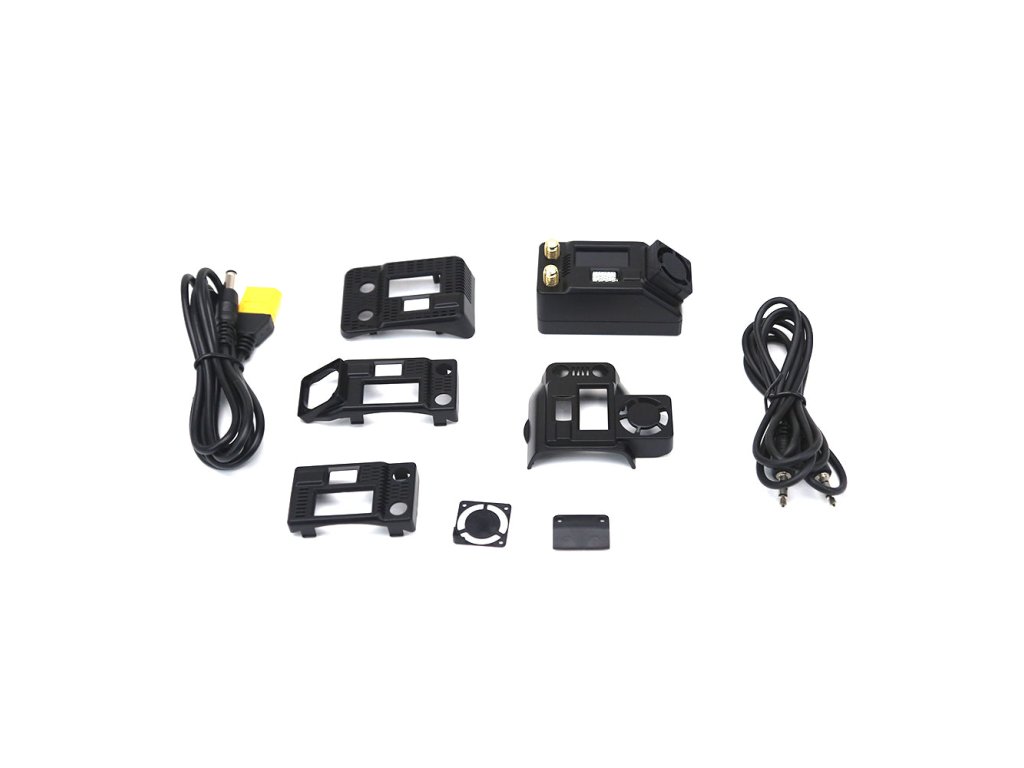

Package includes:
- Steadyview X receiver module

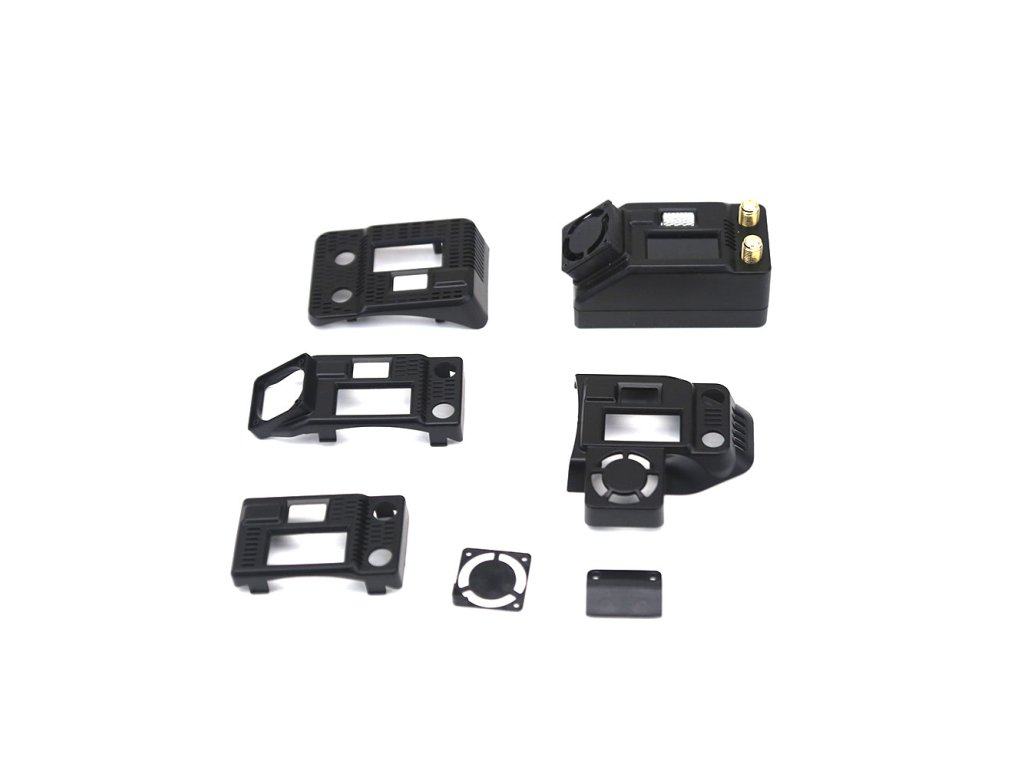

- SKY04/EV300O/COBRA/Fatshark module bay cover
- Ground station KIT
- XT60-Barrel connector power cable
- 3.5mm Video out cable
- 1 patch and 1 omi antenna
