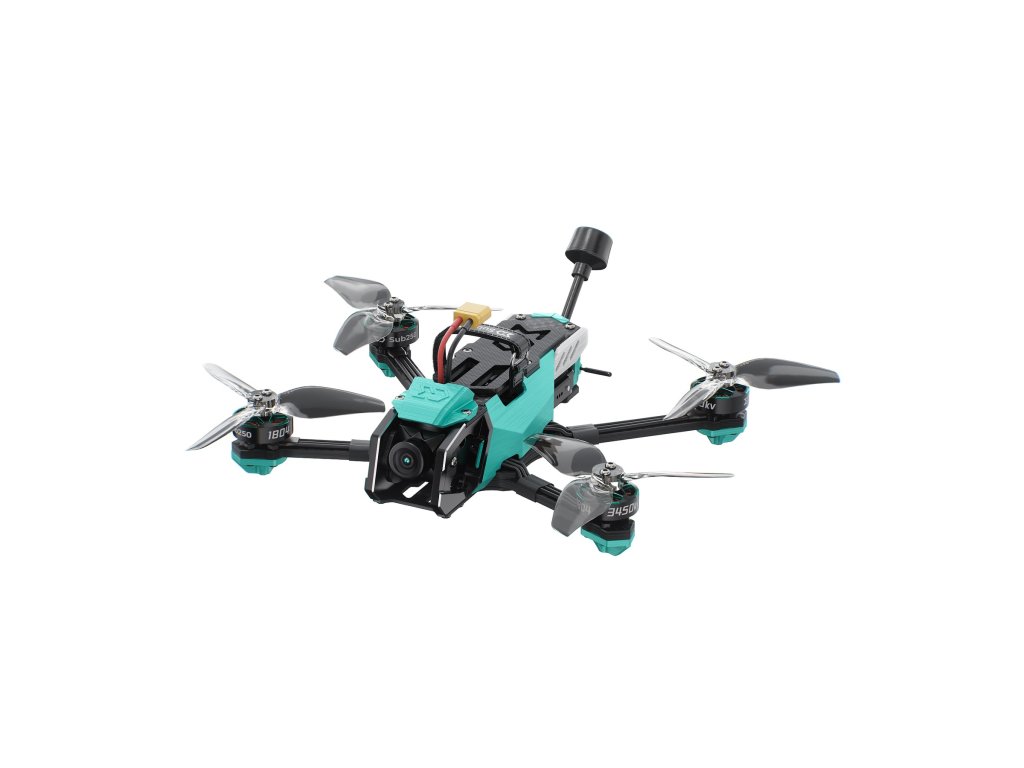

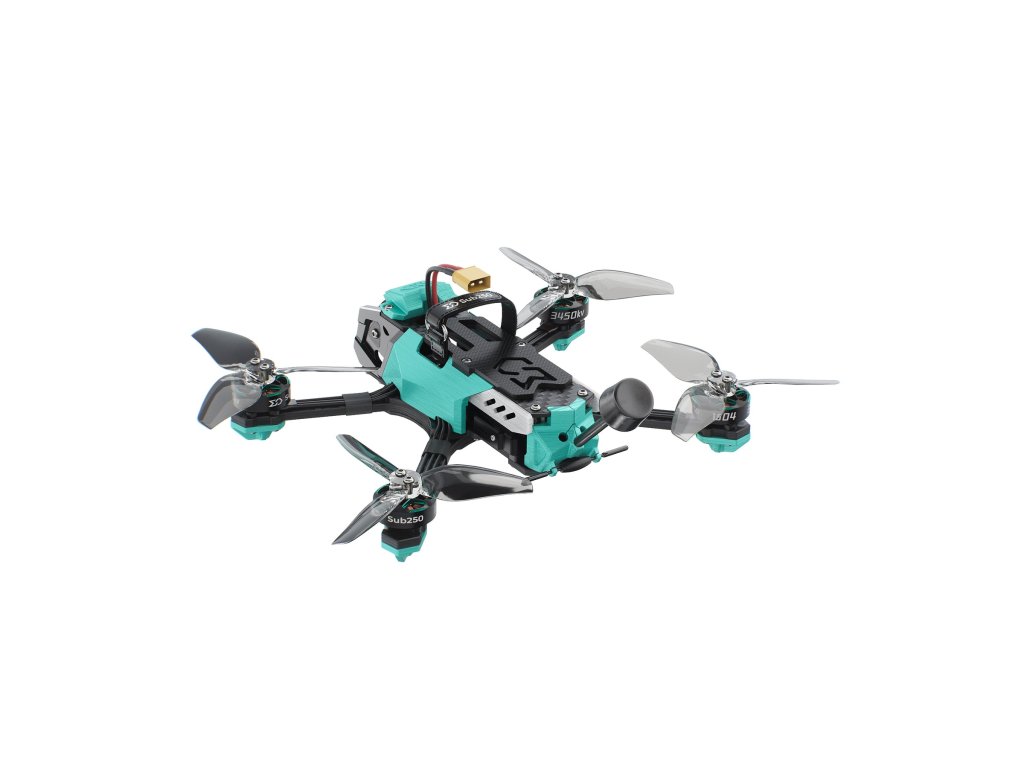

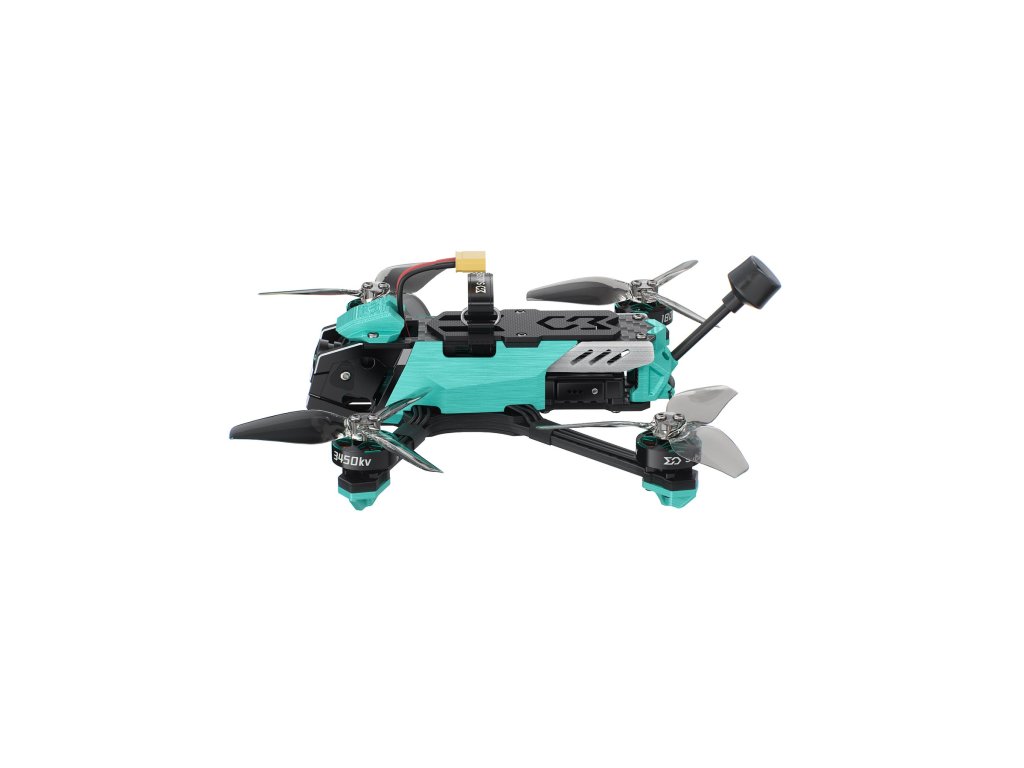

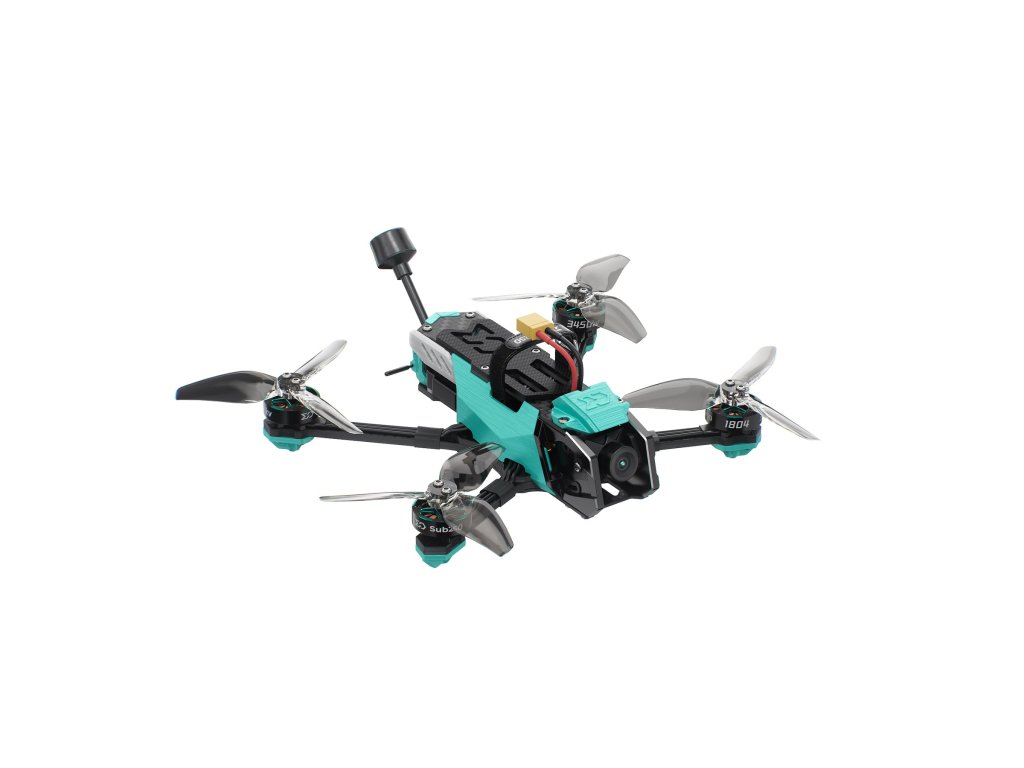

FPV Drone Sub250 OasisFly35 DC Analog ELRS2.4G

The OasisFly35 DC Analog brings clean DC-frame visuals, strong 1804 power, and Sub250’s signature durability into a compact, analog-optimized platform. With multi-VTX compatibility, mecha-style side-plate protection, and standard GPS for safer long-range flights, it delivers a reliable and immersive FPV experience right out of the box. Perfect for pilots who prefer classic analog response with modern design strength.

Features:
- Pure analog FPV performance
Equipped with the Sub250 Send T1600 VTX, Momoda MMCX antenna, and Caddx H1 camera for a stable, classic analog video feed.
- DC frame for unobstructed visuals
Front-tilted DC layout removes props from the camera view, giving cleaner footage even in analog.
- Integrated mecha-style side plates
Printed side plates protect internal electronics, improve airflow, and enhance aerodynamics during fast maneuvers.
- 7-series aluminum camera mount
CNC-machined aluminum provides maximum strength, keeping the analog camera safe during impacts.
- High-thrust power system
1804 3450KV motors and a 45A AIO ESC deliver strong acceleration, precise low-altitude control, and confident freestyle dives.
- GPS included on all versions
SUB-M10 GPS enables GPS Rescue and safer flights in complex environments.
- Multi-VTX ready
Supports Analog / O3 / O4 Pro, giving you complete freedom to switch systems in the future.
- Sub-250g takeoff weight
Only 239 g with a 4S 530mAh battery — compliant, efficient, and long-lasting with up to 7 minutes of flight.
- Built-in ELRS 2.4GHz receiver for ultra-responsive control and long-range signal stability

Specification:
Model: Oasisfly35 DC Analog Version
Wheelbase: 175mm
Arm Thickness: 3.5mm
Bottom Plate: 1.5mm
Mid Plate: 2.5mm
Top Plate: 2.0 mm
Motor Mounting Pattern: 9x9mm / 12x12mm
VTX: Sub250 Send T1600
VTX Antenna: Momoda-MMCX90
Camera: Caddx H1
Motor: 1804  3450KV
FC: Redfox A3 45A AIO
ESC Firmware: BLHeli_32
MCU： STM32F722
IMU：ICM42688-P
Propeller: HQ 3.5x3.5x3
Receiver: ELRS 2.4GHz
GPS: SUB-M10
Recommended Battery: 4S 530mAh
Power Connector: XT30
Body Weight:188g
Takeoff Weight:239g
Max Flight Time:7Min
FC Firmware & Betaflight_4.5.2-SUB250REDFOXF722AIO

Package Include:
1x FPV Drone Sub250 OasisFly35 DC Analog ELRS2.4G
