FPV DIY Kit Pilotix Rocky 5 Yellow Prop

Product detailed description

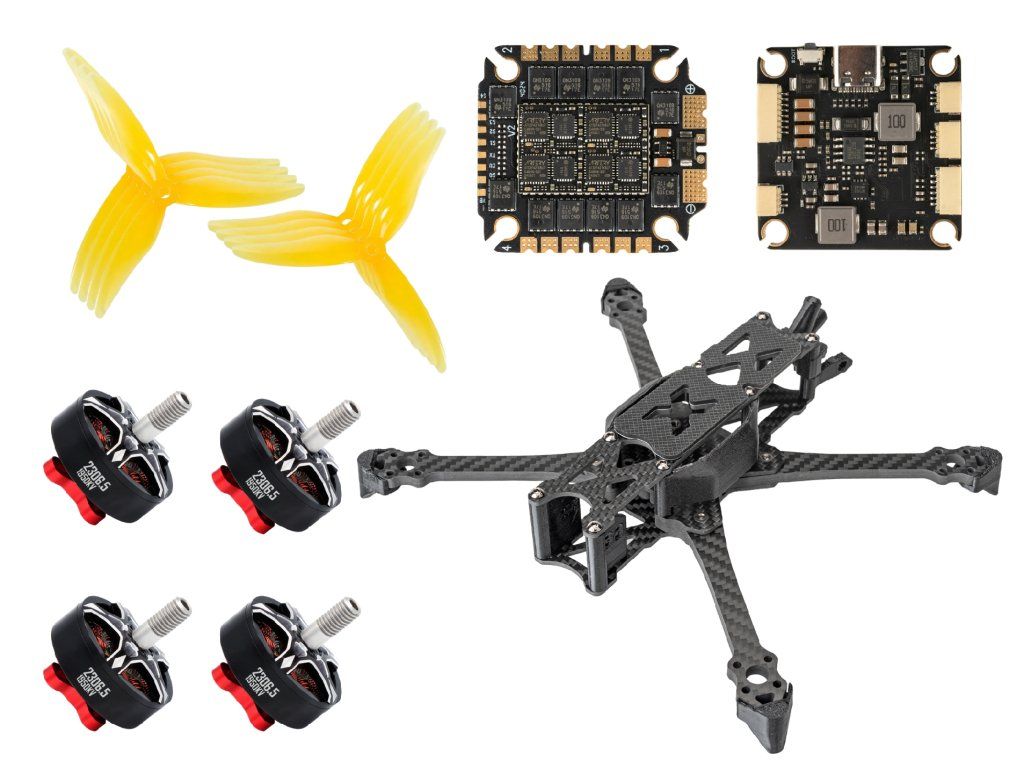

FPV DIY Kit Pilotix Rocky 5

Build your own 5-inch FPV drone with this DIY kit based on compatible Pilotix components selected for a straightforward and efficient assembly. The set is designed for freestyle and racing use, combining a durable frame, responsive motors, and a stable flight stack for predictable handling and consistent performance. Standard mounting and a well-organized layout simplify the build process and leave room for customization and future upgrades. Choose propeller colors that match your style or mood, giving your drone a unique appearance that reflects your personality while flying.

Please note: VTX, FPV camera, receiver, and battery are not included and must be purchased separately.

Features:

- DIY kit for building a 5" FPV drone
- Durable frame with 5 mm arms for improved crash resistance
- High-efficiency motors for freestyle and racing performance
- F405 flight controller with 55A ESC for stable and responsive power delivery
- Compatible with a wide range of modern FPV components
- Balanced setup for smooth and controlled flight

Specifications:

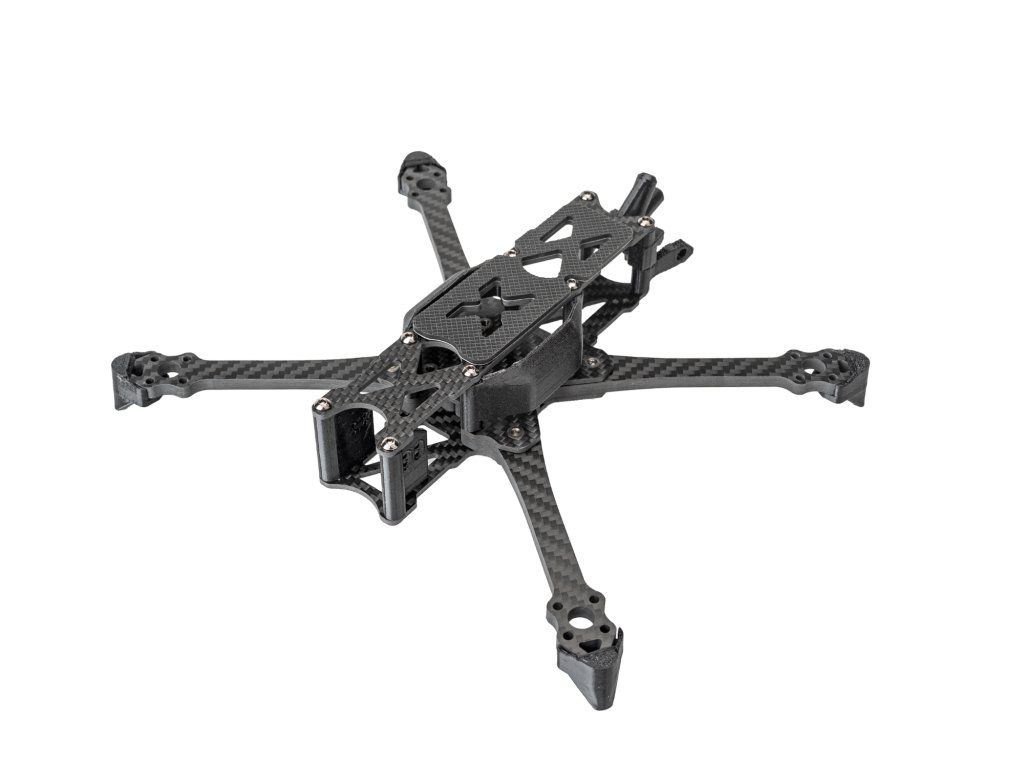

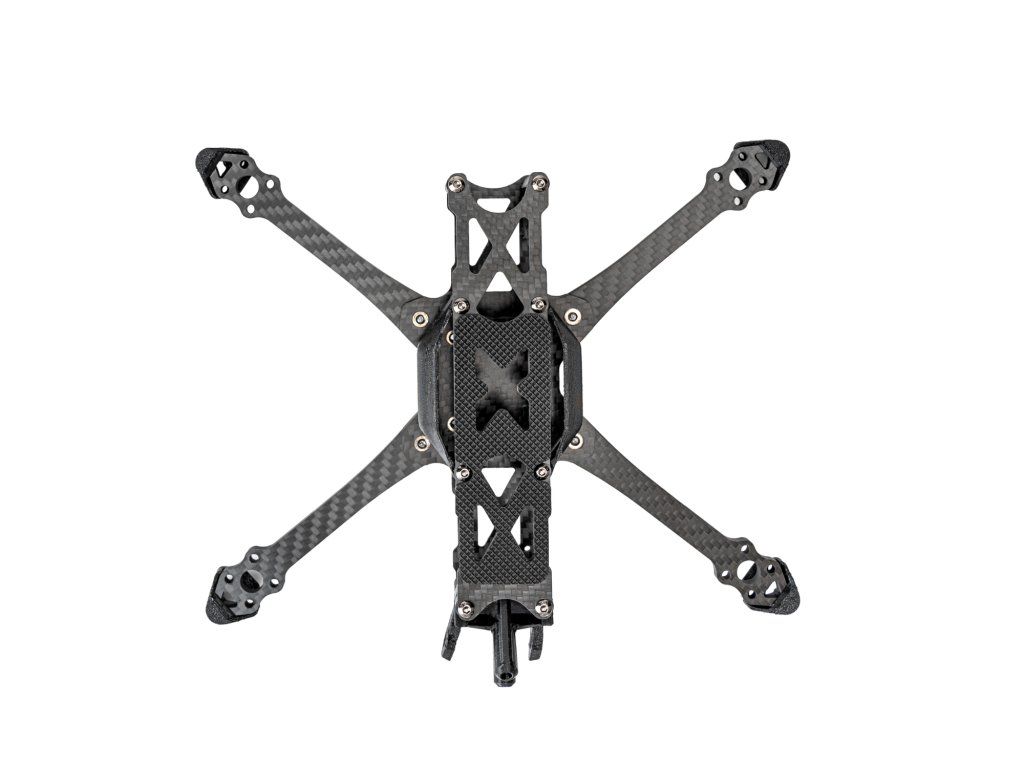

Frame: Pilotix Rocky5
Type: 5" FPV Frame
Wheelbase: 225mm
Arm Thickness: 5mm
Stack Mounting: 20x20mm / 30.5x30.5mm
VTX Mounting: 20x20mm / 25.5x25.5mm
Camera Mounting: 19–20mm
Weight: 112.5g

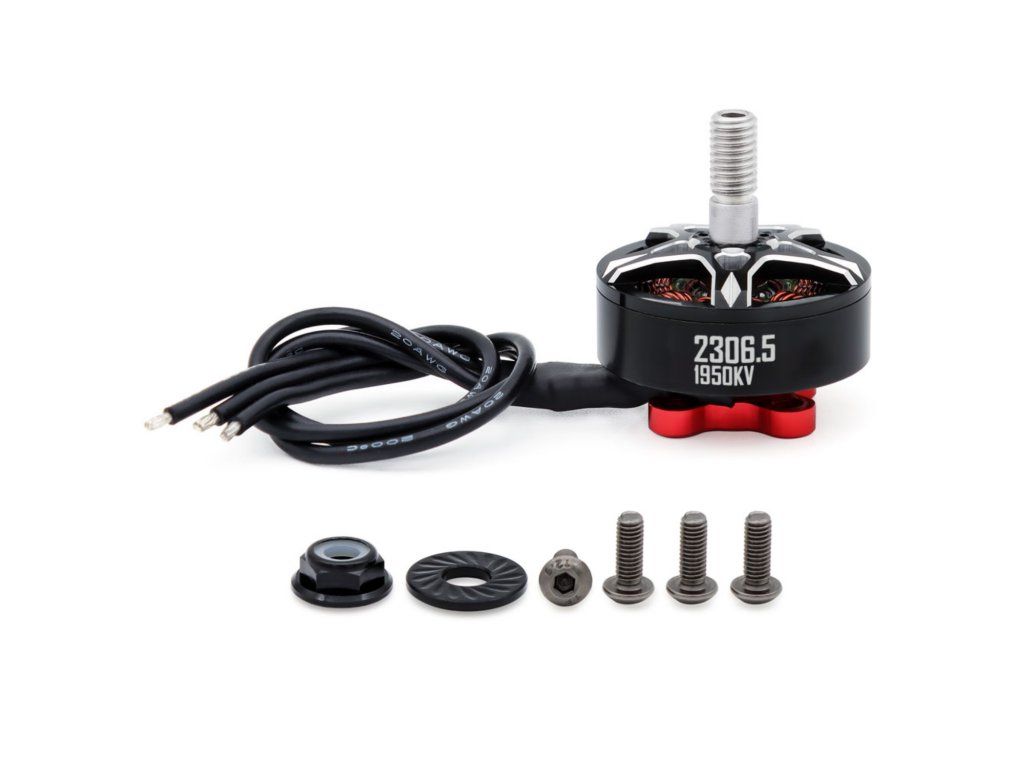

Motors: Pilotix 2306.5 1950KV
KV: 1950KV
Max Thrust: 1325 g
Max Current: 43.81 A
Weight: 32.7 g

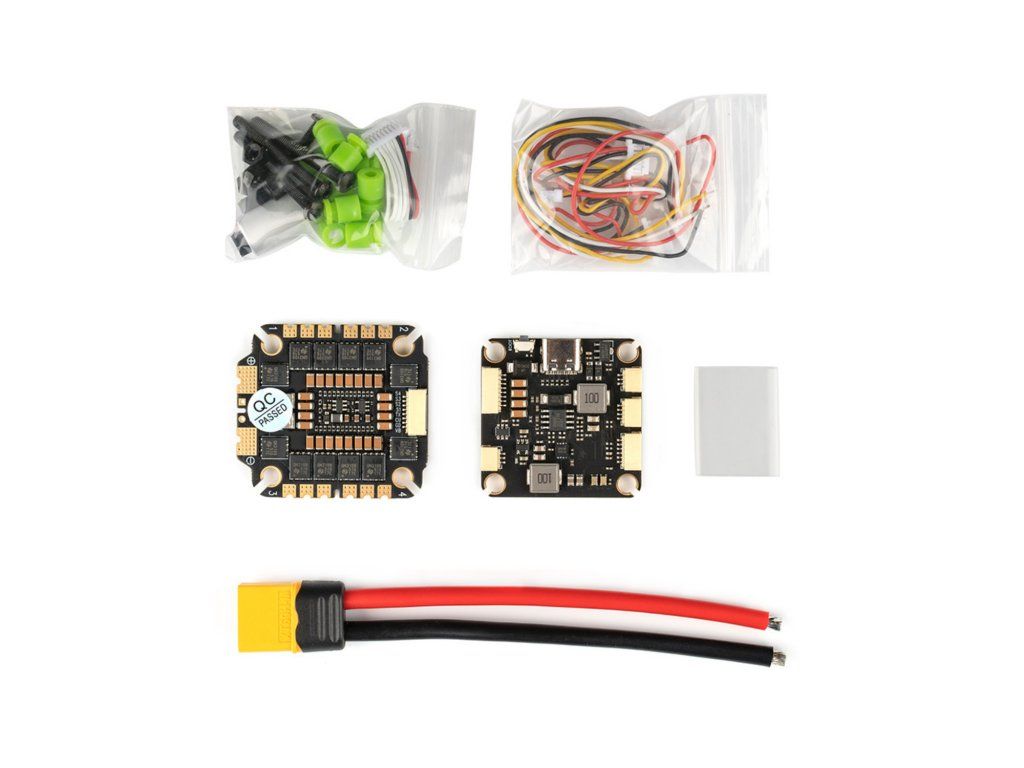

Stack: Pilotix F405 V4 + 55A ESC
Input Voltage: 3–8S
ESC Current: 55A (60A burst)
Gyroscope: ICM42688
Blackbox: 16MB
Mounting: 30.5x30.5mm

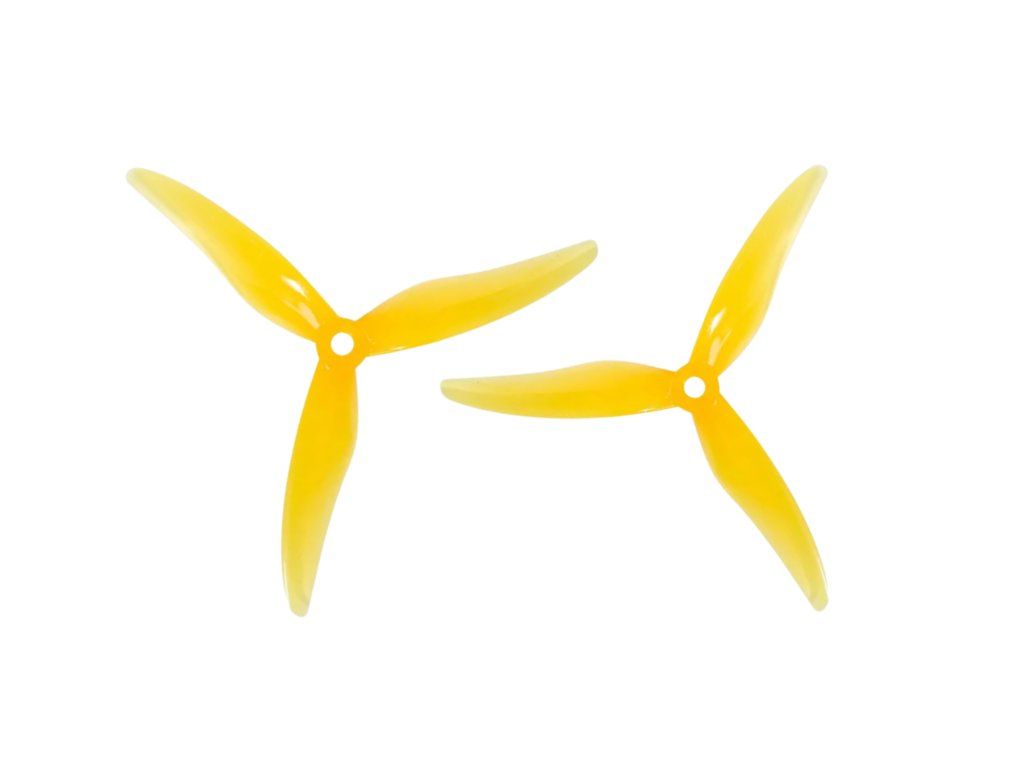

Propellers: Gemfan Hurricane 51477-3
Diameter: 5"
Pitch: 3.7"
Material: Polycarbonate
Color: Yellow

Package Includes:

1 x Frame Pilotix Rocky5
1 x Stack Pilotix F405 V4 ICM3055 AM32 55A
4 x Motors Pilotix 2306.5 1950KV
4CCW x Propellers Gemfan Hurricane 51477-3 Yellow
4CW x Propellers Gemfan Hurricane 51477-3 Yellow
