ESC T-Motor Flame 180A 12S Multirotor UAVs

Product detailed description

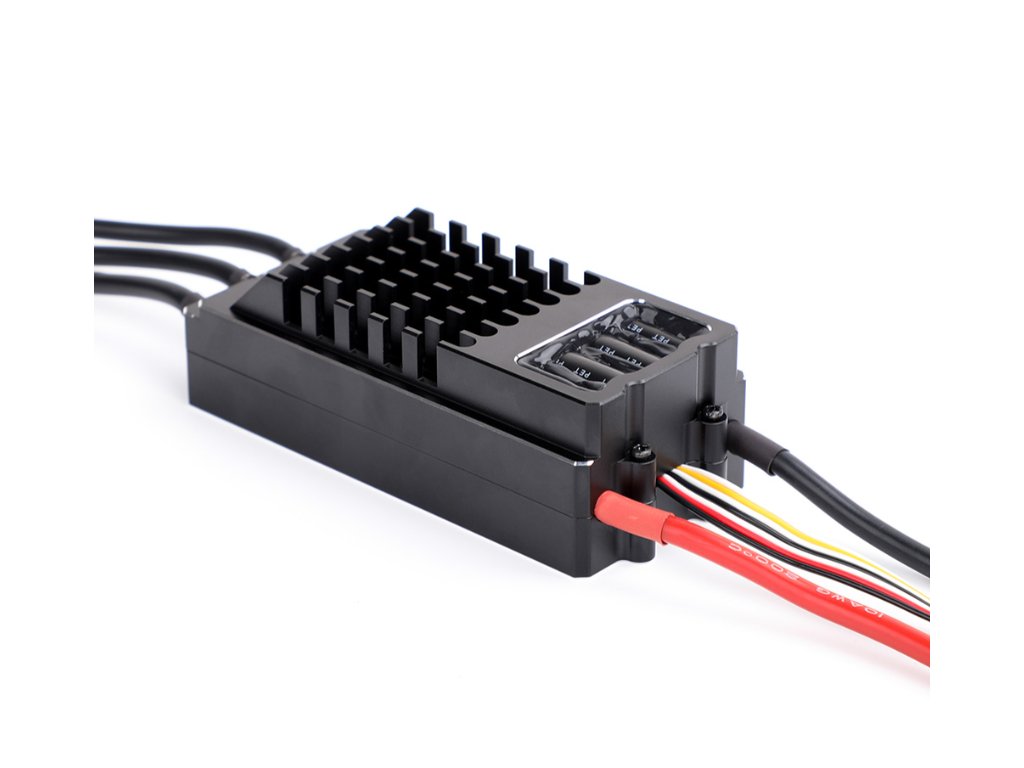

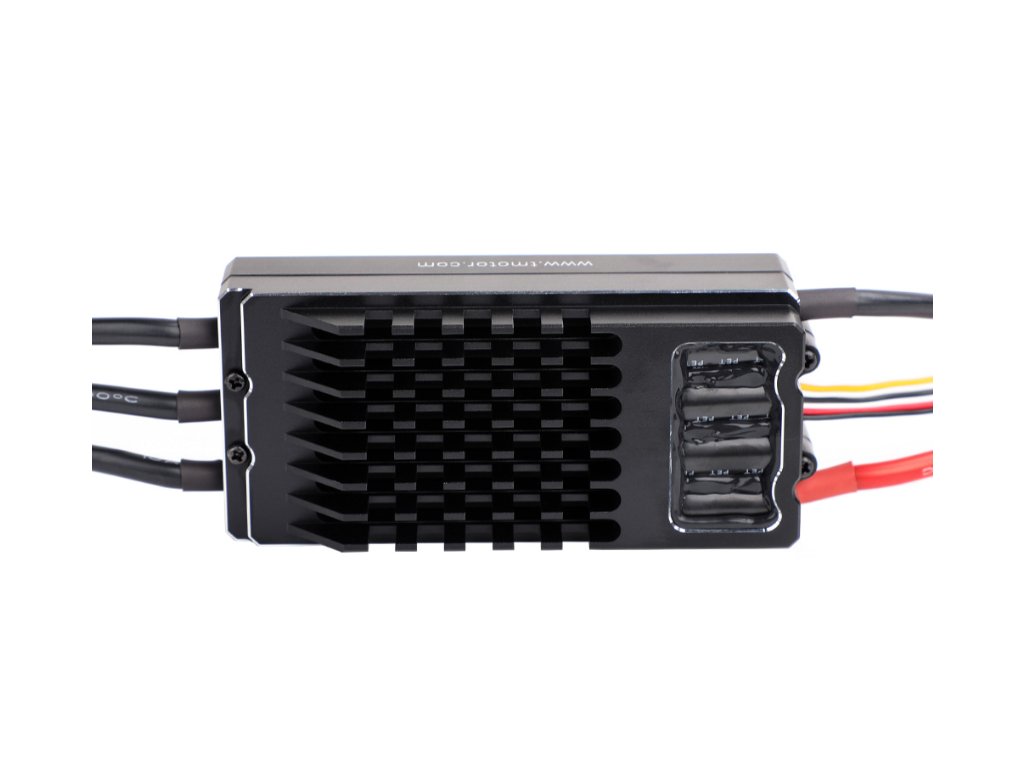

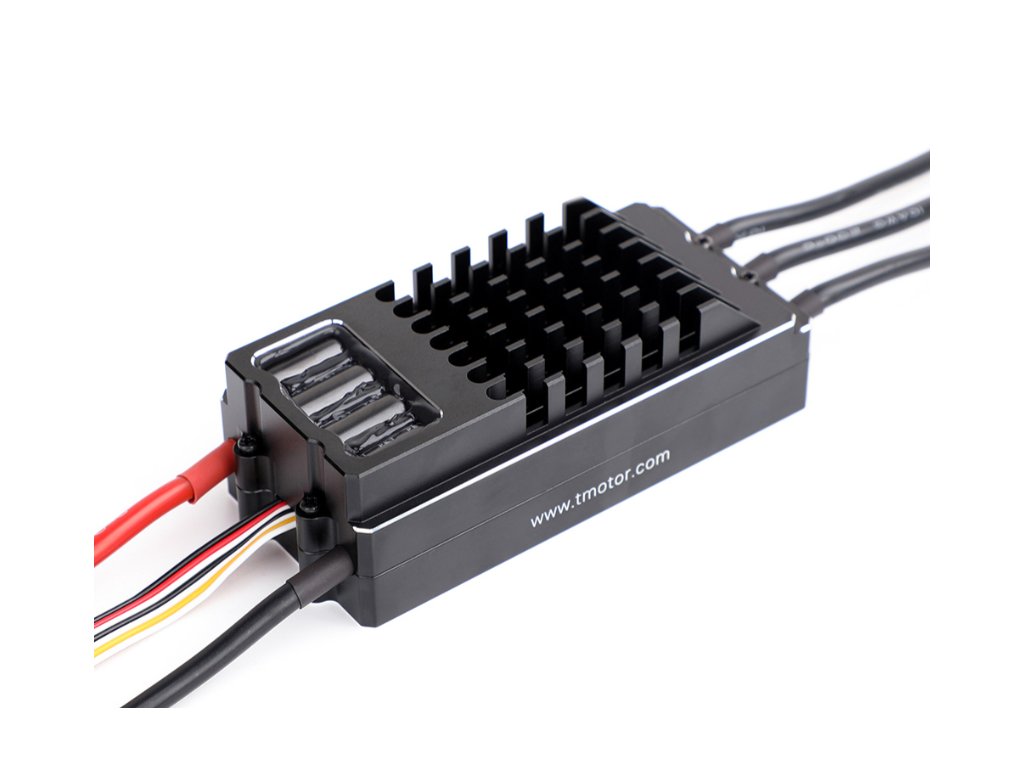

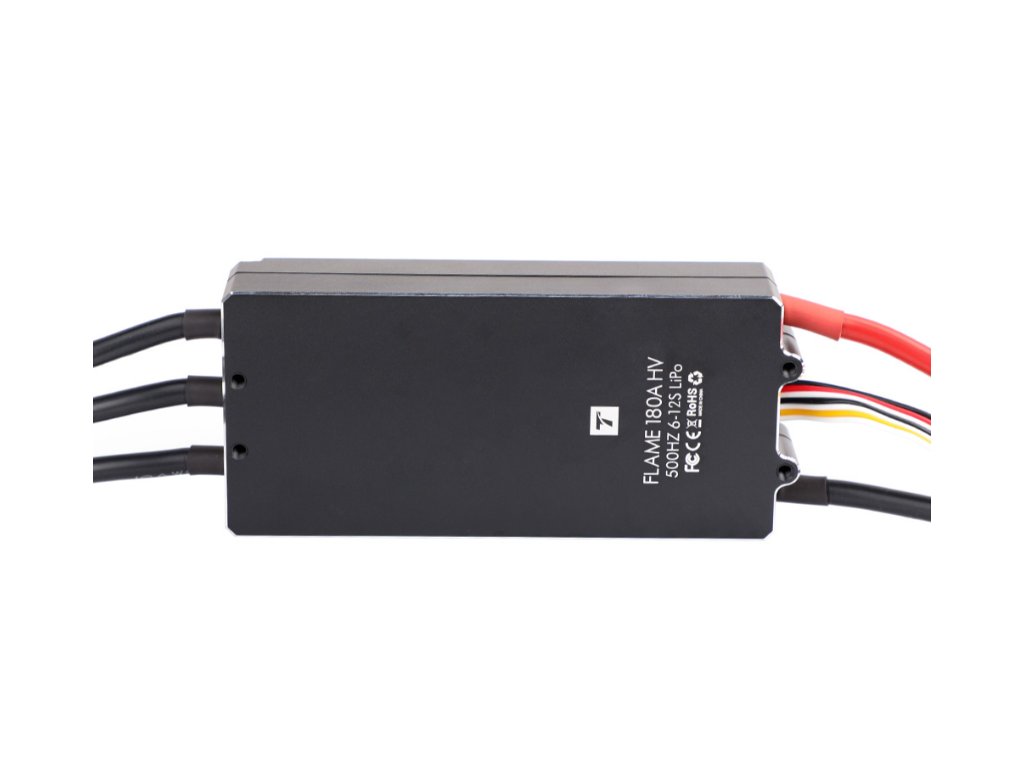

ESC T-Motor Flame 180A 12S Multirotor UAVs

T-Motor Flame 180A 12S ESC is a high-performance electronic speed controller designed for multirotor UAVs operating in harsh and demanding conditions. Delivering 180A continuous current and up to 200A peak (10s), it supports 6–12S LiPo batteries and ensures stable, powerful motor control. With IP56 protection, layered heat dissipation structure, and multiple safety protections, it provides reliability and safety for professional drone applications.

Features:
- High continuous current output for powerful multirotor systems
- Supports 6–12S LiPo batteries for flexible power configurations
- 180A continuous and 200A peak current capability
- Efficient multi-layer structure for optimized heat dissipation
- IP56 protection rating for harsh environment operation
- Start-up, overload, motor lock-up, and throttle signal loss protection
- Supports data feedback for advanced flight monitoring
- Common interface design for simple and fast installation
- Compatible with T-Motor U12 series motors
- Designed for professional UAV and model aircraft applications

Specifications:
Operating Current: 180A continuous
Peak Current: 200A (10 seconds)
Operating Frequency: 500Hz / 621Hz
Battery Support: 6–12S LiPo
Max Voltage: 51.8V
Protection Rating: IP56
Length: 106 mm
Width: 49 mm
Height: 46.8 mm
Weight: 279 g

Package includes:
1x T-MOTOR FLAME 180A 12S ESC
1x Hardware Kit
