ESC 4in1 Pilotix 90A AM32

Product detailed description

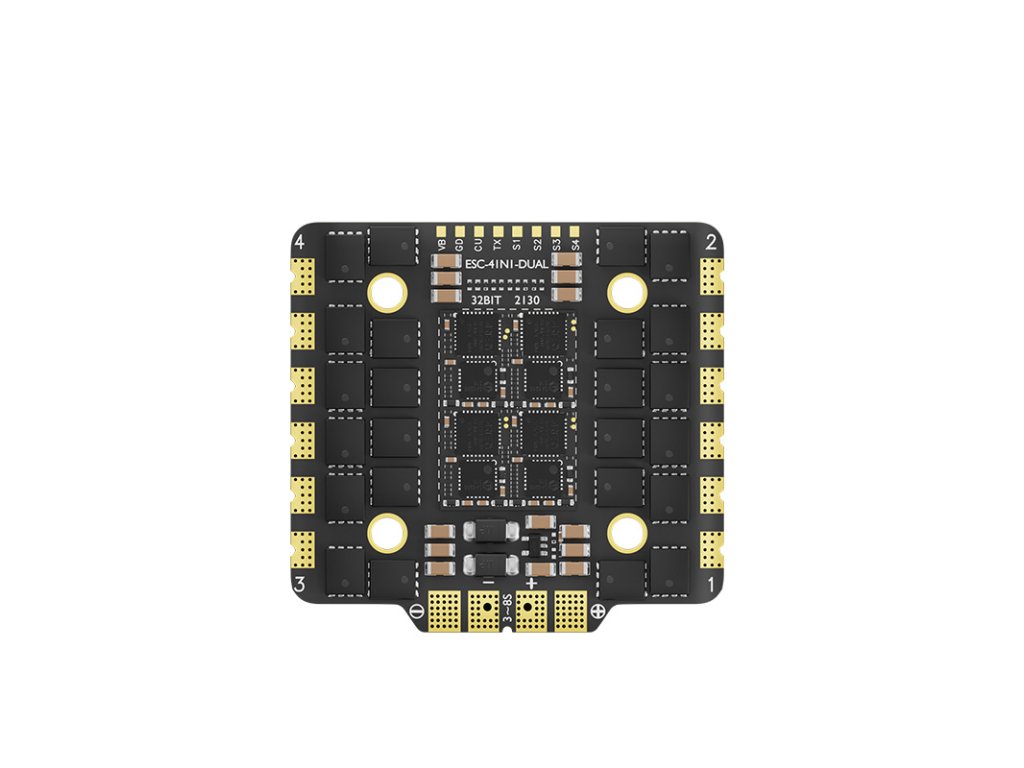

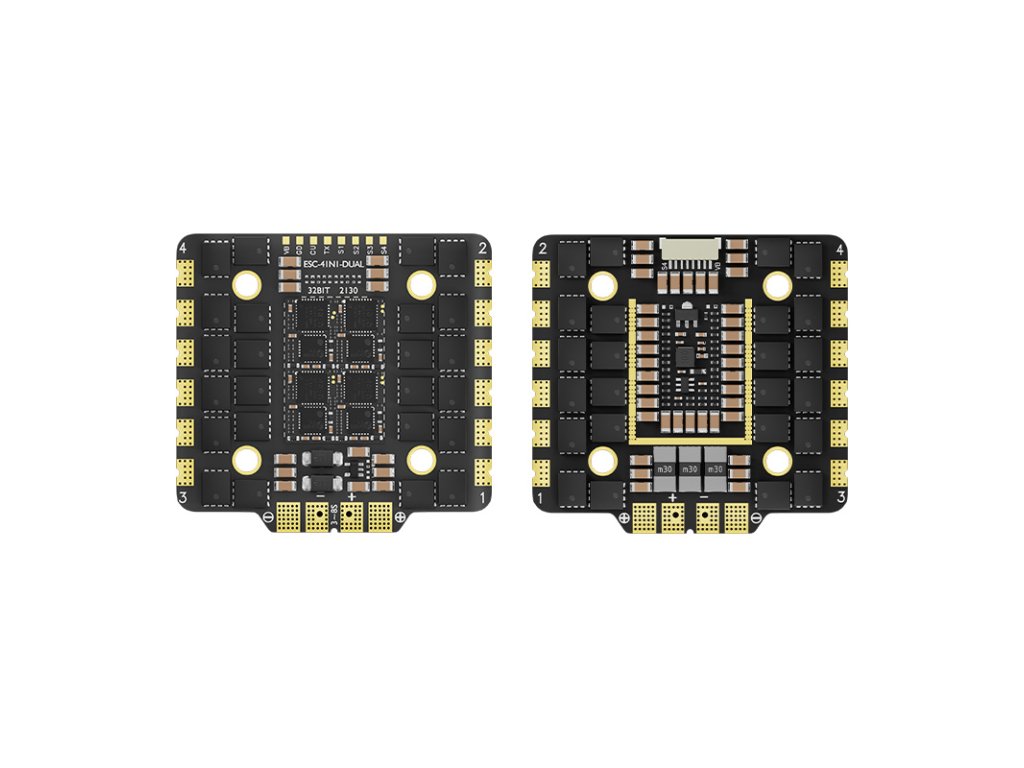

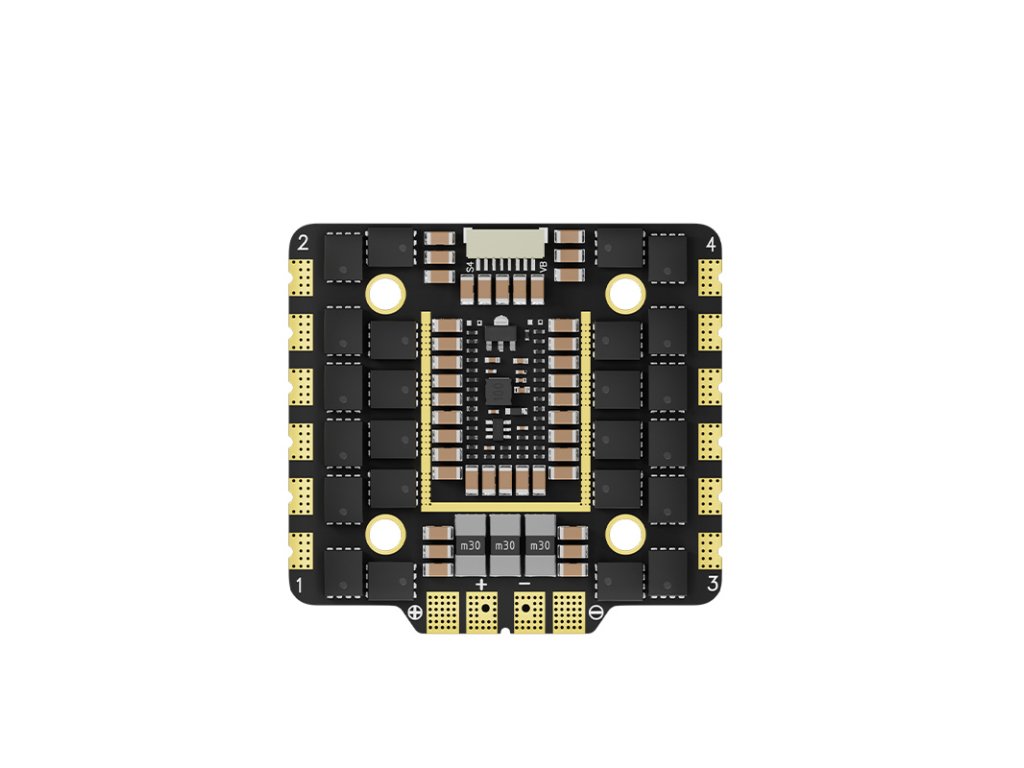

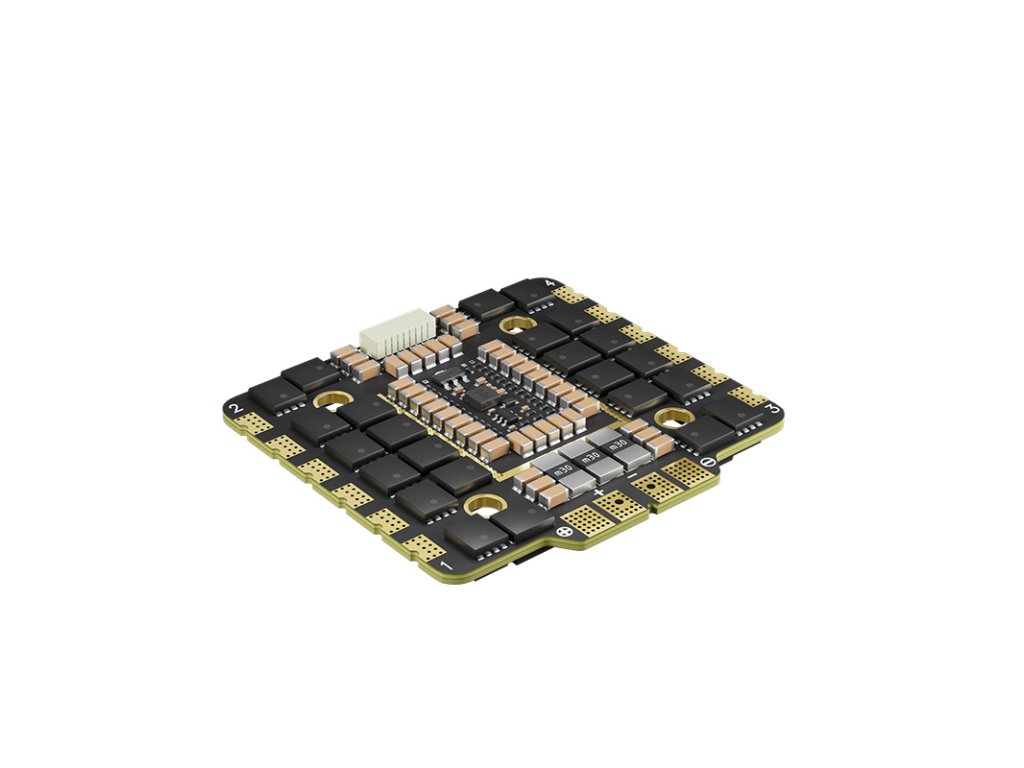

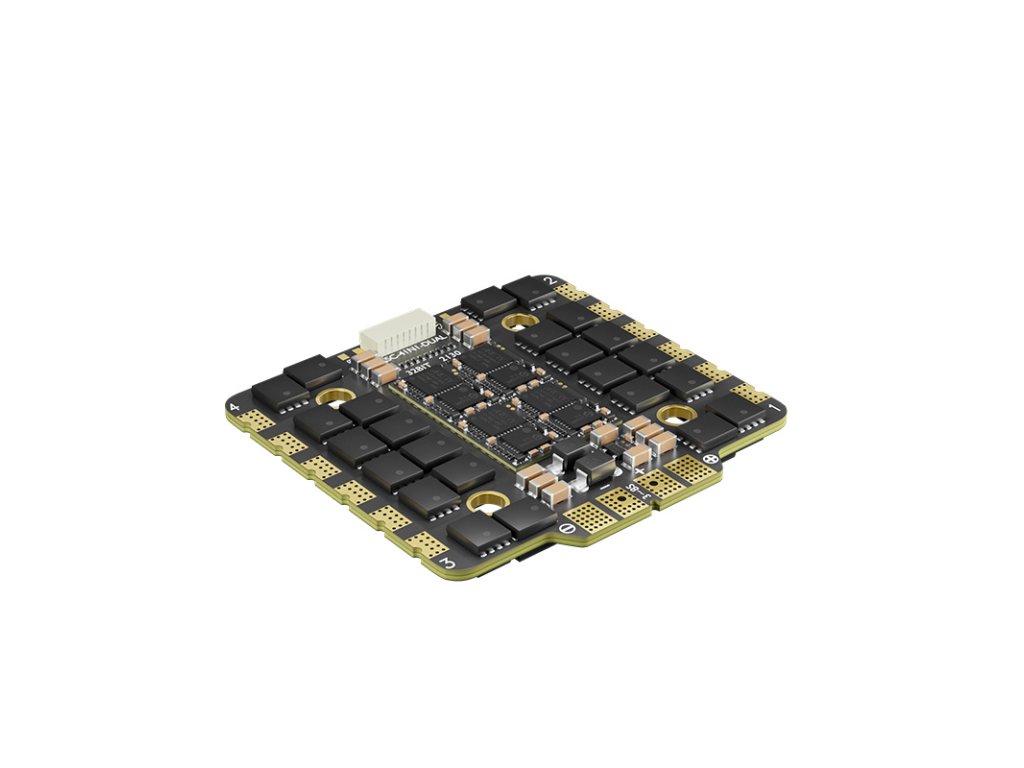

ESC 4in1 Pilotix 90A AM32

Pilotix 90A AM32 ESC is a high-performance 4-in-1 electronic speed controller designed for powerful multirotor drones. Supporting up to 8S LiPo input and 90A continuous current per channel, it delivers stable, responsive motor control for demanding FPV and UAV applications. Powered by AM32 firmware, it offers advanced signal protocol compatibility, telemetry, and current monitoring.

Features:
- 4-in-1 ESC design for quadcopter configurations
- 90A continuous current per channel with 100A burst peak
- Supports 3–8S LiPo batteries
- Compatible with DShot150/300/600, MultiShot, OneShot, ProShot, PWM
- AM32 firmware for smooth and reliable performance
- Supports telemetry feedback
- Built-in current meter
- Wide operating temperature range
- Standard 30.5×30.5mm mounting pattern
- Compact and lightweight construction

Specifications:
Continuous Current: 90A ×4
Burst Peak Current: 100A ×4

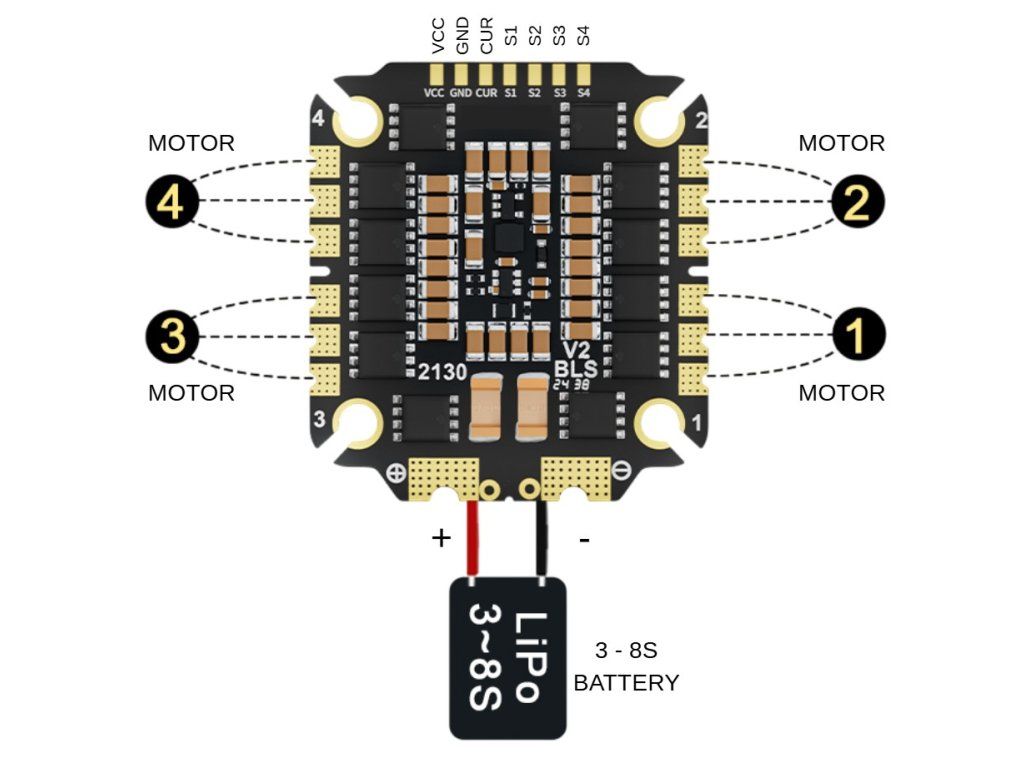

Input Voltage: 3–8S LiPo
Input Signal: DShot150/300/600, MultiShot, OneShot, ProShot, PWM
Firmware: AM32_AORC_K_A_F421_2.16.hex
Mounting Holes: M3, 30.5x30.5 mm
Dimensions: 55x52 mm
Weight: 33 g
Working Temperature: 20°C to +85°C
Working Humidity: 20–95%
Storage Temperature: -20°C to +70°C

Package includes:
1x ESC 4in1 Pilotix 90A AM32
4x Shock-Absorbing Balls
1x 8-Pin Cable
4x Screws
4x Nuts
1x XT90 Power Cord
2x 1000uF / 35V Solid-State Capacitors
1x Heat Shrink Tubing
