FPV Drone Emax Tinyhawk II RTF

Product detailed description

Tinyhawk II RTF

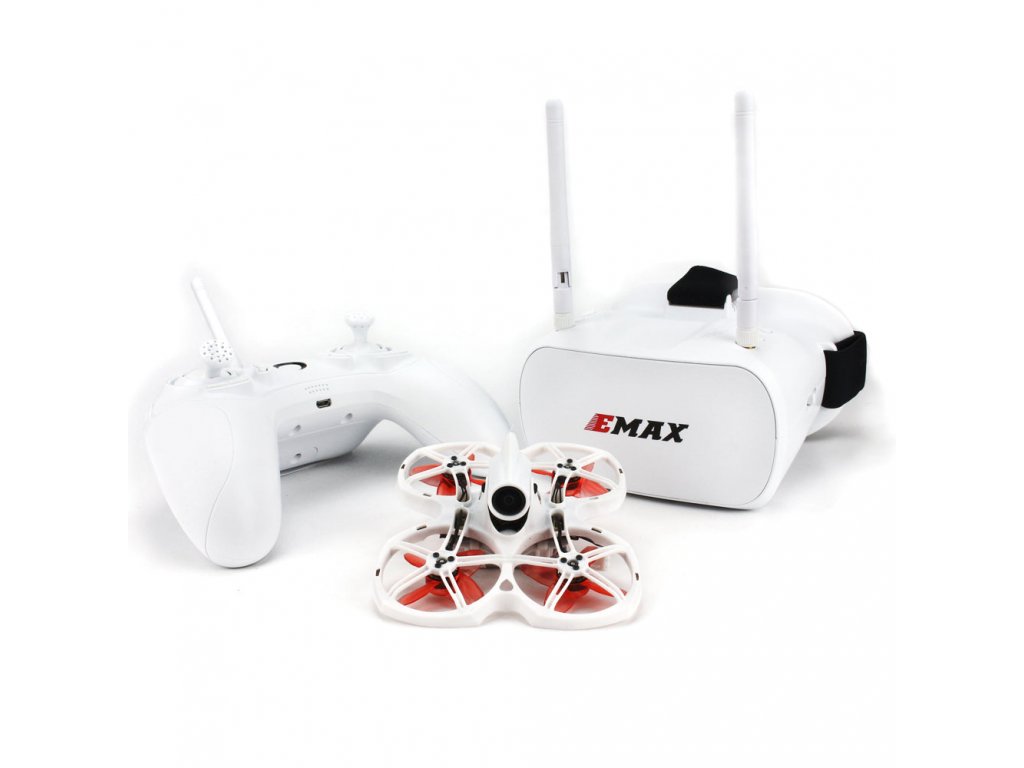

Tinyhawk II RTF is a kit of micro FPV drone, a controller, and goggles by Emax. The TinyHawk II is specially designed for an indoor flight. It is equipped with a Runcam Nano 2 with an adjustable camera mount, a powerful VTX, and brushless motors.

Specifications:

Drone:
Frame Wheelbase: 75mm
Net Weight: 31.2g
All Up Weight: 43.5g with 1x 450mAh 1S batterie
Frame Material: Polypropylene

Motors:
Stator Size: 0802
Kv: 16000kv
Propeller Mount: Push-On Avan TH-style

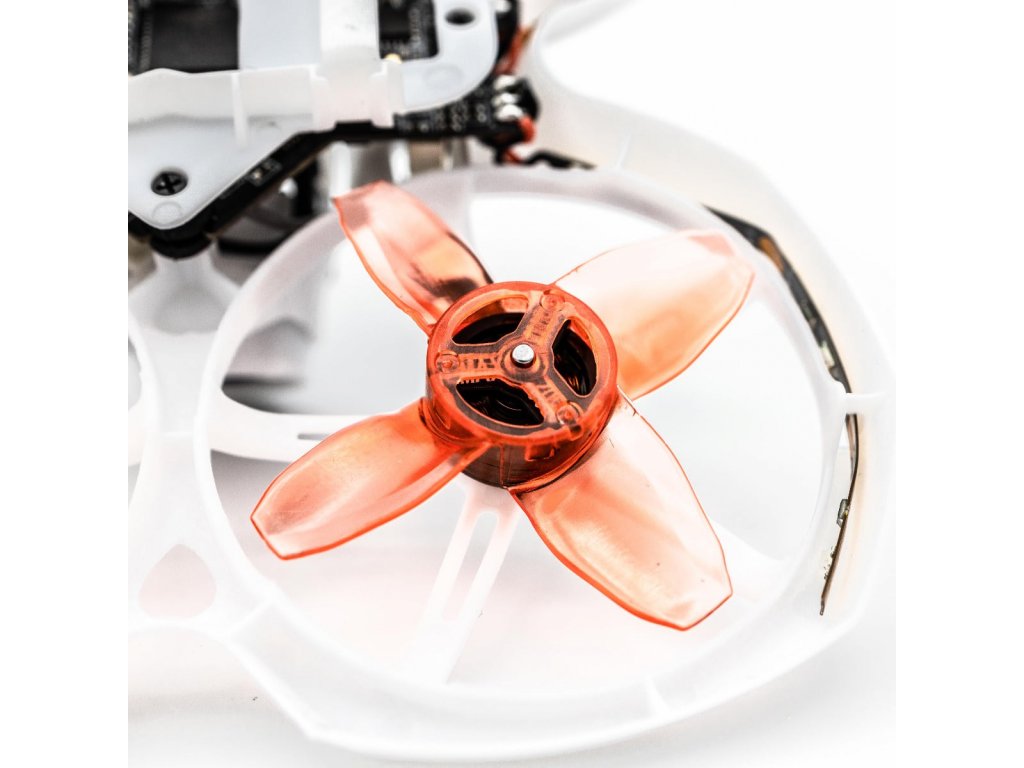

Propeller: Avan Turtlemode 4-Blade

All-In-One (AIO) Flight Controller:
Flight Controller: F4 (MATEKF411RX Firmware)
ESC: 4-in-1 5A BlHeli_S
Receiver: EMAX SPI Receiver (Compatible with FrSky D8 mode)
Battery Connector: JST-PH2.0

Camera and VTX:
VTX Power: 25/100/200mw Switchable
Channels: 37CH incl. Raceband

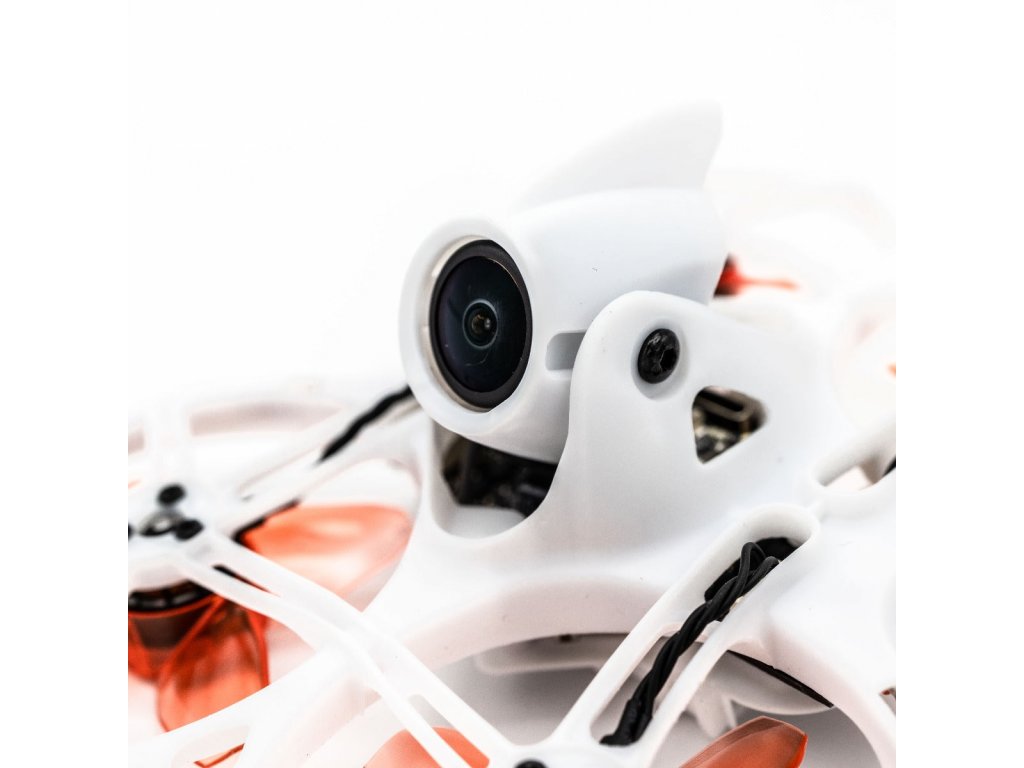

Camera: RunCam Nano 2 1/3" 700TVL CMOS
Smart Audio Connected

Remote Controller:
Maximum appearance size: 181×213×80(mm)
Weight (without battery): 211g
Number of channels: 6 Channels
Transmission frequency: 2.4GHz ISM Band (2400MHz-2483.5MHz)
Output Power: 22dbm
Modulation: GFSK
Battery: 1 cell 18650 lipo battery

Goggles:
Maximum appearance size: 140×153×90(mm)
Weight (without battery): 398g
Resolution: 480×272
Battery: 1 cell 18650 lipo battery
