Stack iFlight Borg F7 Mini (Borg 60 Mini ESC)

Product detailed description

Stack iFlight Borg F7 Mini (Borg 60 Mini ESC)

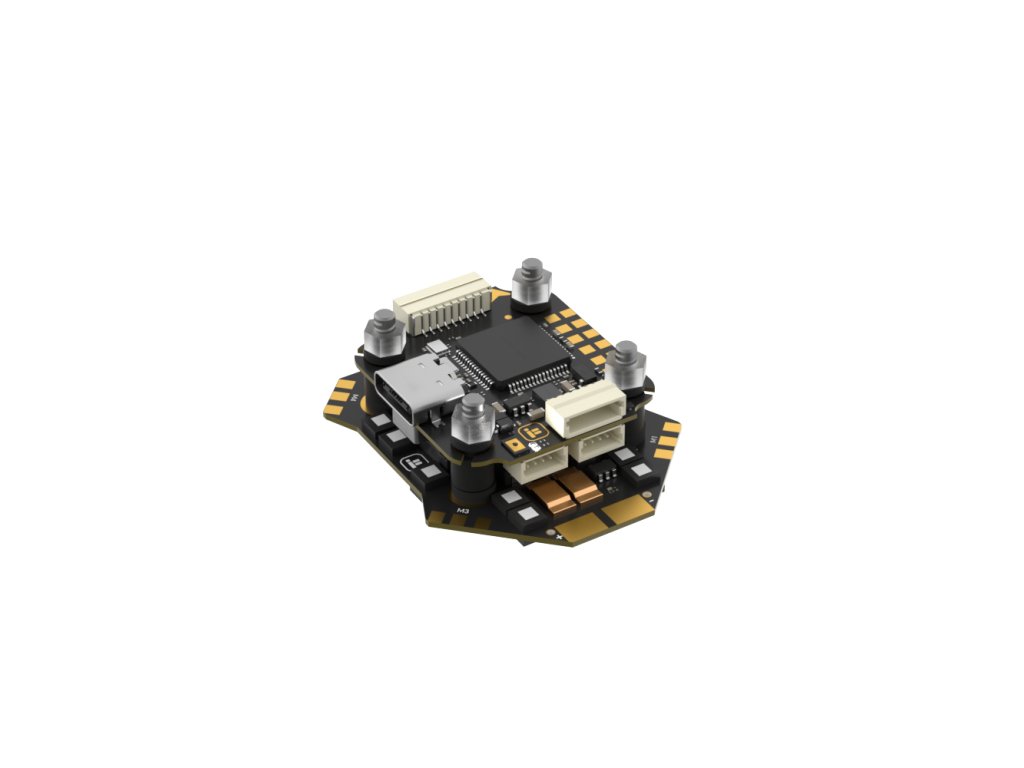

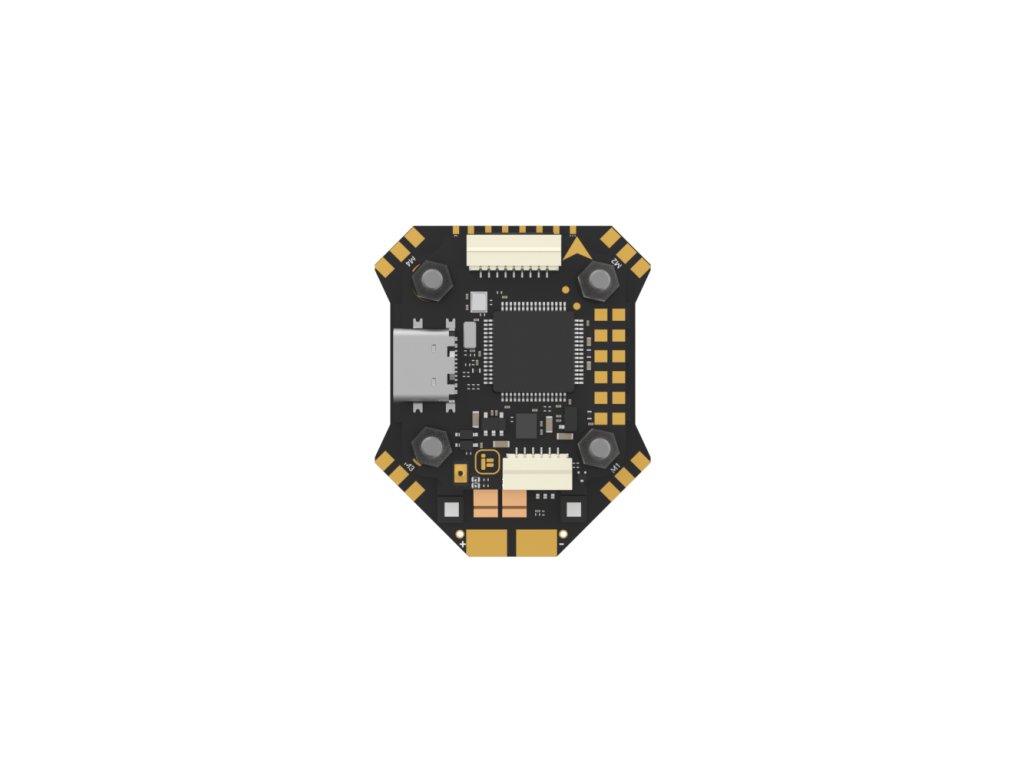

The iFlight Borg F7 Mini Stack combines elite-level performance and compact design, making it a top choice for FPV racing pilots. This stack features the powerful Borg F7 Mini Flight Controller and the high-performance Borg Mini 60A ESC. Supporting 4S to 8S input, the FC includes integrated 5V/12V BECs and switchable VTX power, while the STM32F722 MCU and ICM42688 gyro ensure precise control. The 60A ESC supports DShot, Multishot, and OneShot protocols with telemetry and bidirectional DShot. Built for speed, reliability, and customization, this stack is ready to power your racing build with ultra-low latency and maximum stability.

FC Specifications:

Input voltage: 4-8S; Support LIHV battery
MCU: STM32F722RET6
Gyro: ICM42688
Barometer: SPA06-003
OSD Chip: AT7456E（LGA）
Flash: 32MB (Blackbox flash)
UARTS: 6
Motor outputs: 4
I2C serial: Not supported
VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero
LED controller: Yes
Beeper pad: Yes
Betaflight Firmware target: IFLIGHT_BLITZ_F722
INAV Firmware target: IFLIGHT_BLITZ_F722

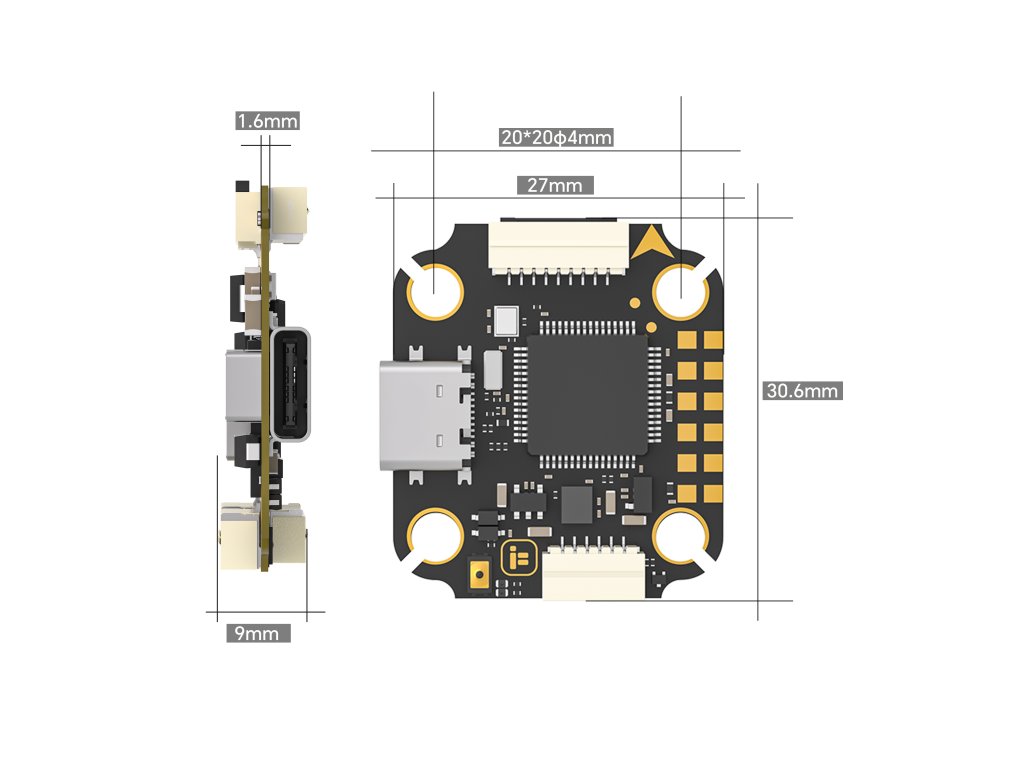

Mount pattern: 20*20φ4
Dimensions: 27*30.6mm±1
Weight: 6.8g±1
BEC: 5V 2.5A, 12V 2A (12V with VTX switch)

ESC Specifications:

Product Name: Borg Mini 60 ESC
Input Voltage: 2-6S; Support LIHV battery
Max. Continuous Current: 60A
Max. Burst Current: 65A (10s)
MCU: STM32G071N
Driver: FD6288
Firmware: BL32 (32bit ESC)
Target: IFLIGHT_BLITZ_G3 32.9
Current Sensor: Yes
BEC: N/A
Telemetry: Supported
Bidirectional DSHOT: Supported

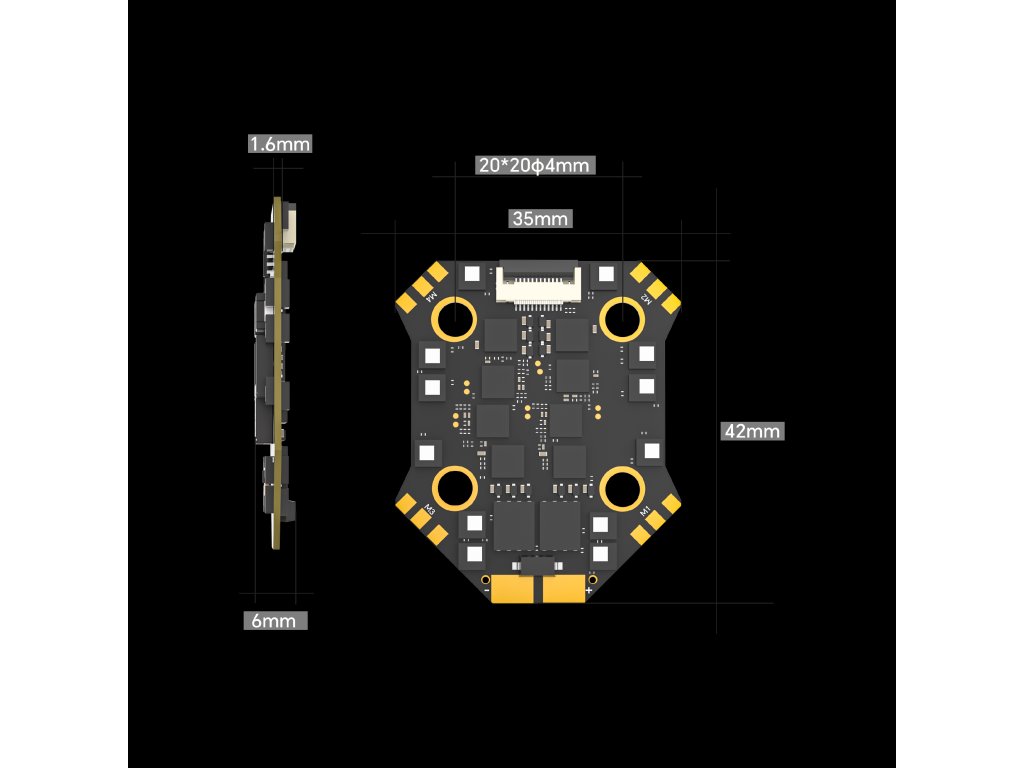

Dimensions: 42*35mm±1
Mounting Holes: 20 x20 mm/Φ4mm
Weight: 9.8g±1
Protocol: Supports DShot150/300/600, MultiShot, OneShot etc.

Package includes:

1 x Borg F7 Mini Flight Controller
1 x Borg 60 Mini ESC
1 x Cable set
5 x silicon grommets
