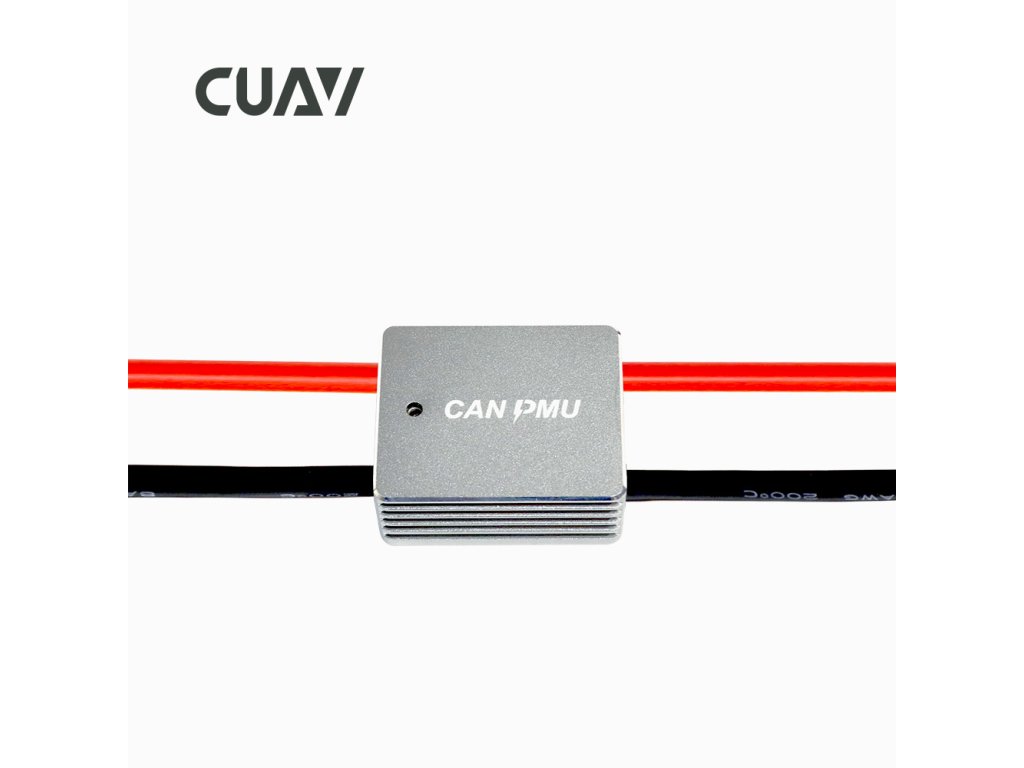

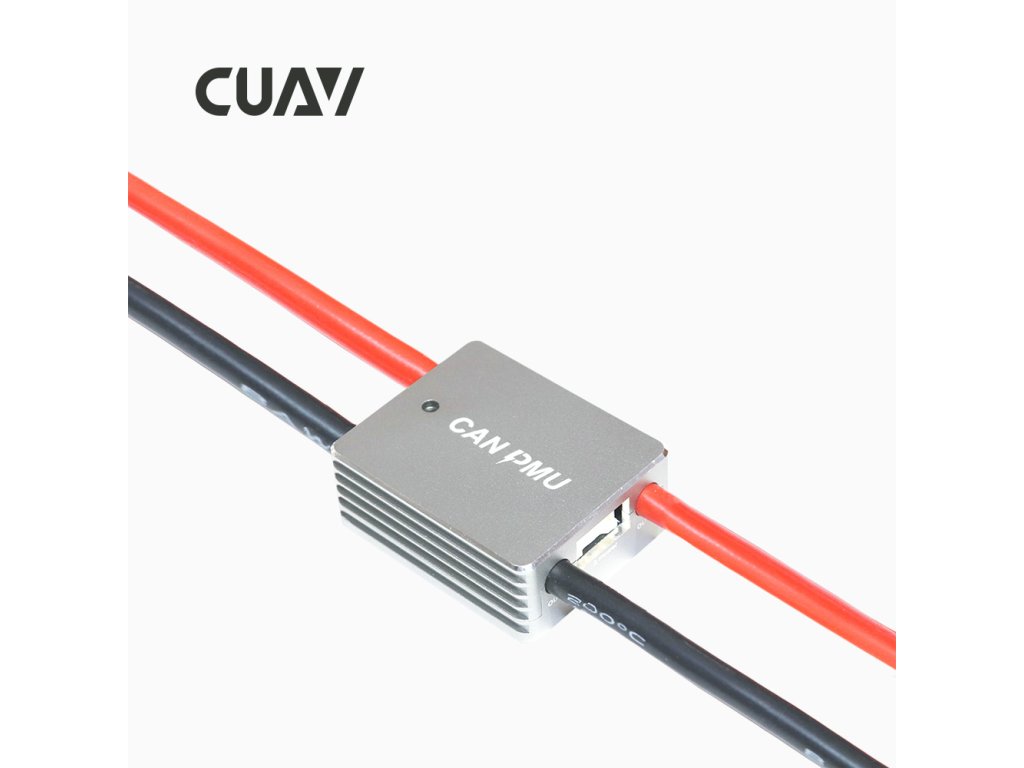

CUAV Power module CAN PMU

CUAV’s CAN/DroneCAN PMU is a drone power management module with built-in STM32F4 processor running CUAV’s ITT compensation algorithm to accurately measure the voltage and current of the drone’s battery. It supports 6~62V voltage input, and the POWER output port can output 5V/ 8A. It uses advanced CAN bus communication and supports the standard DroneCAN protocol. Each PMU is factory calibrated to ensure good consistency and high accuracy.

Specifications

• Processor: STM32F412

• Voltage Input: 6~62V (2S-15S)

• Max Current: 110A

• Voltage Accuracy: ±0.05V

• Current Accuracy: ±0.1A

• Resolution: 0.01A/V

• Max Output Power: 6000W for 90s

• Max Continuous Power: 5000W

• Power Port Output: 5.4V/5A

• Protocol: DroneCAN

• Operating Temp: -20~+100℃

• Supports firmware upgrade

• No calibration required

• Connector Types:

  • 8mm female bullet power connectors (XT-90 battery and ESC cables provided)

  • Autopilot Power: Molex 6 pin 1.5mm #5025850670 (CUAV V5 cable provided)

  • CAN: 4 pin JST-GH (cable provided)

• Physical Dimensions:

  • Size:46.5mm * 38.5mm * 22.5mm

  • Weight:76g
