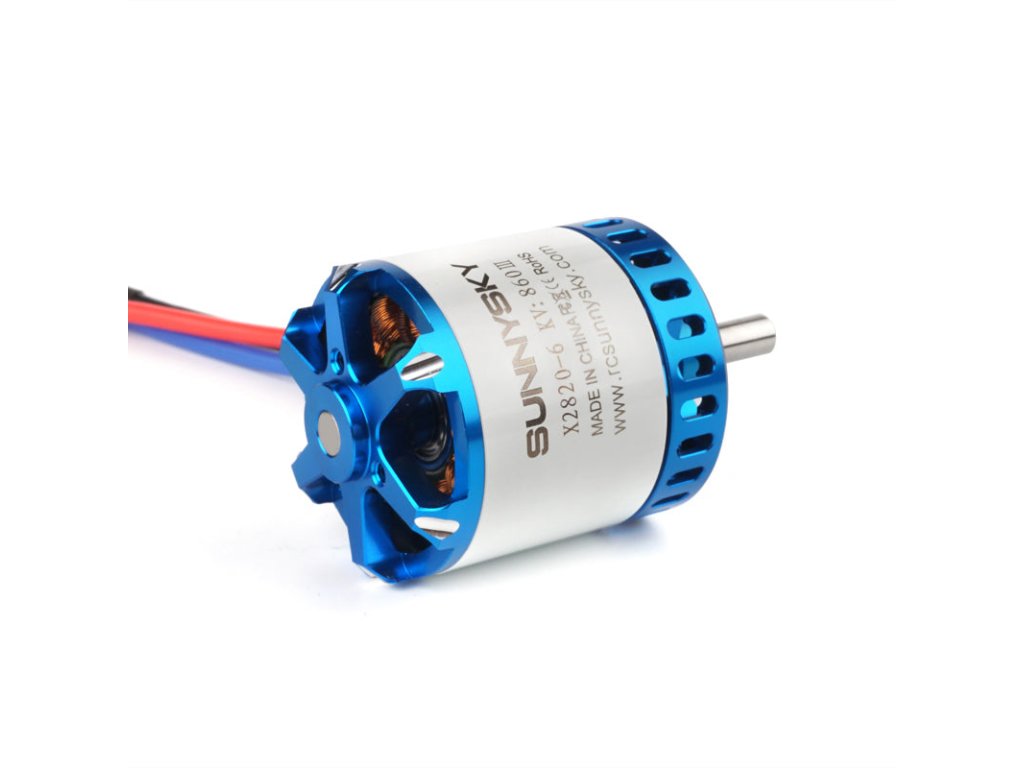

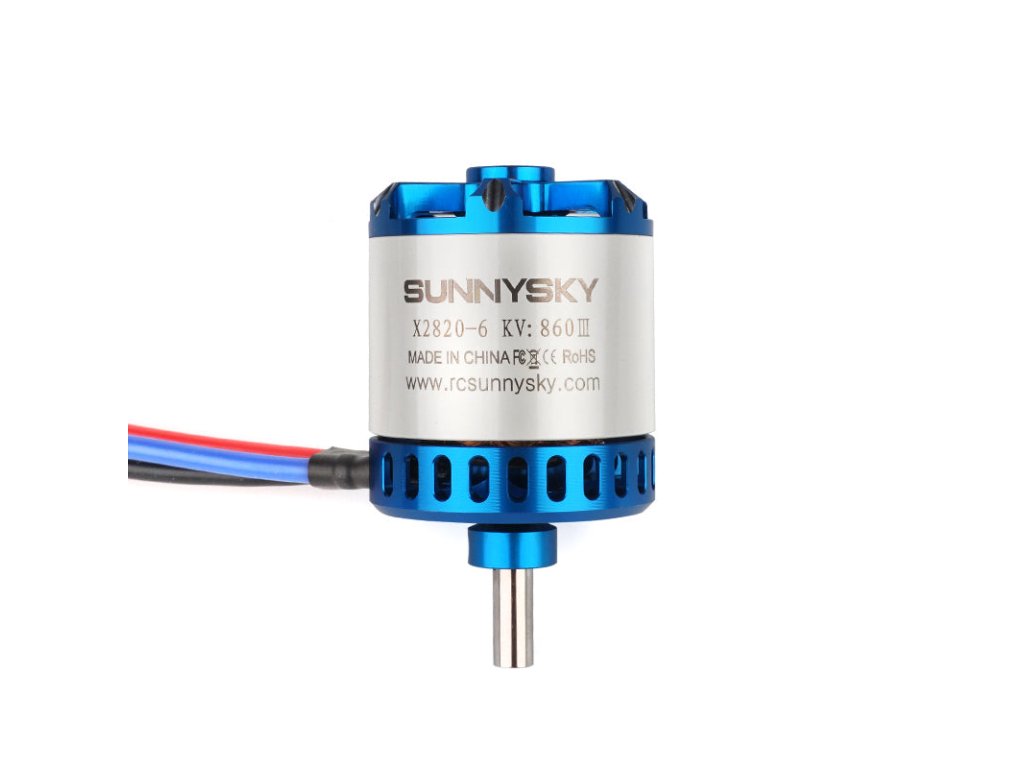

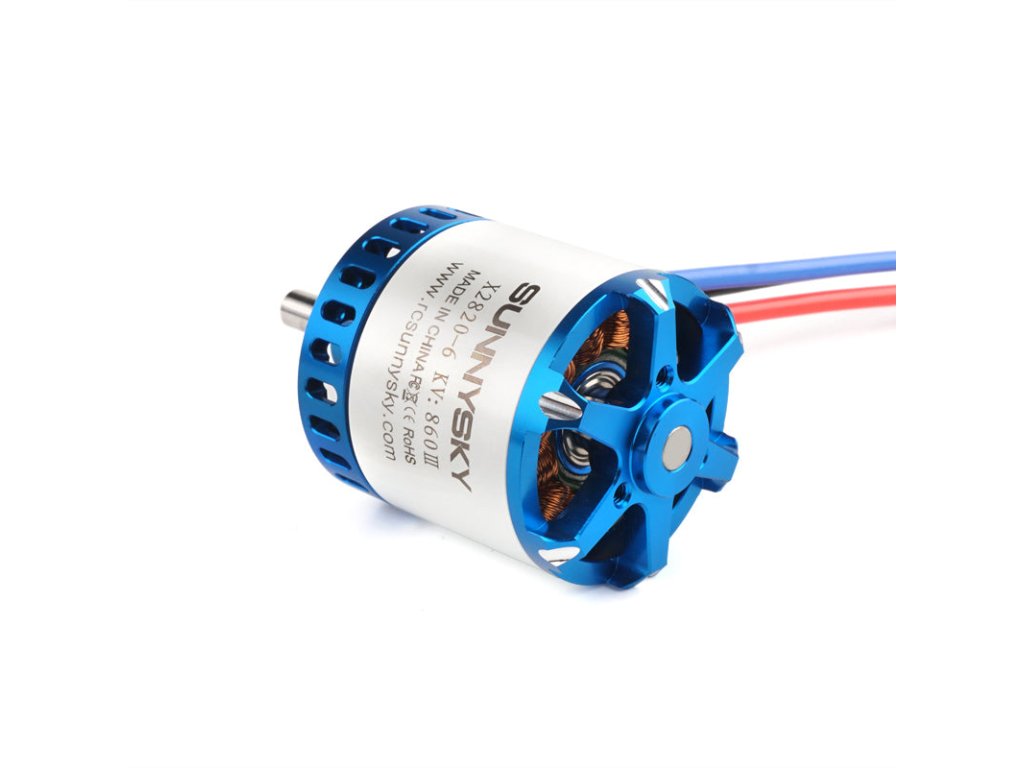

Motor SunnySky V3 X2820 860KV

Product detailed description

Motor SunnySky V3 X2820 860KV

The SunnySky V3 X2820 860KV motor is engineered for powerful and efficient performance in high-end multirotor and fixed-wing drone applications. Featuring a high-grade construction and advanced dynamic balancing, it ensures smooth operation, minimal vibration, and consistent output power.

Features:

- Premium Rotor Cap: Stylish “magic blue” metallic finish with strong and durable construction. The stator cap’s hollow-carved design enhances heat dissipation while adding to the visual appeal.
- Precision Bearing System: Equipped with original NSK bearings, delivering smoother, quieter performance and improved durability.
- Strict Dynamic Balancing: Each motor undergoes high-precision CNC machining and balancing for optimal performance and superior concentricity.

Specifications:

Stator Diameter: 28 mm
Stator Thickness: 20 mm
Rotor Diameter: 35mm
Body Length: 42mm
Max Lipo Cell: 3-4S
ESC: 50-60A
Recommended Propellers: APC13*6.5 / APC13*8 / APC12*6 / APC12*8
Number of Stator Slots: 12
Number of Rotor Poles: 14
KV Rating: 860 KV
No-load Current: 1.3 A @ 10V
Motor Resistance: 25.8 mΩ
Max Continuous Current: 65 A (30 sec)
Max Continuous Power: 960 W
Weight: 143 g

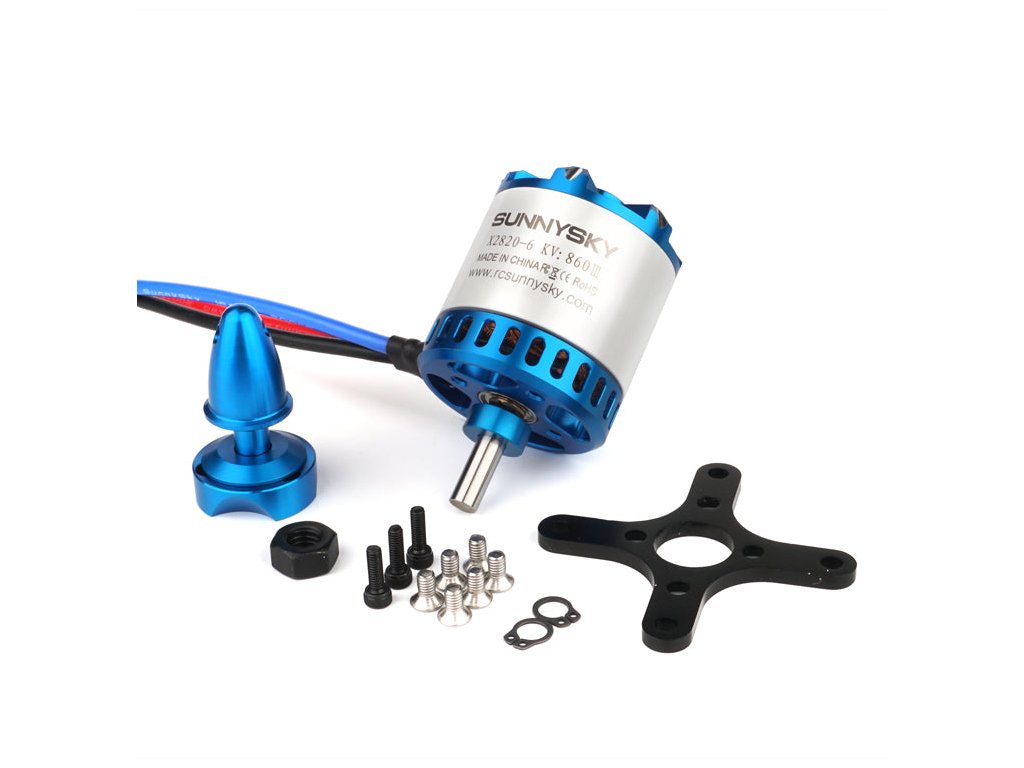

Package includes:

1 х Motor SunnySky V3 X2820 860KV
1 х X-shaped Motor Mount Bracket
1 х Mounting Screws Pack
