Motor Sub250 1404 4500KV

Product detailed description

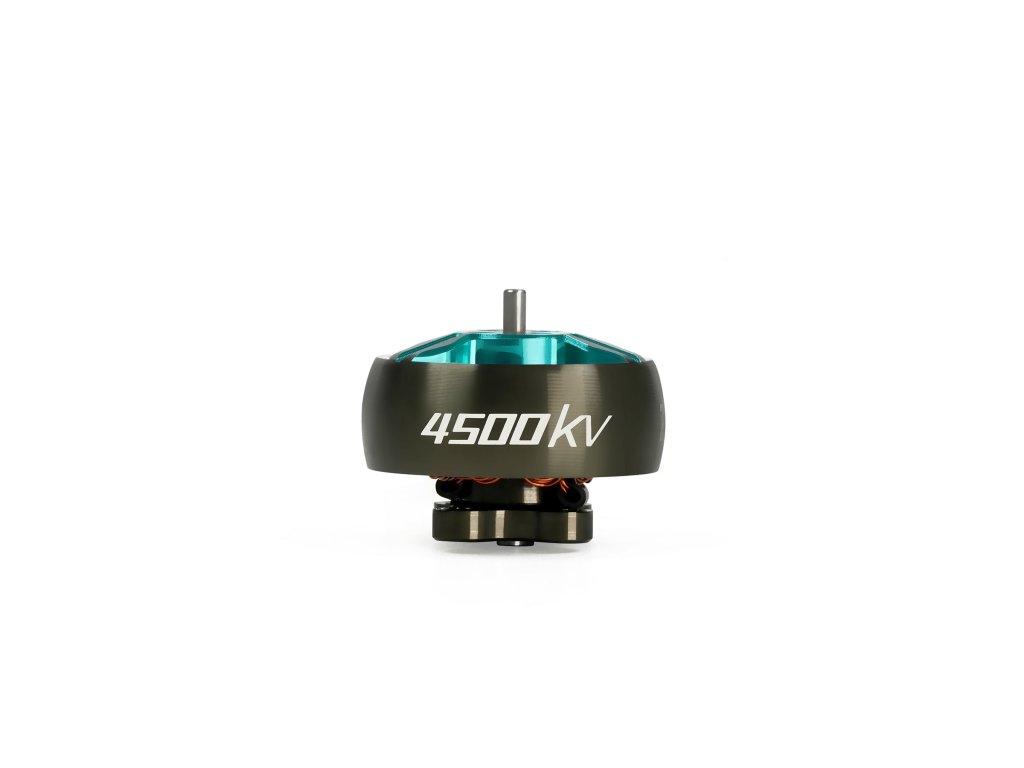

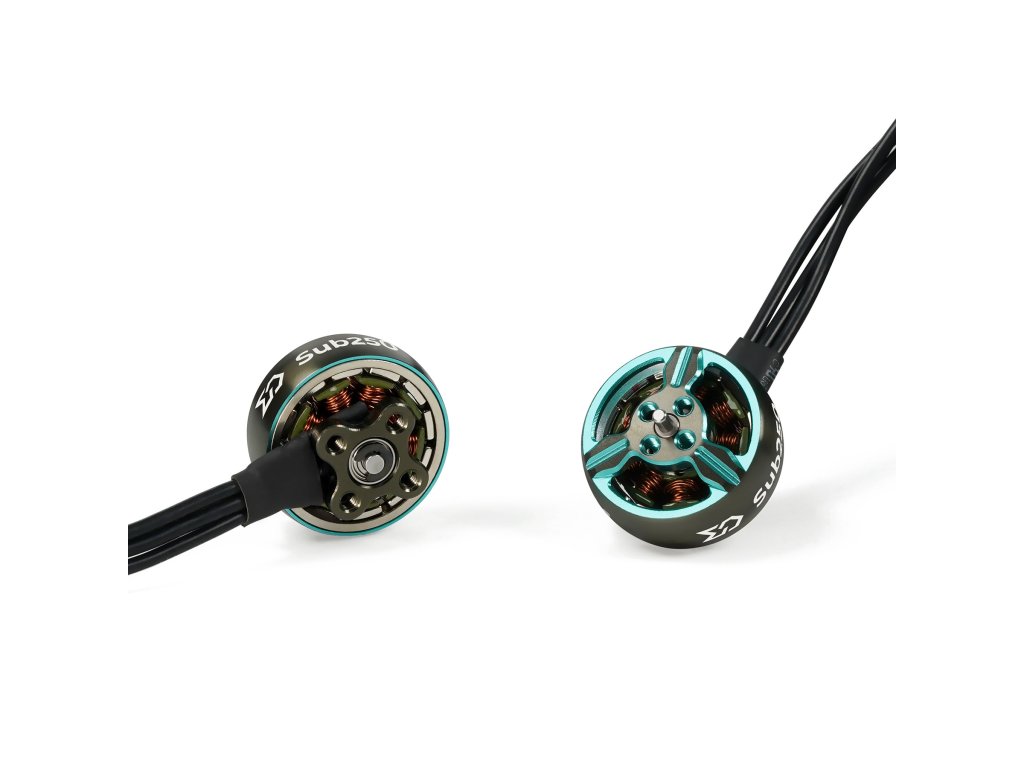

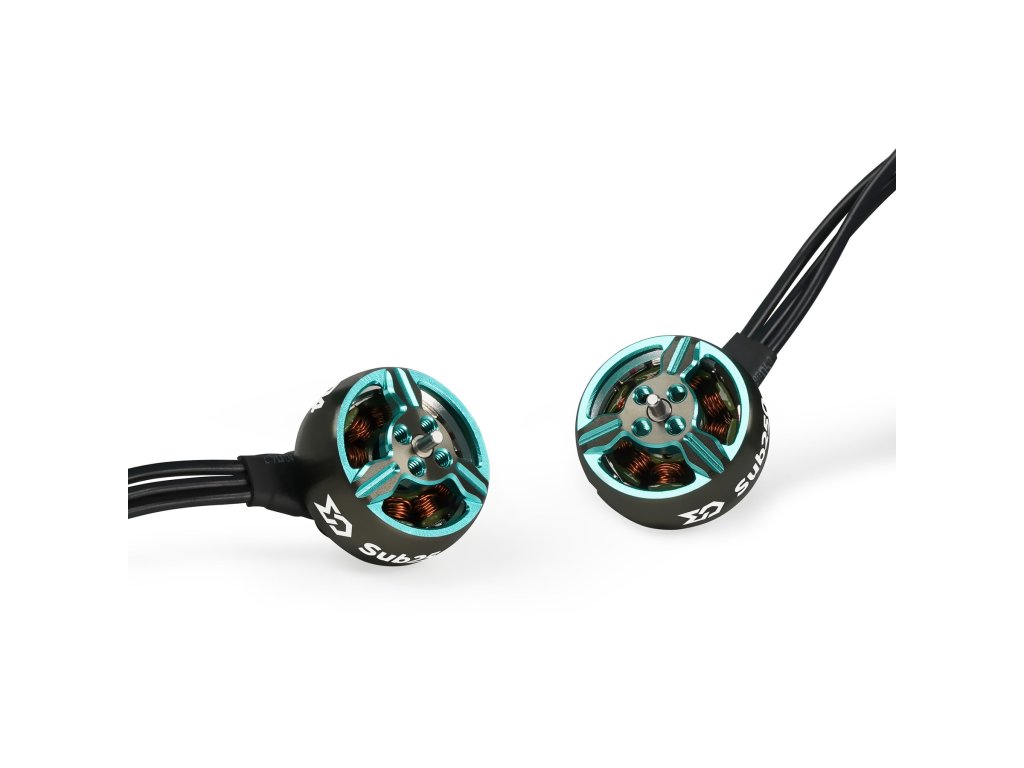

Motor Sub250 1404 4500KV

Sub250 1404 4500KV Motor for 2.5 inches Mini Whoops and 3 inches  Freestyle FPV Drone. Under the premise of controlling the weight, a stronger thrust and a lower current are coordinated.

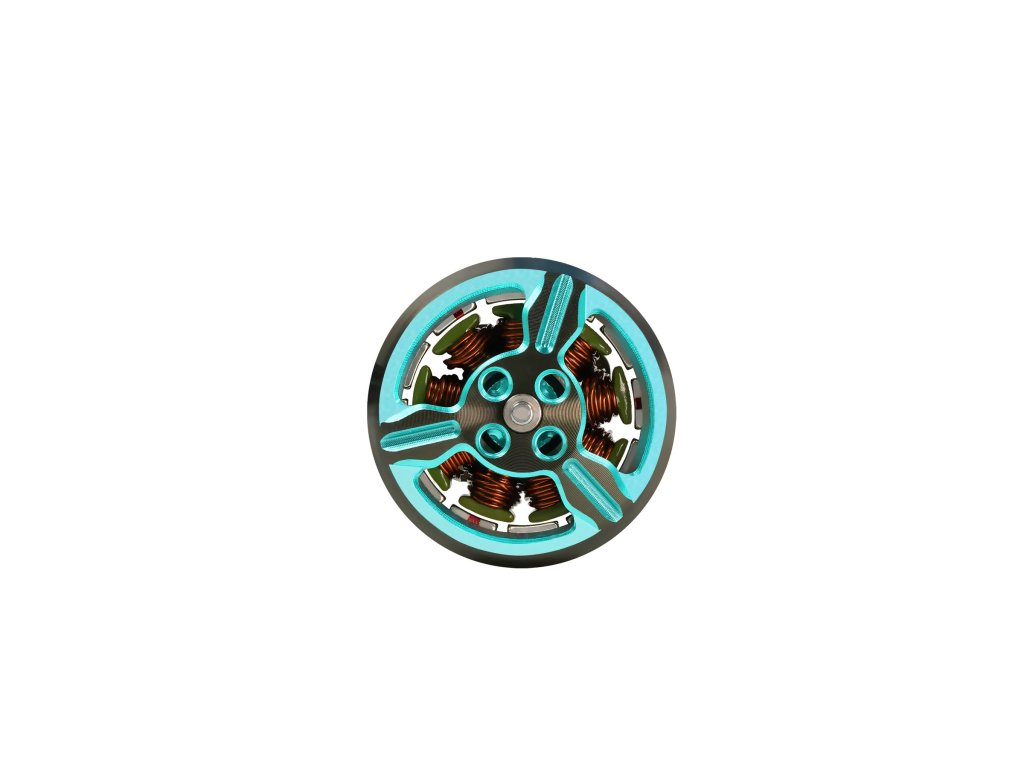

The large area above the motor is hollowed out to allow airflow to pass through smoothly to obtain a good heat dissipation environment.

Features:
- Optimized for 2.5"–3" frames with 4S LiPo batteries.
- High-efficiency 1404 stator design for strong thrust in a compact size.
- Premium N52H magnets for improved torque and responsiveness.
- Standard T-mount with 1.5mm shaft for secure propeller installation.
- Lightweight build (only 10g) supports sub-250g drone setups.

Specificaitons:
Brand Name: Sub250
Model: 1404 Motor
KV value: 4500KV
Configuration: 9N12P
Magnet: N52H
Stator diameter: 14 mm
Stator height: 4 mm
Outlet diameter: Φ1.5mm
Maximum power: 264.6W
Rated voltage: 16V
Maximum current: 16.93A
Mounting hole: 9x9mm
Recommended ESC: 20A/30A
Weight: 10.3g
Applicable model: 2.5 - 3 inches FPV drones

Package includes:
1x Sub250 1404 4500Kv Motor
1x Screw Set
