Micro-Nano Module Adapter BETAFPV New Version

Product detailed description

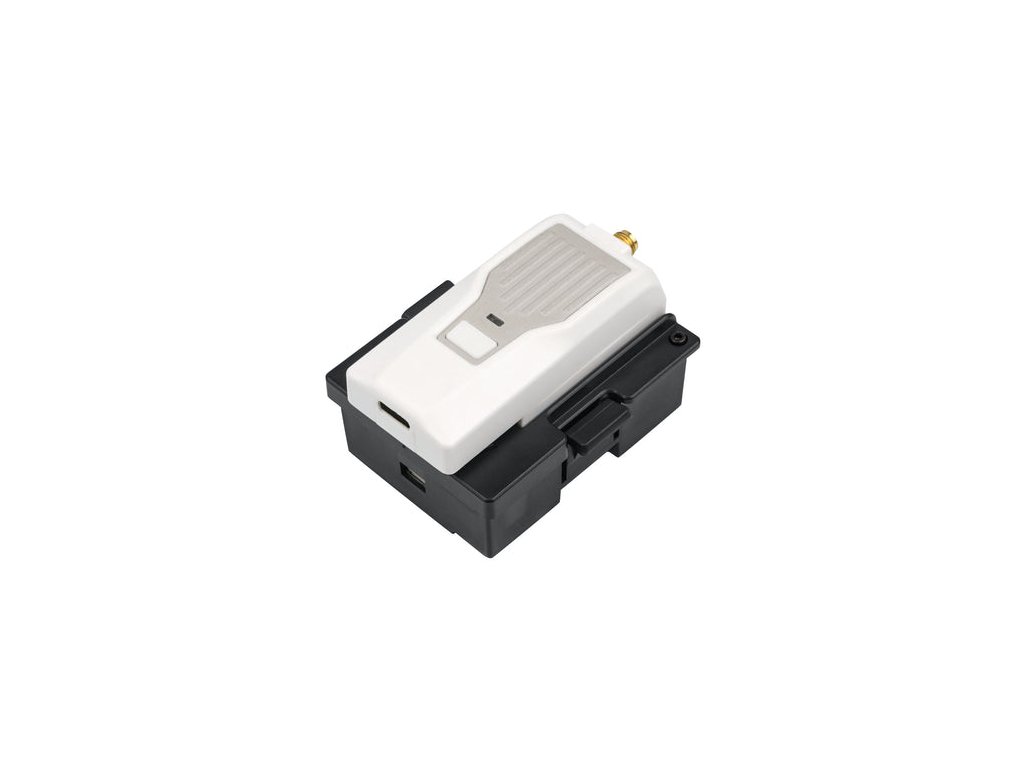

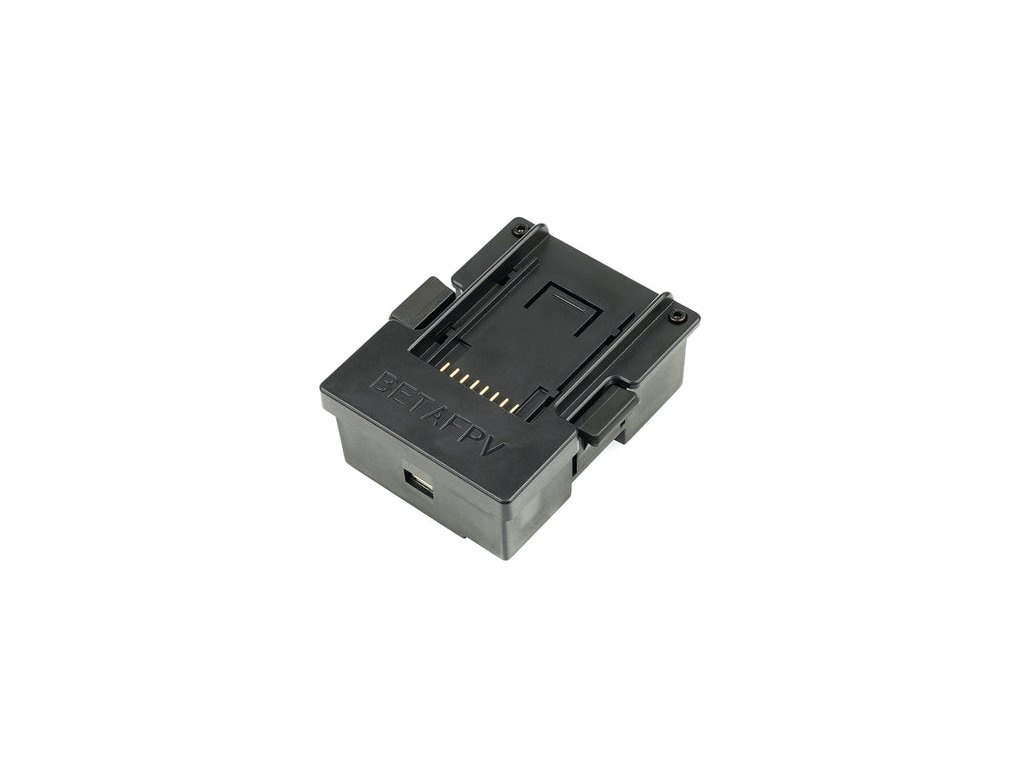

Micro-Nano Module Adapter New Version

With the use of a micro-nano module adapter, the nano tx module can work on transmitters with a Micro port (or JR port) easily. Especially, it supports the BETAFPV ELRS Nano TX Module.

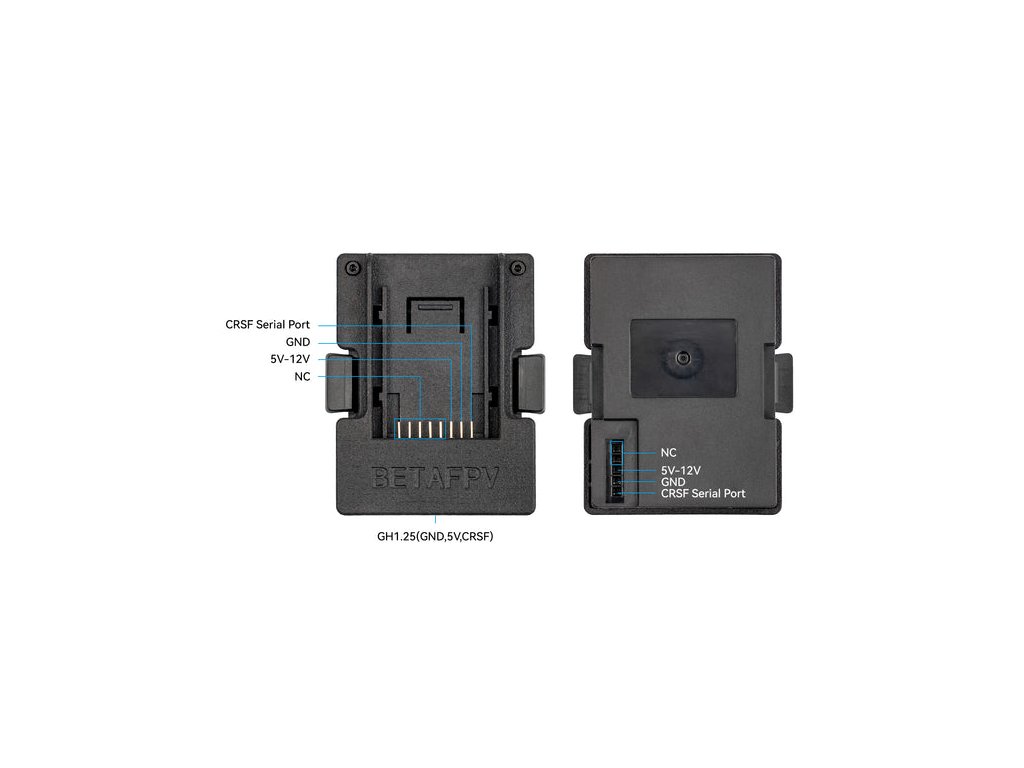

The upgraded adapter is very easy to install. A 3PIN GH1.25 terminal socket, which can be used for Futaba, or other no-OpenTX radio controllers, is added to the bottom of the module adapter.

Specifications:
Item: Micro-Nano Module Adapter
Size: 65x48x28mm (JR module size）
Weight: 25g
Input: JR module bay (Micro module bay)
Output: Nano module bay (Lite module bay)
Supported radio transmitter: Frsky X9D/X9D Plus/X12S/X10/X10S/X7/X7S,
Flysky TH9X, Turnigy 9XR/9XR PRO, FUTABA 16IZ, Jumper T16/T18/T18 Pro,
Radiomaster TX16S/TX18S, TBS Mambo
Supported TX Module: BETAFPV Nano TX Module, TBS Crossfire Nano TX、Frsky XJT Lite/R9M Lite/R9M Lite Pro.
