HD system Remote Controller SIYI UniRC 10 Pro Handheld Ground Station

Product detailed description

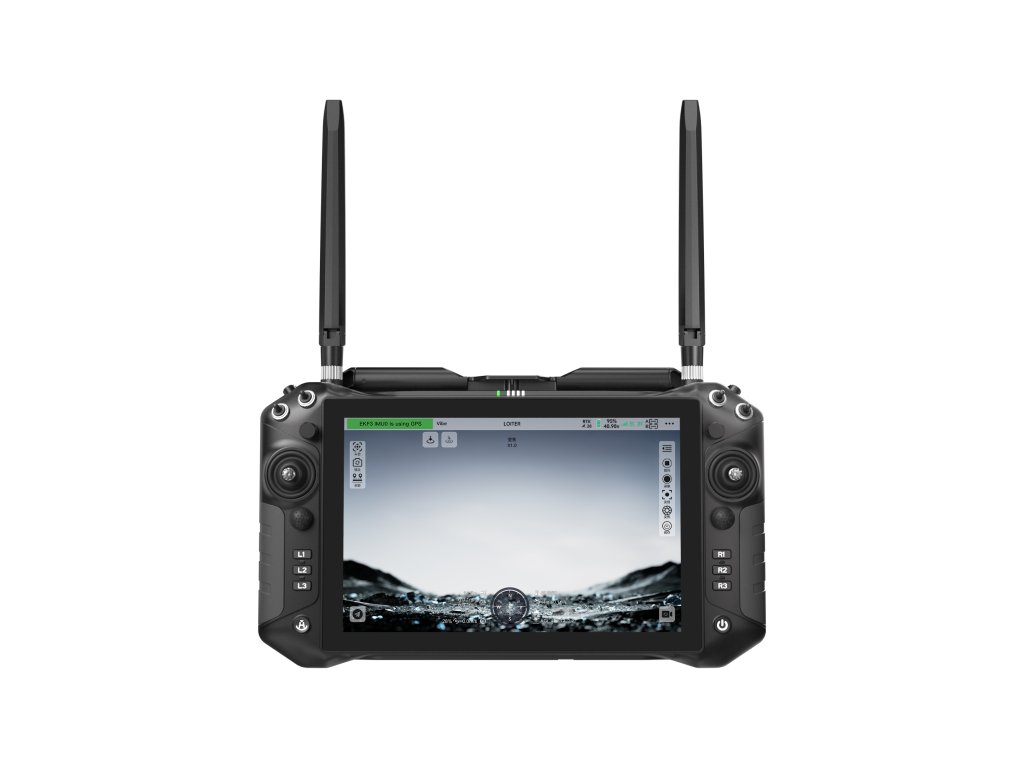

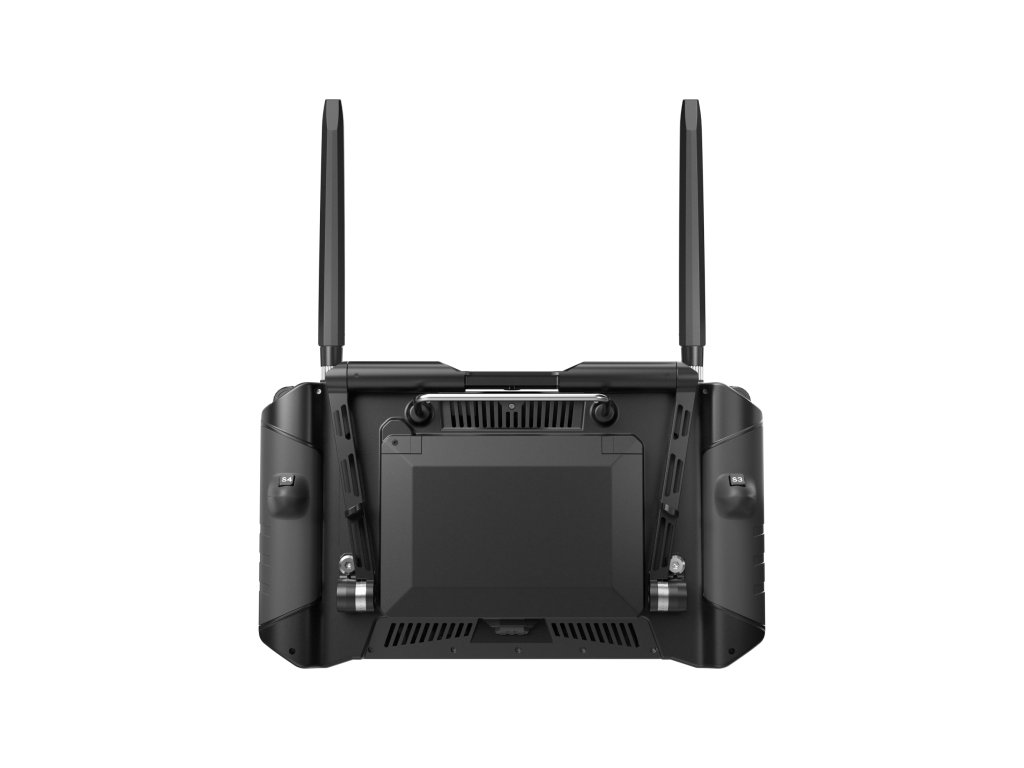

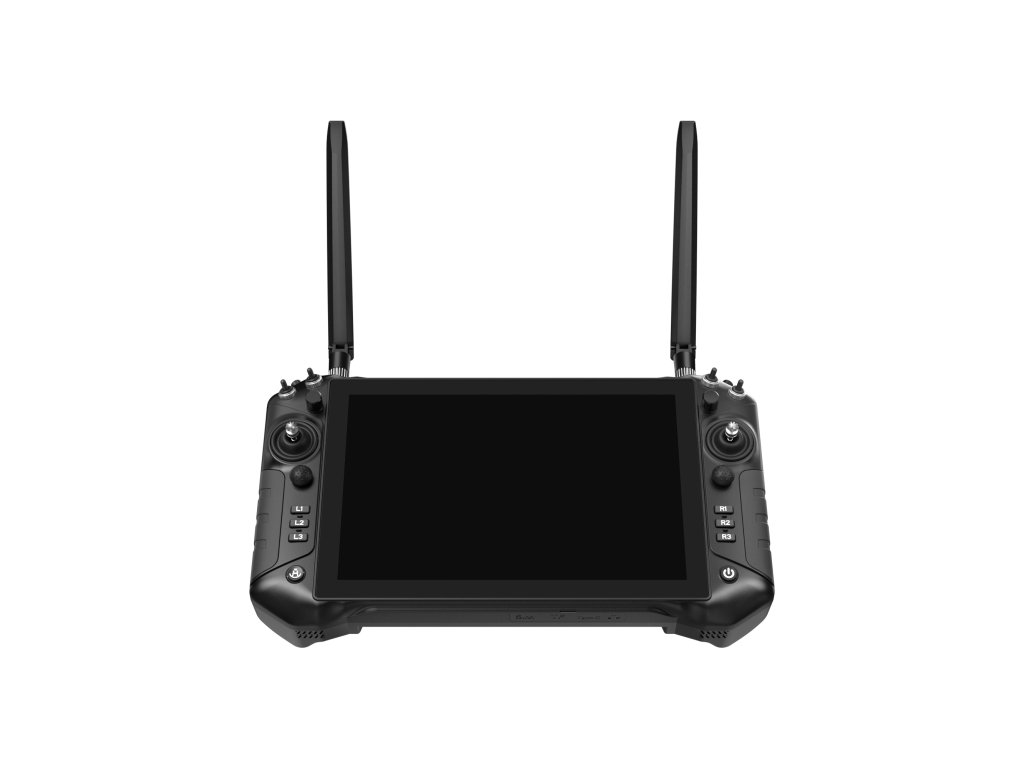

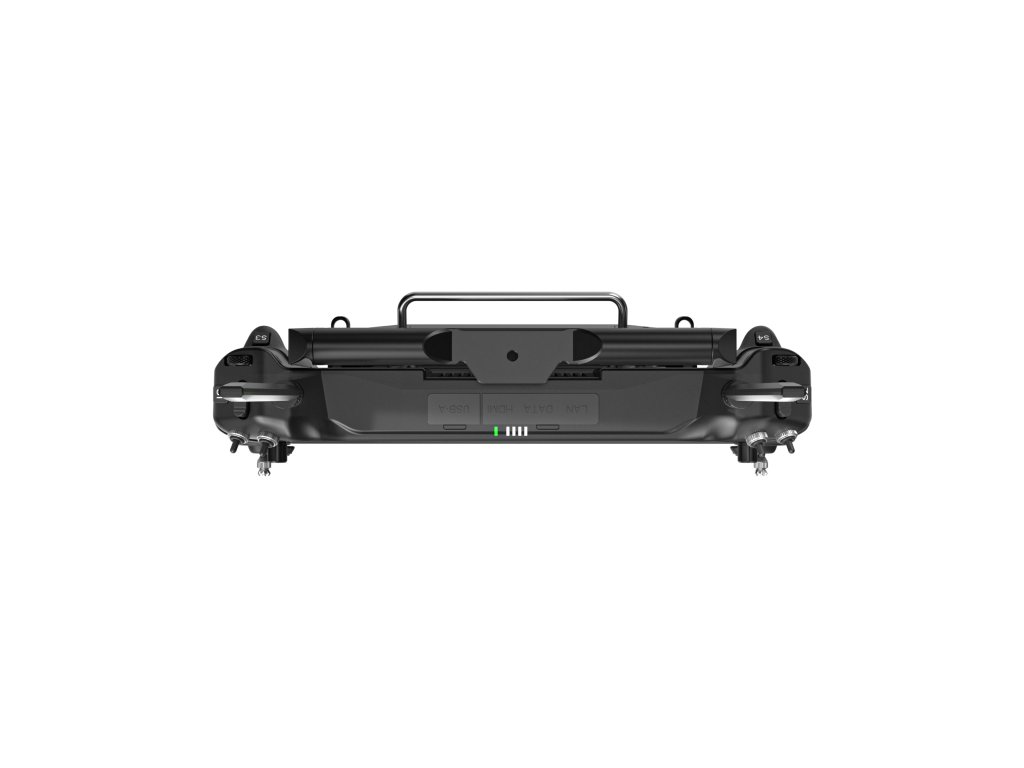

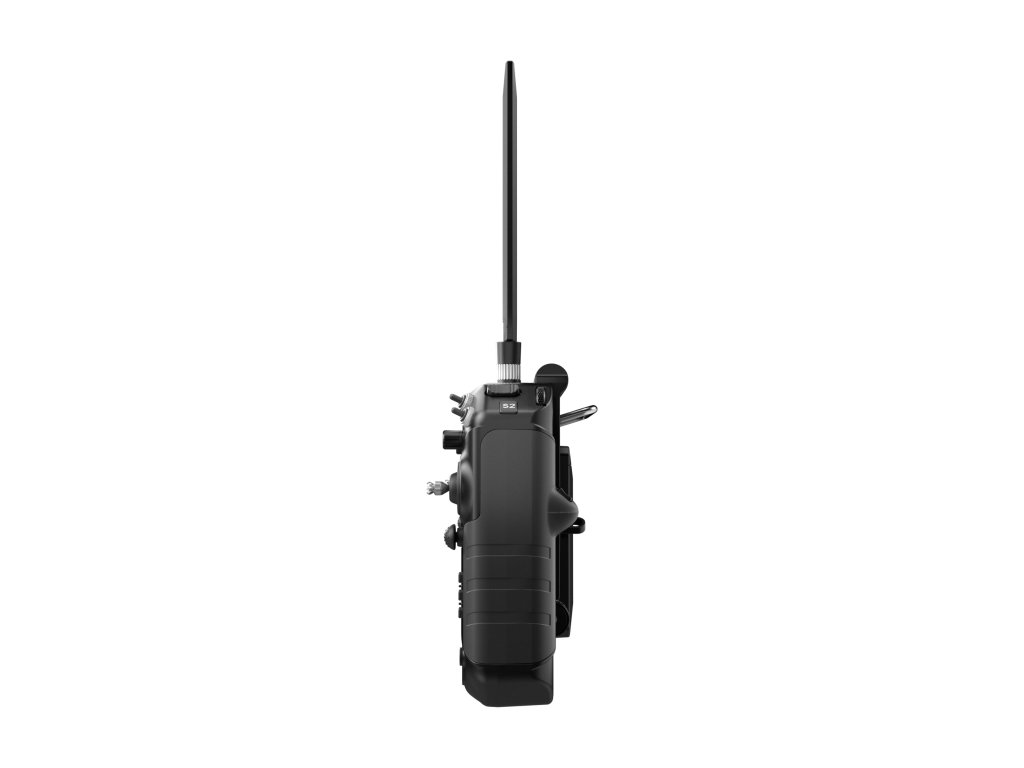

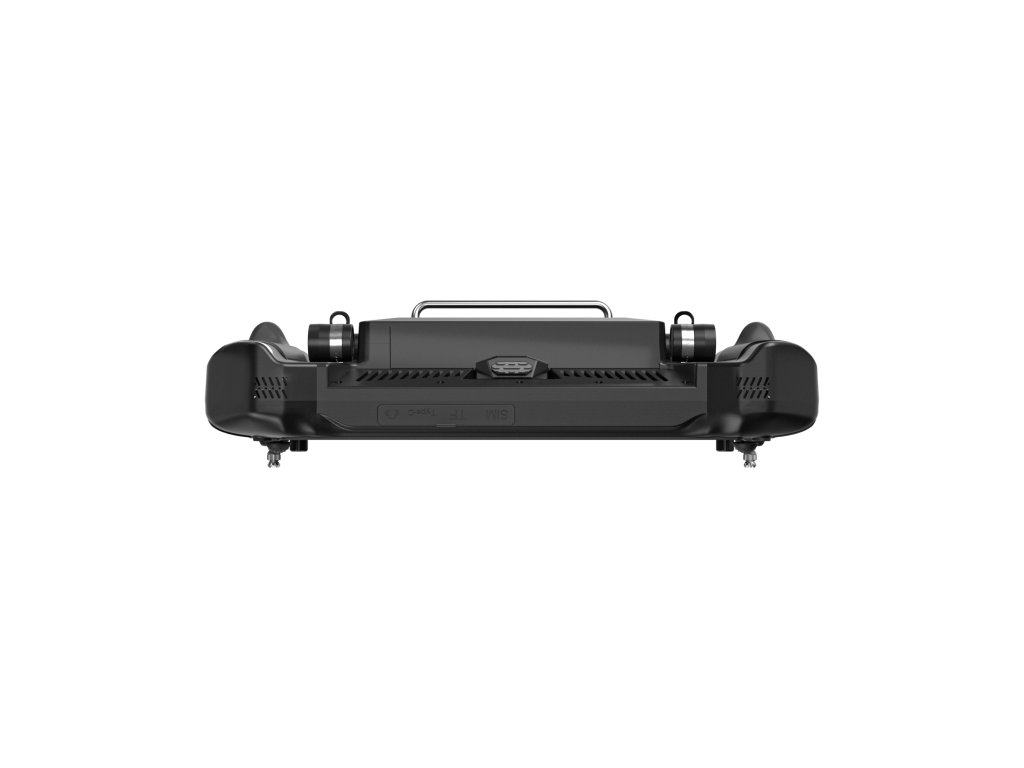

HD system Remote Controller SIYI UniRC 10 Pro Handheld Ground Station

The SIYI UniRC 10 Pro is a professional-grade handheld ground station and remote controller designed for advanced unmanned systems such as drones, UGVs, USVs, and intelligent robotics. Equipped with a bright 10.1-inch HD display, triple-frequency communication redundancy, and robust Android-based processing, it delivers reliable long-range video and control links. Built to withstand challenging environments, it offers ergonomic control with customizable physical channels and extensive connectivity.

Features:
- Professional 10.1" HD Ground Station:
Large 10.1" 1920×1200 display with 2000-nit ultra-brightness, ideal for outdoor operations and multi-stream video monitoring.

- Triple-Frequency Long-Range Link:
Advanced triple-band transmission with adaptive frequency hopping delivers up to 45 km range, stronger anti-interference, and stable communication in complex environments.

- Powerful Android System:
Powered by Android 13 and a Snapdragon 8-core SOC, with 4GB RAM and 64GB storage (expandable) for smooth application performance and professional workflows.

- Dual-Battery Endurance Architecture:
Internal 6700mAh + hot-swappable external 13400mAh batteries provide up to 5 hours of operation, with PD65W fast charging and uninterrupted runtime.

- 27 Customizable Control Channels:
Equipped with hall-sensor joysticks, dual mini-sticks, knobs, dials, and switches for precise control of drones, gimbals, robots, and multi-payload systems.

- Wide Connectivity & SDK Support:
Includes HDMI, Ethernet (RJ45), USB-A, USB-C, SIM, TF, SBUS/PPM, and Bluetooth, plus SDK support (serial, type-C, UDP) for advanced integrations.

- Rugged All-Weather Build:
IP54-rated housing, designed for professional field operations in –20°C to +50°C conditions.

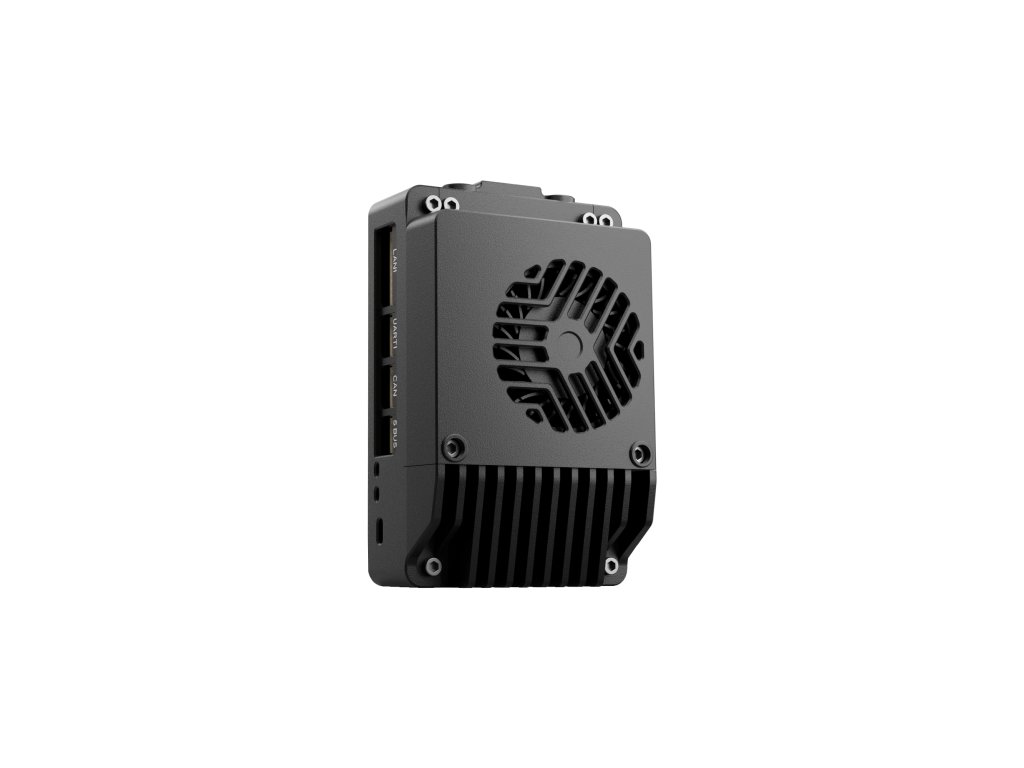

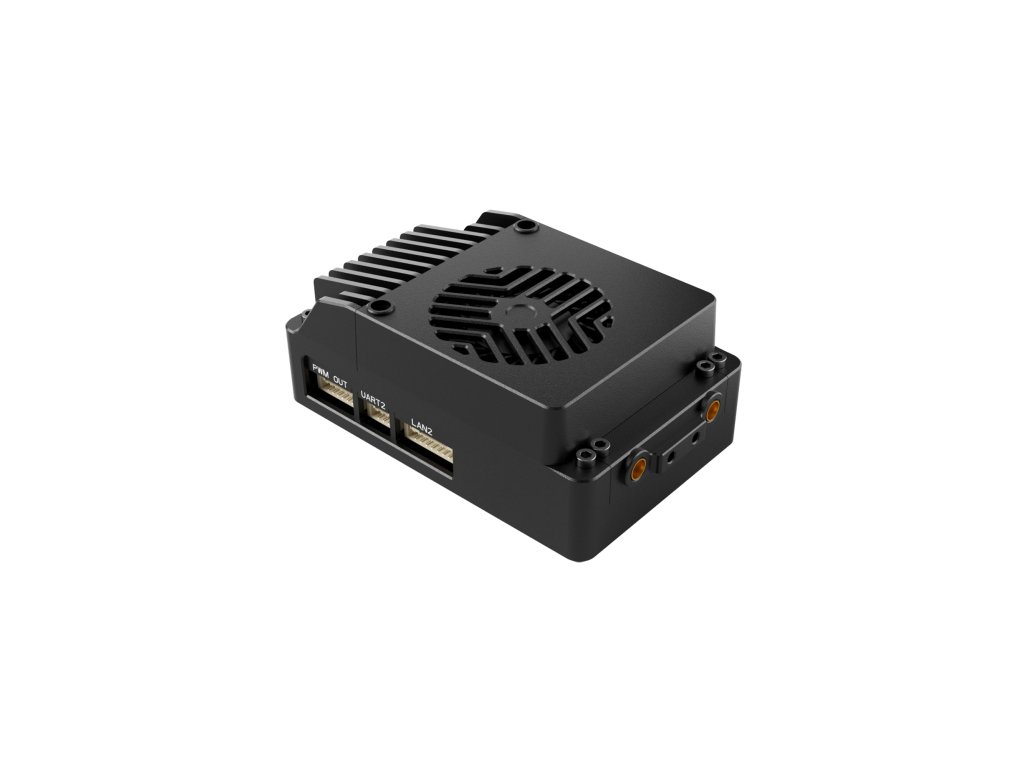

- Advanced Air Unit:
Compact 200g module with dual Ethernet ports, dual data links, PWM/SBUS outputs, CAN interface (custom protocol), and USB-C for firmware updates.

- Ideal for Professional Unmanned Systems:
Perfect for UAVs, UGVs, USVs, and robotic platforms requiring secure, stable, high-performance video and control.

Specifications:
Processor& Chipset:
System: Android 13
CPU: Snapdragon 8-Core SOC
Memory: 4G
Storage: 64G (expandable)

Display Parmeters:
Size: 10.1 inch
Resolution:1920x1200
Brightness: Adaptive

Transmission:
Frequency: Triple Frequency Redundancy
Transmission: max 45 km Altitude (120m), few obstruction & medium interference: 20-25km Above sea flight altitude (150m), no obstruction & low interference: 35-45 km
Bandwidth: 10/20M
Special features: adaptive frequency hopping; dual-control

Endurance:
External battery capacity: 13400mAh
Internal battery capacity: 6700mAh
Dual batteries (internal & external)
Endurance: approximately 5h
Special features: battery hot-swapping; charging while operating; dual battery level indicators; PD65W fast charging

Controls & interfaces:
Joystick type: hall-sensor joystick
Main joystick: 2
Mini joystick: 2
3-position switch: 6
Dial: 2
Knob switch: 2
Button: 13
Supporting: HDMI, sim port, USB-A, type-C, RJ45 Ethernet, TF port, 3.5mm audio port, RC data (s.bus, PPM)

Total:
Dimensions: 328.2x222.5x101.5mm
Weight: 2.6kg (include belly rest bracket)
IP level: IP54
Temperature: -20~50°C
Air unit dimensions: 85x42.4x26.9mm
Air unit weight: 200g

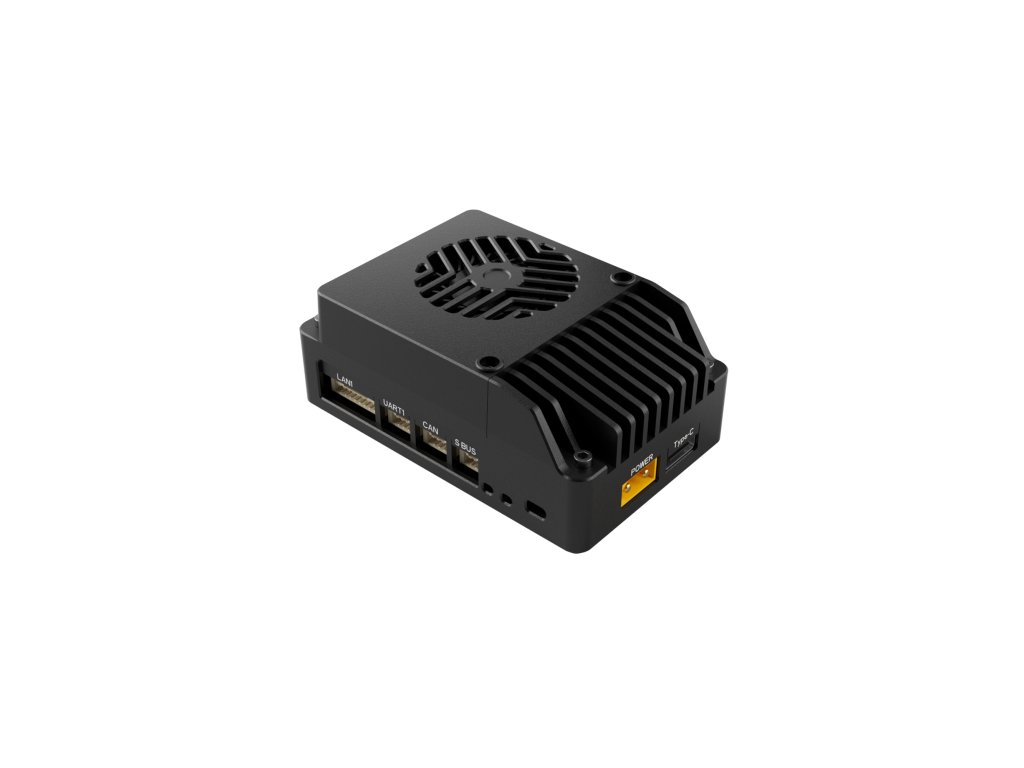

Air unit interfaces: dual Ethernet ports, dual data links, 5-channel PWM output, SBUS output, can11 (custom protocol required), type-C (firmware upgrade)

Package includes:

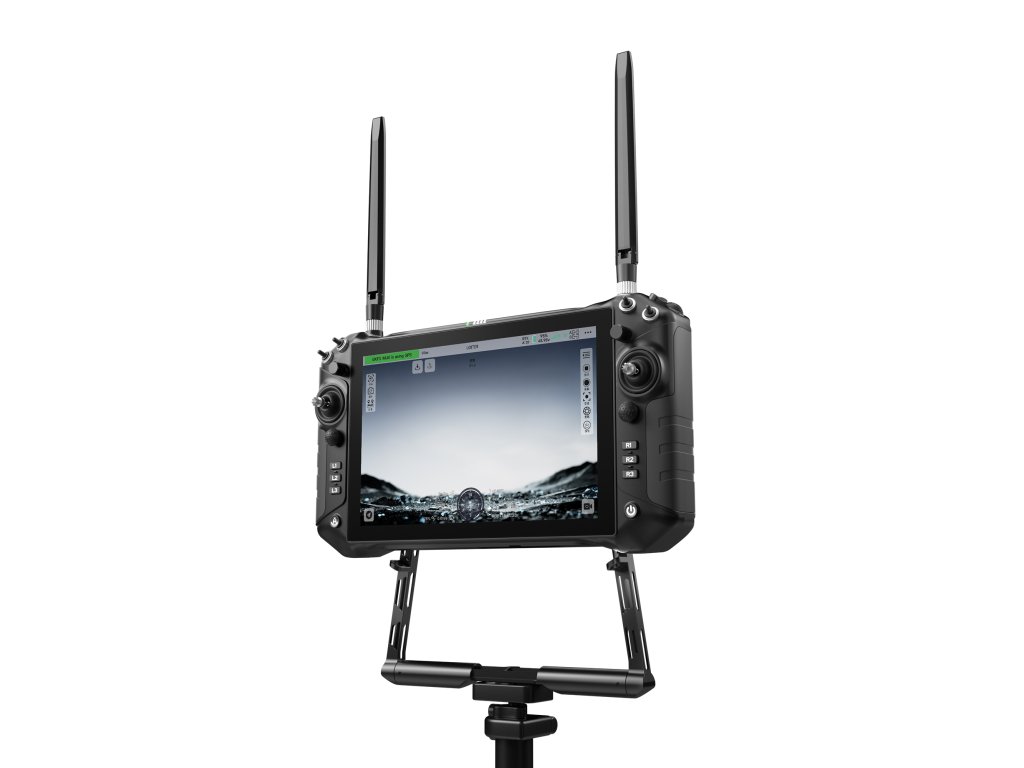

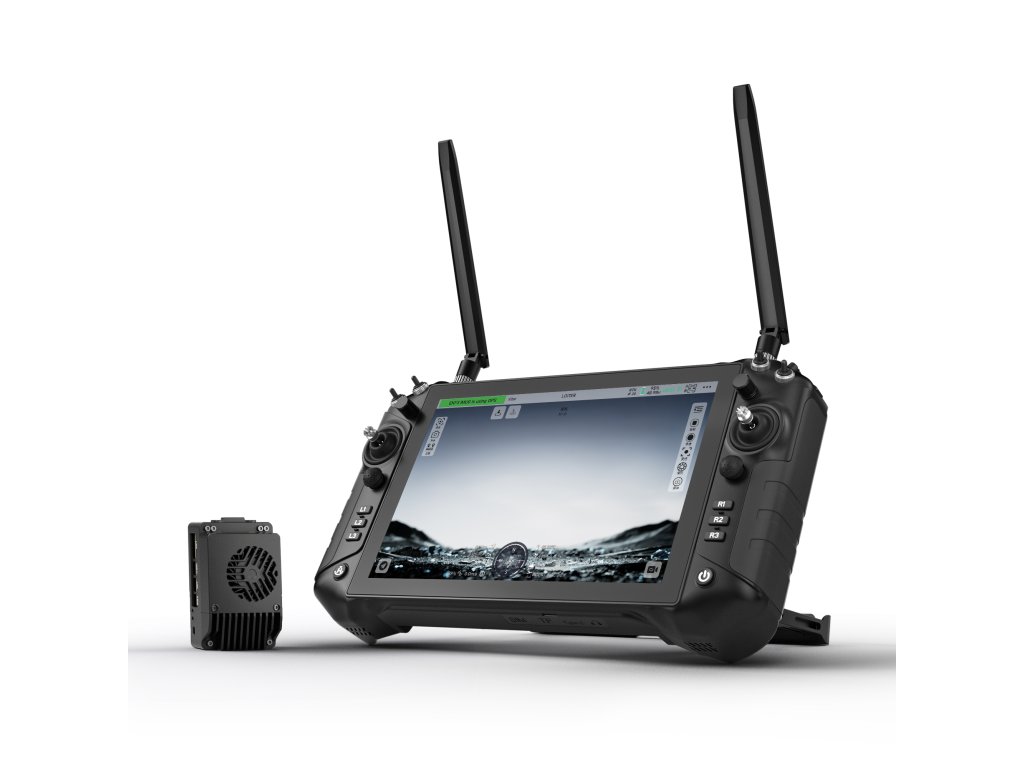

1x SIYI UniRC 10 Pro Handheld Ground Station (with belly rest bracket)

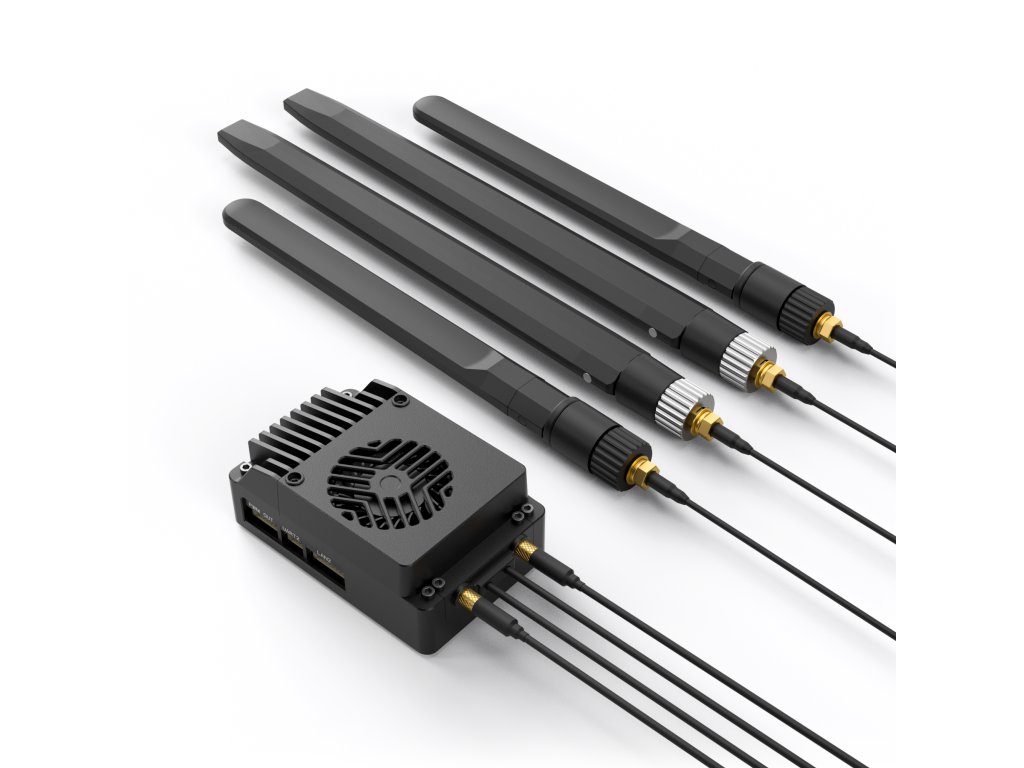

1x UniRC 10 Pro Air Unit
Antennas (e.g., omnidirectional 2.4 GHz & 5 GHz)
Air Unit Data Cables & Connectors
Battery(ies) and charging accessories
