Frame Pilotix Mark4-7 Partizan Edition 7"
Code: GP105969Related products
Product detailed description

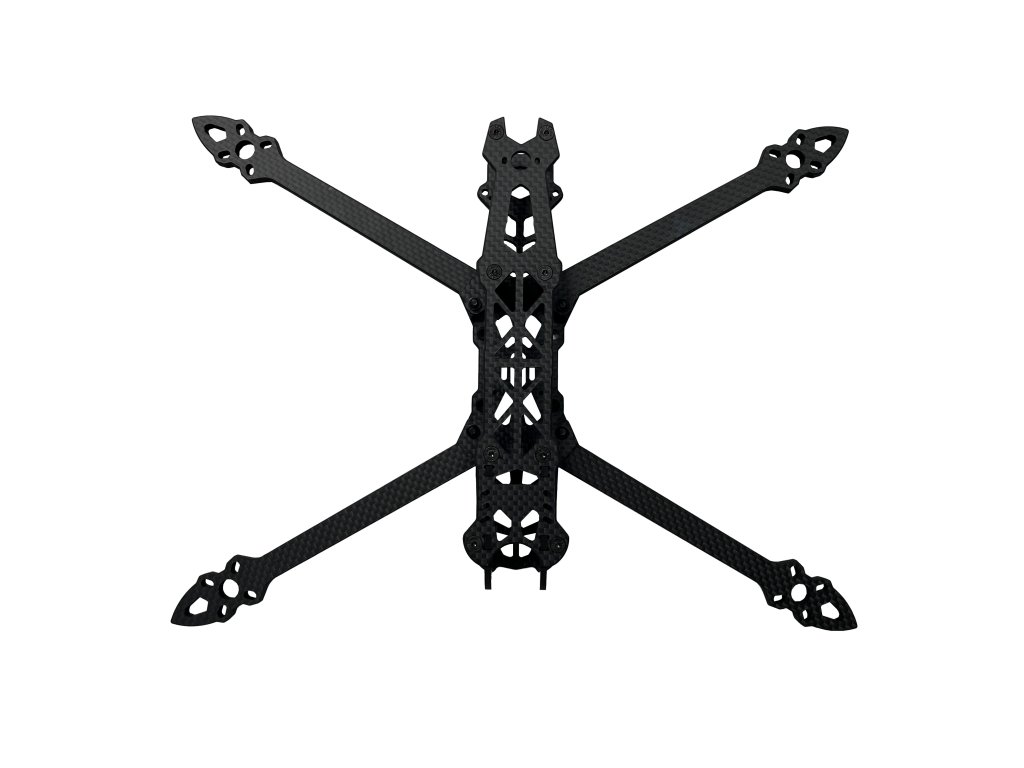

Frame Mark4-7 Partizan Edition 7" The Frame Mark4-7 Partizan Edition 7" is a high-quality frame designed for building a 7-inch long-range drone. Crafted from durable carbon fiber, ensuring resilience against crashes and damages. Specifications:
Model: Mark4-7 Partizan Edition
Wheelbase: 297mm
Arm thickness: 5mm
Top plate width: 41mm
Top plate length: 177mm
Top plate thickness: 2.5mm
Bottom plate width: 50mm
Bottom plate length: 182mm
Bottom plate thickness: 2.5mm
Dimensions: 281x213x30mm
FC mounting holes: 30.5mm/20mm
Camera mounting: 19mm
Propeller size: 7 inch
Compatible motor size: 2807
Weight: 170g
Package Includes: 1x Frame Mark4-7 Partizan Edition 7"
Additional parameters
| Category: | FPV Frames |
|---|---|
| Weight: | 0.15 kg |
| Material: | Carbon fiber |
| Camera Mounting: | Micro (19mm) |
| Size: | 7 inch |
| Motor Size: | 2807 |
| Wheelbase: | 297mm |
| Drone Type: | Long Range |
