Frame BETAFPV Pavo20 for O3 Air Unit - Clear Grey

Product detailed description

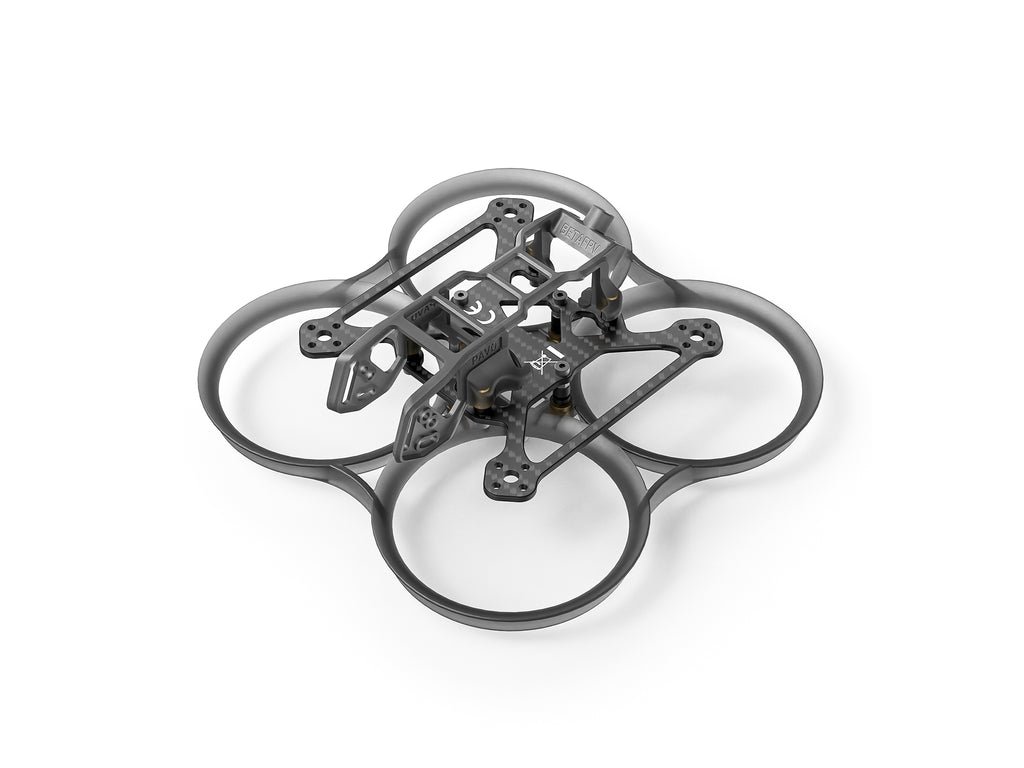

Frame BETAFPV Pavo20 for O3 Air Unit - Clear Grey

The BETAFPV Pavo20 Pro Brushless Whoop Frame in transparent grey is engineered for cinewhoop enthusiasts seeking durable brushless performance and seamless DJI O3 Air Unit integration. Its robust PA12/PP construction and thickened ducts deliver an 8–11% thrust boost on a 93.7 mm wheelbase when paired with a 3S power setup. Dual camera mounts accommodate both O3 and O4 Pro wide-angle units for versatile filming angles, while classic rubber dampers ensure smooth HD footage. Included O3 Air Unit bracket and pre-cut FC/ESC plates simplify installation. Lightweight yet crash-proof, the Pavo20 Pro combines cinematic capability with race-ready agility.

Specifications:

Item: Pavo20 Pro Brushless Whoop Frame
Wheelbase: 93.7 mm
Material: PA12 nylon & PP
Top Plate Thickness: 2 mm
Frame Weight: 33.3 g (with O3 bracket)
Whoop Duct Weight: 17.8 g
O3 Bracket Weight: 4.6 g
Color: Transparent Grey
Camera Mount Spacing: 19 mm / 20 mm
FC Mount Holes: 26×26 mm
Motor Mount Holes: 4 × M2 – Ø 9 mm
Battery Slot Width: 20 mm
Camera Filter: Supported

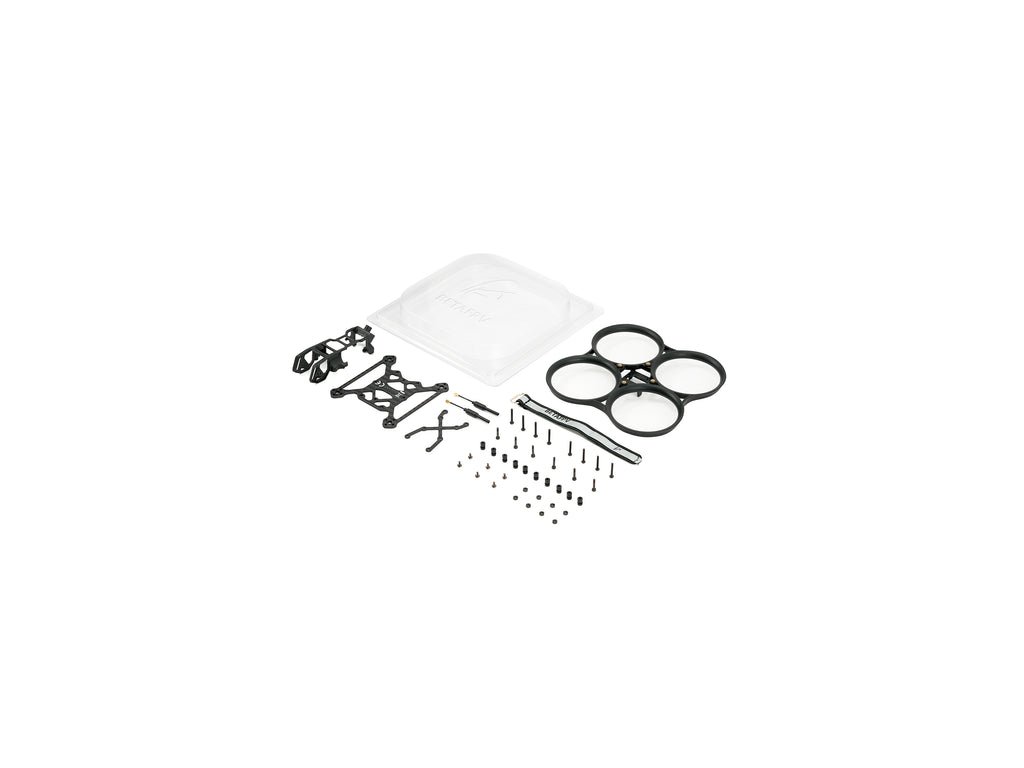

Package Includes:

1 × Pavo20 Pro Top Plate
1 × 20×20 mm VTX Mounting Plate
1 × Pavo20 Whoop Duct Set
1 × DJI O3 Air Unit Bracket
1 × 130 mm Battery Strap
2 × Battery Anti-Slip Mats
2 × 5.8 GHz Antennas
8 × M2 Nuts
10 × Rubber Dampers
6 × M2×10 mm Screws
6 × M2×4 mm Screws
4 × M2×14 mm Screws
4 × M2×15 mm Screws
