Frame BETAFPV Pavo20 Brusless Whoop Black

Product detailed description

Frame BETAFPV Pavo20 Brusless Whoop

- Integrated injection molding HD VTX mounting bracket eliminates the hassle of adjusting screw tightness and hassle-free installation. The original transmission antenna can be directly mounted on the frame kit.
- Constructed with a crash-proof PA12 thickened whoop duct. Its reinforced cross-section design enhances the strength and blast resistance, employing the principles of aerodynamics and synergizes flawlessly with an enhanced power system.
- Its camera side panel and the 4-point fixation design effectively safeguard the lens while allowing for easy installation of ND filters, eliminating any concerns about angle deviation after intense flights.
- An open-ended battery strap slot including side-limitation slots ensures secure and stable battery placement that accommodates a wide range of batteries. Supports 2~4S batteries.

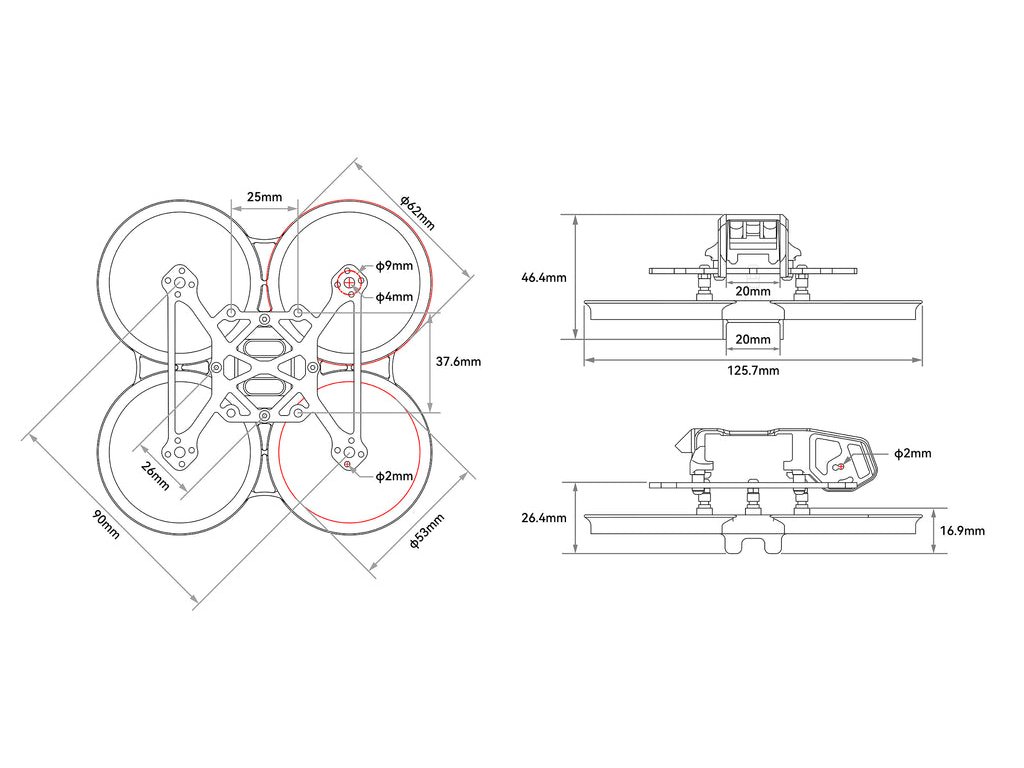

Specifications:

Item: Pavo20 Brushless Whoop Frame
Wheelbase: 90mm

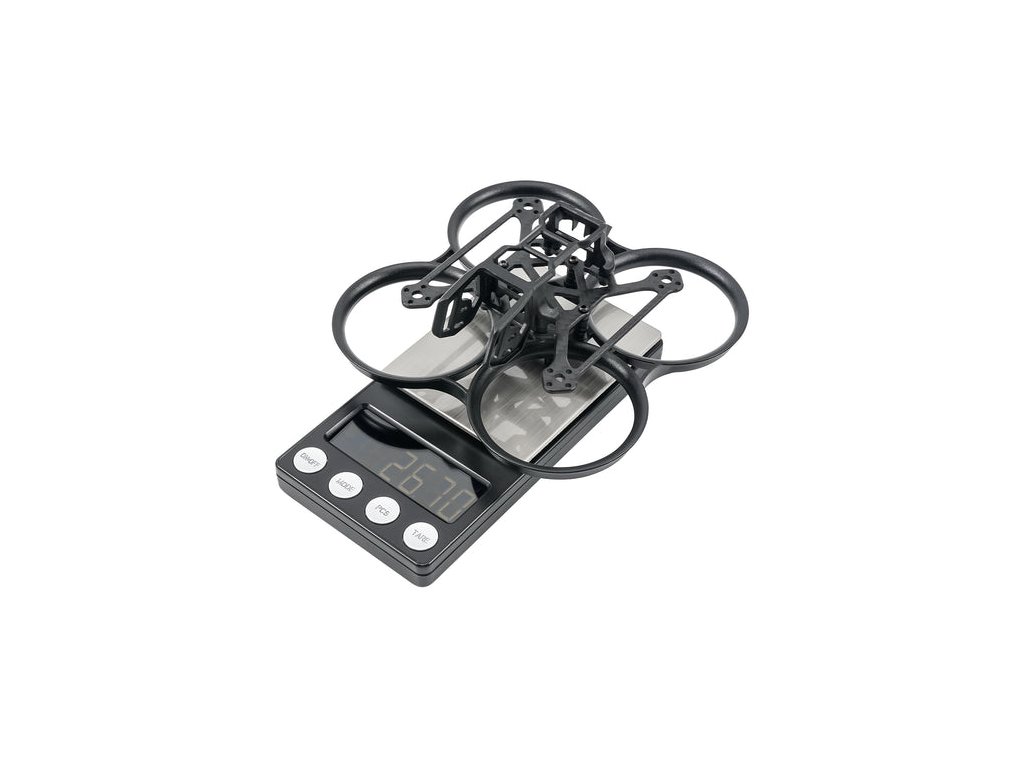

Weight: 26.7g(With HD VTX Bracket), 13.8g(Whoop Duct), 4.1g(Only HD VTX Bracket)
Color: Black
Top Plate Thickness: 2mm
Camera: 19mm/20mm
Camera Filter: Support
FC Mount: 26×26mm, suitable for conventional whoop FC
Motor Mount: 4-M2-φ9mm
Battery Slot Width: 20mm

Recommend Parts:

FC&ESC: F4 1S 12A AIO FC V3, F4 2-3S 20A AIO FC V1
Motor: 1103 | 8000kv/8500kv/11000kv
Propellers: GF 2015-2B, GF 2020-4B
Battery: 2S~4S 450mAh~650mAh
VTX: DJI O3, Caddx Vista, RunCam Link

Package Includes:
1x Pavo20 Top Plate
1x 20*20mm VTX Mounting Plate
1x Pavo20 Whoop Duct
1x Pavo20 VTX Bracket
1x 130mm Battery Strap
2x Battery Anti-Slip Mat
2x 5.8g Antenna
8x M2 Nut
10x Rubber Damper
6x M2*10 Screws
6x M2*3 Screws
4x M2*14 Screws
4x M2*15 Screws
