Frame BETAFPV Pavo20 Pro Whoop O4 Pro Black

Product detailed description

Frame BETAFPV Pavo20 Pro Brushless Whoop O4 Pro Black

The Pavo20 Pro Brushless Whoop Frame is tailored for the 2.2″ Pavo20 Pro cinewhoop, now with expanded compatibility to support the DJI O3 Air Unit, Caddx Vista, RunCam Link, and the latest DJI O4 Air Unit Pro—paired seamlessly with the O4 Pro Bracket for enhanced stability and versatility. Designed with a 93.7mm wheelbase and constructed from crash-proof PA12 thickened whoop ducts, this frame combines durability with aerodynamic efficiency, delivering an 8-11% thrust boost. Perfectly paired with a robust 3S propulsion system, it generates unparalleled power for freestyle and cinematic flights. The frame also features dual camera fixed holes for DJI O3 and O4 Pro wide-angle shooting and the classic rubber damper design, ensuring buttery-smooth, HD footage every time.

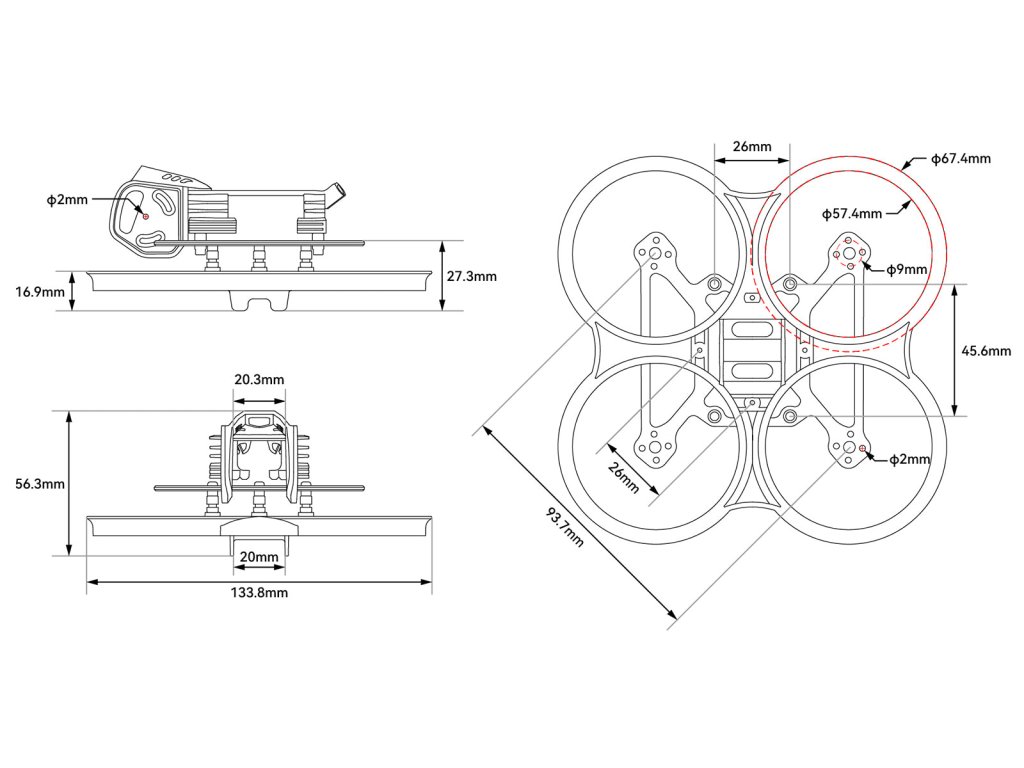

Specifications:

Wheelbase: 93.7mm
Material: PA12/PP
Top Plate Thickness: 2mm
Frame Weight: 35.7g (With O4 Air Unit Pro Bracket)
Whoop Duct Weight: 17.8g
Bracket Weight: 7.2g (O4 Air Unit Pro Bracket)
Color: Black
Camera Mounting Spacing: 19mm/20mm
FC Mounting Hole Size: 26×26mm
Motor Mounting Hole Size: 4-M2-φ9mm
Battery Slot Width: 20mm
Camera Filter: Supported

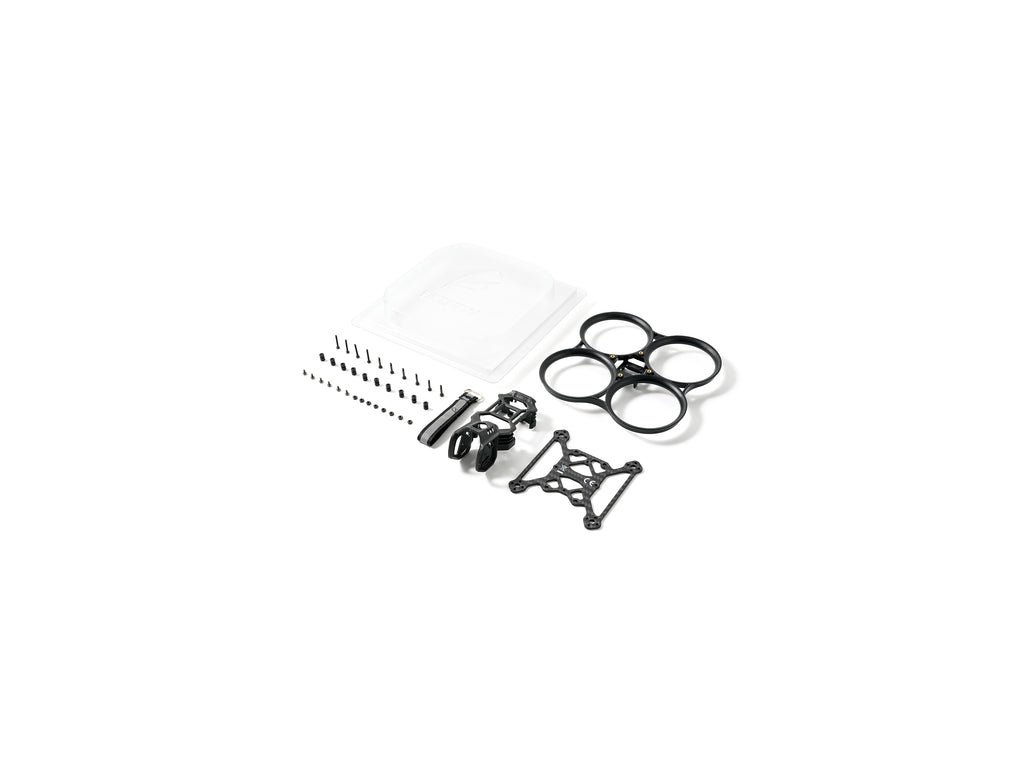

Package includes:

1 х Pavo20 Pro Brushless Whoop Frame
1 х O4 Air Unit Pro Bracket
6 х Rubber Damper
6 х M2*10 Screws
6 х M2*4 Screws
