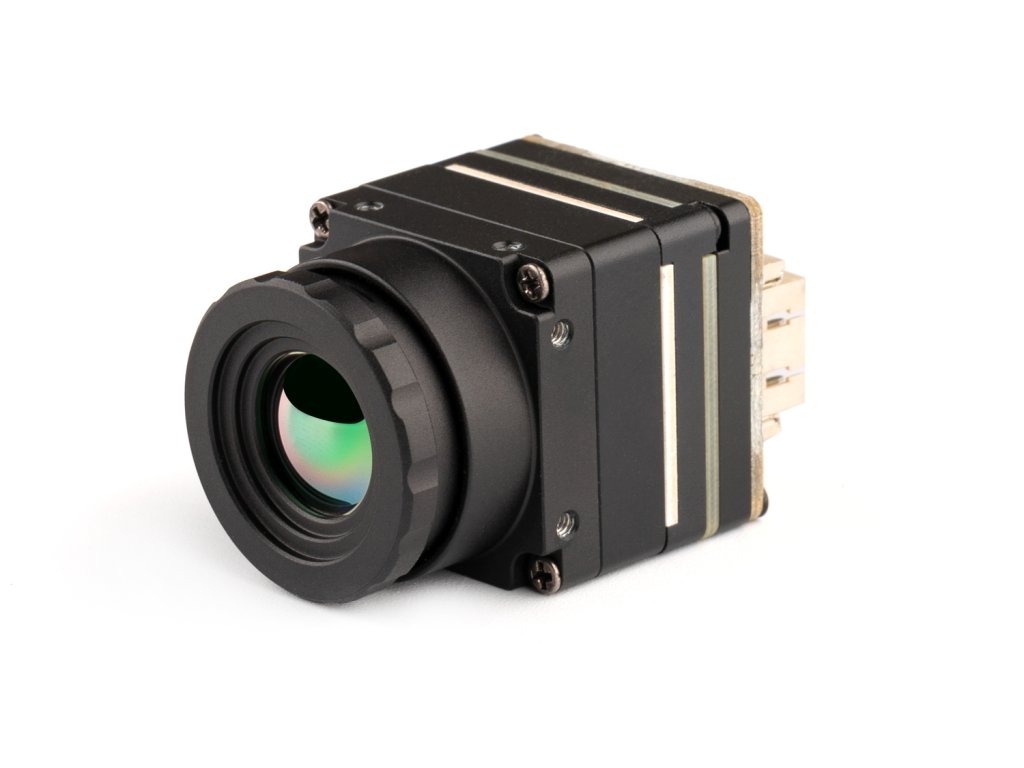

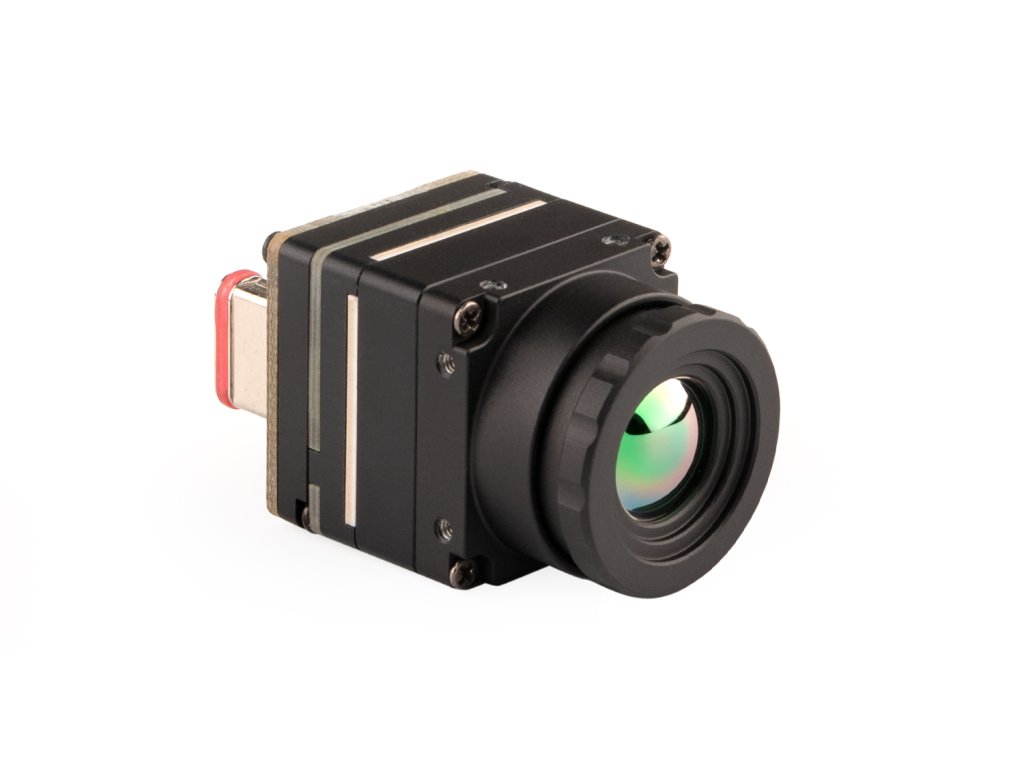

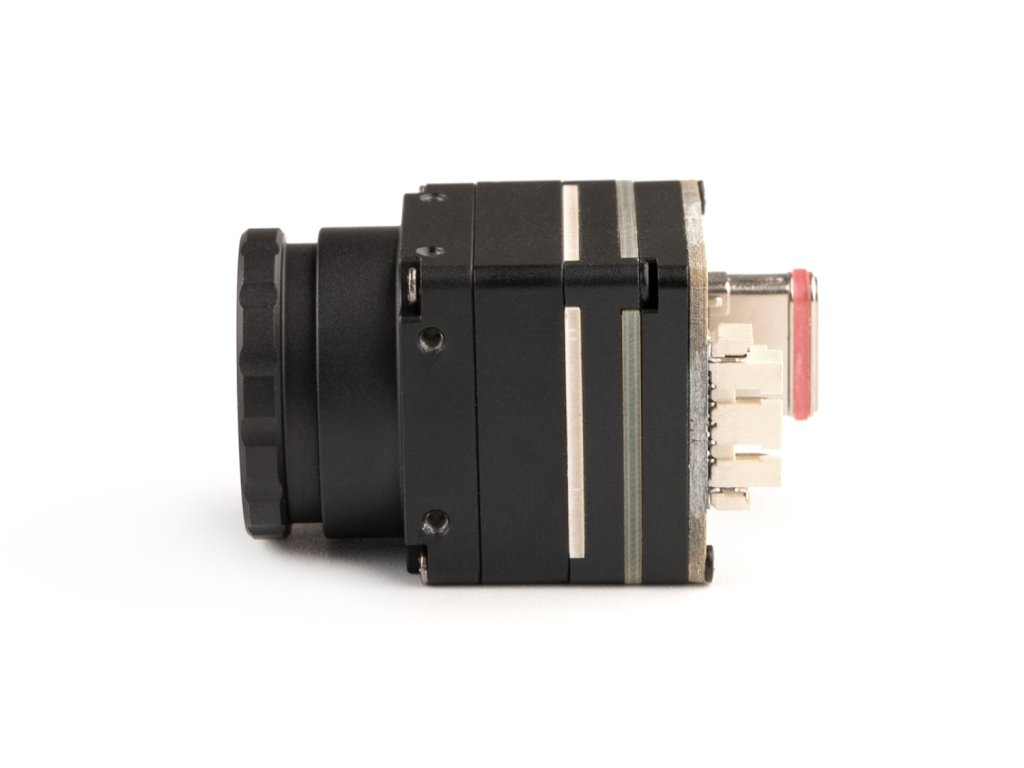

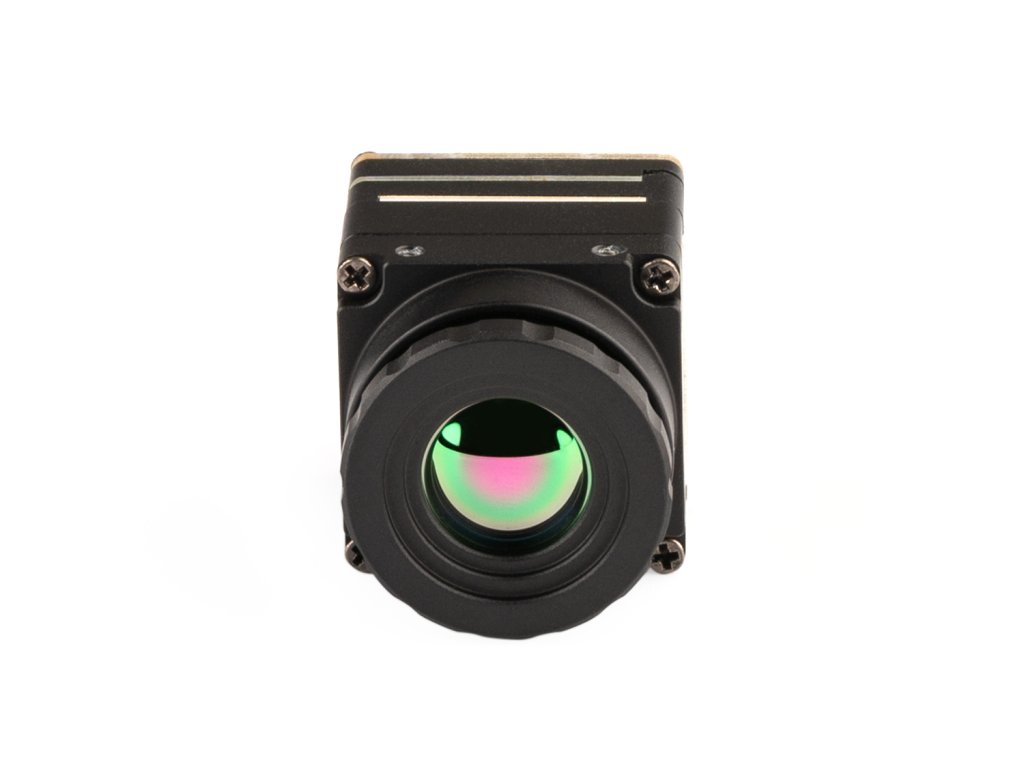

FPV Thermal Camera HobbyDrone Mini2 640x512

The HobbyDrone Mini2 640x512 is a professional-grade uncooled infrared thermal camera designed for FPV drones, inspection systems, and industrial monitoring. Equipped with a vanadium oxide detector, it delivers high-resolution thermal imagery with exceptional detail and 25mK sensitivity. Its compact, lightweight design, multiple video interfaces, and wide operating temperature range make it perfect for demanding airborne and embedded applications.

Features:
- High-resolution 640x512 thermal imaging with 12μm pixel pitch
- Sensitive vanadium oxide uncooled infrared focal plane array for precise detection
- Smooth 30/60Hz frame rate for real-time thermal visualization
- Supports white-hot, black-hot, and multiple color palettes
- 1.0–8.0x continuous digital zoom and image mirroring modes
- Dual non-uniformity correction: shutter and shutter-less algorithms
- Multiple output formats for analog and digital systems
- Ultra-light and compact structure optimized for FPV use
- Operates in extreme temperatures and resists vibration and impact

Specifications:
Overview:
Detector Type: Vanadium Oxide Uncooled Infrared Focal Plane Detector
Resolution: 640x512
Effective Frame Rate: 30/60Hz
Pixel Pitch: 12μm
Spectral Band: 8~14μm
Noise Equivalent Temperature Difference (NETD): 25mK@25 °C,F#1.0,25Hz
Thermal Time Constant: <12ms

Image Adjustment:
Non-uniformity Correction: Shutter correction/shutter-less algorithm correction
Brightness/Contrast Adjustment: 0~100, optional
Polarity/Palette:White-hot/Black-hot/Various palettes supported
Digital zoom: 1.0~8.0xcontinuous zoom (step size: 0.1)
Image Mirroring: Vertical/Horizontal/Diagonal

Electricity Parameters:
Analog Video: PAL/NTSC
Digital Video: DVP/BT656/USB2.0/MIPI

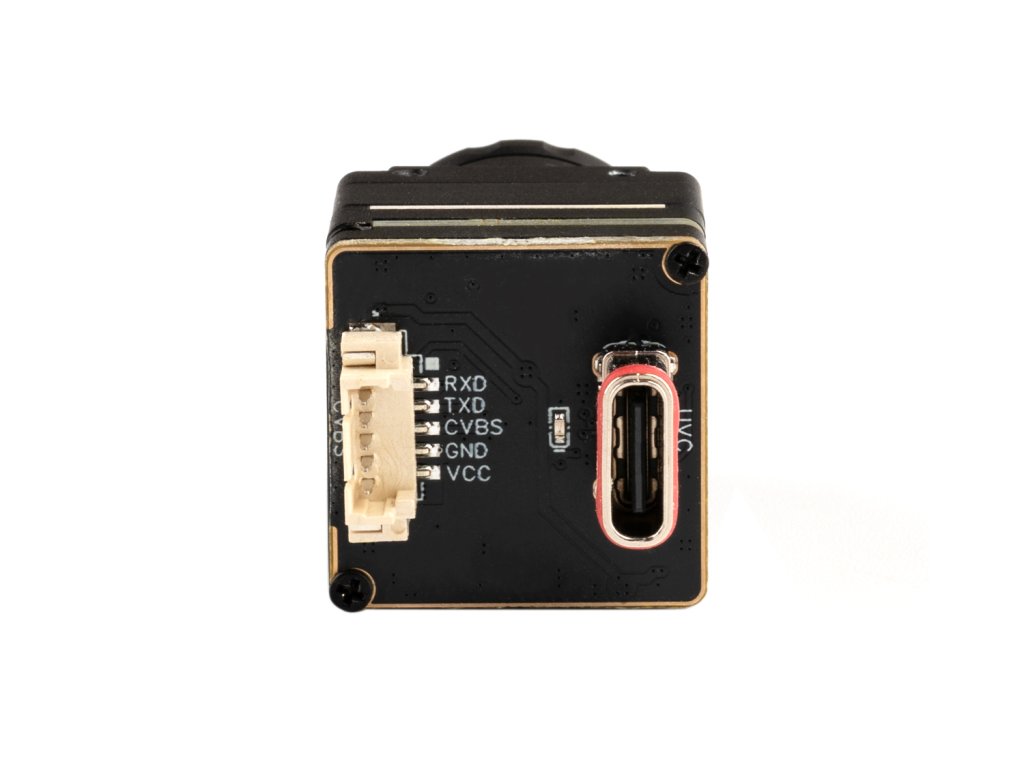

Communication Interface: UART/12C/USB2.0
Power Supply Input: 5V
Typical power consumption of USB output @25°C: <0.7W

Physical Characteristics:
Weight (without lens): <8.6g
Dimensions (without lens): 21x21x10.3 mm

Environment Adaptability:
Operating Temperature: -40 °C~+80°C
Storage Temperature: -50°C~+85°C
Humidity: 5%-95%, non-condensing
Vibration: 6.06g, random vibration, all axes
Impact: 80g, 4ms, final peak sawtooth wave, three axes and six directions

Package includes:
1x FPV Thermal Camera HobbyDrone Mini2 640x512
1x Interface Cable
