FPV monitor Hawkeye Captain X 10.2inch Android

Product detailed description

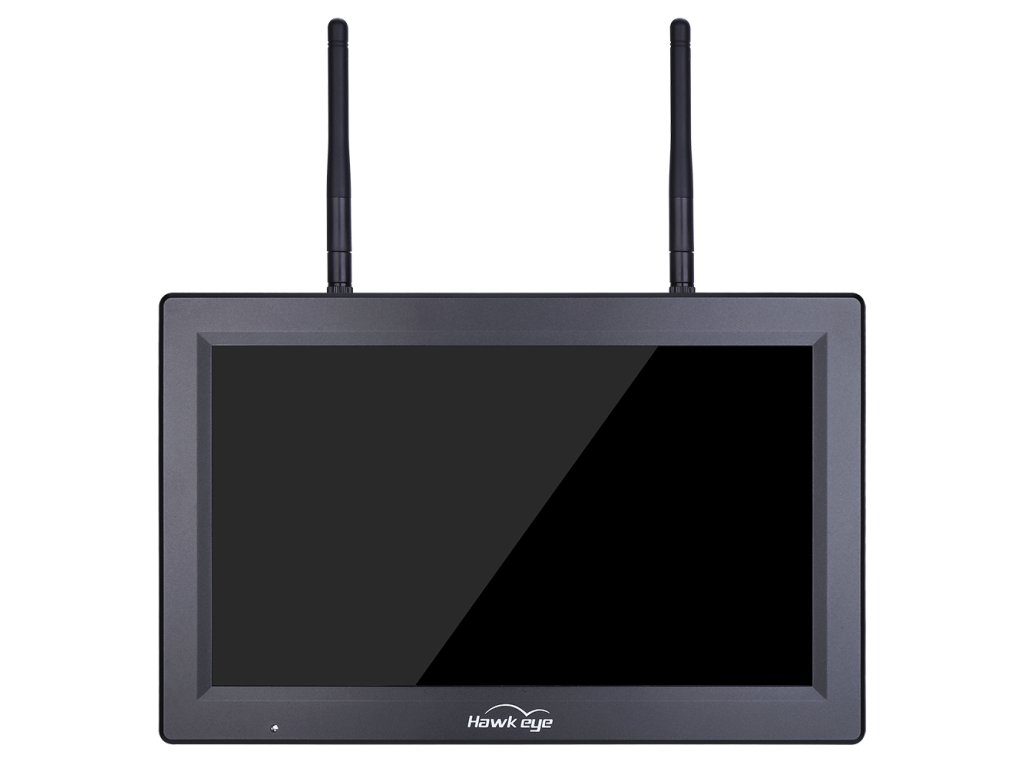

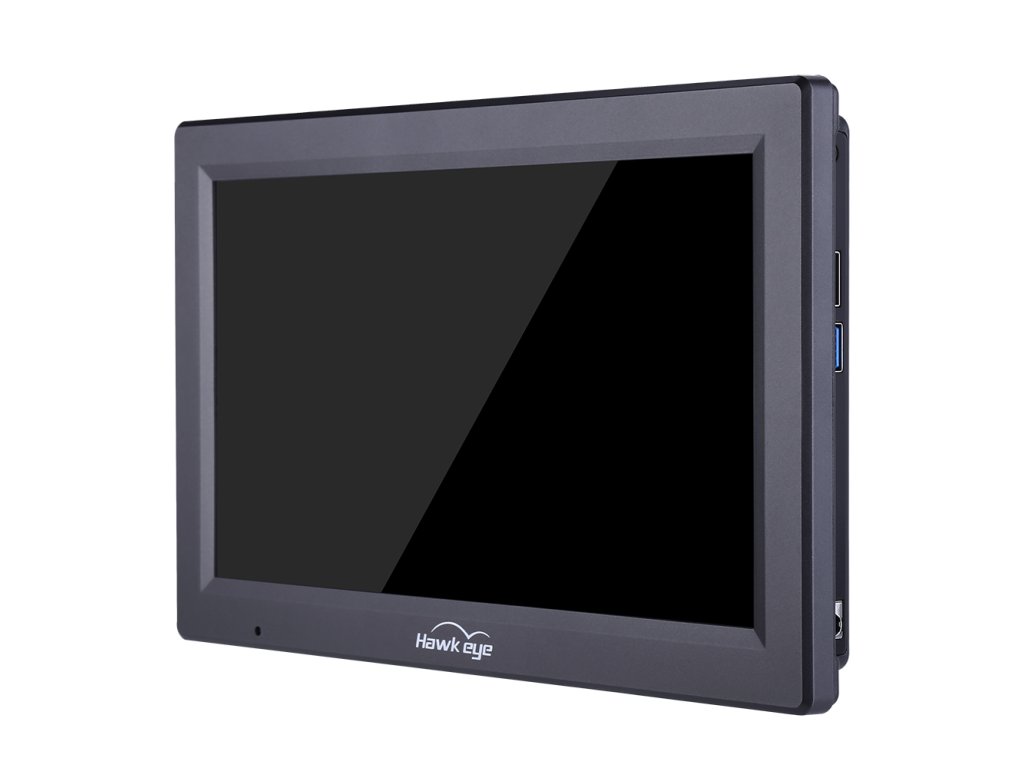

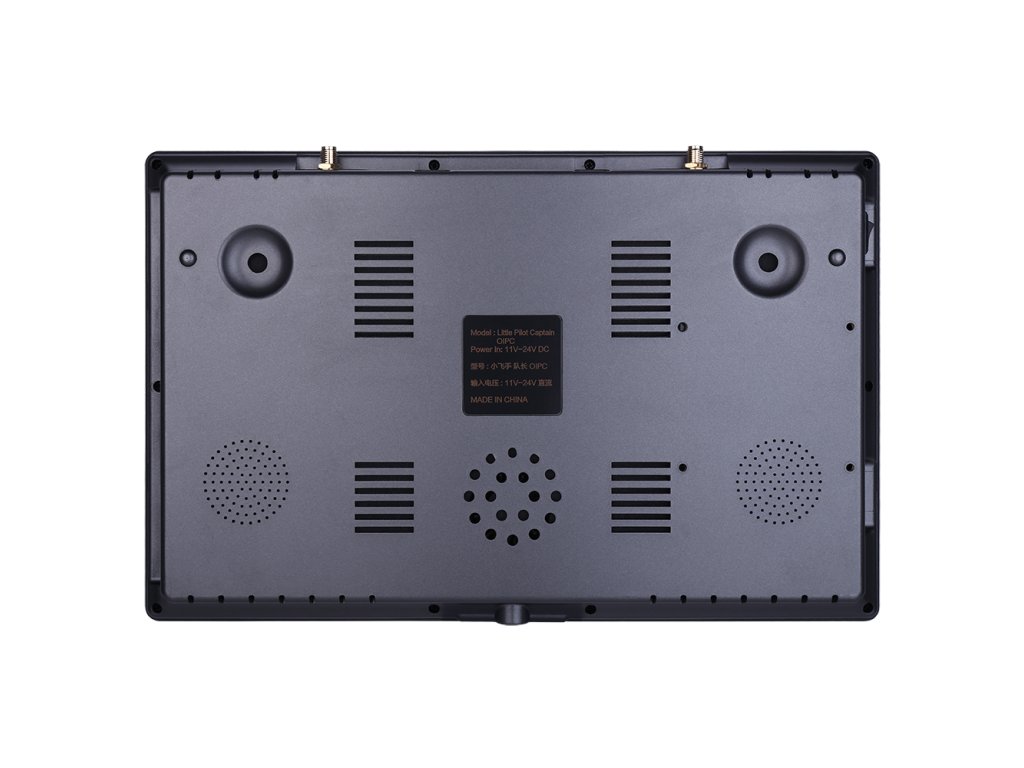

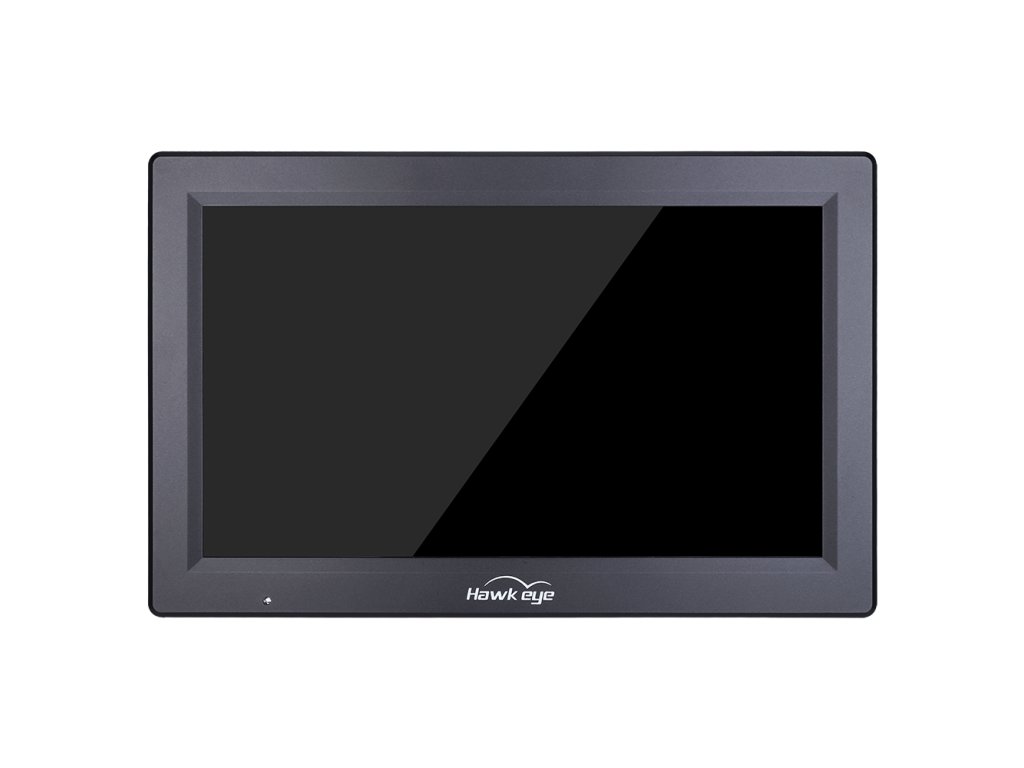

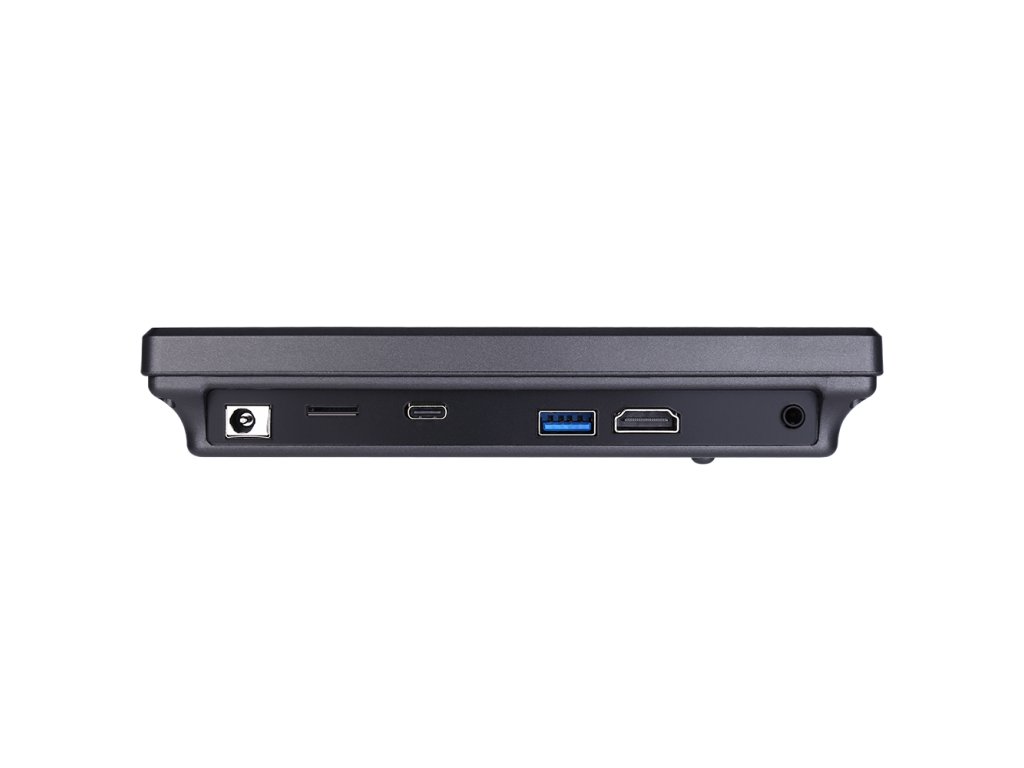

Hawkeye Captain X 10.2" Android FPV Monitor

The Hawkeye Captain X 10.2″ FPV monitor is a large-screen FPV display designed for ground stations, FPV pilots, and aerial video monitoring. It is equipped with a 10.2-inch IPS display with wide viewing angles and high brightness for outdoor use. The monitor supports analog FPV signals, includes a built-in receiver and DVR, and offers HDMI input for external video sources, making it suitable for various FPV and RC applications. Features:

- Wide power supply range: 3-6S
- High-brightness display of 1000 lux for outdoor use
- Android system with 4 GB RAM and 32 GB internal memory
- Support for microSD cards up to 256 GB
- Support for USB video input for DJI Goggles V1 / V2
- Support for OTG output for DJI Goggles 2 / 3
- OpenIPC support
- Built-in RTL8812AU network card
- Built-in Wi-Fi

Specifications:

LCD: IPS
Resolution: 1024 × 600
Backlight: LED
Brightness: 1000 lux
Aspect ratio: 16:9
Response time : 10 ms
Touch screen: capacitive touch screen
RAM / internal storage: 4 GB + 32 GB
TF card support TF cards: up to 256 GB
Input voltage: DC 10–26 V
Battery support: 3S–6S LiPo
Current consumption:
- 780 mA at 12 V
- 380 mA at 26 V
USB port: DJI Goggles V1 / V2
DJI Goggles G2 / G3
DJI Goggles V1 / V2: FPV Out app (pre-installed)
DJI Goggles G2 / G3: DJI Fly app (pre-installed)
OpenIPC: PixelPilot (pre-installed)
HDMI: 1080p @ 60 FPS
Audio: 3.5 mm headphone port
Dimensions: 300 × 196 × 60 mm
Weight: approx. 1 kg
Network card: RTL8812AU
Antennas: 2 × 5.8G SMA
Wi-Fi: 2.4 GHz

Package includes:

1 × Hawkeye Captain X 10.2" FPV monitor
2 × FPV antennas (depending on version)
1 × HDMI/AV cable
1 × DC power cable
1 × stand/tripod mount
