FPV Drone Reebot UniDrone E900 Enterprise (Smart battery E17A)

Product detailed description

FPV drone Reebot UniDrone E900 Enterprise (E17A smart battery)

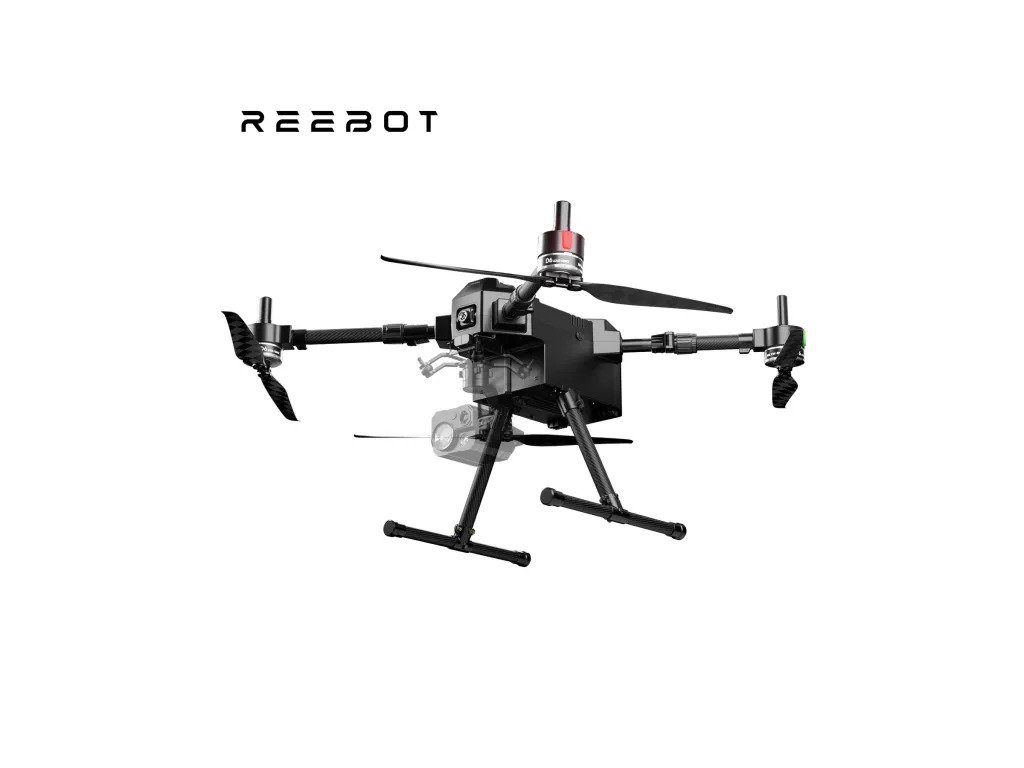

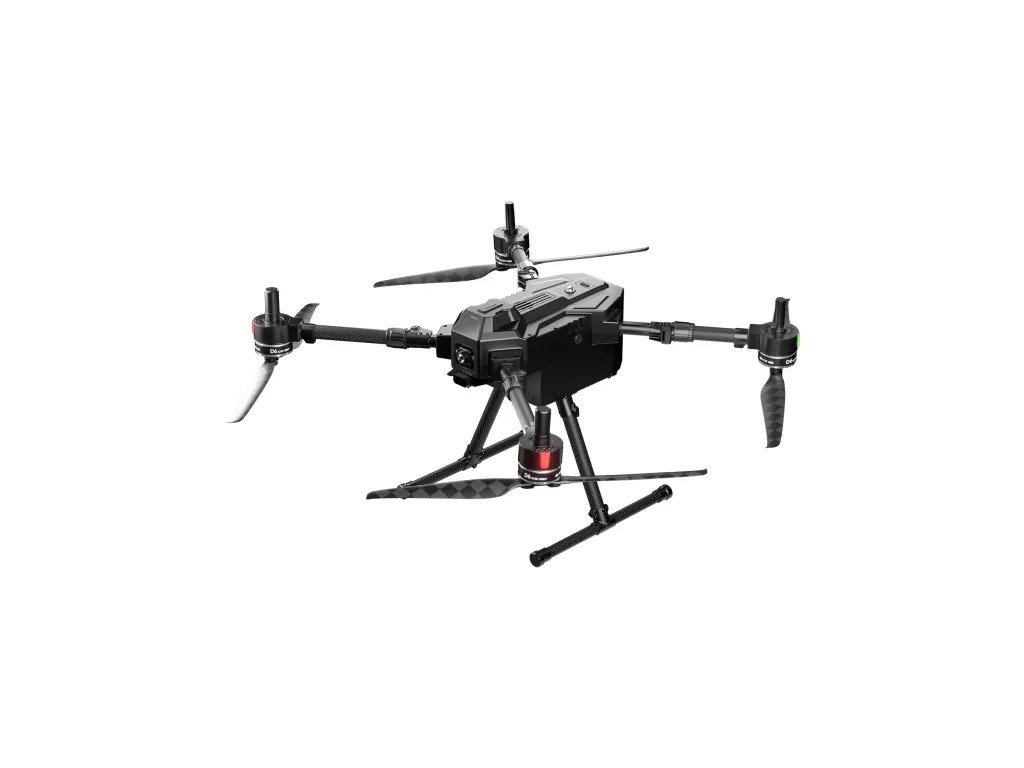

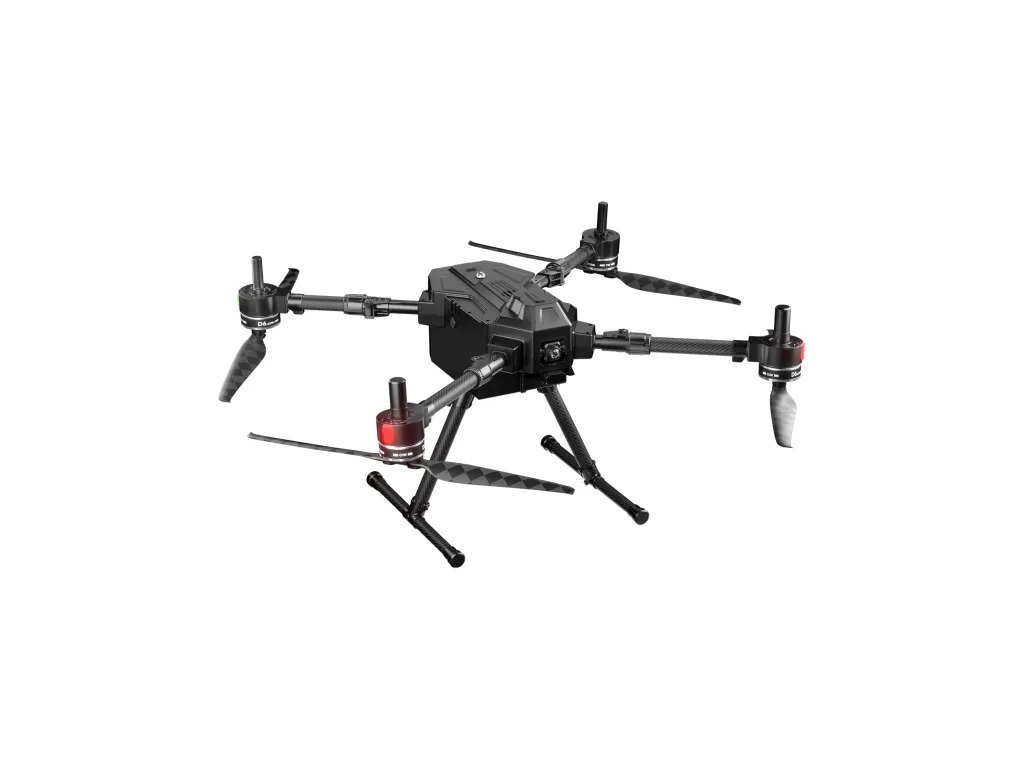

Reebot Robotics UniDrone E900 is an exceptional industrial-grade multifunctional drone platform designed to provide comprehensive and systematic solutions for flying in various industries. It integrates high compatibility, expandability, and excellent stability with an innovative folding design, powerful propulsion, advanced smart battery system, and extensive payload compatibility. This makes it the ideal choice for a wide range of industrial applications, offering reliable support for aerial operations and enabling global drone businesses to fully realize their potential and achieve maximum value.

This versatile UAV is widely used in:
- Infrastructure inspection
- Public safety and law enforcement
- Search and rescue missions
- Aerial patrol and monitoring
- Firefighting support
- Small cargo transport

It can be equipped with an optional high-performance speaker, which is particularly effective in emergency situations or when broadcasting in public spaces.

Features:

- Comparable performance to DJI M350
- Long flight time and extended control range
- Industrial design for outdoor and demanding environments
- Speaker support for public safety applications
- Advanced GPS and 3-axis stabilization for precise control

Specifications:

Airframe
Airframe material: High-strength engineering plastics, aerospace aluminum

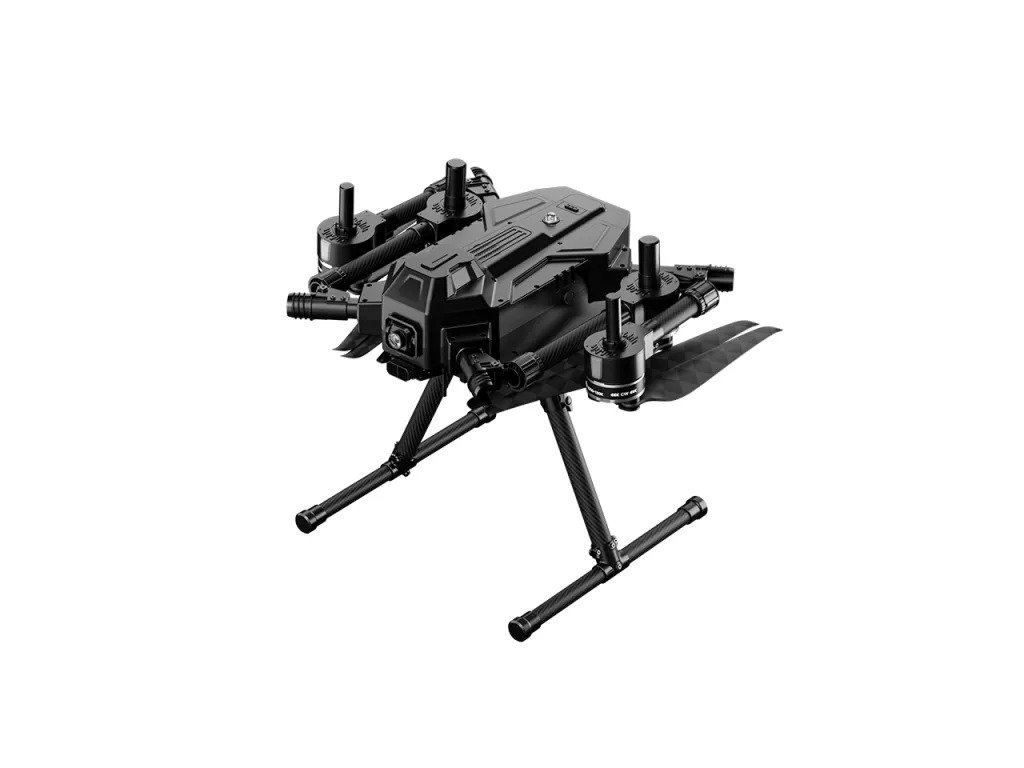

Arm folding method: Horizontal folding
Dimensions when folded (without propellers): L738 × W673 × H425 mm
Dimensions when folded (including propellers): L428 × W412 × H425 mm
Diagonal distance between motors: 900 mm
Packaging type: Safety case with IP67 explosion protection

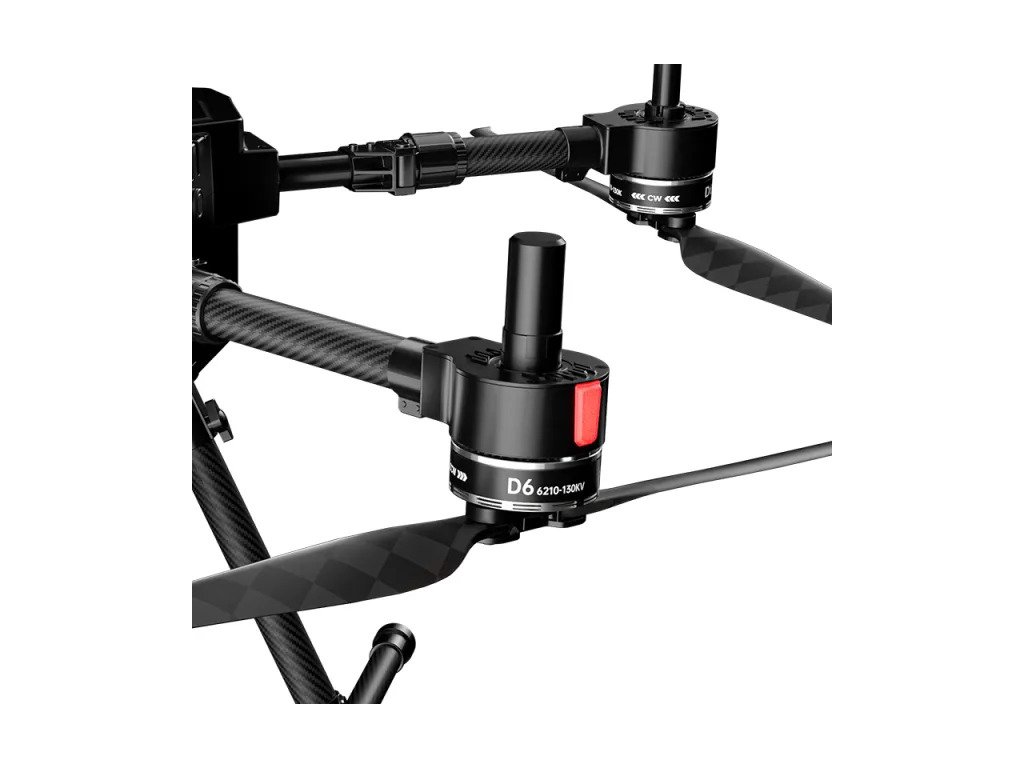

Drive system
Propeller size: 22" folding
Motor model: 6210 brushless
Motor KV value: 130KV
ESC control mode: FOC
Maximum ESC current: 55A

Aircraft
Empty weight (without battery): 4.7 kg
Maximum take-off weight (with smart battery): 8.4 kg
Maximum take-off weight (absolute): 10.5 kg
Maximum climb rate: 4 m/s
Maximum descent rate: 2 m/s
Maximum horizontal speed: 20 m/s

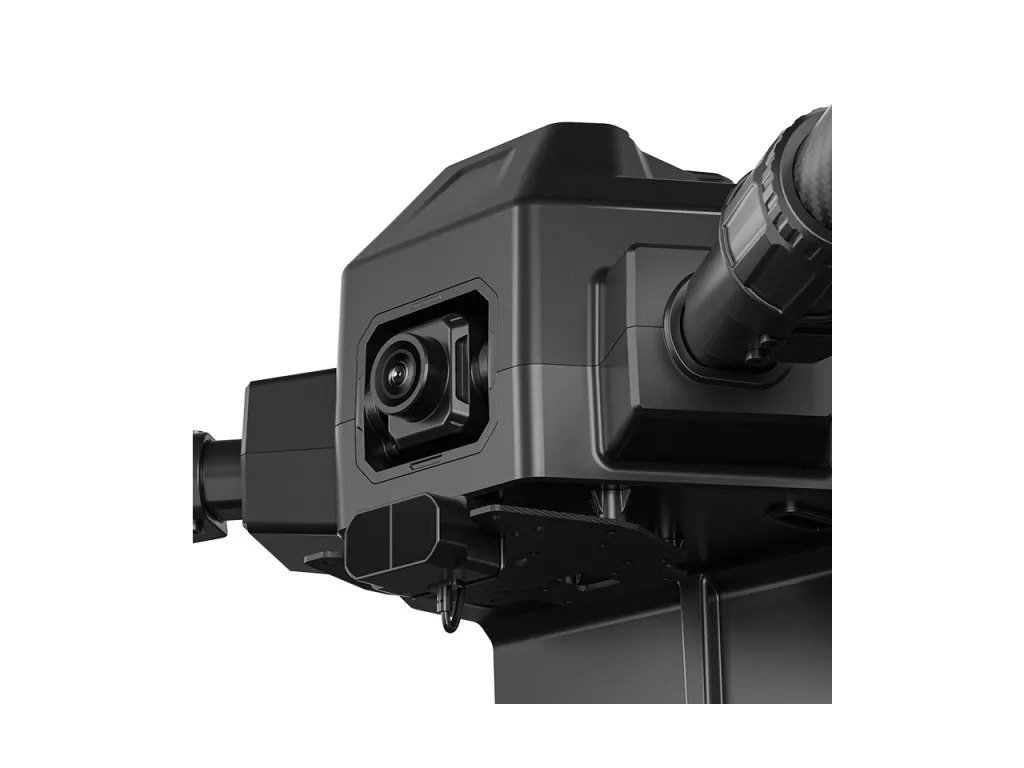

FPV camera
Field of view: 122° horizontally, 113° vertically
Adjustable tilt angle: 68
Recording: supports recording to 4K SD card
Modes: tilt tracking mode + FPV mode

Power system
Operating voltage: 12S (maximum voltage 53.4 V)
Battery type: smart battery
Battery compartment dimensions: L 215 × W 144 × H 80 mm
Mounting: front + rear expansion ports

Obstacle avoidance
Type: LiDAR
Direction: forward
Range: 0.1–12 m
Maximum avoidance speed: 8 m/s
Light resistance: 70 Klux
Field of view: 3.6

Flight time
Hovering (without load): ~55 min
With SIYI ZT30: ~50 min
Full load: ~43 min

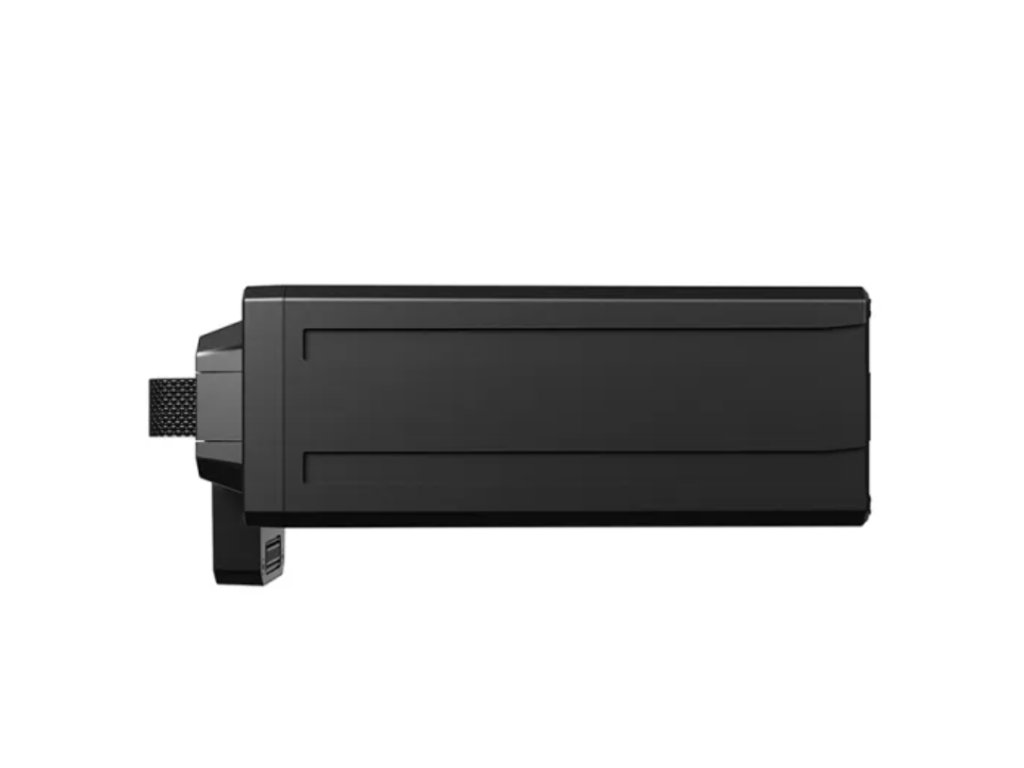

Smart battery
Type: rechargeable lithium-ion polymer battery
Model: E17A
Rated capacity: 17000 mAh
Rated voltage: 47.4 V
Charging voltage: 52.2 V

Smart remote control
Display: 7" touchscreen LCD, 1080p, 1600 nits
Weight: 1.46 kg
GNSS: GPS / GLONASS / BeiDou / Galileo / QZSS
Battery capacity: 13,400 mAh
Operating time: ~8 hours
Protection rating: IP54
Wi-Fi: Wi-Fi 5
Bluetooth: BT 5.0
Frequency:
- 2.400–2.476 GHz
- 5.725–5.829 GHz
Maximum signal range (ideal): up to 35 km
Range with interference:
Countryside, altitude 120 m: 10–15 km
Sea, altitude 150 m: 30–35 km
Storage: 4 GB RAM + 64 GB internal
Physical controls: 16 buttons, 2 large joysticks, 1 small joystick, 2 scroll wheels, 2 three-position switches
Charging time: ~4.5 hours
Charging method: PD 30 W

GCS software
Android: UniGCS (standard)
Windows: UniGCS (standard)

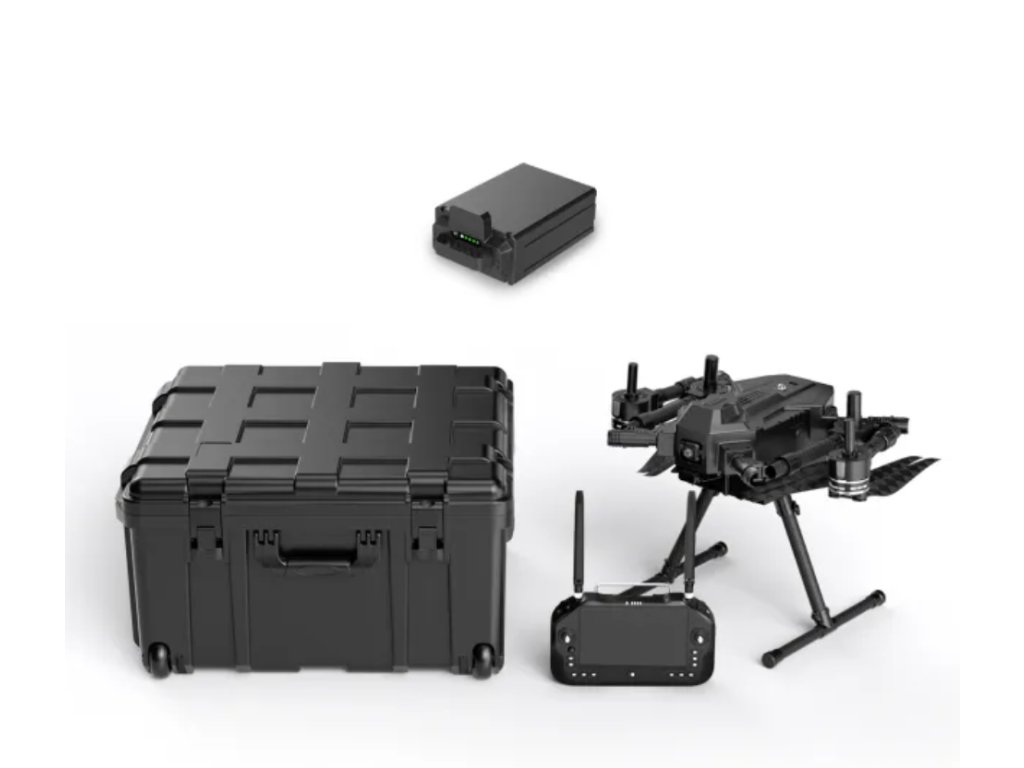

Package includes:

1x UniDrone E900 aircraft
1x E17A smart battery
1x SIYI UniRC 7Pro handheld ground station
1x protective case
2x quick-release straps for handheld ground station
1x PD fast charging data cable (Type C to Type C)
1x battery for handheld ground station
1x 30W PD fast charger
4x M3X15 aluminum rods with hexagonal heads and tapered middle sections
4x antenna connectors for video transmission
1x Type-C to USB A adapter
1x shoulder strap for handheld ground station
1x cable for dual suspension under UniDrone E900
1x quick start guide
1x UniDrone E900 function stickers

Note: The speaker and other modules are not included in the package and must be purchased separately.
