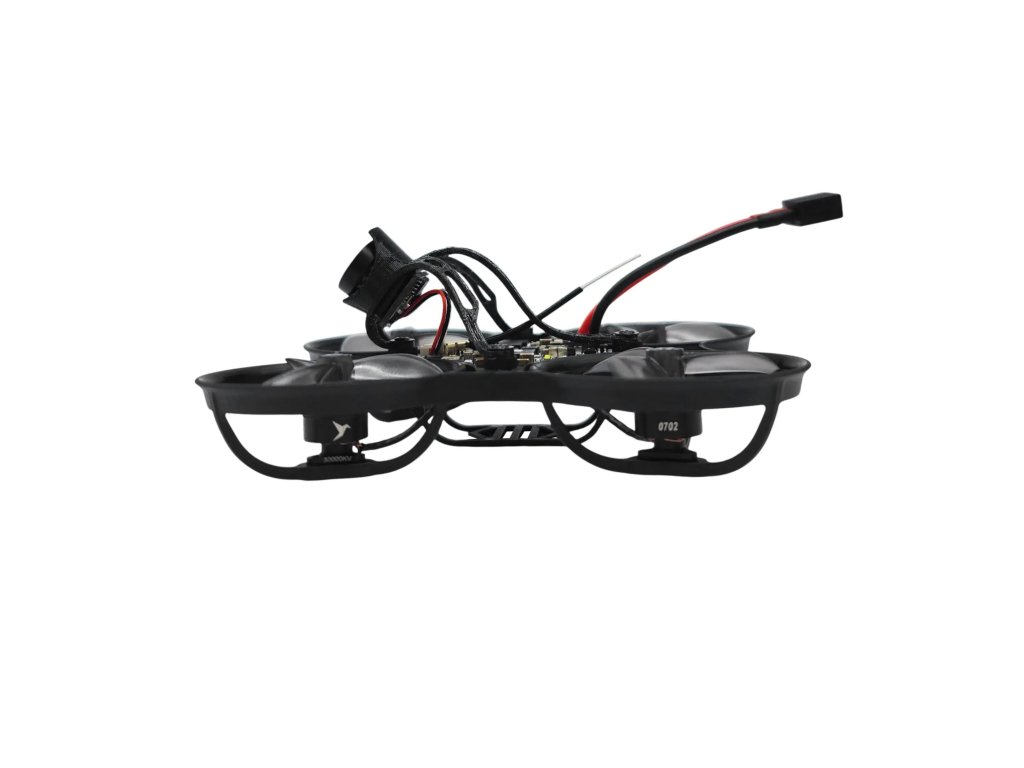

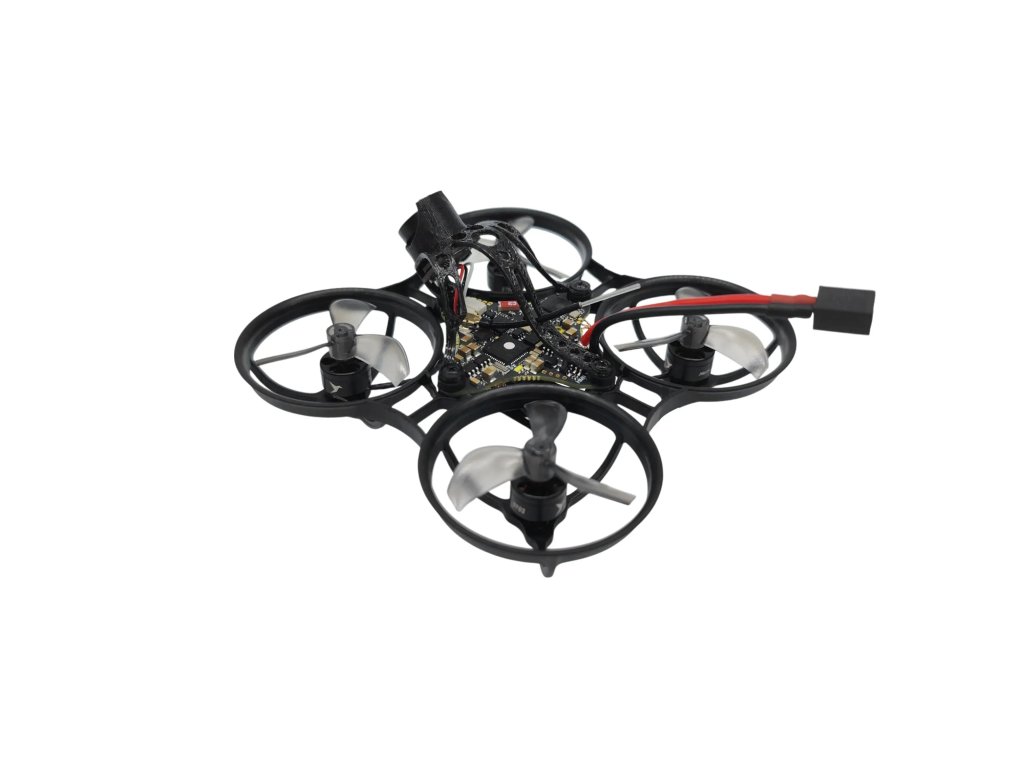

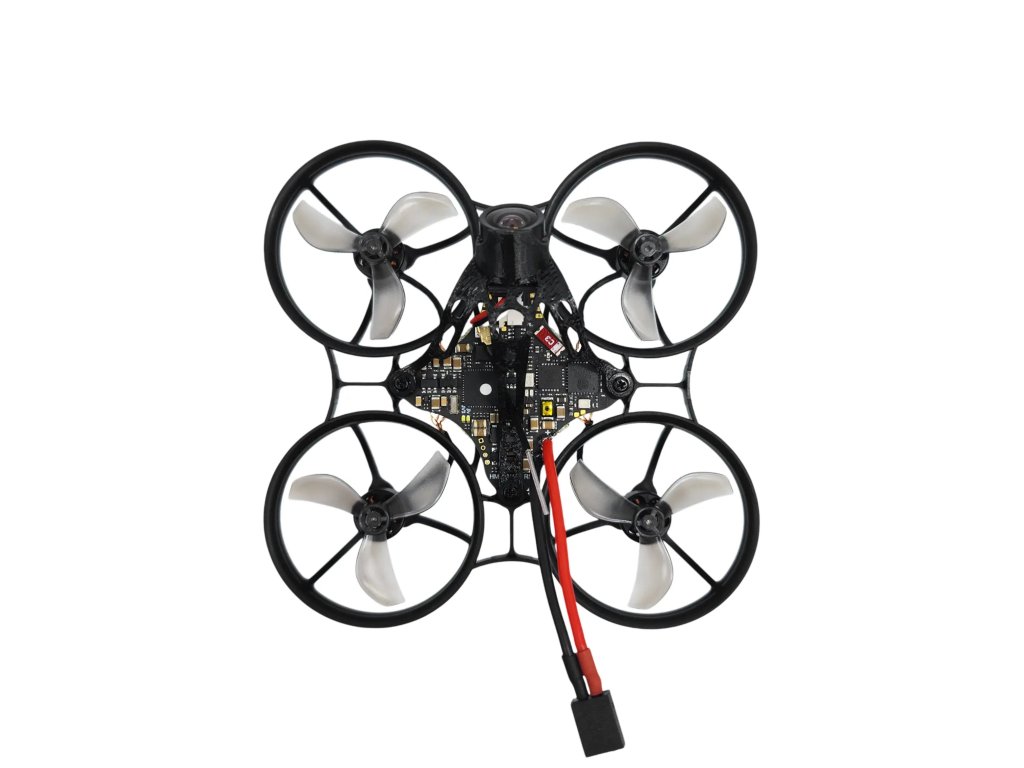

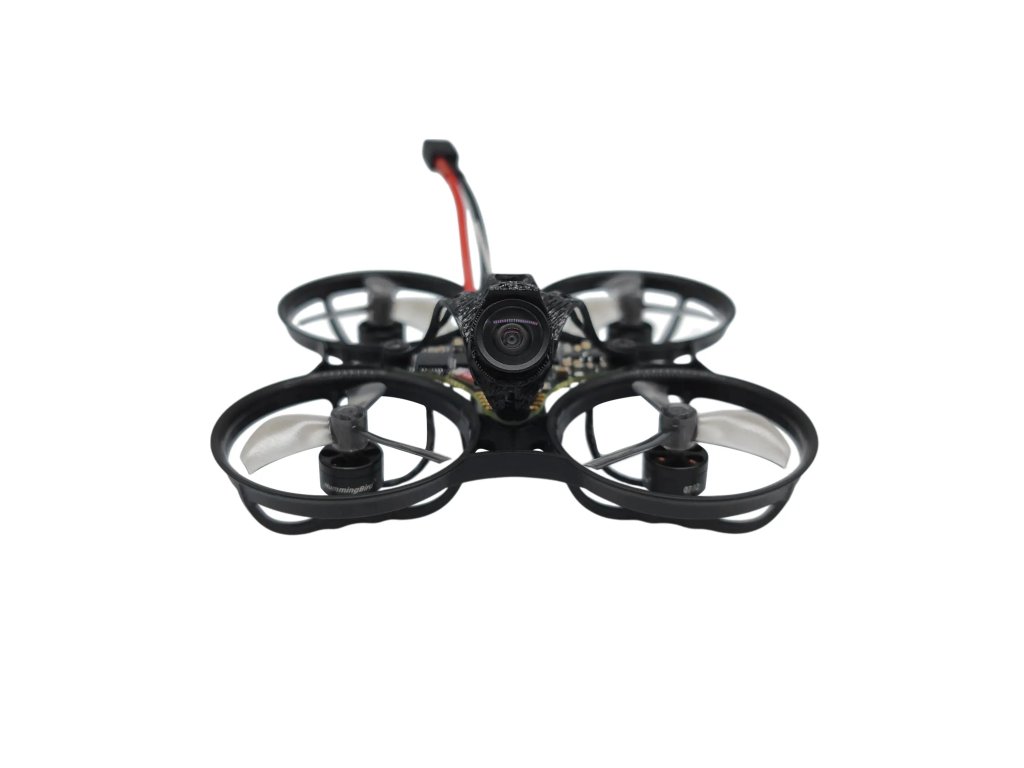

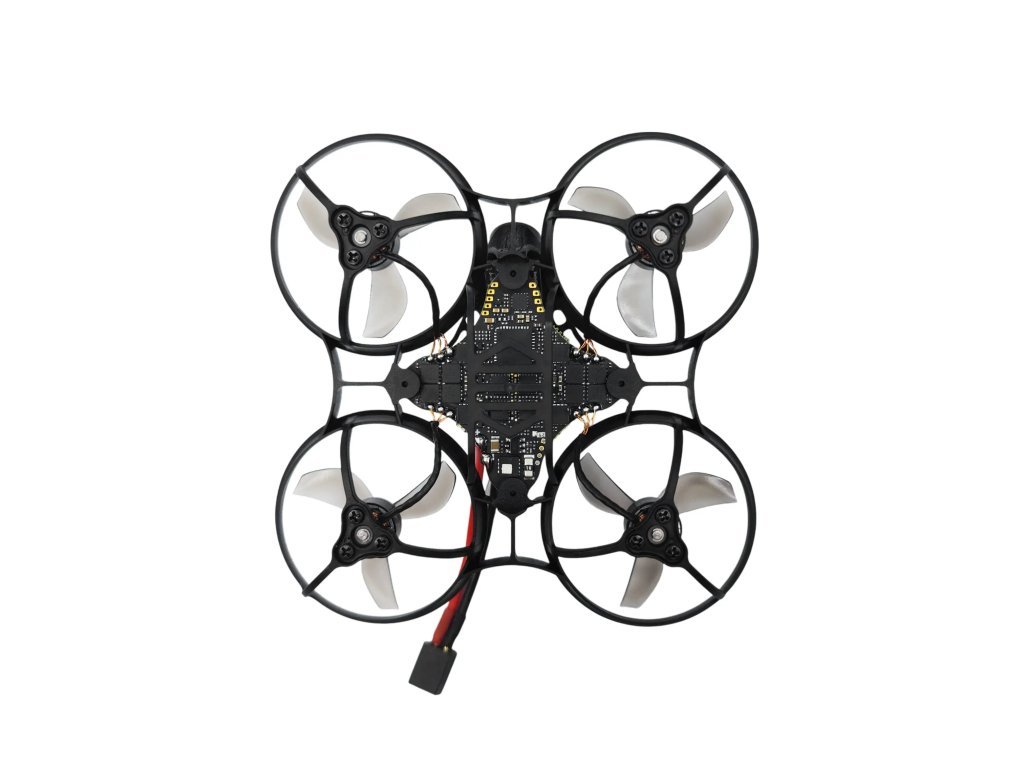

FPV Drone NewBeeDrone HummingBird RaceSpec V2 ELRS

Product detailed description

FPV Drone NewBeeDrone HummingBird RaceSpec V2 ELRS

The NewBeeDrone HummingBird Whoop RaceSpec V2 ELRS is a purpose-built FPV racing tiny-whoop, engineered for ultra-lightweight speed and resilience. From its heat-managed VTX and efficient ESCs to its compact ELRS control system and optimized Betaflight firmware, every detail supports competitive performance in tight, demanding environments.

Features:
- Upgraded Flight Controller & Power System
Features an AT32F4 flight controller clocked at 216 MHz (a strategic step down from 288 MHz) for enhanced stability in racing conditions.
Equipped with Double N-channel MOSFET ESCs delivering up to 18 A per channel—more efficient and better at handling power than the previous N+P MOS design.
USB port omitted to save weight; included instead is a lightweight USB-C adapter for tuning.

- SmartMax Video Transmitter (VTX)
Offers an adjustable VTX output up to 400 mW with built-in thermal regulation to protect against overheating.
Includes a precise 25 mW setting to stay within race-legal power limits.

- ExpressLRS (ELRS) Receiver
Equipped with a UART-based ELRS 2.4 GHz receiver, enabling race mode activation and WiFi-based tuning.
Utilizes a ceramic SMT antenna—lightweight, durable, and ideal for high-impact racing.

- Durable, Race-Optimized Design
Reverse plug-in protection helps safeguard against power lead mistakes.
Larger solder pads in place of connectors ensure a more rugged build with direct motor soldering—preferred by competitive racers.

- Upgraded Camera System
Comes with the BeeEye V2 camera, featuring a compact 10x10 mm PCB, improved color accuracy, and a lighter form factor.

- Ready-to-Fly Firmware
Preloaded with Betaflight 4.5.1 RacePro firmware, tailored for competitive flying with presets and tuning already optimized.

Specifications:
Frame: NewBeeDrone Cockroach 65mm Brushless LiteAF Racing Frame Black
Flight Controller: AT32 F4 (216MHz)
ESC: Double N MOS (up to 18A per channel)
Motors: HMB RS 0702 30000KV RaceSpec
Motor Screws: NewBeeDrone Motor Screws M1.4x2mm - Set of 15
Propellers: Azi (Tri Blade) Micro Propellers 31mm - 1.0mm Shaft
VTX: SmartMax up to 400mW with thermal regulation
VTX Antenna: 5.8g RaceSpec Antenna
Receiver: UART-based ELRS with WiFi settings
Firmware: Betaflight 4.5.1 RacePro
Antenna: Ceramic SMT for durability and weight savings
Camera: BeeEye V2 800TVL (10x10 PCB)
Camera Mount: Hummingbird RaceSpec Cam mount. TPU 3D Printed Version
Battery Connector: A30 (compatible with BT2.0, recommended 300mAh 1S 3.8V)
USB Connector: USB Type-C adapter
Weight: 16.5g

Flight Controller Specifications:
MCU: AT32F4
GYRO: ICM42688
VTX: True 25mw and up to 400mw SmartMax 5.8g Analog VTX
ESC: 18A pre-flashed with Bluejay 0.19.2 48kHz
ESC Connector: direct solder Pad Recommend Whoop RaceWire
OSD: NBD7456 graphical OSD compatible with Betaflight OSD Perfect Edition
Receiver: Uart ExpressLRS 2.4G with SMT Antenna (ESP8285)
Battery input: 1S Only (Recommend  300mAh 1S 3.8V)
Uart1:free
Uart2:free
Power Plug: GNB A30 Connector compatible with BT2.0
Flight Controller Size: Outer dimensions: 29x29x7.6mm
Flight Controller Holes: 25.5x25.5mm
Flight Controller Weight: 4.71g (with antennas and battery connector)
Package Include:
1x HummingBird RS V2
1x Camera Mount
1x NBD Prop Removal Tool
