FC Holybro Pixhawk 6C with PM02 V3 Module (aluminum case)

Product detailed description

FC Holybro Pixhawk 6C with with PM02 V3 Module (aluminum case)

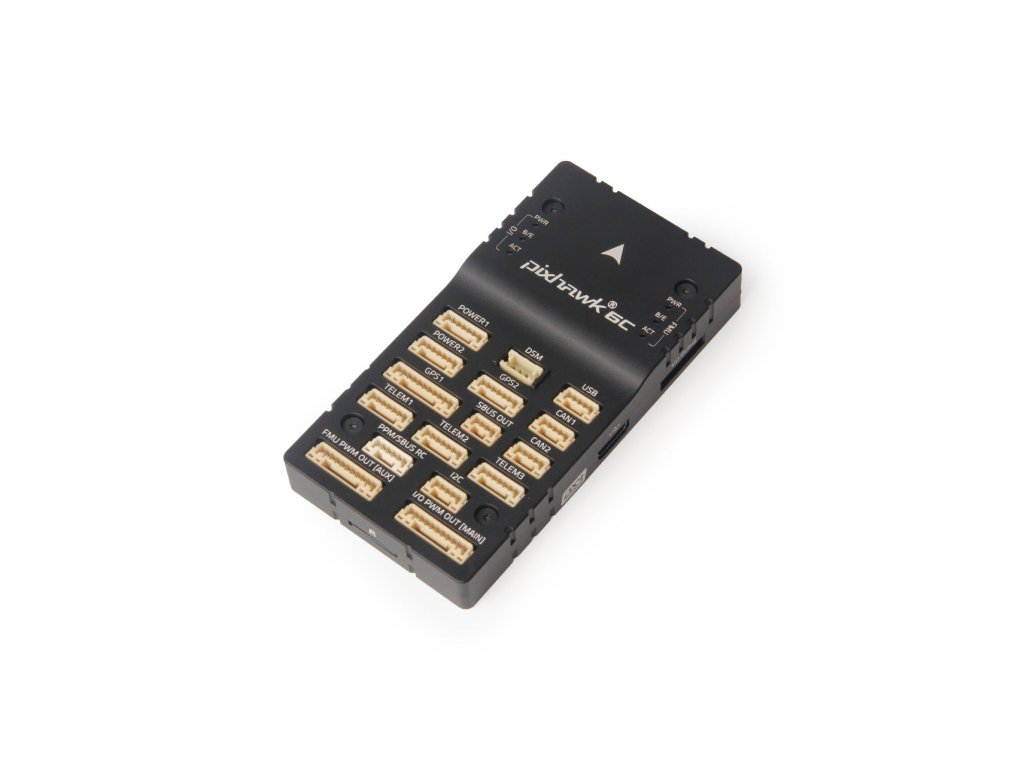

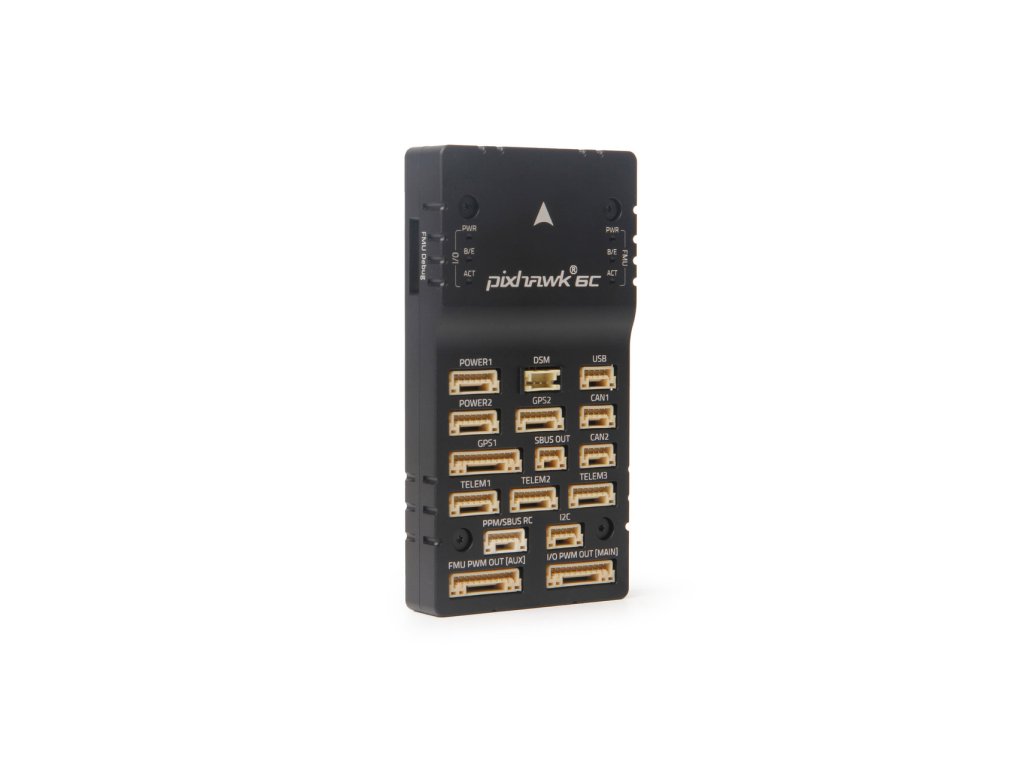

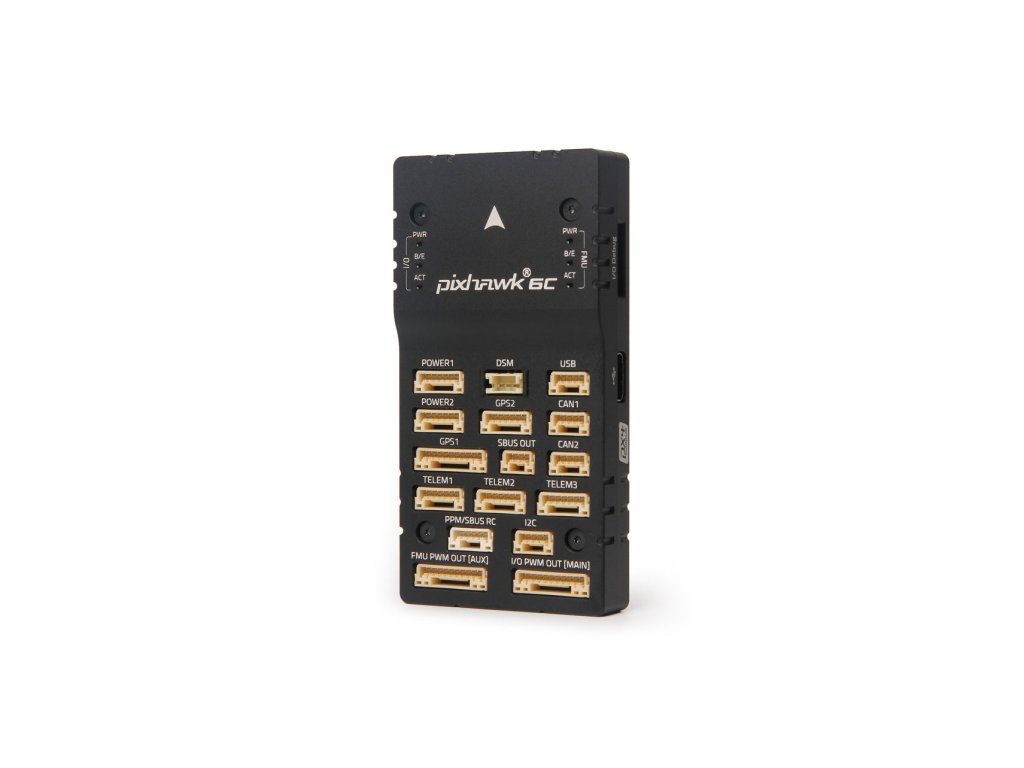

The Holybro Pixhawk 6C is a high-performance flight controller designed on the FMUv6C standard with a rugged aluminum case for protection and stability. This version includes the PM02 V3 Power Module, making it ideal for reliable voltage and current sensing in professional drone builds.

Features:
- Equipped with a powerful H7 processor for complex flight algorithms and real-time control.
- Dual redundant IMUs with vibration isolation for precise sensor readings and stable flight.
- Aluminum case ensures durability, shielding against noise and external interference.
- Bundled with PM02 V3 Power Module supporting up to 12S batteries, offering accurate current and voltage monitoring.

Specifications:
Processor (FMU): STM32H743, 32-bit Arm® Cortex®-M7 @ 480 MHz, 2 MB Flash, 1 MB SRAM
Processor (IO): STM32F103, 32-bit Arm® Cortex®-M3 @ 72 MHz, 64 KB SRAM
Sensors: ICM-42688-P, BMI055 (Accel/Gyro); IST8310 (Magnetometer); MS5611 (Barometer)
Voltage Ratings (FC): Max input 6 V; USB 4.75-5.25 V; Servo rail 0-36 V
Current Ratings (FC): Telem1 & GPS2 limit 1.5 A; other ports combined 1.5 A
Power Module (PM02 V3): Input 2S-12S LiPo (7-51 V); Continuous current 60 A; Burst 100 A (<60s); Max sensing 120 A; Output 5.2 V/3 A
Operating Temperature: -25 °C to +85 °C
Dimensions (FC): 84.8x44x12.4 mm
Weight (FC): 59.3 g (aluminum case)
Weight (PM02): 20 g

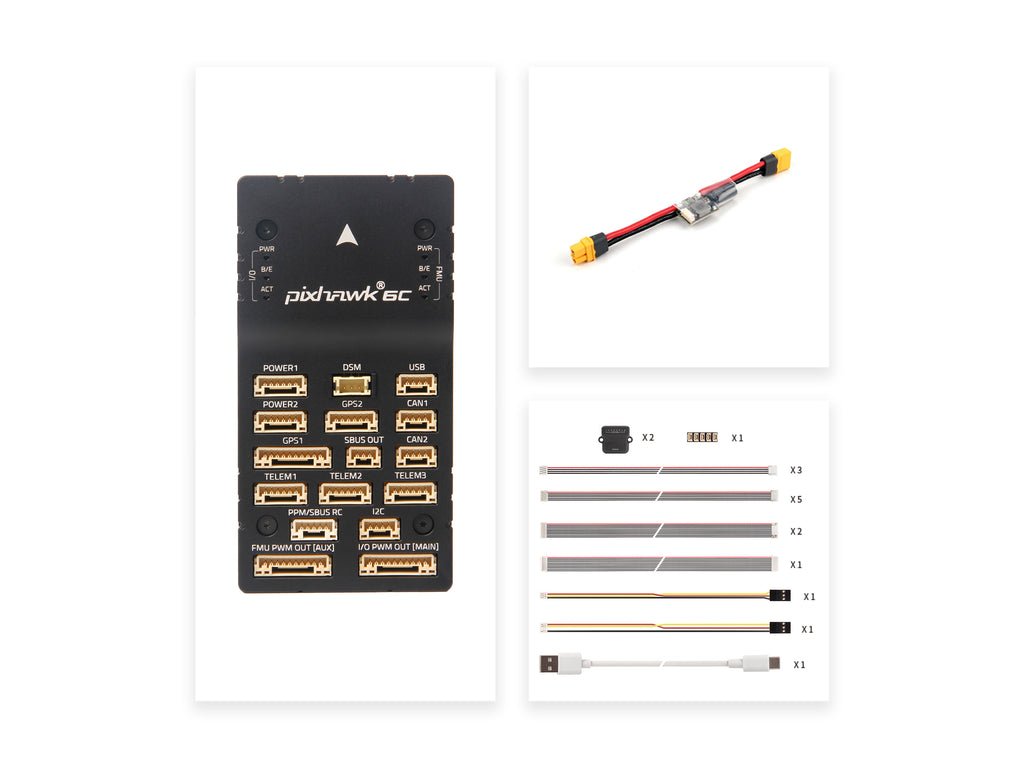

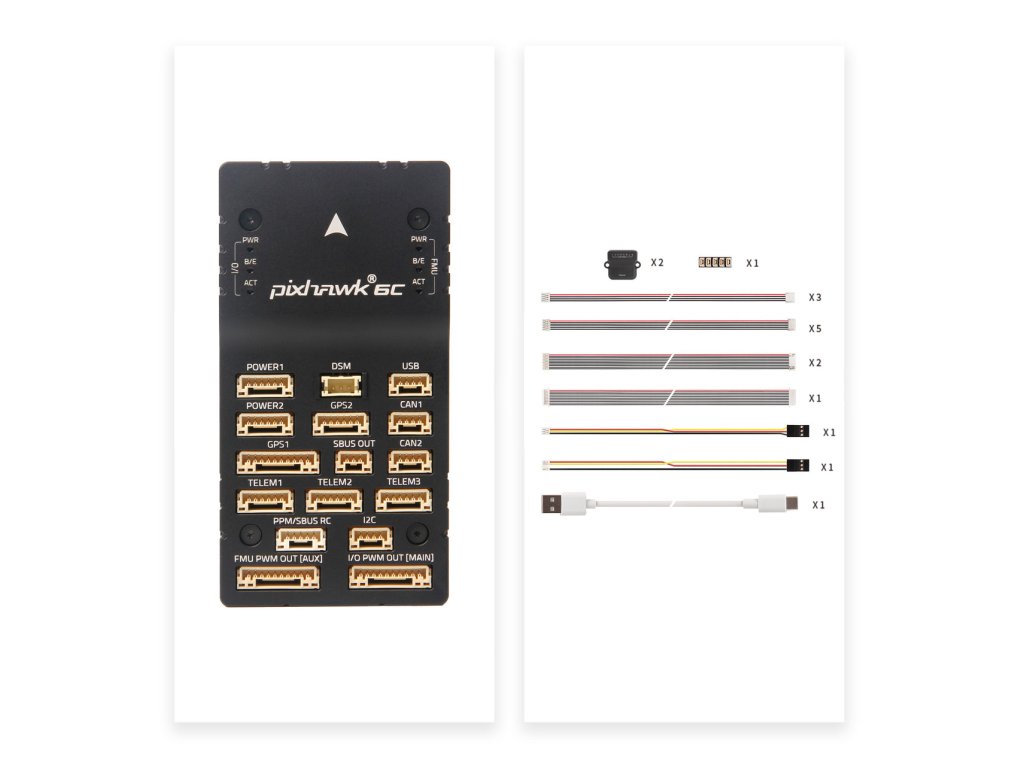

Package Includes:
1x Holybro Pixhawk 6C Flight Controller (Aluminum Case)
1x PM02 V3 Power Module (2S-12S, 60 A)
1x Complete Cable Set
