ESC Hobbywing FLYFUN130A HV OPTO V5

Product detailed description

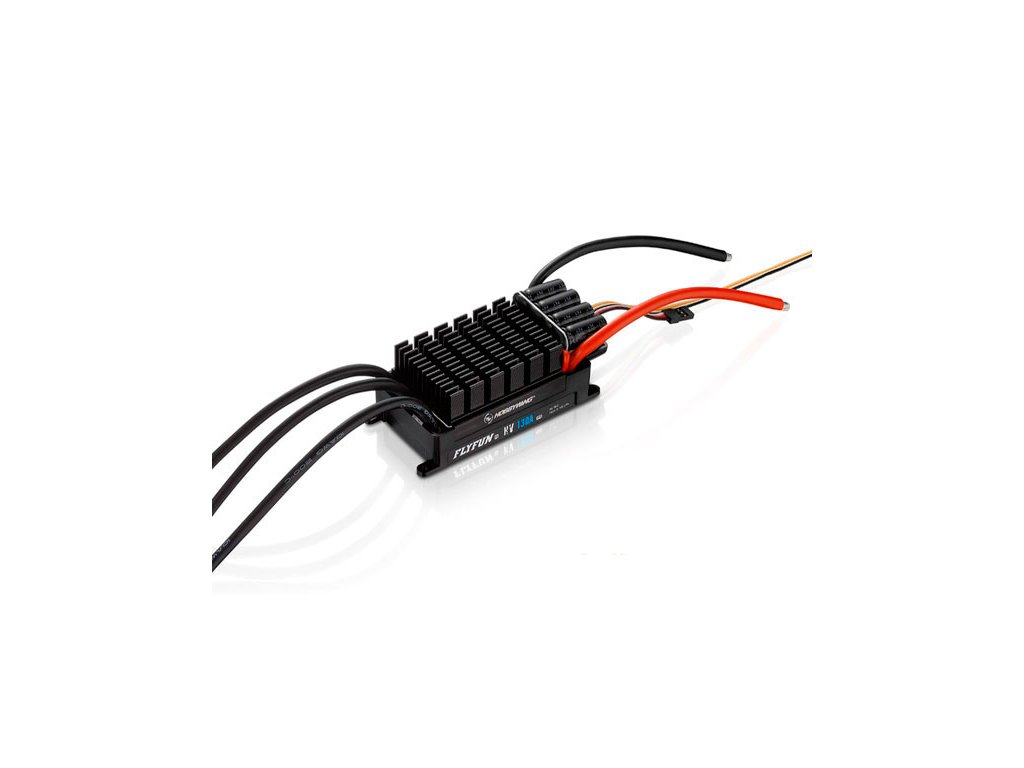

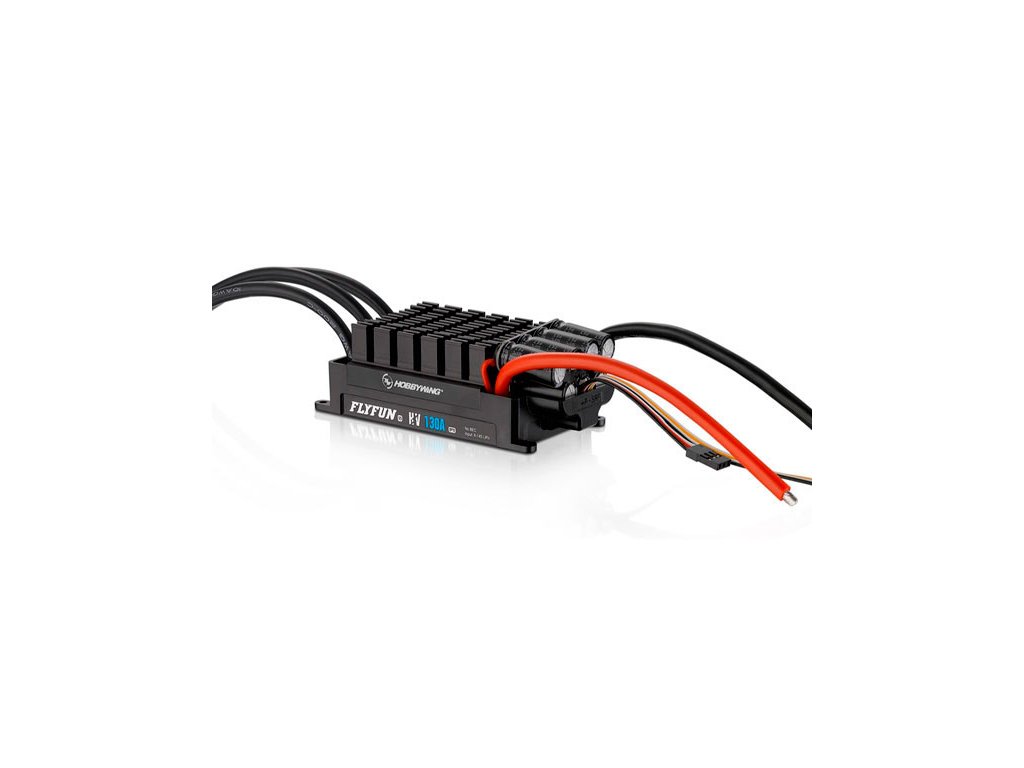

ESC Hobbywing FLYFUN130A HV OPTO V5

ESC Hobbywing FLYFUN130A HV OPTO V5 is a cutting-edge electronic speed controller designed for exceptional performance and reliability. Equipped with a powerful 32-bit ARM M4 microprocessor running at up to 72MHz, it offers seamless compatibility with various brushless motors.

Features:

- ESC which features a high performance 32-bit ARM M4 microprocessor (with a running frequency of up to 72MHz) is compatible with various brushless motors.
- Microprocessor powered by a separate DC regulator has better anti-interference performance greatly reduces the possibility of losing control.
- DEO (Driving Efficiency Optimization) Technology greatly improves throttle response & driving efficiency and reduces ESC temperature.
- Normal/Soft/Very Soft start-up modes are compatible with regular propeller airplanes and EDF jet airplanes (pls ensure to select the “Very Soft Start-up” mode when using EDF jet airplanes).
- Separate programming cable for connecting ESC to a LED program box and allows users to program the ESC anytime, anywhere. (For detailed info, please refer to the user manual of HOBBYWING LED program box.)
- Multiple protection features like start-up, ESC thermal, capacitor thermal, over-current, over-load, abnormal input voltage and throttle signal loss effectively prolong the service life of the ESC.

Specifications:

- Continuous Current: 130A
- Peak Current: 160A
- Input Voltage: 6-14S LiPo
- BEC Output: Not supported
- Weight: 221g
- Size (L*W*H): 110x50x33mm

Package Includes:
- 1x ESC Hobbywing FLYFUN130A HV OPTO V5
