Digital Air Speed Sensor Pilotix (MS4525DO) w/PT40 Pitot Tube

Product detailed description

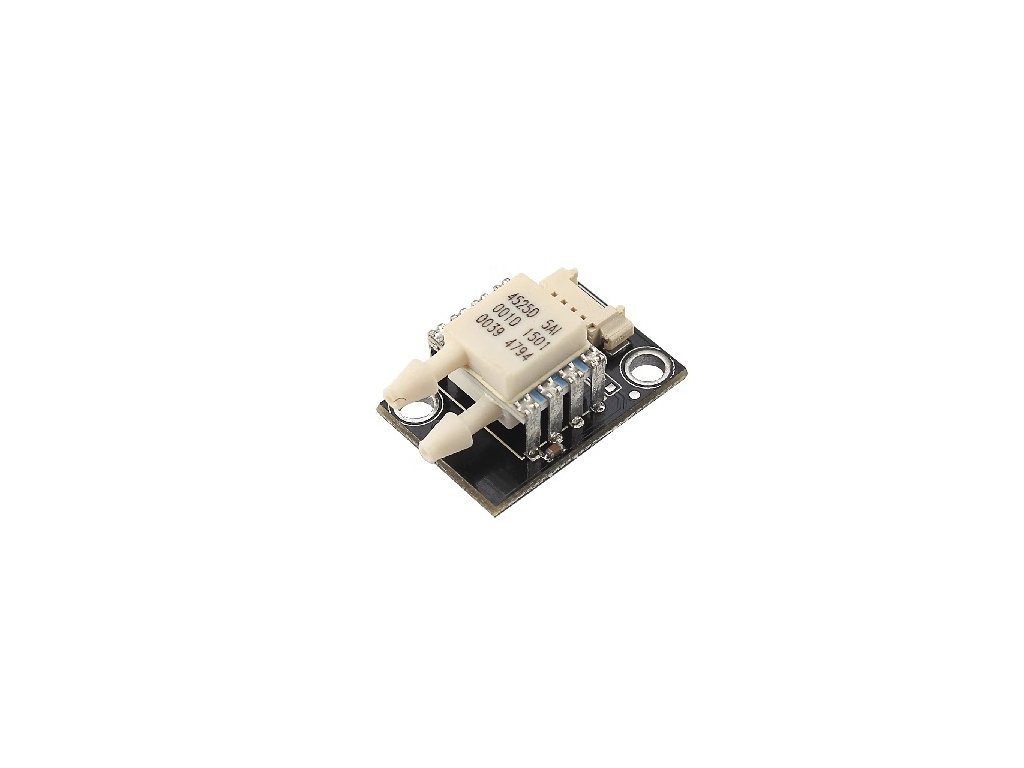

Digital Air Speed Sensor Pilotix (MS4525DO) with PT40 Pitot Tube

The Digital Air Speed Sensor Pilotix with integrated MS4525DO sensor and PT40 pitot tube provides pilots with the ability to adjust movements, making flights more maneuverable by accounting for wind speed. Designed specifically for use in UAVs, drones, RC planes, and other unmanned systems, this sensor delivers real-time airspeed data via I2C for accurate flight control, stabilization, and telemetry.

Key Advantages:
- High Accuracy: Utilizes the MS4525DO digital pressure sensor with 0.25% accuracy for precise airspeed readings.
- Ready-to-Use: Includes both the sensor board and PT40 Pitot tube for simple integration.
- I2C Communication: Simple and efficient digital data transfer via standard SCL and SDA lines.
- Wide Voltage Support: Operates on a broad voltage range (4–6V DC), suitable for various flight controllers and embedded systems.
- Compact & Lightweight: Sensor board weighs only 3.5g, minimizing impact on payload and balance.
- Durable & Versatile: Wide operating temperature range (-40℃ to +125℃) ensures consistent performance in diverse environments.

Typical Applications:
- Fixed-wing and rotary UAVs for real-time airspeed monitoring
- Autonomous aircraft systems for flight control optimization
- Telemetry systems for environmental and atmospheric data collection
- RC model aircraft for performance tuning and flight data logging

Specifications:

JST-GH Sequence: 5V, SCL, SDA, GND
Power Supply Voltage: 4 – 6 VDC
Sensor: MS4525DO
Working Current: 5mA
Output: I2C (SCL and SDA)
Pressure Range: 1 PSI (6.89 kPa)
Maximum Pressure: 20 PSI (137.9 kPa)
Working Temperature: -40℃ ~ +125℃
Accuracy: 0.25%
Weight: 3.5g (sensor board only)

Package includes:

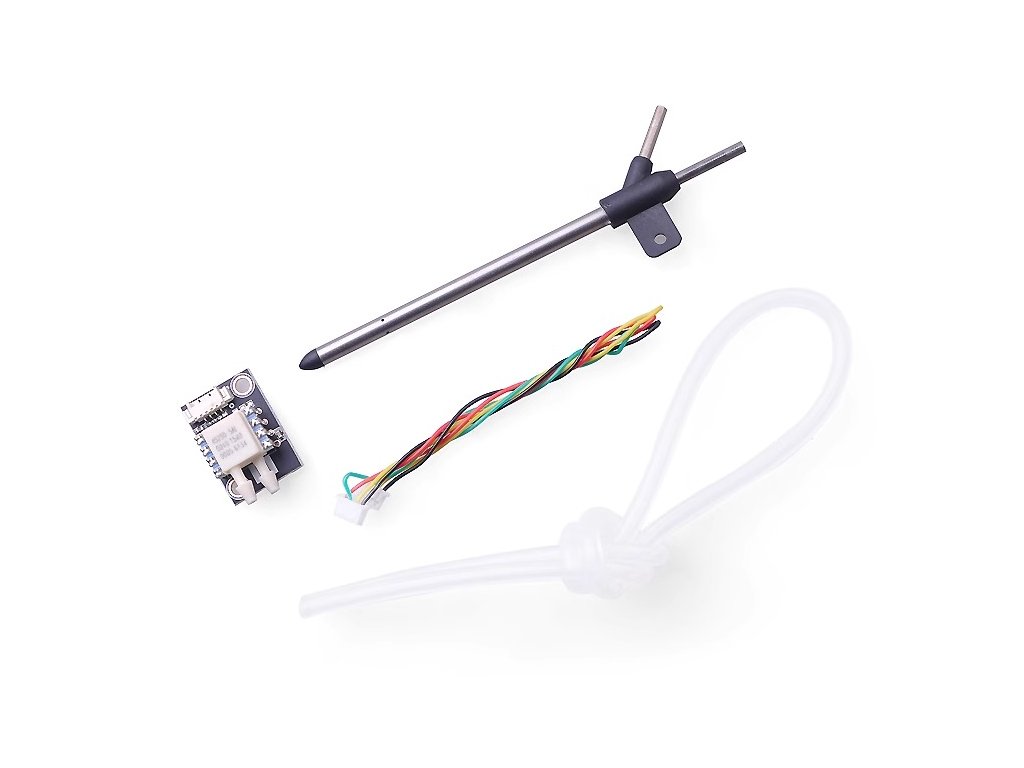

1x Digital Air Speed Sensor Pilotix (MS4525DO) with PT40 Pitot Tube
