AIO FC iFlight Defender 16/20 F411

Product detailed description

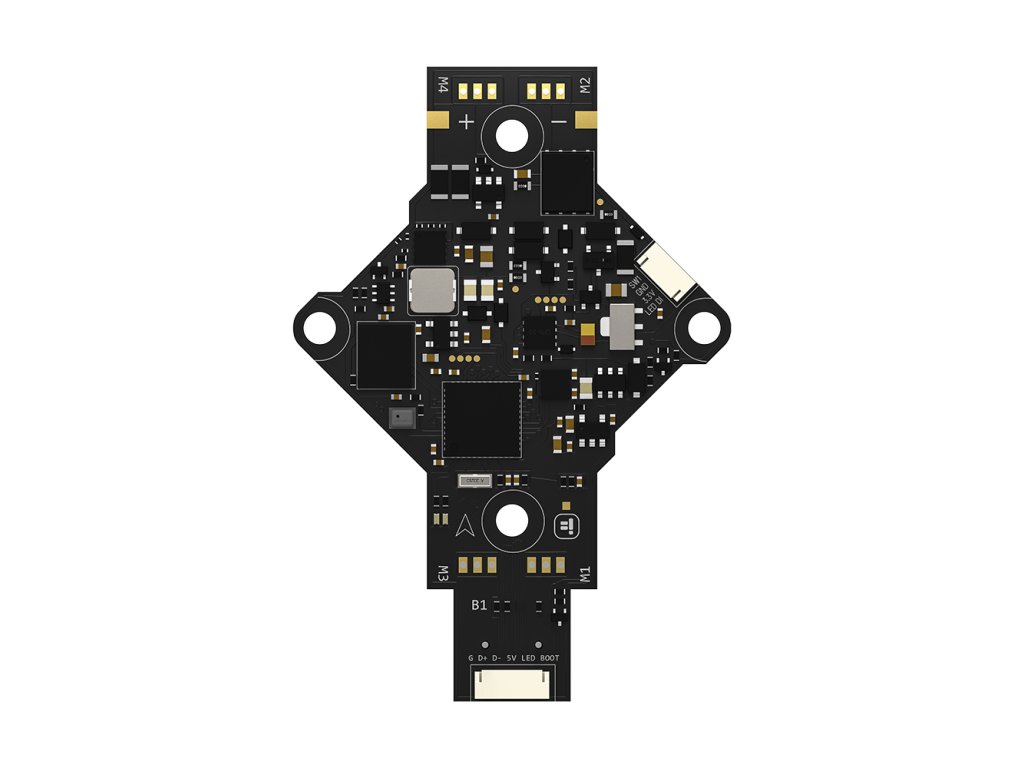

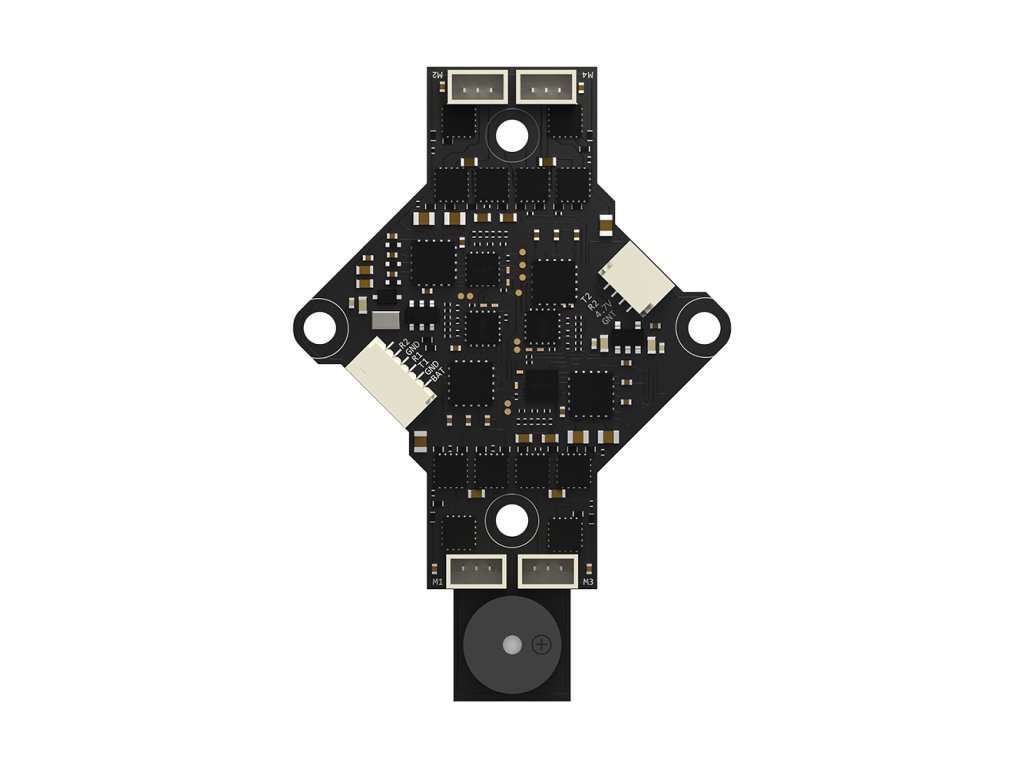

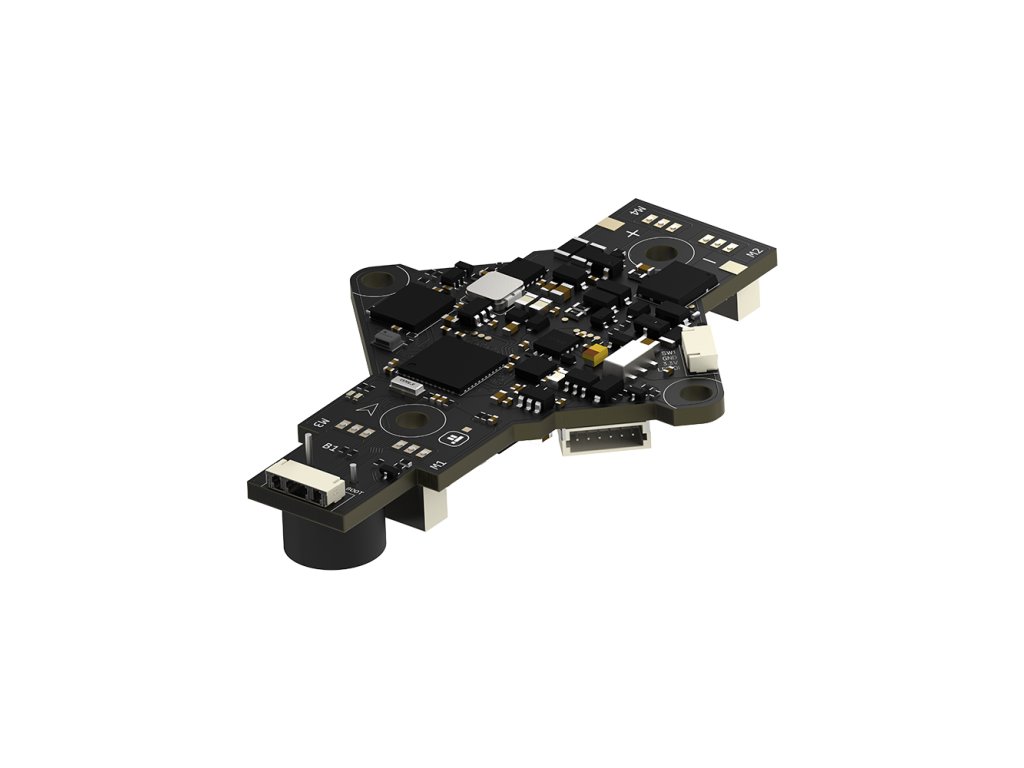

Defender 16/20 F411 AIO

The new generation F411 AIO is designed specifically for Defender 16/20. This all-in-one FC is future-proof, offering ample space for future flight firmware development. It is lightweight and has a compact design. Highlights include pass-through DJI O3 and Caddx Vista/Polar Connector, HD VTX switch function, receiver protocol switching function, and an onboard buzzer.

FC Specifications:

MCU: STM32F411
Gyro: ICM42688
Blackbox: 16MB Onboard Flash
BEC output: 5V 2A
WS2812 LED Strip: Yes
Buzzer: Yes
Barometer: No
Connector: SH1.0 to Type-C adapter
OSD: N/A (HD VTX version)
FC Firmware: IFLIGHT_Defender_F411
Mounting pattern: 25.5*25.5mm φ3mm
Dimensions: 61*41mm
Input voltage: 2-3S, support LIHV battery

ESC Specifications:

ESC MCU: BB21
Driver: FD6288
Input voltage: 2-3S Support LIHV battery
Output current: 20A
ESC firmware: Q-H-50 - Bluejay, 0.16
Current sensor: ratio 200 (1/10mV/A)
BEC: NO
ESC Telemetry: Not Support
Bidirectional DShot: Yes
Supports DShot DShot150/300/600/MultiShot/ OneShot etc.

Package Includes:
1 x Defender 16/20 F411 AIO
1 x Cable Set
