Controller Skydroid G30+GR03

Detailní popis produktu

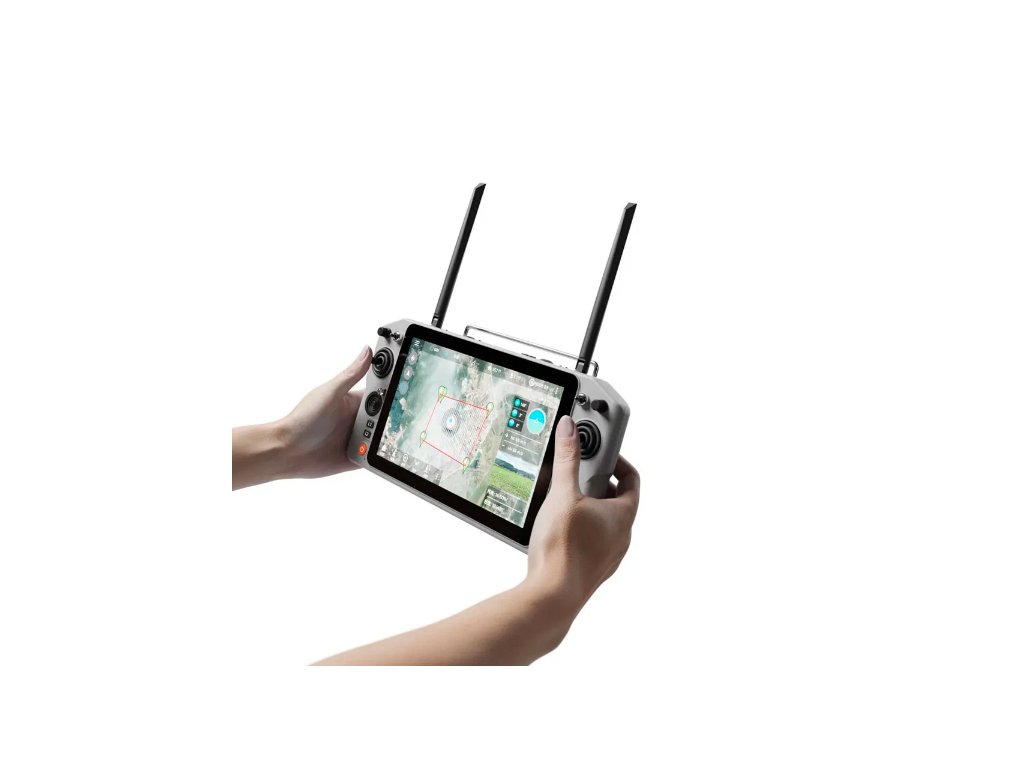

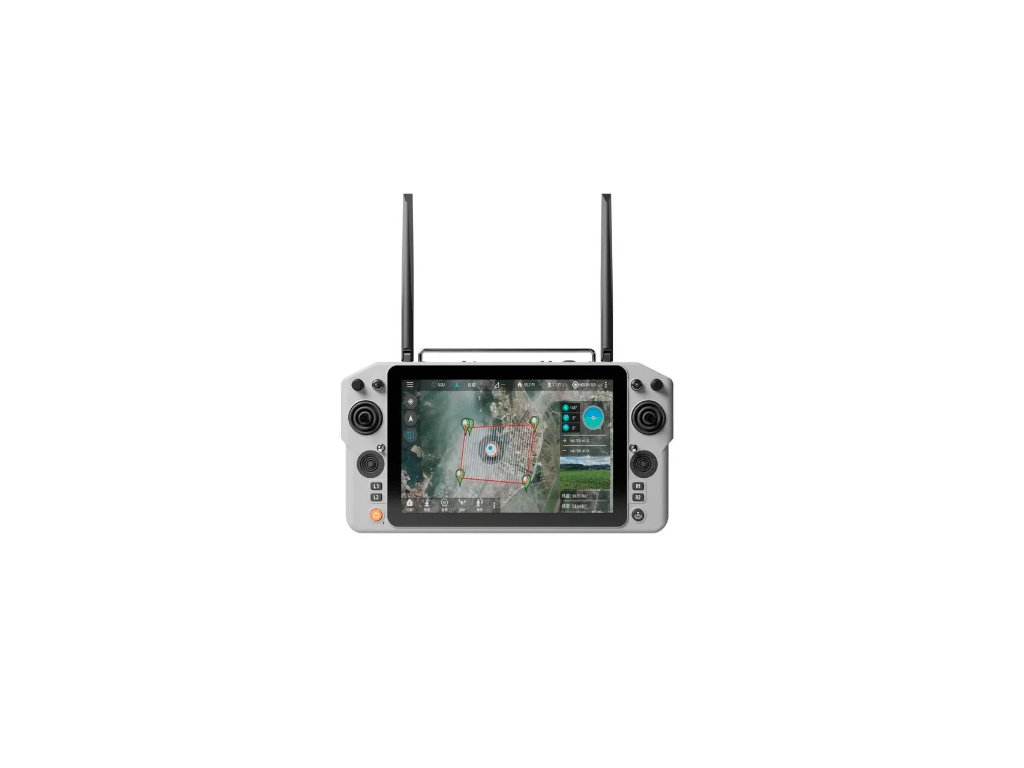

Controller Skydroid G30+GR03

The SkyDroid G30 with GR03 receiver is an advanced long-range remote control and video transmission system engineered for professional UAV and aerial applications. Built on a powerful Qualcomm Android platform, the G30 delivers smooth system performance, reliable hardware decoding of high-definition video streams, and seamless compatibility with a wide range of ground station software. Its large sunlight-readable touchscreen ensures clear visibility and intuitive control in outdoor environments, making it suitable for demanding field operations.

Designed for stable communication over long distances, the G30 supports dual-band operation on 2.4G and 5.8G frequencies with automatic frequency switching to maintain optimal signal quality. Combined with high-definition digital video transmission and fiber optic communication support, the system ensures reliable data, control, and video links even in complex electromagnetic environments. Paired with the versatile GR03 receiver, this system provides flexible interface options, strong anti-interference capability, and dependable performance for professional UAV missions.

Features:
- Android-based system ensures smooth operation and wide software compatibility
- Large sunlight-readable touchscreen offers clear visibility in outdoor conditions
- Dual-band communication provides stable signal and enhanced anti-interference performance
- Supports high-definition digital video transmission with real-time clarity
- Fiber optic communication enables stable data transfer in high-interference environments
- Rich interface support allows flexible integration with various UAV platforms
- Efficient power management delivers extended battery life with fast charging capability
- GR03 receiver provides broad compatibility and reliable system performance

Remote Controller G30 Specifications:
Display Screen: 10.1-inch Industrial Touchscreen + Sunlight-Readable Display
Processor: Qualcomm 6nm Processor
Dimension: 346x196.5x89.4mm
Battery: 20000mAh
RAM: 8G
Operating Frequency Band: 2.4Ghz/5.8Ghz
Dynamic Frequency Band: Automatic Frequency Hopping
Remote Control Range: 5-30km (Ground-to-Air, Line of Sight)
Fiber Optic Range: 20km
Screen Resolution: 1920x1200
Computer Type: Android 14
Weight: 1.5kg
Battery Life: 6~8 hours
System Storage: 128G
Number of Channels: 16
RF Power: 23dBm
Operating Temperature: -10°C~55°C
Charging Interface: TYPE-C
External interfaces: USB Port, SIM Card Slot, TYPE-C/DP port, Ethernet Port, PPM Port, FC Port

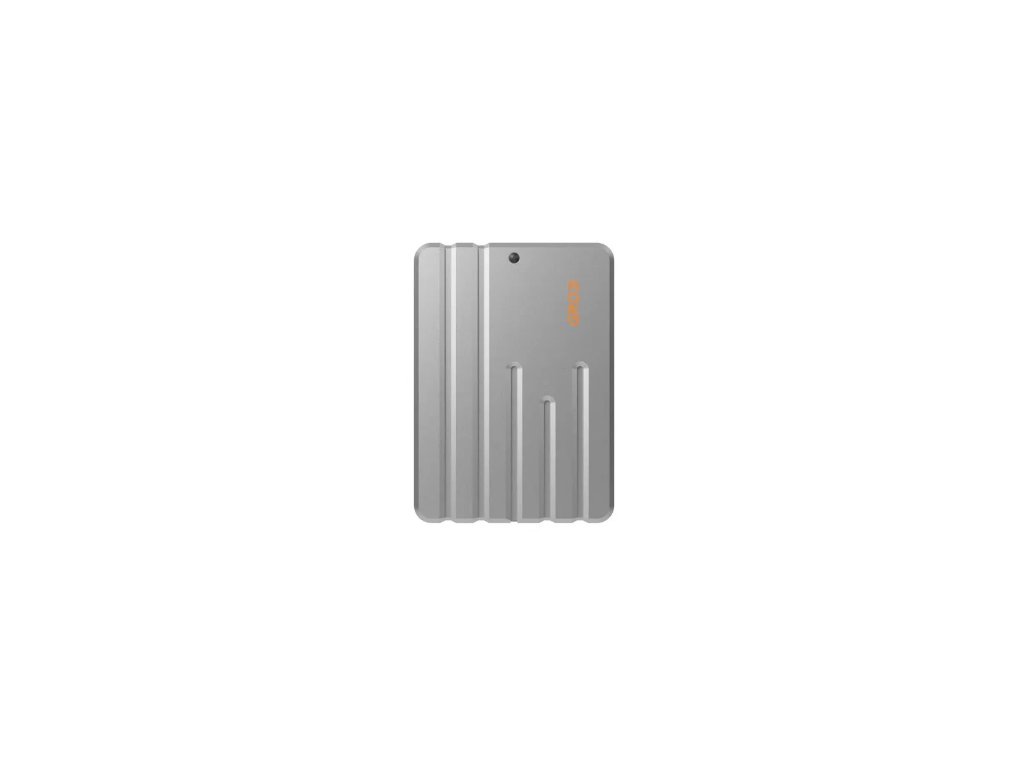

Receiver GR03 Specifications:
Operating Frequency Band: 2.4Ghz/5.8Ghz
Supply Voltage: 7.2V~72V(XT30)
Data Transmission Port: 2 channels
Ethernet Port: 2 channels
FC Interface: 1 channels
PWM Interface: 3 channels
Audio Output: 1 channels
Serial Port Baud Rate: 57600/115200/921600
Working current: 12V/350mA
SBUS Input: 1 channels
Dimension: 58.7x82x20mm
Weight: 120g
Working Temperature: -10°C~60°C
RF Power: 23dBm@CE/FCC
Transmission Rate: Upload speed: 200kbps. Upload mode can be enabled, with a maximum speed up to 1.2Mbps. Download speed: 10Mbps. The maximum speed can reach 20Mbps, which requires customization. Note: Enabling this mode will affect the communication distance; it is recommended for short-distance use.
Channel Bandwidth: 1.25MHz/ 2.5MHz/ 5MHz/ 10MHz/ 20MHz/ 40MHz

Package includes:
1x Controller SkyDroid G30
1x Receiver SkyDroid GR03
