AIO FC BetaFPV Matrix 1S Brushless G4 5 IN 1 V2 (Solder-required)

Product detailed description

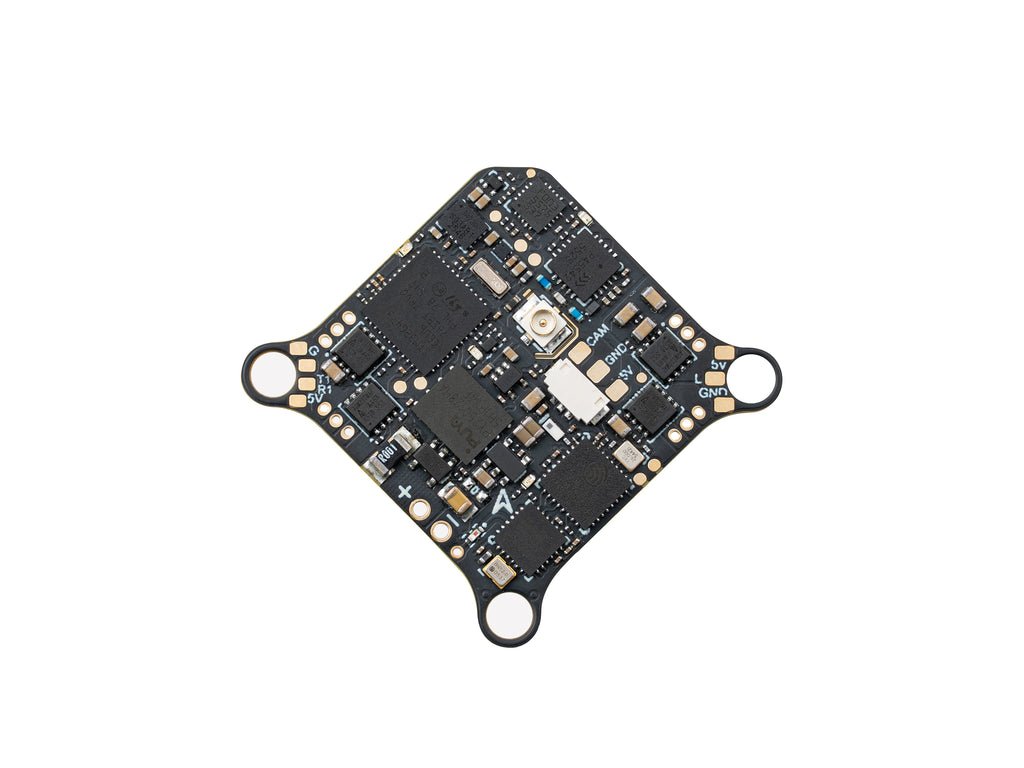

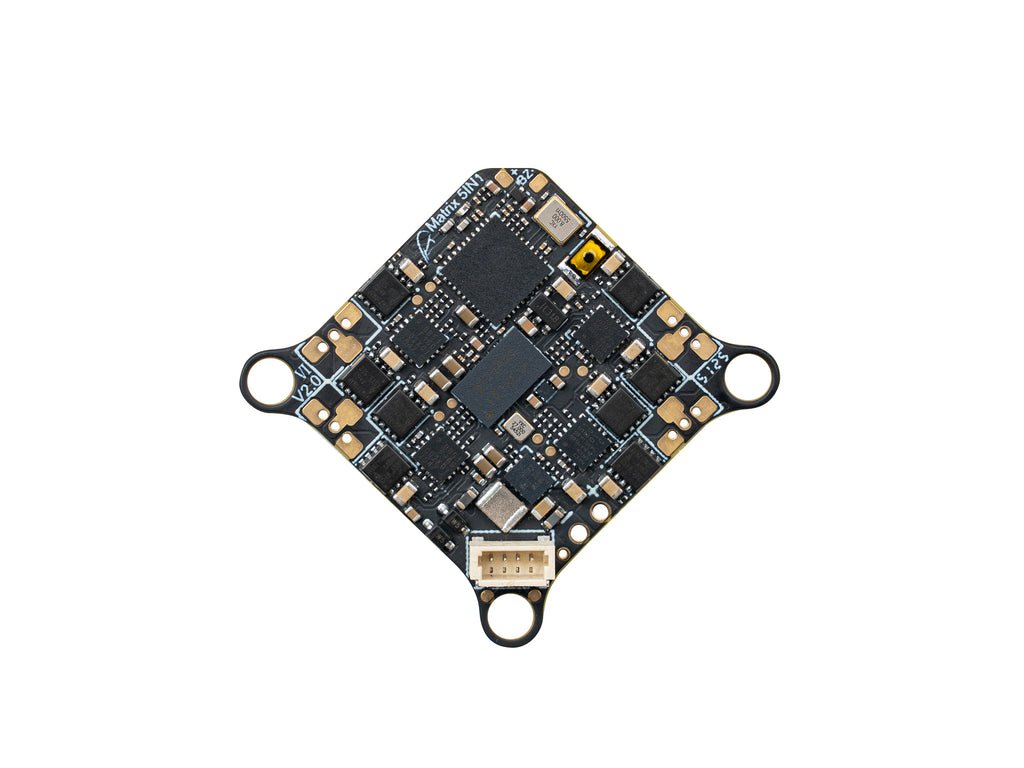

AIO FC BetaFPV Matrix 1S Brushless G4 5 IN 1 V2 (Solder-required)

The BetaFPV Matrix 1S 5IN1 II Solder-required Flight Controller is a high-output all-in-one solution designed for pilots who want maximum control over their build. It delivers powerful performance, excellent durability, and reduced weight for competitive 1S whoop setups. With advanced electronics and a crash-resistant design, it’s built to handle demanding racing and freestyle flights.

Features:
- All-in-one integration combining flight controller, ESC, receiver, OSD, and VTX
- Solder-required design for lighter builds and full wiring flexibility
- High-current ESC for strong, responsive motor output
- Reinforced PCB with shock-absorbing mounting for improved crash resistance
- Large solder pads for easy and reliable custom wiring
- Powerful processor and modern gyro for precise control and smooth flight
- Built-in ELRS receiver and high-power VTX for confident signal performance

Specifications:
FC
MCU: STM32G473CEU6
Gyro: ICM42688P
Blackbox memory: 16MB
Sensor: Voltage & Current
BEC: 5V, Max 3A
UART: UART 1, UART 2 (For VTX), UART 3 (For RX), UART 4
BetaFlight OSD: AT7456E
ESC: 12A continuous
RX:Serial ELRS 2.4GHz (V3.4.3)
VTX: 5.8GHz 48 channels, Max 400mW
FC firmware: Betaflight_4.5.3_BETAFPVG473_V2
USB port: SH1.0-4Pin
Motor connector: JST1.25
Battery connector: BT2.0
Mounting hole size: 26x26mm

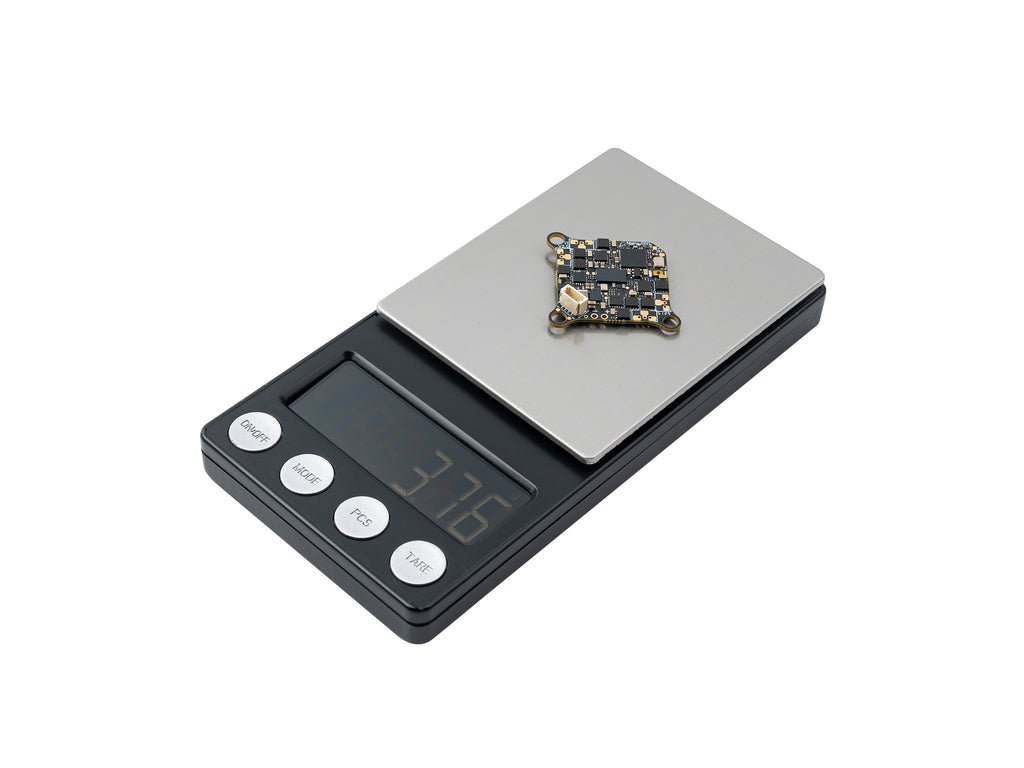

Weight: 3.76g

ESC
Power input: 1S Only
Current: 12A continuous, 18A peak
ESC firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay firmware
Digital signal protocol: DShot300, DShot600

VTX
Output power: 25/100/200/400/PIT
Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
Channel SEL: SmartAudio2.0
Modulation type: FM
Frequency control: PLL
All harmonic: Max -50dBm
Frequency stability: ±100KHz (Typ.)
Frequency precision: ±200KHz (Typ.)
Channel carrier error: ±1.5dB
Antenna port: 50 Ω
Operating temperature: -10℃~80℃

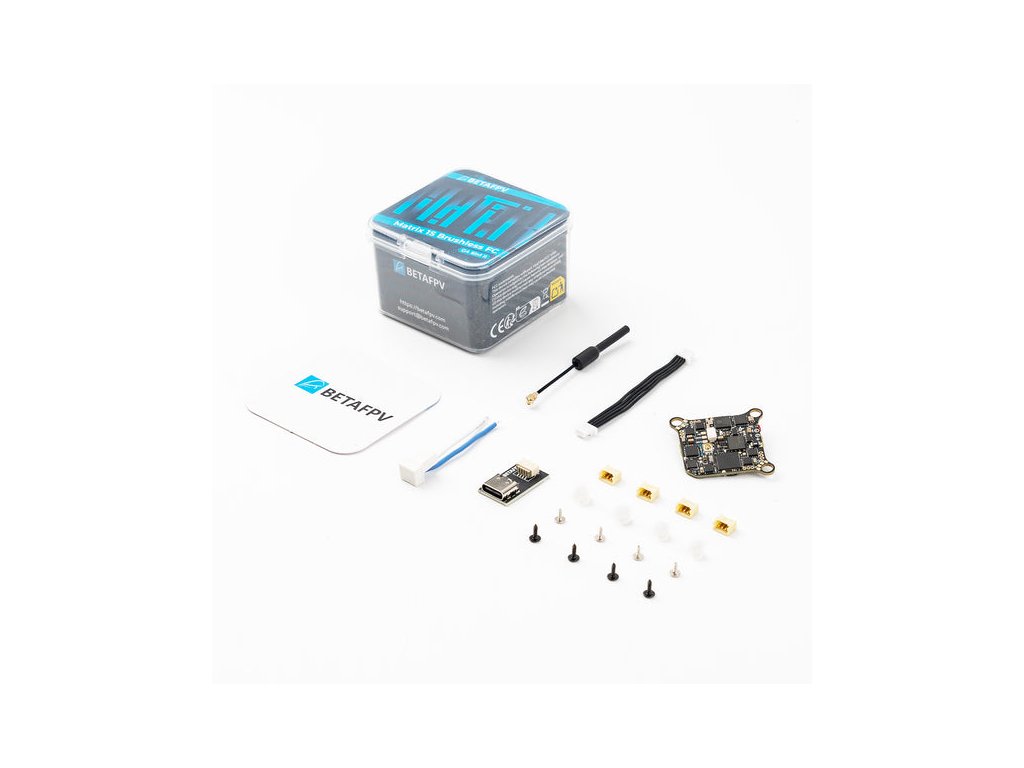

Package Includes:
1x AIO FC BetaFPV Matrix 1S Brushless G4 5 IN 1 V2 (Solder-required)
4x JST 1.25mm Gold Plated Connectors
1x BT2.0 U Cable
1x Type-C to SH1.0 Adapter
1x SH1.0-4Pin Adapter Cable
1x 5.8G Antenna
4x M1.2x4 Self-tapping Screws
4x M1.4x5 Self-tapping Screws
4x Shock Absorbing Balls
