Frame GEPRC GEP-Racer-Sliver for Racer FPV Drone
Code: GP105964Related products
Product detailed description

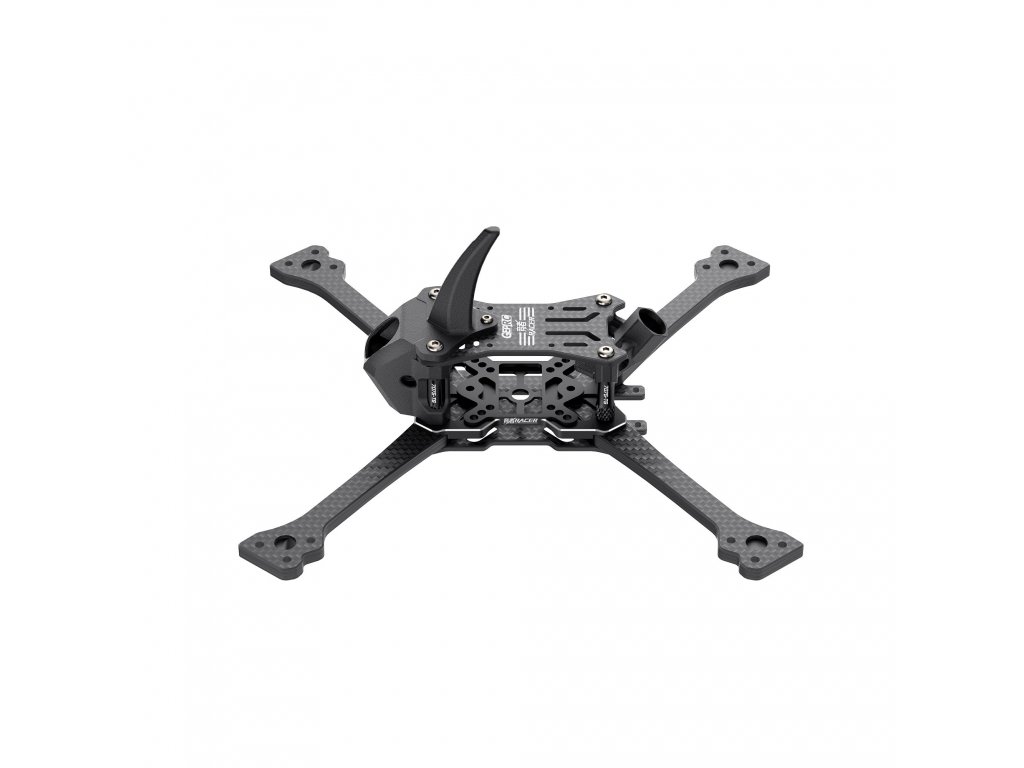

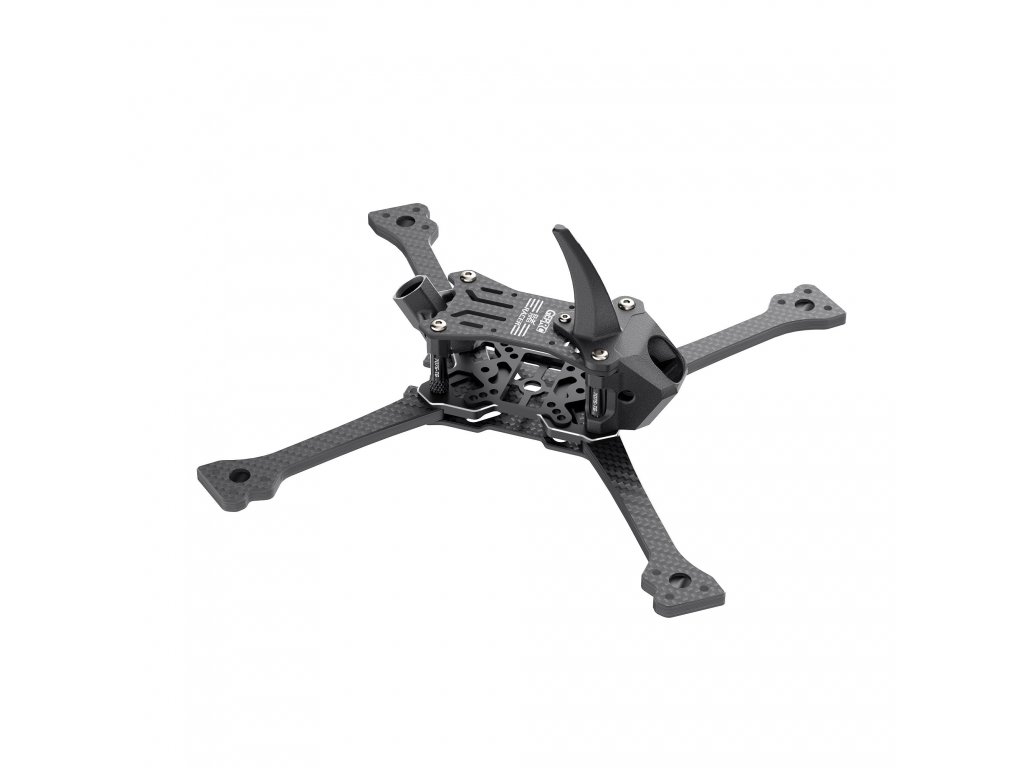

GEP-Racer-Sliver The Racer frame combines the 7075-T6 aviation aluminum alloy splint and the high-grade T700 carbon plate CNC processing, and the overall structure is solid. 20*20mm/25.5*25.5mm/30.5*30.5mm flight controller can be installed, and the motor mounting hole is 16*16mm. Compatible with HDZero VTX Specification: Model: RACER FPV Frame Frame: GEP-RACER Frame Dimensions: 175mm×173mm Wheelbase: 208mm Top plate: 2.0mm Aluminum plate: 2.0mm Bottom plate: 2.0mm Arm thickness: 5.0mm Aluminum column size: M3x6x24mm FC mounting hole: 30.5x30.5mm / 25.5x25.5mm / 20x20mm VTX mounting hole: 20x20mm Motor mounting hole: 16x16mm Camera installation space: 14mm Propeller: 5 inches Weight: 78g ± 2g
Additional parameters
| Category: | FPV Frames |
|---|---|
| Material: | Carbon fiber |
| Camera Mounting: | Nano (14mm) |
| Size: | 5 inch |
| Wheelbase: | 208mm |
| Drone Type: | Racing |
