Receiver Pilotix ELRS 2.4G Diversity with two T-antenna PNP

Product detailed description

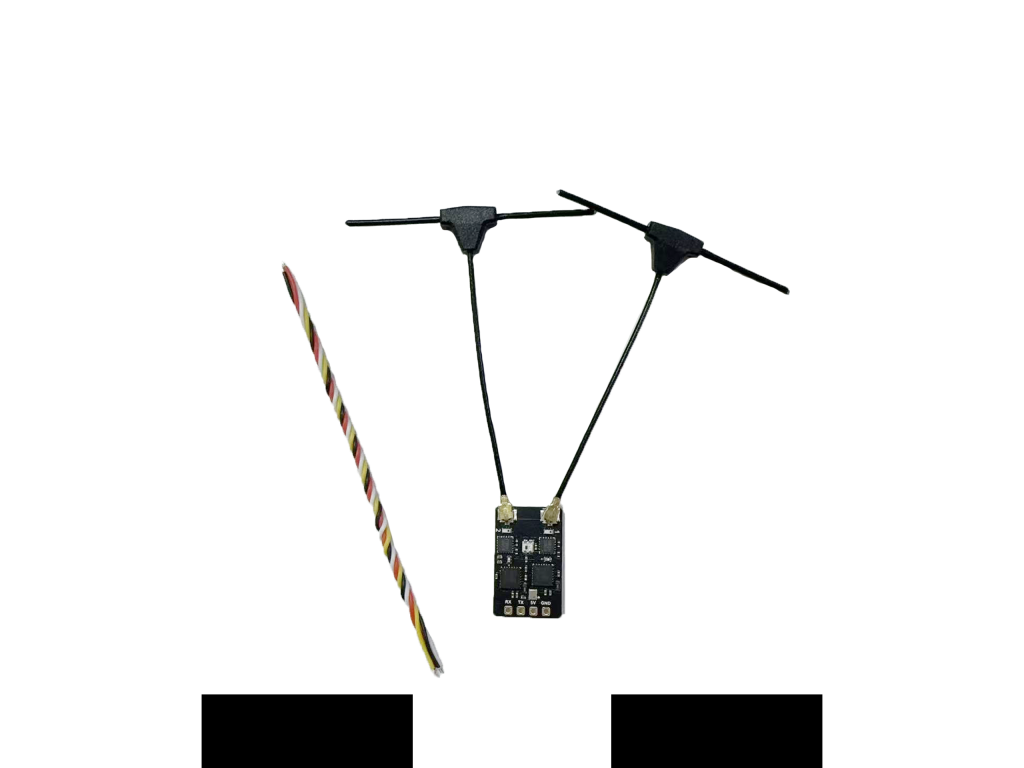

Receiver Pilotix ELRS 2.4G Diversity with two T-antenna PNP

The Pilotix ELRS 2.4G Diversity Receiver is a high-performance FPV receiver designed for stable and long-range radio control. Equipped with dual RF chips and two T-type antennas, it ensures enhanced signal reliability through diversity reception. Pre-installed with ExpressLRS firmware, it offers fast response and easy plug-and-play integration for modern FPV drones.

Features:
- Dual diversity system for improved signal stability and reliability
- Fast and responsive control link for precise flight performance
- Pre-installed firmware for quick setup and immediate use
- Lightweight and compact design ideal for small FPV builds
- Stable connection even in challenging environments
- Plug-and-play compatibility with modern ELRS transmitters

Specifications:
MCU: ESP32-PICO-D4
RF Chip: SX1281x2
Frequency Range: 2.4 GHz
RF Connector: IPEX-1x2
Antenna: 2.4 GHz T-type antennax2 (included)
Maximum Receive Refresh Rate: DK500Hz / K1000Hz
Minimum Receive Refresh Rate: 50Hz
Operating Voltage: DC 3.8–5.5V
Firmware: ExpressLRS v3.6.3 (pre-installed)
Bus Interface: CRSF
Dimensions: 22x18x4 mm
Weight: 1.7 g (excluding antennas)

Package includes:
1x Pilotix ELRS 2.4G Diversity Receiver
2x 2.4 GHz T-Type Antennas
