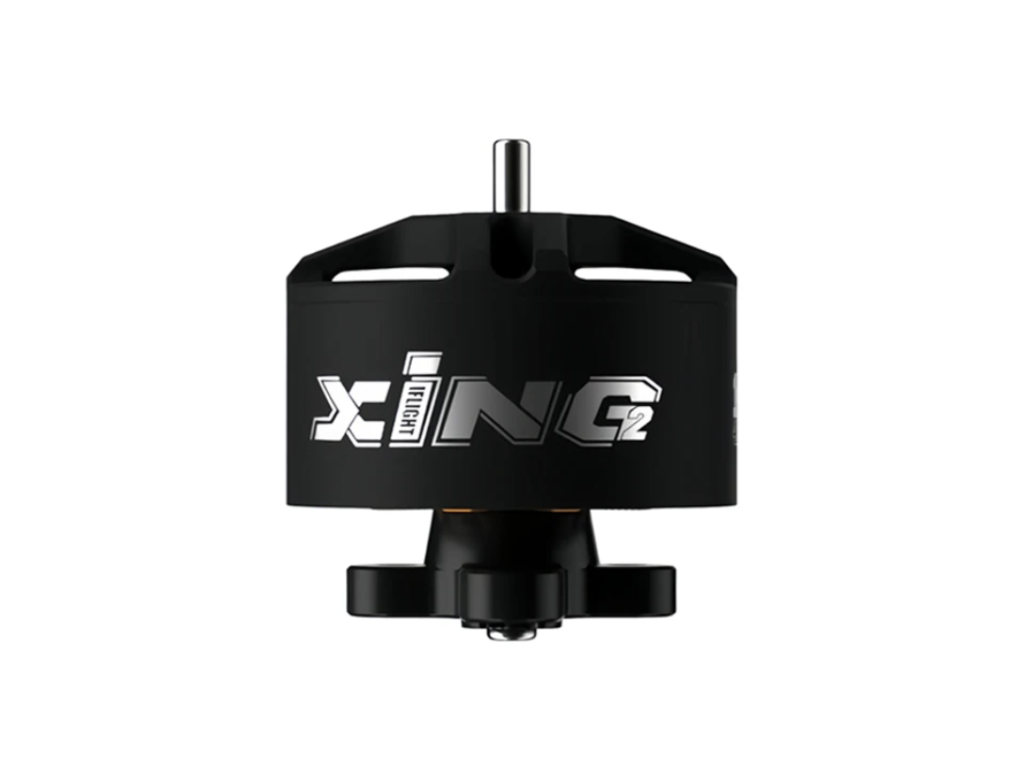

Motor iFlight XING2 1407 4600KV

Product detailed description

Motor iFlight XING2 1407 4600KV

The iFlight XING2 1407 4600KV is a high-performance brushless FPV motor designed for lightweight 60mm-class drone builds. It delivers fast throttle response, smooth power delivery, and stable operation for both racing and cinematic flying. Built with precision engineering, it ensures consistent performance and durability in demanding flight conditions.

Features:
- High responsiveness for aggressive FPV racing and freestyle maneuvers
- Smooth and stable motor operation with reduced vibration for cleaner video output
- Lightweight design optimized for compact drone frames
- Durable construction with high-quality materials for long service life
- Efficient power delivery for balanced performance and flight control
- Designed for reliability under high load and dynamic flight conditions

Specifications:
KV Rating: 4600KV
Motor Size: 1407
Motor Weight (including wires): 11.8 g
Dimensions: 17.7x18.7 mm
Rated Voltage: 5S LiPo
Maximum Current: 25.45 A
Maximum Power: 403.38 W
Phase Resistance: 88.8 mΩ
Rotor Type: Split-type outer rotor (outrunner)
Shaft Diameter: 1.5 mm
Shaft Length: 3 mm
Wire Length: 60 mm (26 AWG)
Magnet Type: N52H
Slot/Poles Configuration: 9N12P
Winding Type: Multi-strand winding
Bearing Type: NMB
Bearing Size: 5x2x2.5 mm

Package includes:
1x Motor iFlight XING2 1407 4600KV
