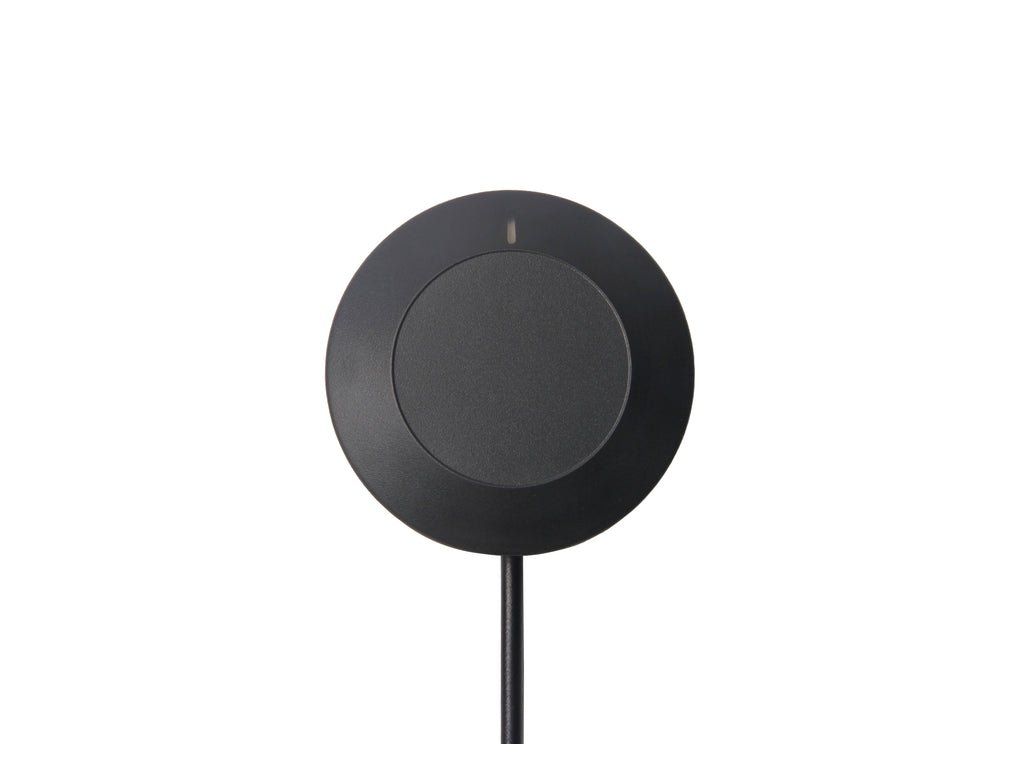

GPS Module Holybro M9N V2 Secondary

Product detailed description

GPS Module Holybro M9N V2 Secondary

The Holybro M9N V2 GPS Module uses multi-constellation GNSS powered by the u-blox M9N receiver, concurrently tracking GPS, Galileo, GLONASS, and BeiDou for reliable, accurate positioning. The V2 design features a more robust casing with an IP67 water and dust resistance rating, along with a built-in IST8310 compass and tricolored LED indicator. Its high-gain 25x25mm ceramic patch antenna delivers excellent performance with an omnidirectional radiation pattern for flexible mounting, backed by active antenna circuitry and a rechargeable backup battery for fast warm starts. This Secondary version uses a 6-pin JST-GH connector, compatible with the Pixhawk Standard Flight Controller's "UART & I2C" or "GPS2" input port, and is also compatible with the Cube Flight Controller GPS2 port.

Features:
— U-blox M9N GNSS receiver tracks up to 4 concurrent GNSS constellations (GPS, Galileo, GLONASS, BeiDou)
— Built-in IST8310 compass for reliable heading data
— High-gain 25x25mm ceramic patch antenna with omnidirectional radiation pattern
— IP67 water and dust resistance rating for reliable outdoor use
— RGB LED indicator controlled directly by the flight controller
— Rechargeable backup battery for fast warm starts
— High-performance SAW filter and added RF shielding for improved signal quality
— 6-pin JST-GH connector compatible with Pixhawk GPS2 and Cube Flight Controller GPS2 port

Specifications:
GNSS Receiver: u-blox M9N
Concurrent GNSS: Up to 4 (BeiDou, Galileo, GLONASS, GPS, QZSS)
Frequency Bands: GPS L1, Galileo E1, GLONASS L1, BeiDou B1, SBAS L1, QZSS L1
Compass: IST8310
Output Protocol: UBX (u-blox), NMEA
Accuracy: 2.0m CEP
Navigation Update Rate: Up to 25Hz (single GNSS), up to 10Hz (4 concurrent GNSS)
GNSS Augmentation: EGNOS, GAGAN, MSAS, WAAS, QZSS L1S
Default Baud Rate: 115200
Input Voltage: 4.7–5.2V
Connector Type: JST-GH 6-pin
Antenna: 25 x 25 x 4mm Ceramic Patch
Antenna Gain: 1.5dBi
Antenna LNA Gain: 22dB
Power Consumption: <200mA @ 5V
Operating Temperature: -40°C to 80°C
Dimensions: φ51mm x 18.5mm
Weight: 36.8g
IP Rating: IP67
Cable Length: 26cm (42cm cable available separately)
V2 Enhancements: High-performance SAW filter, added RF shielding, LNA MAX2659ELT+ RF amplifier, rechargeable Farad capacitor, low-noise 3.3V regulator

Package Includes:
1x Holybro M9N V2 GPS Module (Secondary, 6-pin JST-GH)
