FPV Thermal Camera HobbyDrone IR TR3-006 V2
Code: TR3-006-V2Product detailed description

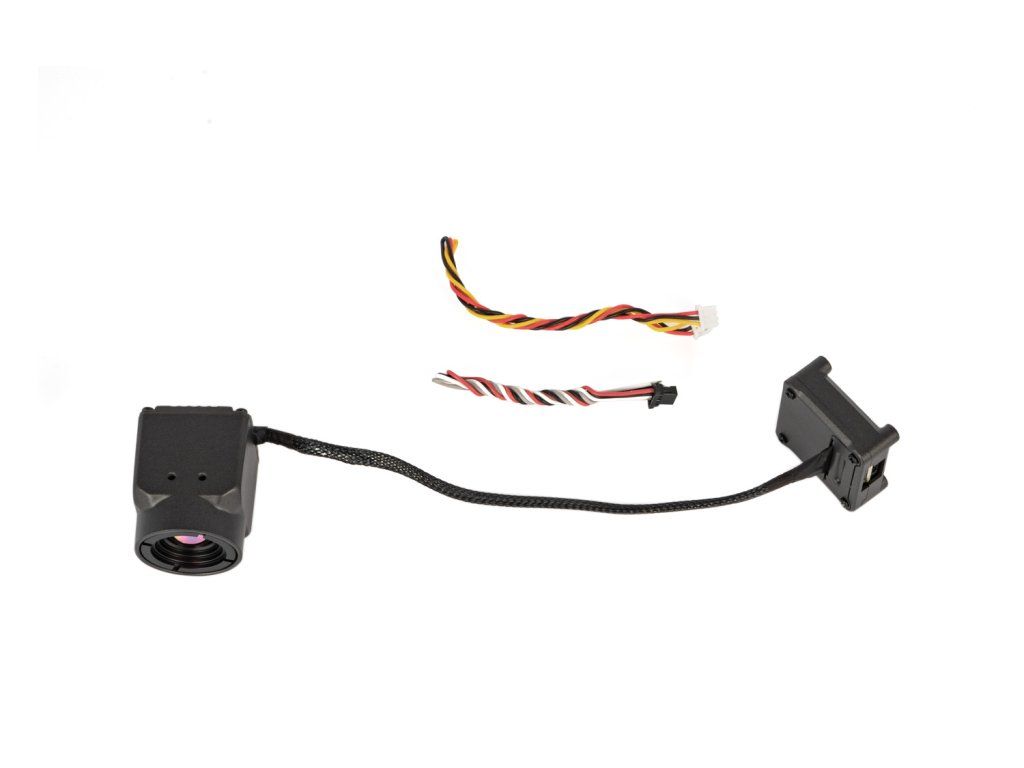

FPV Thermal camera HobbyDrone IR TR3-006V2 The HobbyDrone IR TR3-006V2 is a high-resolution FPV thermal camera designed for drone applications requiring precise heat signature detection. Equipped with an uncooled Vanadium Oxide detector, it offers a resolution of 640×512 and operates within the 8–14μm infrared wavelength range, making it ideal for night vision and thermal inspection missions. Specifications: Detector Type: Uncooled Vanadium Oxide Resolution: 640×512 Wavelength Range: 8–14μm F.NO: F1.0 Focal Length: 9.1mm Field of View (FOV): 48.3°(H) × 38.6°(V) × 66°(D) Frame Rate: 50Hz Power Consumption: <1.5W Video Interface: PAL Supply Voltage: 9V~24V Operating Temperature: -20℃ ~ 60℃ Package Includes: 1 x FPV Thermal camera HobbyDrone IR TR3-006V2
Additional parameters
| Category: | Thermal FPV Сameras |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.05 kg |
| Resolution: | 640x512 |
| Video System: | Thermal |
| Field of View (FOV): | 66° |
