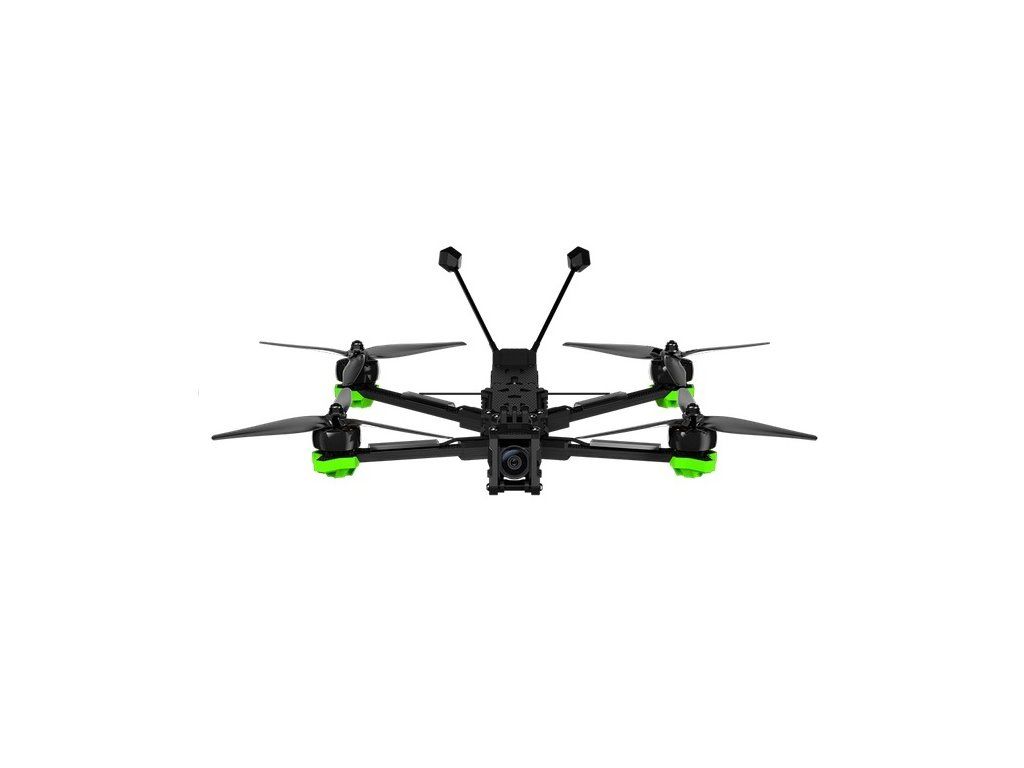

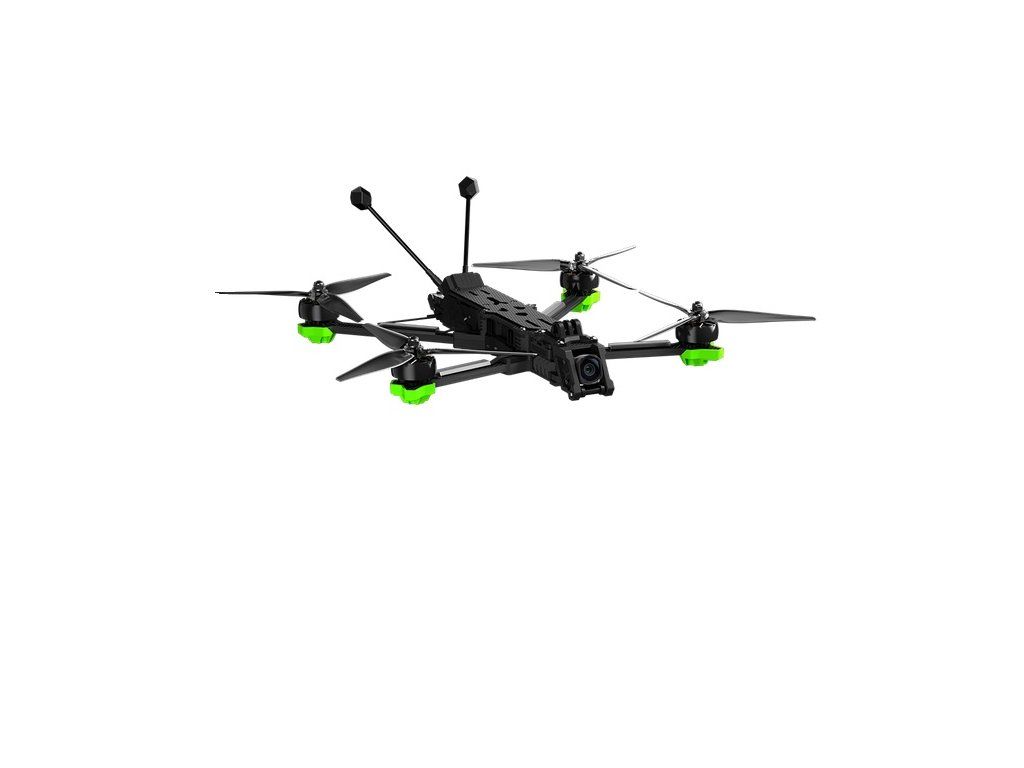

FPV Drone iFlight Nazgul Evoque F7 O4 Pro BNF Diversity GPS Waterproof

Product detailed description

FPV Drone iFlight Nazgul Evoque F7 O4 Pro BNF TBS Diversity GPS Waterproof

iFlight Nazgul Evoque F7 O4 Pro GPS Waterproof with TBS Crossfire Diversity NANO RX receiver is a premium 7-inch long-range FPV drone built for cinematic flights and extreme environments. Equipped with DJI O4 Air Unit Pro and advanced electronics, it delivers powerful performance and high-quality video capture. Its sealed waterproof design protects internal components from splashes and light moisture, making it more reliable in challenging conditions.

Features:
- Long-range optimized frame providing stable and smooth cinematic flight
- Waterproof construction improving durability in challenging environments
- High-end digital video system delivering immersive and high-quality footage
- Powerful propulsion system ensuring efficient and reliable performance
- Advanced cooling design improving thermal stability during long flights
- Upgraded power system with stable and protected power delivery
- Built-in GPS module enhancing navigation accuracy and safety
- Unobstructed camera view for clean cinematic shots
- Durable frame construction for improved crash resistance
- TBS Crossfire Diversity receiver in nano form factor is ideal for long range miniquads or smaller wings

Specifications:
Product Name: Nazgul Evoque F7 O4 6S HD
Geometry: Deadcat(DC)
FC: Borg Mini F7 Flight Controller
ESC: Borg 60R ESC
Video Transmission: DJI O4 Air Unit Pro
Frame: 321mm wheelbase
Motor: XING2 2809 1250KV motors
Prop: HQ 7.5X3X3 propellers
Weight: 765±5g(Without Battery)
Takeoff Weight: Approx. 1620±5g (incl. 21700 6S 10000mAh)
Dimensions: 284x283x53mm
Max Speed: 140km/h
Maximum Takeoff Altitude: 7000 m
Max Hover Time: Approx. 25min with 6S 8000-10000mAh battery No Load
Recommended load: 800g
Operating Temperature Range: -20° to 40° C
Antennas: Dual Antennas
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Battery plug: XT60
Receiver: TBS Crossfire Diversity NANO RX

Video Transmission:
Product Name: DJI O4 Air Unit Pro
Image Sensor: 1/1.3-inch
Lens: FOV: 155°
ISO: 100-25600
Video Resolution: 1080p/100fps H.265
Video Format: MP4, Max Video Bitrate: 130Mbps
Color Mode: Normal Mode/D-Log M
Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)
Live View Quality: 1080P@100fps
Operating Frequency: 5.170-5.250 GHz  & 5.725-5.850 GHz
Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))
Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)
Communication Bandwidth: Max 60 MHz
Antenna: Dual antennas
Built-in Storage: 4GB
Supported SD cards: microSD (up to 512GB)
Operating Temperature: -10° to 40° C
Weight: Air Unit (camera module included): Approx. 32 g
Dimensions: Transmission Module: 33.5x33.5x13 mm

Package includes:
1x Nazgul Evoque F7 O4 6S HD
1x Battery pad
2x 7.5 inch Prop(Pairs)
2x Battery strap
