Receiver BETAFPV SuperD Diversity ELRS2.4GHz

Product detailed description

SuperD ELRS 2.4G Diversity Receiver (1pcs)

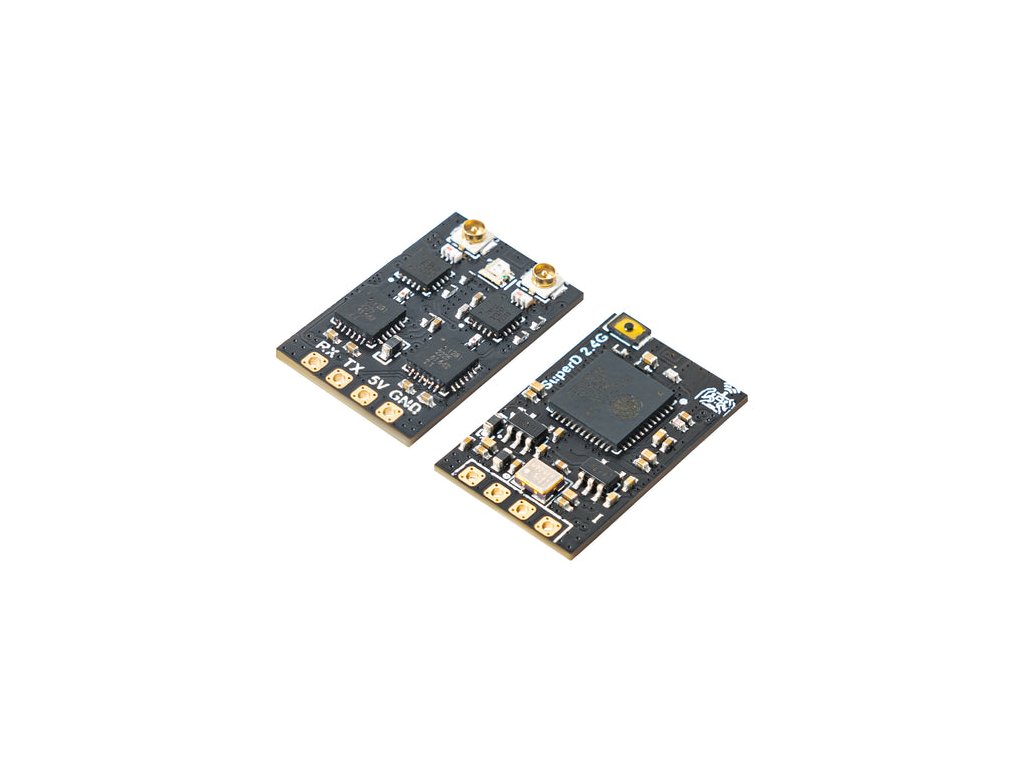

The BETAFPV SuperD ELRS is a cutting-edge True Diversity Receiver. Featuring two RF receiver chains based on the latest official ExprssLRS, it supports dual SX1280/SX1281, ensuring a robust and reliable signal for extended ranges.

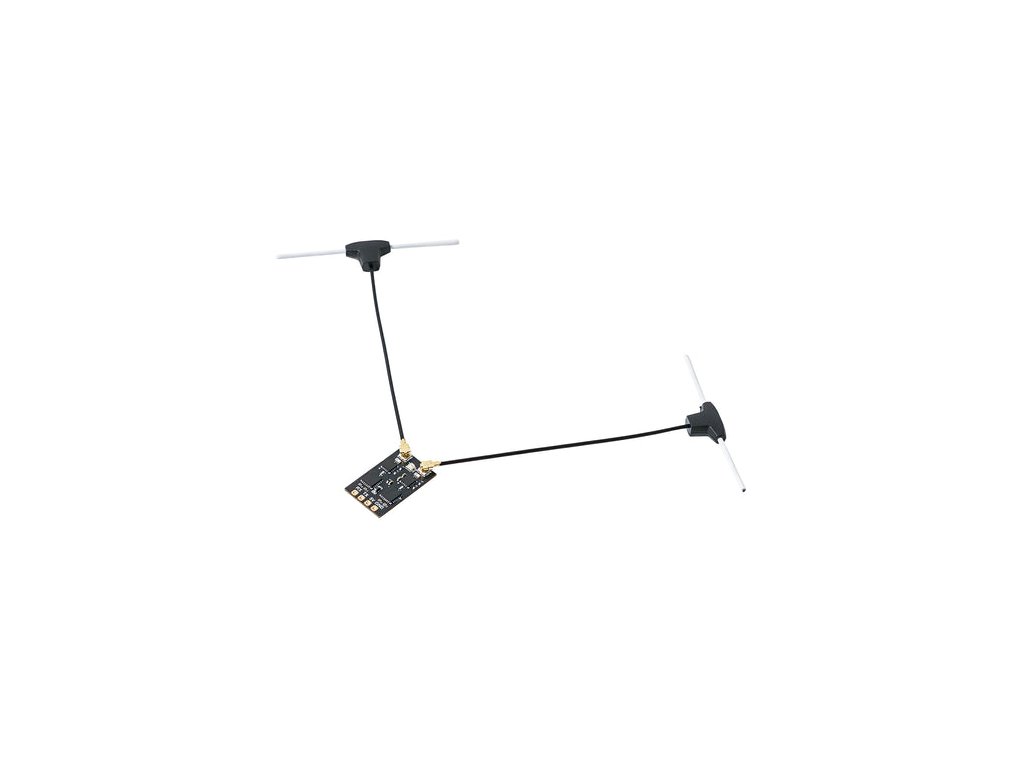

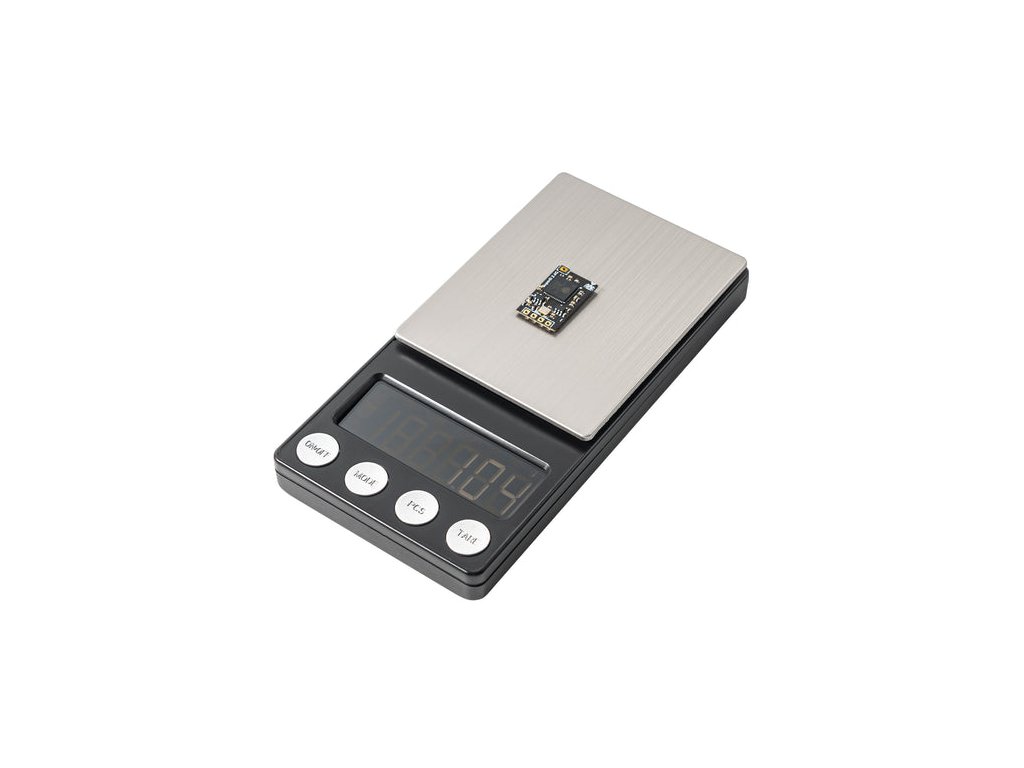

Weighing in at a mere 1.1g (excluding the antenna), the SuperD ELRS offers a lightweight design with a clean layout, making soldering a breeze. Enhanced by the ExpressLRS V3.0.0 firmware, it achieves exceptional accuracy in frequency rates. The inclusion of two Dipole T antennas strategically optimizes signal transmission with an omnidirectional approach.

Specifications:
Item: BETAFPV SuperD ELRS 2.4GHz Diversity Receiver
MCU: ESP32 PICO D4, dual SX1280(SX1281)
Telemetry power: 20dBm
Weight excluding antenna: 1.1g
RF Frequency: 2.4GHz (ISM)
Antenna connector: IPEX MHF 1/U.FL
Input voltage: +5V DC @ “+” pad
Receiver protocol: CRSF
PCB size: 22x14mm
