Power Filter Board FLYWOO CAP2-TVS ESC

Product detailed description

Power Filter Board FLYWOO CAP2-TVS ESC

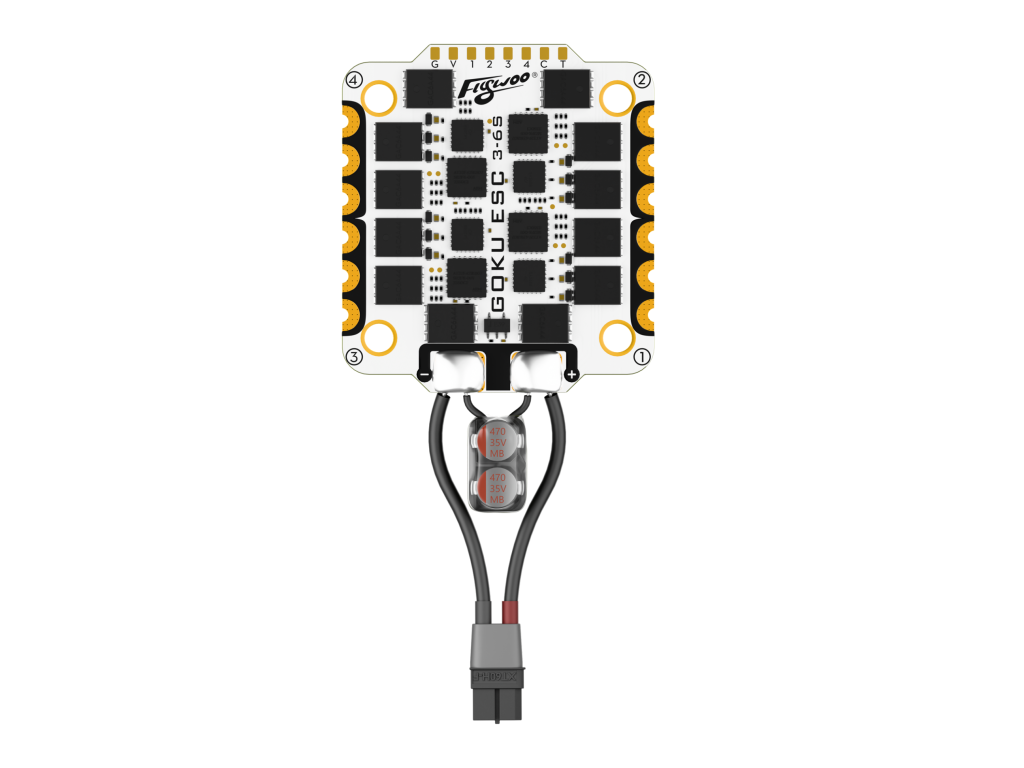

The Power Filter Board FLYWOO CAP2-TVS ESC is a protective power module designed to safeguard FPV drone electronics from voltage spikes generated by brushless motors. It integrates transient voltage suppressors and solid-state capacitors to stabilize the power supply and protect sensitive components such as ESCs and flight controllers. The board improves power filtering and helps ensure reliable operation during demanding flights.

Features:
- Advanced voltage spike protection for sensitive FPV electronics
- Efficient power filtering for cleaner and more stable power delivery
- Integrated transient voltage suppression for enhanced system safety
- Pre-installed capacitors for convenient installation
- Compact and lightweight design suitable for FPV builds
- Helps improve signal stability and throttle smoothness

Specifications
Model: CAP2-TVS ESC Power Filter Board

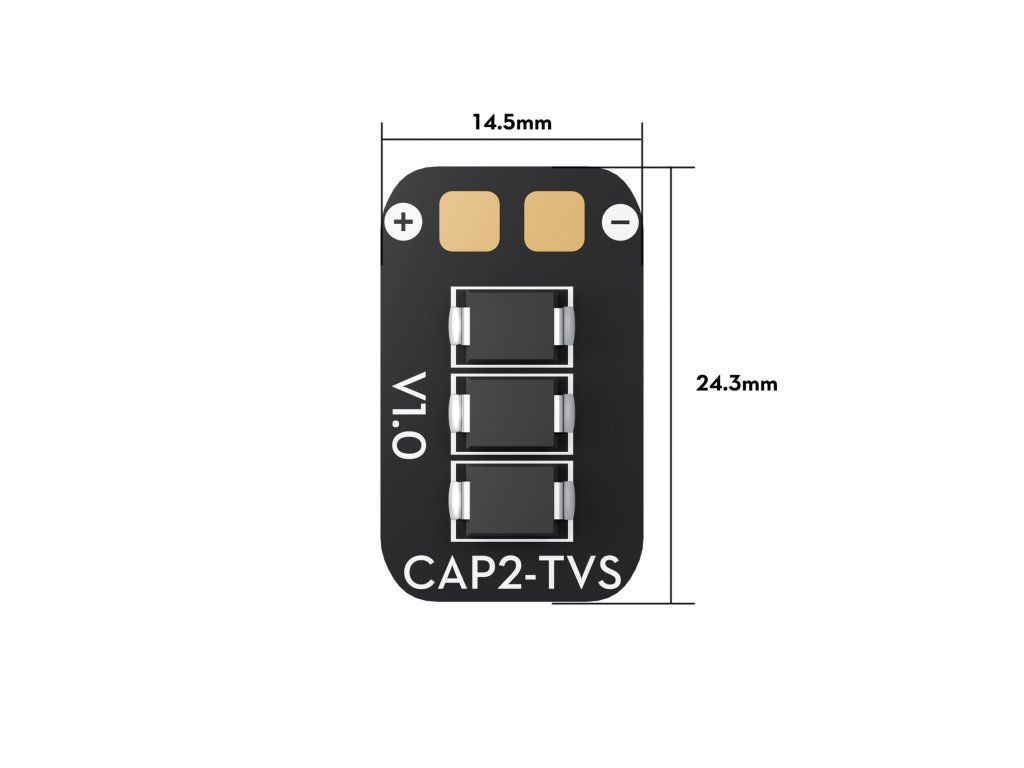

Dimensions: 24x14.5x15.3 mm

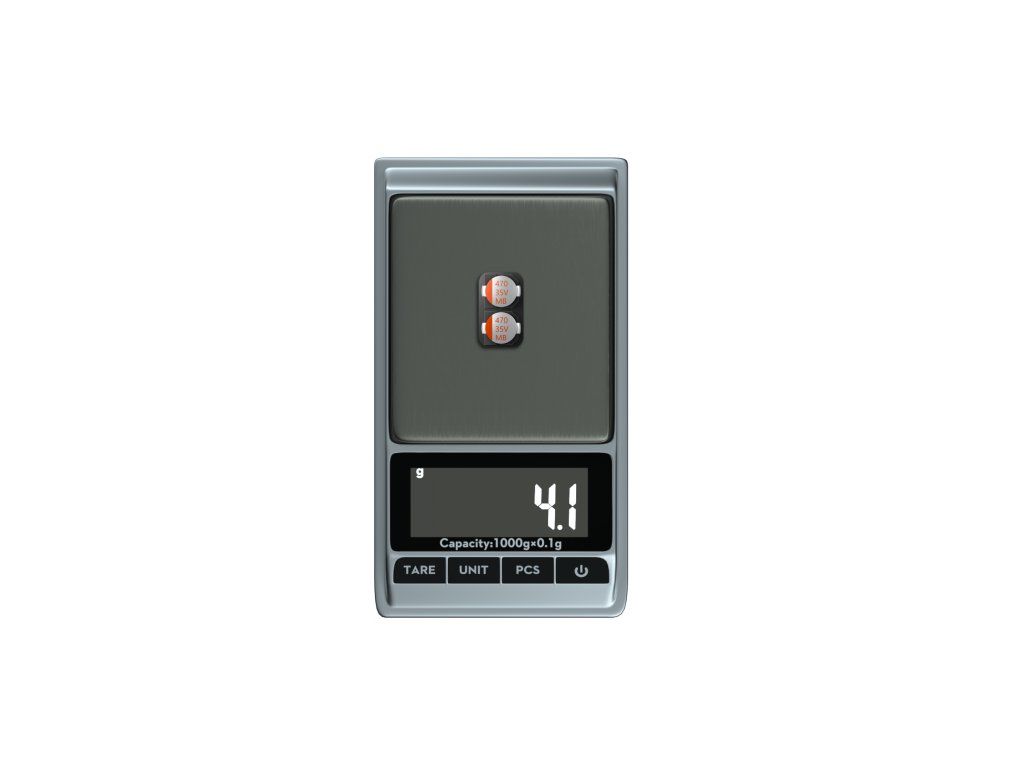

Weight: 3.9 g
Input voltage: 3–6S LiPo (11.1–25.2 V)

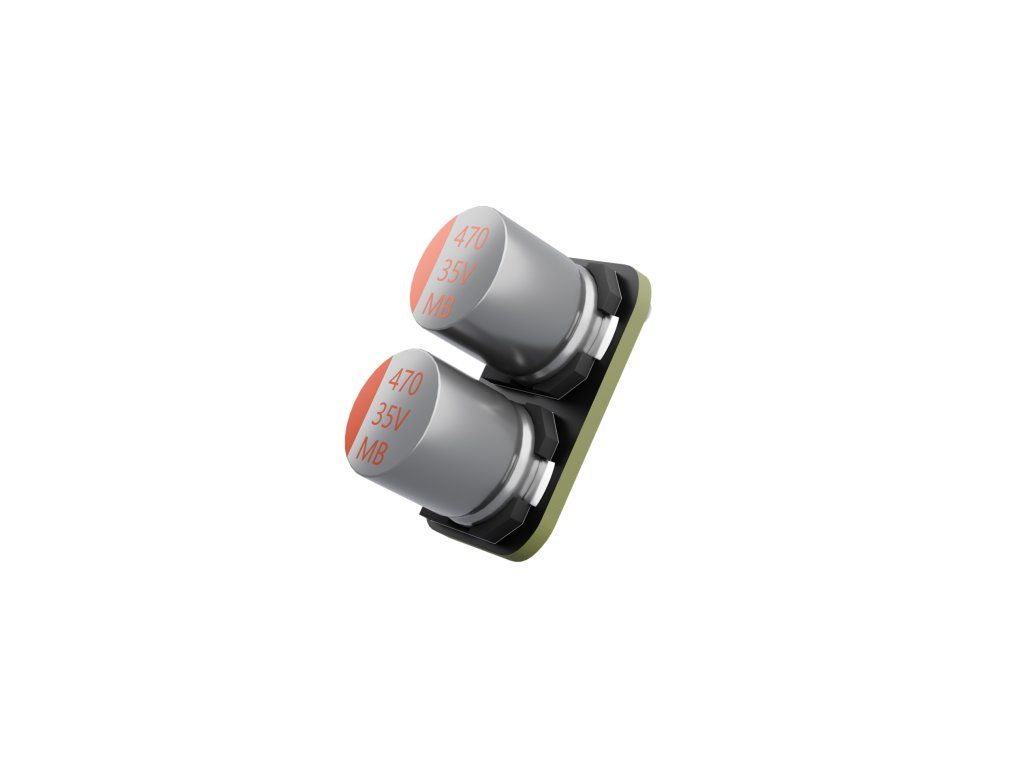

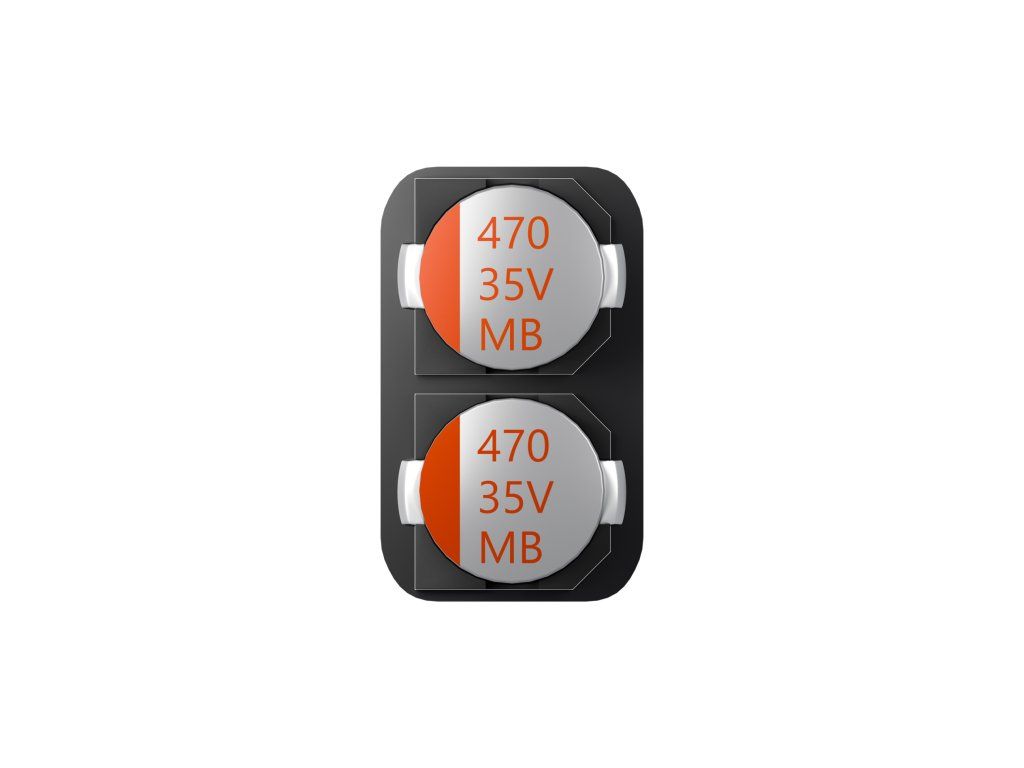

Capacitors: 2x470 µF 35 V MB solid-state capacitors

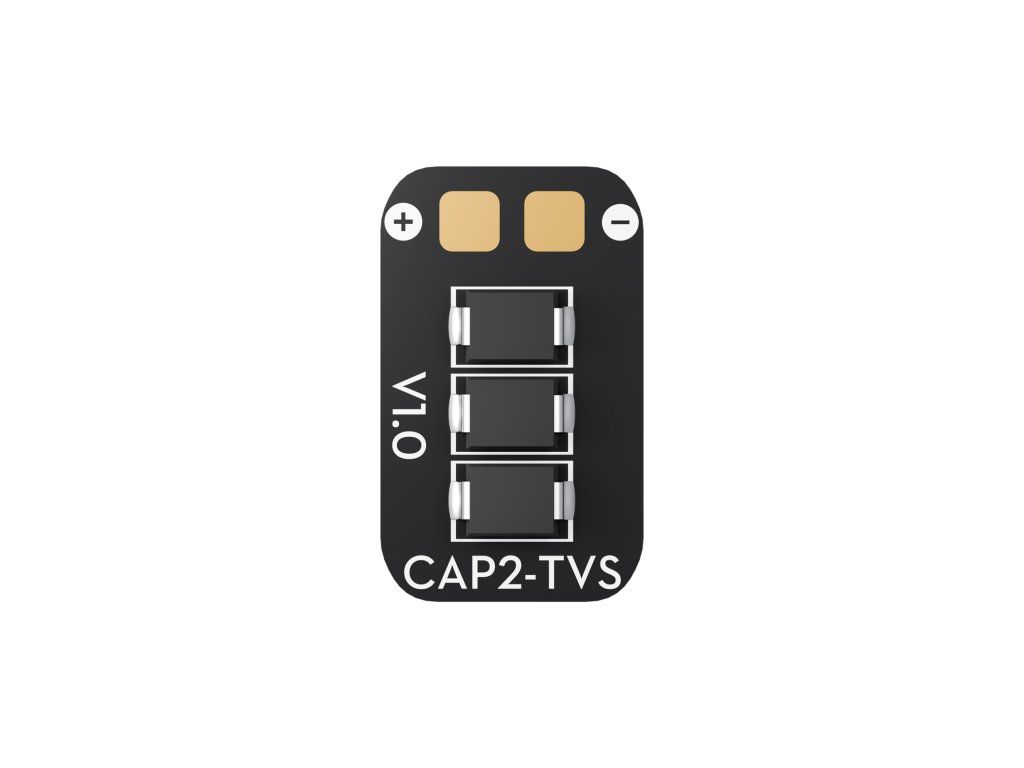

Protection component: TVS (Transient Voltage Suppressor)

Package includes:
1x Power Filter Board FLYWOO CAP2-TVS ESC
