Motor iFlight XING2 2809 Black 1250KV (no logo)

Product detailed description

Motor iFlight XING2 2809 Black 1250KV (no logo)

The upgraded XING2 motors feature new center-slotted N52H curved arc magnets for faster response time, providing a locked-in feeling for smoother flight. With high-quality materials and a durable bell-shaft joint, magnet air gap and stator lamination are minimized, resulting in increased efficiency and power.

Features
- 5mm titanium alloy shaft, our strongest prop shaft ever!
- Crash resistant 7075 aluminum bell
- Smooth and long-lasting NSK 11x5x5 bearings
- Center slotted N52H curved arc magnets
- XING O-ring bearing gap protection
- Motor wire protector
- Dynamically balanced

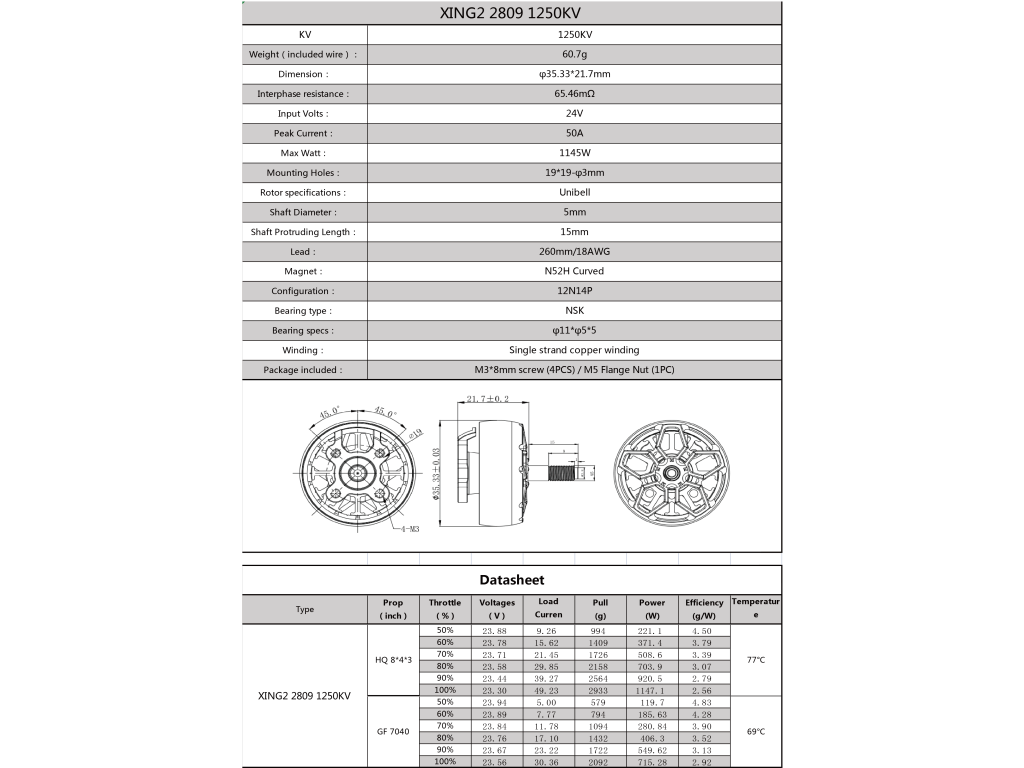

Specifications:
Model: XING2 2809 Motor
KV: 1250KV
Weight (included wire): 60.7g
Dimension: φ35.33x21.7mm
Interphase Resistance: 65.46mΩ
Input Volts: 24V
Peak Current: 50A
Max Watt: 1145W
Mounting Holes: 19x19 φ3mm
Rotor Specifications:  Unibell
Shaft Diameter: 5mm
Shaft Protruding Length: 15mm
Lead: 260mm/18AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Type: NSK
Bearing Specification: φ11xφ5x5
Winding: Single Strand copper winding

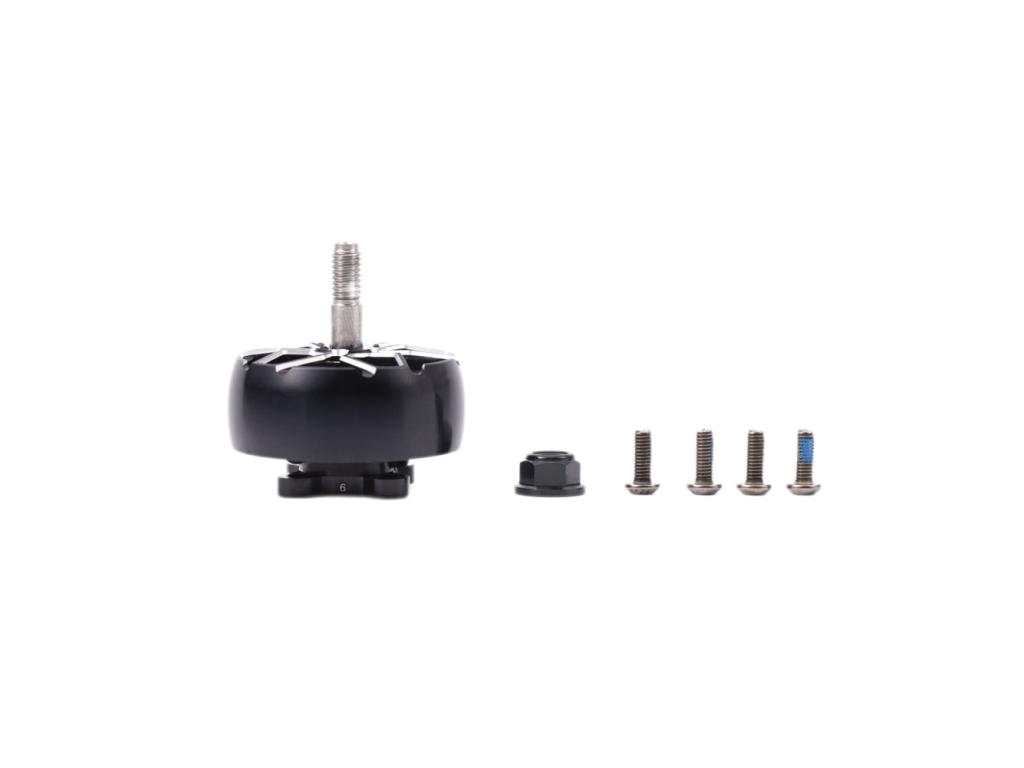

Package includes:
1x Motor iFlight XING2 2809 Black 1250KV (no logo)
4x M3x8 screws
1x M5 Flange Nut
