Frame Oxbot Lumo18

Product detailed description

Frame Oxbot Lumo18

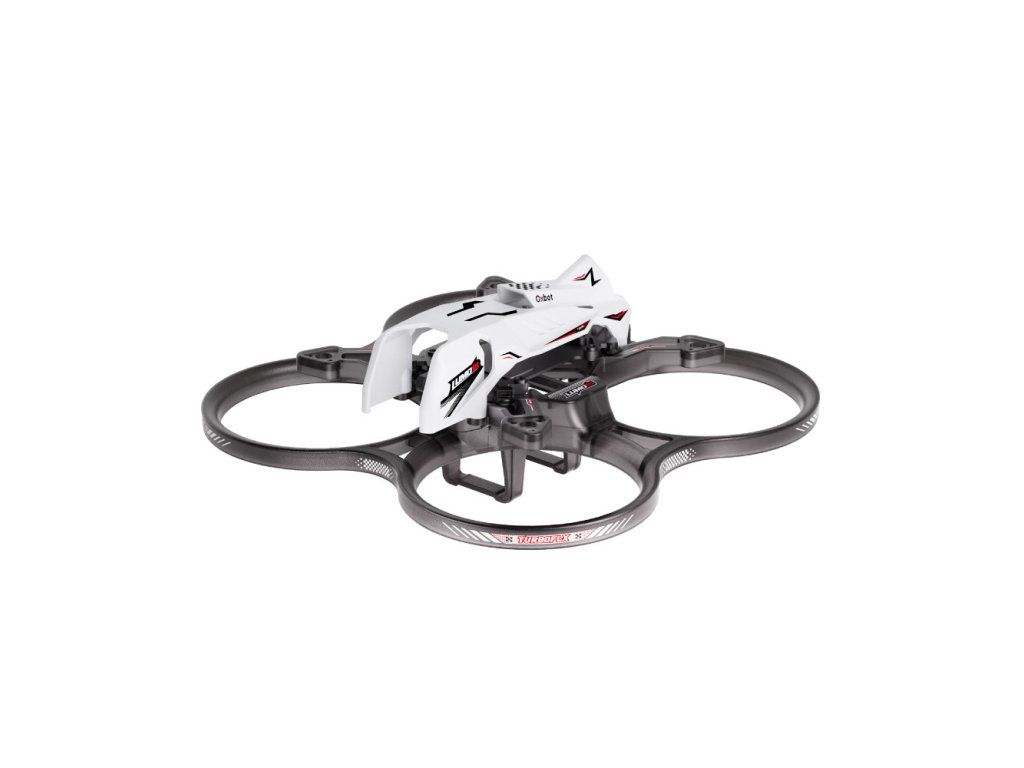

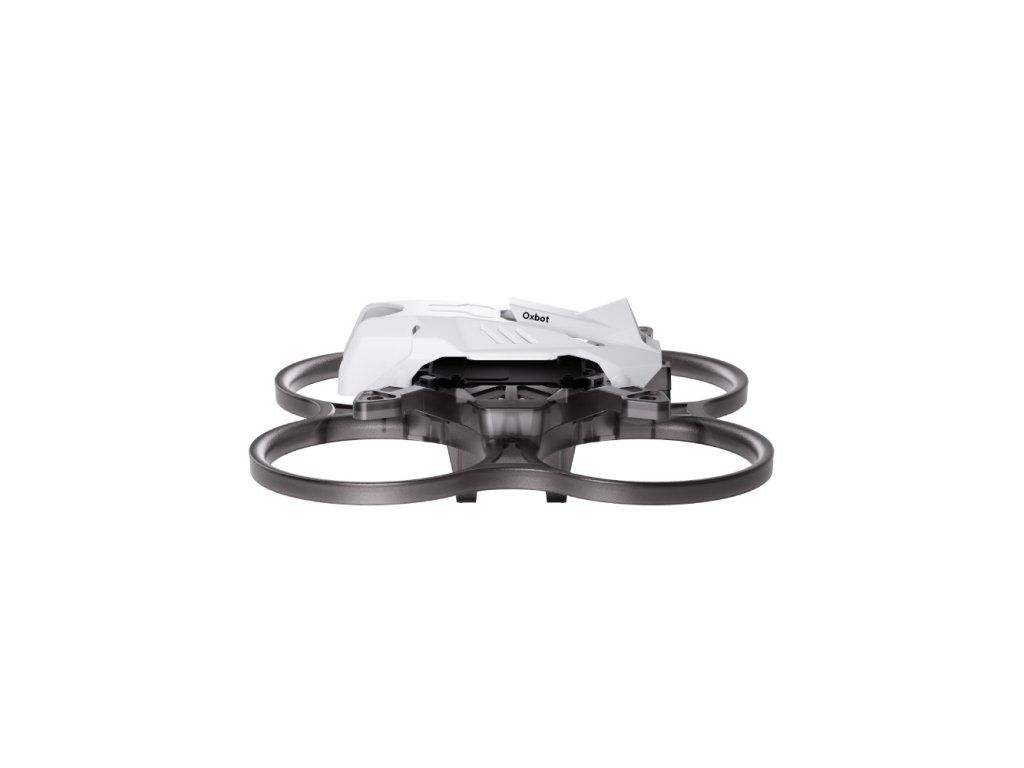

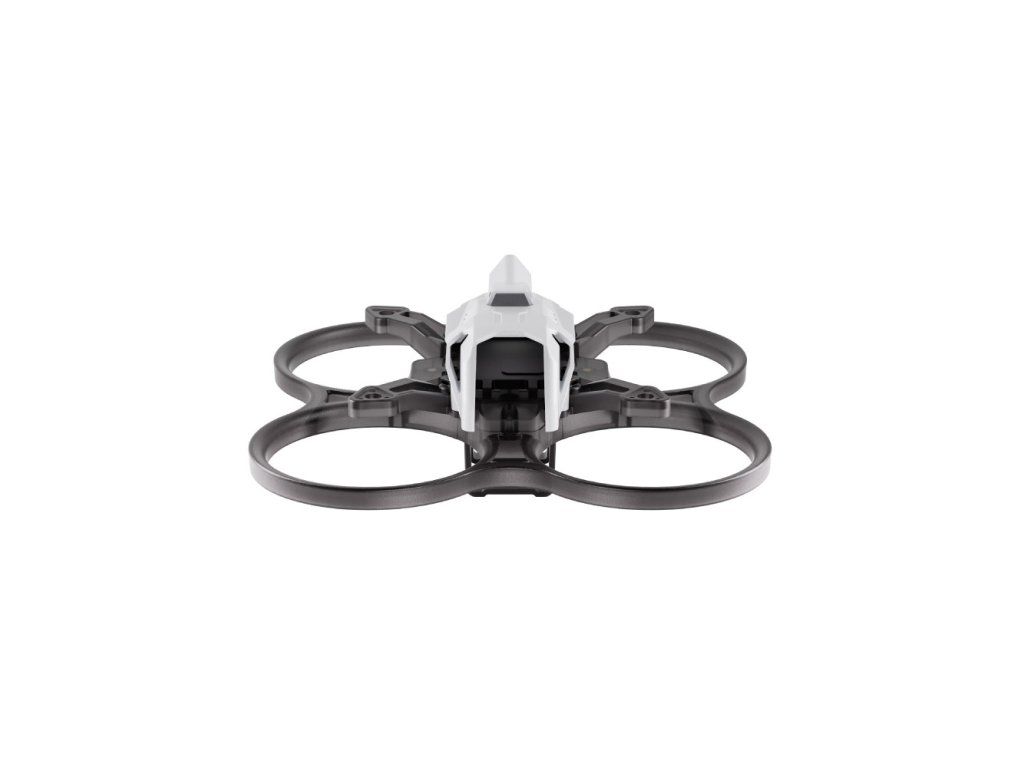

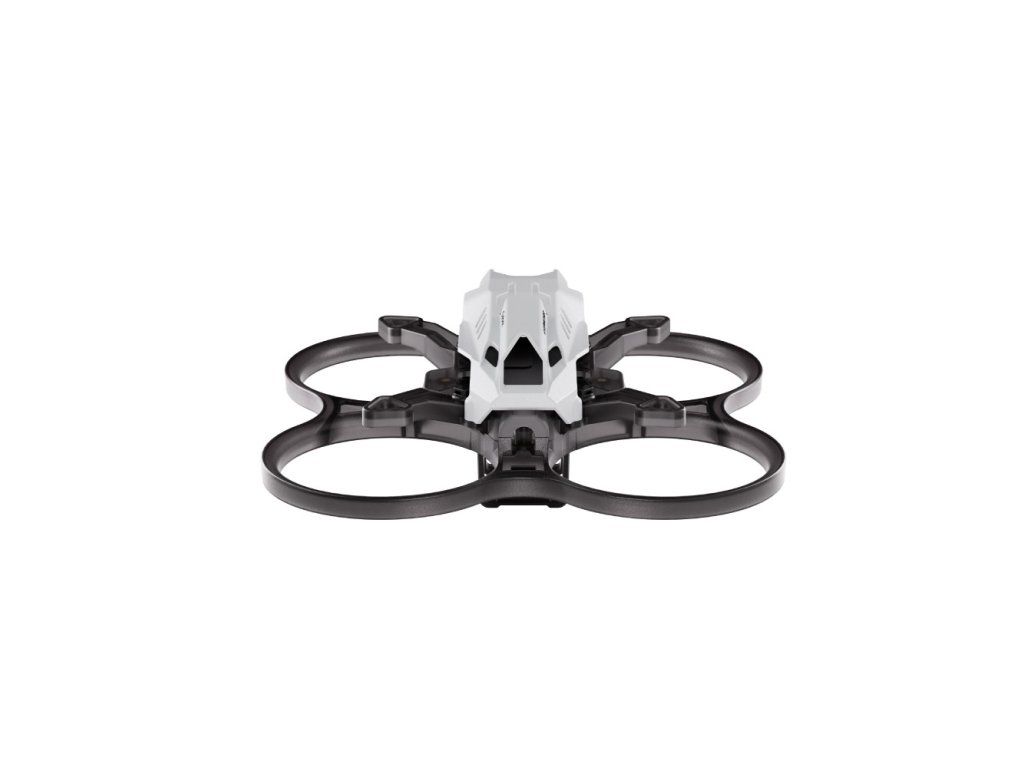

The Oxbot Lumo18 frame is a compact 85mm micro FPV drone frame designed for smooth freestyle flying and stable aerial footage. Featuring an integrated damping structure for the camera and VTX, it effectively reduces vibration and jello effect. Its lightweight and modular design makes it ideal for small-space flying and customizable micro builds.

Features:
- Integrated damping structure for reduced vibration and smooth video
- Compact and lightweight design for agile micro FPV flying
- Durable frame with protective ducted structure
- Optimized layout for clean and easy component installation
- Compatible with DJI O4 Air Unit and modern digital systems
- Flexible battery mounting with compartment and strap options
- Designed for stable flight and precise control in tight spaces

Specifications:
Frame: Oxbot Lumo18 Frame
Wheelbase: 85mm
Camera Mounting Distance: 14mm
Compatible VTX: DJI 04 Air Unit
Stack Mounting Holes: 25.5mm AIO
Motor Mounting Holes: 3 holes Φ 6.6mm
Propeller Size: 1.8 inches
Recommended Motor: 1102/1003/1103 (3-hole Brushless Motor)
Recommended KV: 12000KV
Recommended Battery: 2S LiPo (450mAh - 850mAh)
Maximum Supported Battery Compartment Size: 80x18x12.5mm
Maximum Supported Battery Strap Size: 80x18x17mm
Weight: 25g±2

Package includes:
1x White Top Cover

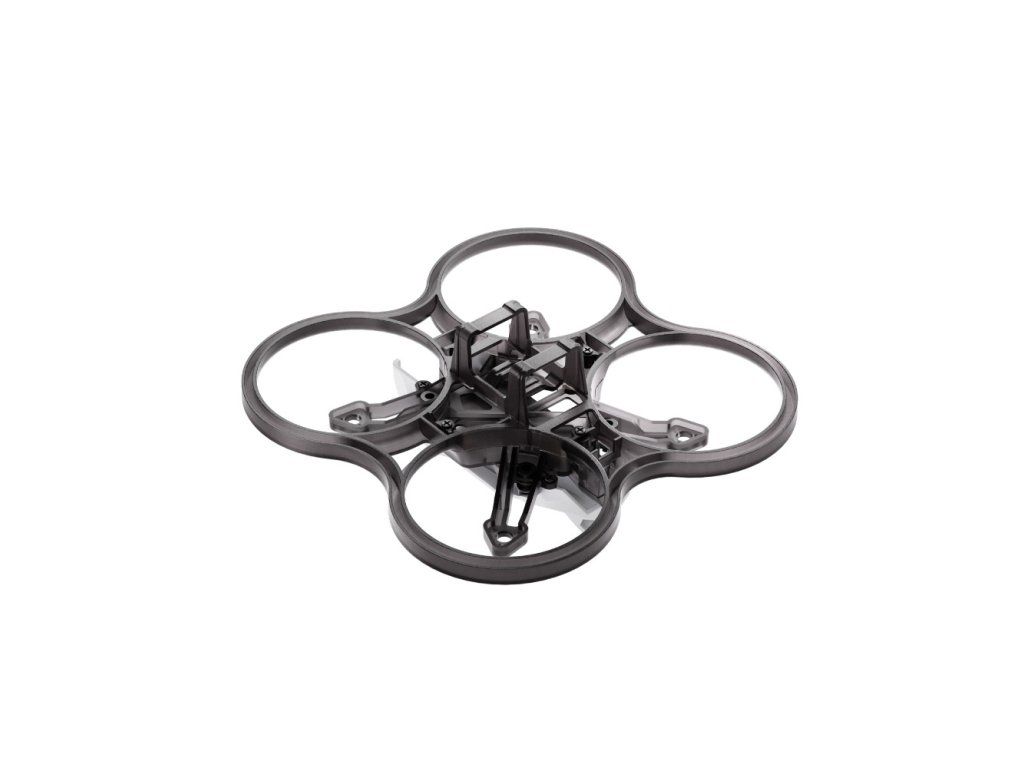

1x Black Semi-Transparent Frame
1x Black Semi-Transparent Injection Molded Ring
1x Aluminum Alloy VTX Heatsink
2x Black TPU Camera Cover (3D Printed)
1x Black TPU Antenna Mount (3D Printed)
7x Vibration Damping Ball
1x Yellow 2.0mm Phillips Screwdriver
1x Black Pointed Tweezers
1x 40mm 5.8G Copper Tube Antenna
1x XT30 Power Cable 50mm 20AWG
1x Female connector SH1.25-3Px55mm
2x Heat Shrink Tube 5mm
1x Black Silicone Wire 45mm
1x Red Silicone Wire 45mm
2x VTX Thermal Pad
1x Buzzer
5x M2x7mm Button Head Hex Socket Screws
5x M1.6x3mm Button Head Phillips Screws
14x M1.4x3mm Button Head Phillips Screws
13x M1.6x4mm Flat Head Phillips Screws
3x M1.6x3mm Pan-Head Phillips Screws with Washer
1x Lumo18 Sticker
1x Battery Strap
