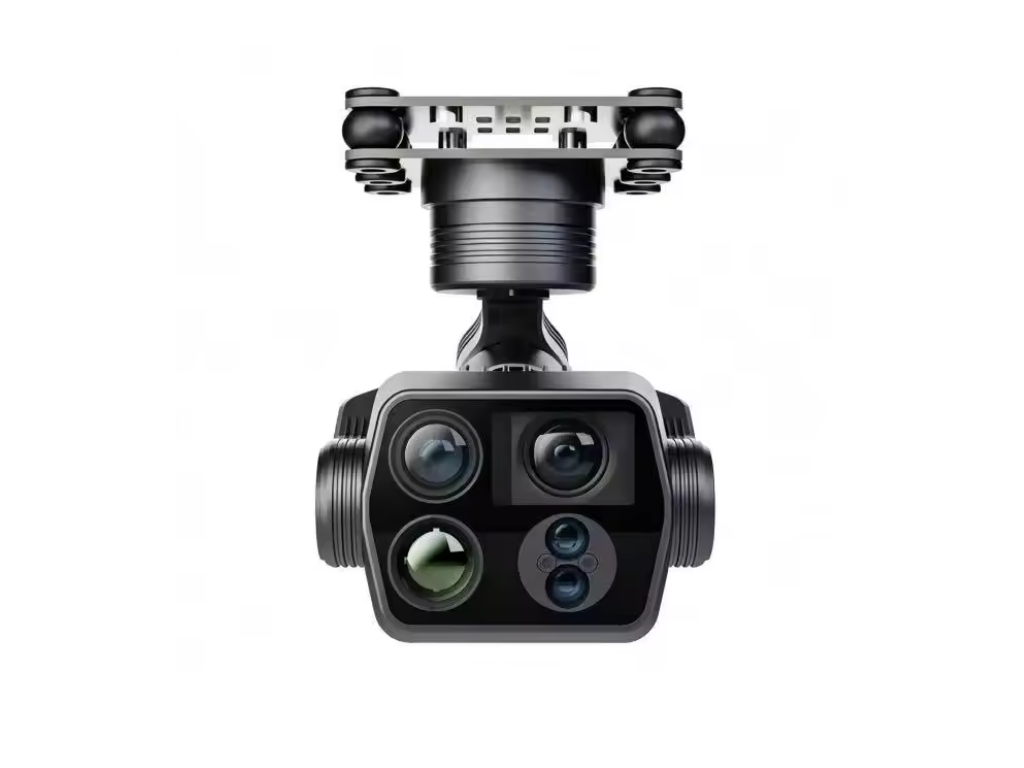

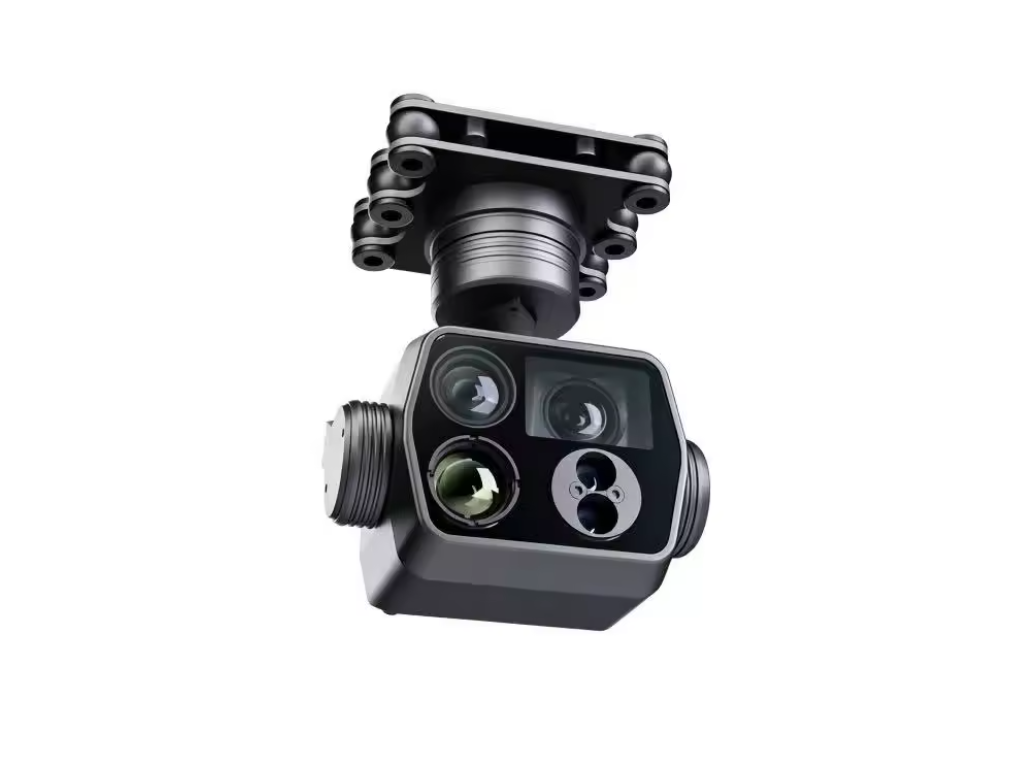

FPV Thermal camera SkyDroid C14 PRO 4K 3-Axis Stabilized gimbal

Product detailed description

FPV Thermal camera SkyDroid C14 PRO 4K 3-Axis Stabilized gimbal

The SkyDroid C14 PRO 4K is a professional multi-sensor FPV gimbal camera designed for UAV inspection, surveillance, search and rescue, mapping, and security applications. It combines a high-resolution visible-light camera, thermal imaging sensor, laser rangefinder, and AI-assisted target tracking in a compact 3-axis stabilized payload. The system supports 8K photo capture, 4K video recording, real-time video transmission, and long-range observation for demanding aerial missions.

Features:
- High-precision 3-axis mechanical stabilization ensures smooth and stable footage during flight
- Advanced thermal detection enables clear heat signature visualization in low-light or no-light environments
- Long-range optical system with zoom capability for detailed distant target observation
- Wide-angle short-focus lens for situational awareness and close-range monitoring
- Real-time video transmission for FPV and remote monitoring applications
- Robust design suitable for professional UAV inspection and security tasks
- Wide voltage compatibility for integration with various drone platforms
- 100x Hybrid Electronic Zoom enables powerful long-distance observation by combining optical and digital zoom processing, allowing detailed target inspection without losing situational awareness
- AI Guidance System assists in intelligent target tracking and framing, improving operator accuracy and reducing manual control effort during flight operations
- 1.2 km Laser Ranging provides precise distance measurement to targets at long range, supporting navigation, surveying, and tactical awareness in aerial missions
- Integrated visible-light, thermal imaging, and laser ranging system
- Supports ultra-high-resolution photography and 4K video recording

Specifications:
Visible Light Camera
CMOS size: 1/2.0
Video transmission resolution: 1280x720
Video resolution for card recording: 3840x2160
Video storage format: TS
Shooting modes: Single shot
Photograph storage format: JPG
Maximum photo resolution: 8000x6000
Lens pixel: 48MP

Long-focus lens
Aperture: 2.4
Focal length: 25 mm
HFOV / VFOV / DFOV: 14.7° / 11.1° / 18.3°

Short-focus lens
Aperture: 2.6
Focal length: 5.4 mm
HFOV / VFOV / DFOV: 61.4° / 47.9° / 73.8°

Thermal Imaging
Resolution: 640x512 @ 30 fps
Aperture: 1.0
Focal length: 11 mm
HFOV / VFOV: 32.84° / 26.35°
Pixel pitch: 10 μm
Thermal time constant: < 12 ms

Laser Ranging
Detection range: up to 1.2 km

Gimbal System
Stabilization: 3-axis mechanical stabilization
Angular jitter: ±0.01° (hovering), ±0.02° (flying)
Controllable angle range:
Pitch: -110° to +75°
Yaw: -165° to +165°
Roll: -40° to +40°
Control method: UDP
Weight: 210 g
Dimensions: 65.5x90.4x68.6 mm

System Parameters
Operating voltage: 12–80 V
Video output: RTSP
Operating temperature: -10°C to +50°C
Storage temperature: -20°C to +50°C

Package includes:
1x FPV Thermal camera SkyDroid C14 PRO 4K 3-Axis Stabilized gimball
