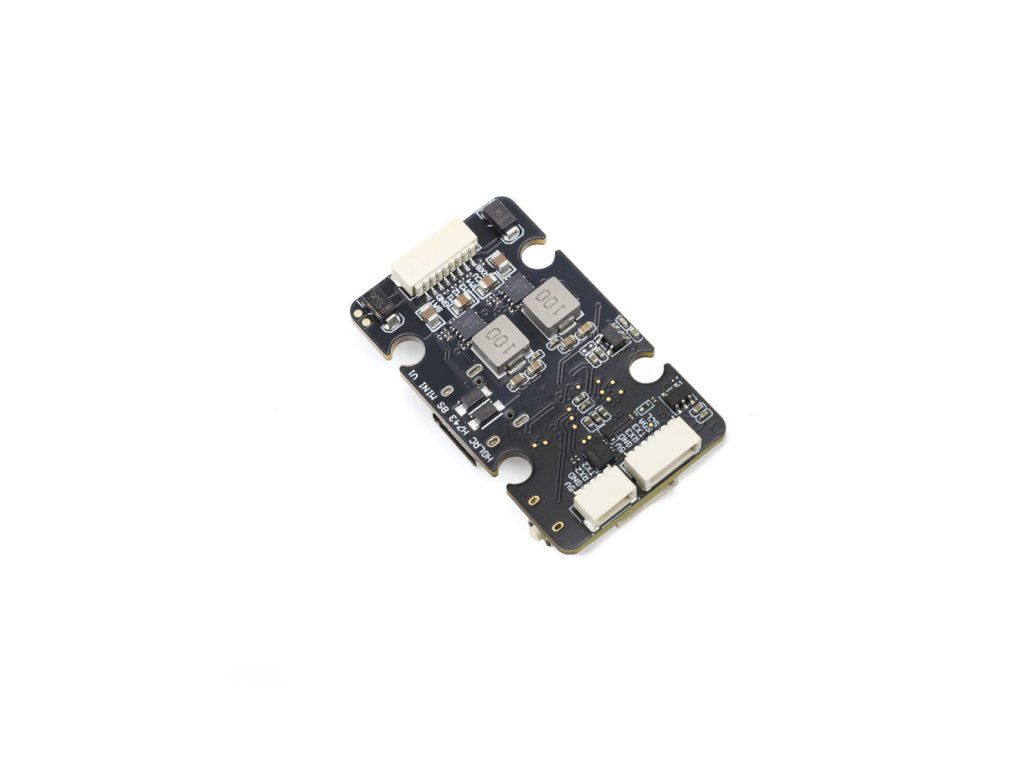

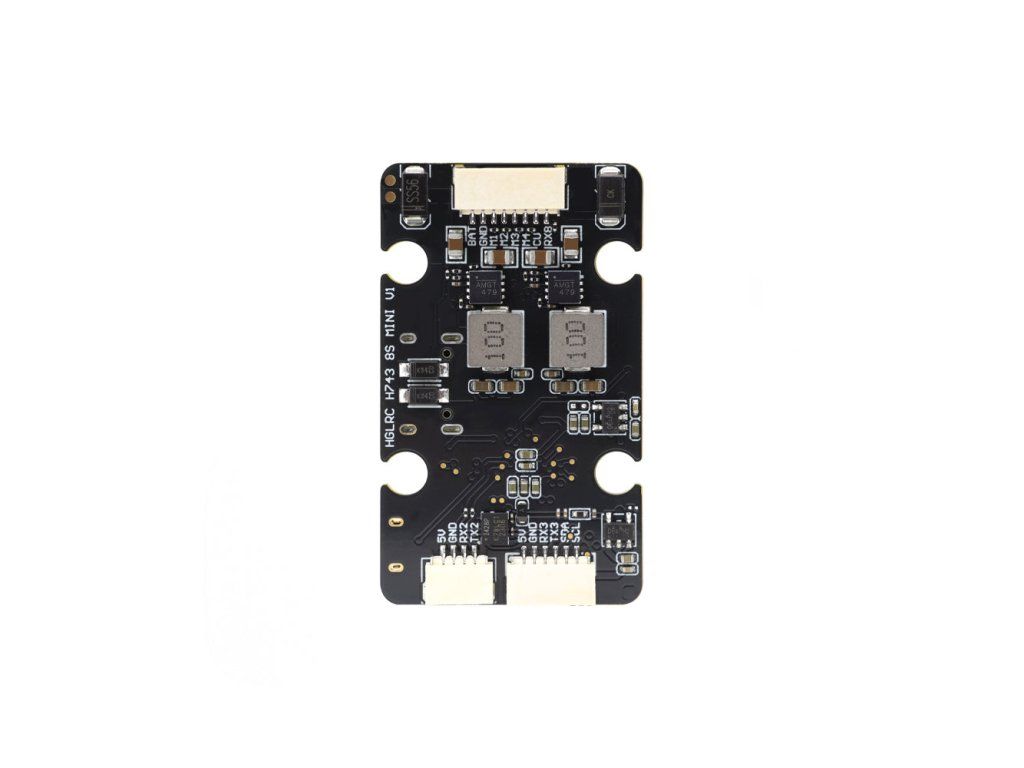

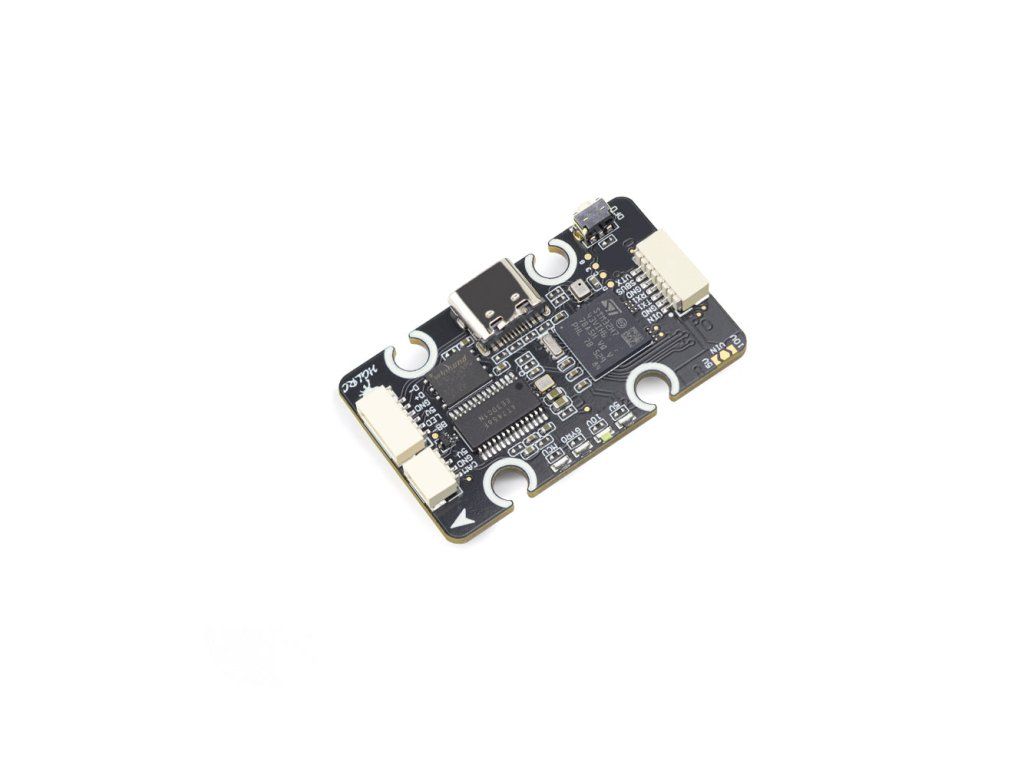

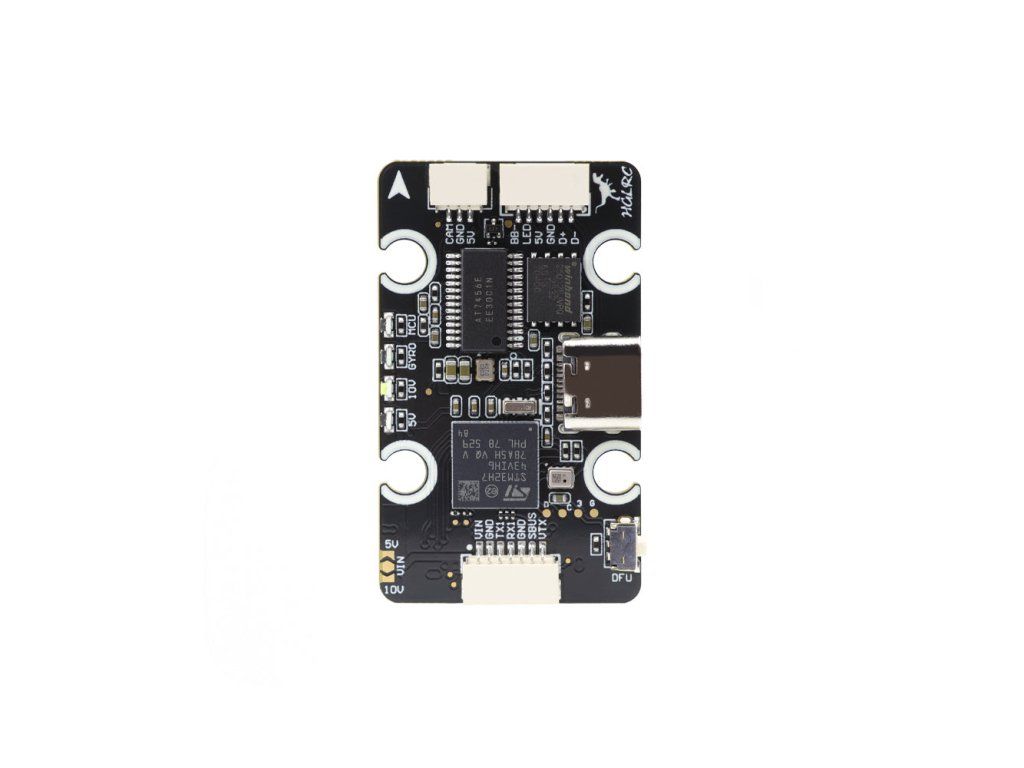

FC HGLRC H743 8S MINI V1

Product detailed description

FC HGLRC H743 8S MINI V1

The HGLRC H743 8S MINI V1 is a high-performance flight controller designed for FPV drones that demand fast processing, reliable control, and compact installation. Powered by the STM32H743 MCU and equipped with the ICM42688P gyroscope, it delivers precise flight performance and rapid response for freestyle, racing, and long-range applications. The board features a fully modular plug-and-play design with direct connectors, reducing wiring complexity and eliminating the need for soldering. With support for up to 8S LiPo batteries, dual BEC outputs, and integrated Blackbox storage, the H743 8S MINI V1 provides a powerful and versatile solution for modern FPV builds.

Features:
- High-performance STM32H743 processor for fast data processing and flight control
- ICM42688P gyroscope provides accurate motion sensing and enhanced stability
- Built-in 16MB Blackbox memory for flight data recording and tuning
- Supports high-voltage 2S–8S LiPo battery systems
- Plug-and-play connector design simplifies installation and maintenance
- Dual BEC architecture helps power multiple peripherals efficiently
- Compact mini form factor suitable for space-constrained builds
- Integrated barometer supports altitude-sensitive flight applications
- Multiple UART ports provide extensive connectivity for GPS, receivers, VTXs, and other accessories
- Optimized for freestyle, racing, cinematic, and long-range FPV drones

Specifications:
Brand: HGLRC
Model: H743 8S MINI V1
Firmware Target: HGLRC_H743_LITE
MCU: STM32H743
Gyroscope: ICM42688P
OSD Chip: AT7456E
Barometer: SPA06-003
Blackbox Memory: 16MB
UART Ports: 8
Input Voltage: 7.4V–33.6V
Battery Compatibility: 2–8S LiPo

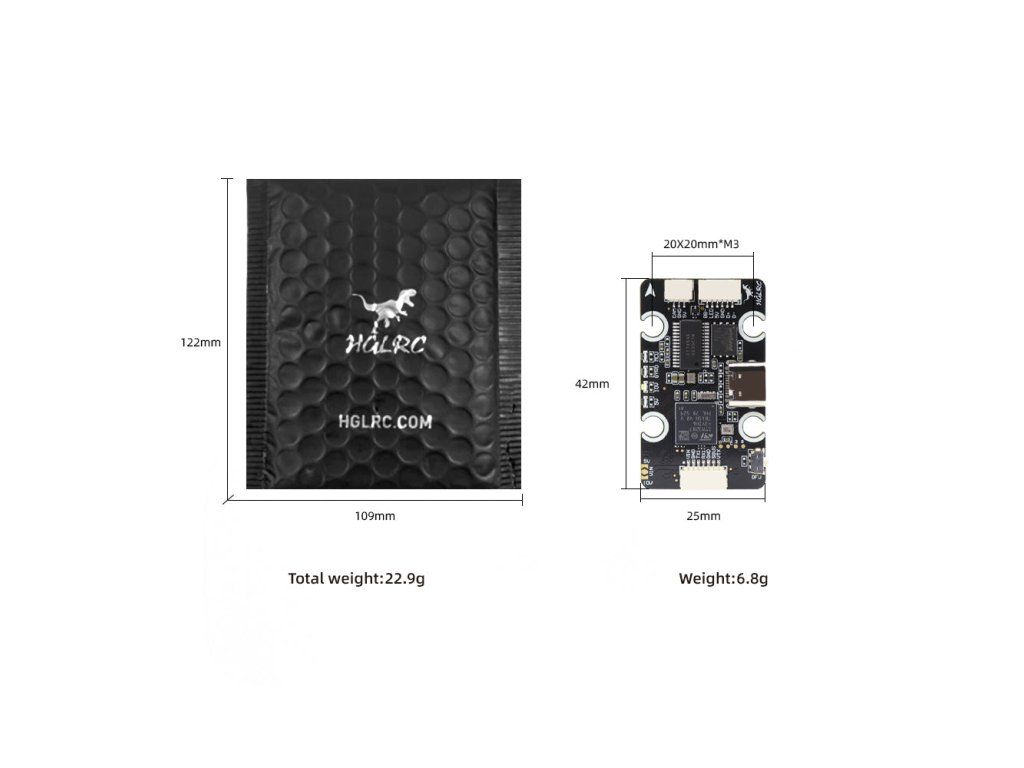

Dimensions: 42x25mm
Mounting Pattern: 20x20mm (M3)
Weight: 6.8g

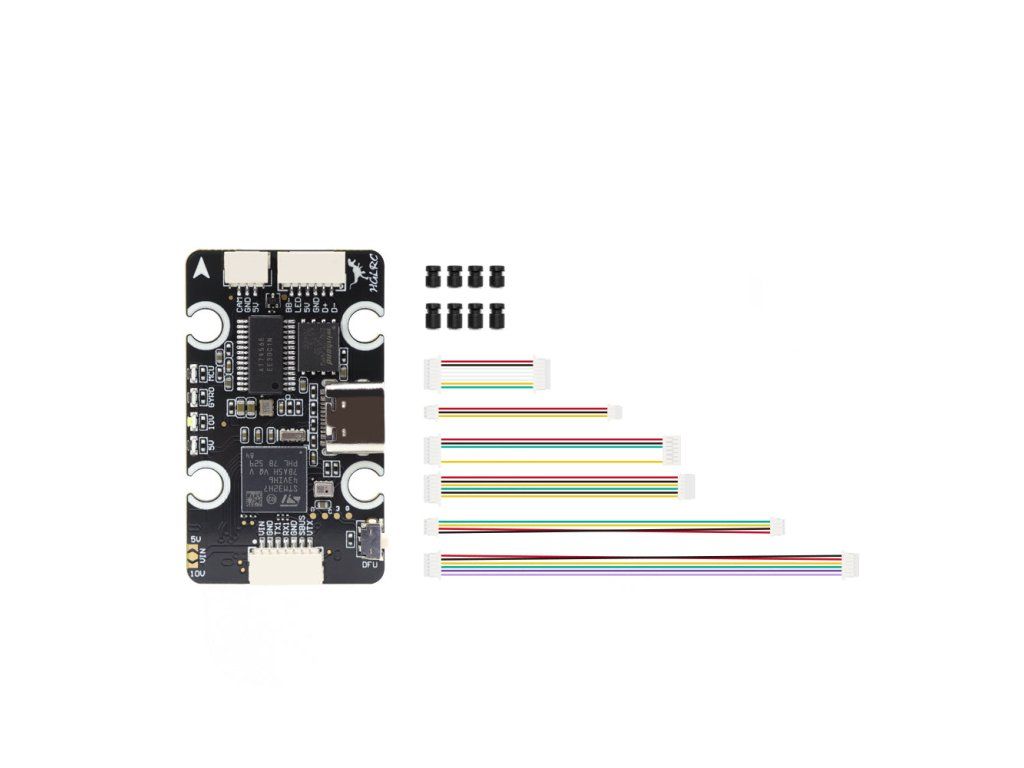

Package includes:
1x HGLRC H743 8S MINI V1 Flight Controller
1x 30AWG 25mm Double-Ended SH1.0-8P Cable
1x 30AWG 100mm Double-Ended SH1.0-4P Receiver Cable
1x 30AWG 50mm Camera Cable (SH1.0-3P to SH1.25-3P)
1x 30AWG 70mm DJI Cable (GH1.25-6P to SH1.0-7P)
1x 30AWG 70mm VTX Cable (SH1.0-7P to 1.0-6P)
1x 30AWG 120mm Double-Ended SH1.0-6P GPS Cable
4x3x8mm Vibration Damping Standoffs
4x3x6.6mm Vibration Damping Standoffs
1x HGLRC Sticker
1x QR Code Card
