FPV Gimbal CaddxFPV AVATAR GM1 V2-19

Detailní popis produktu

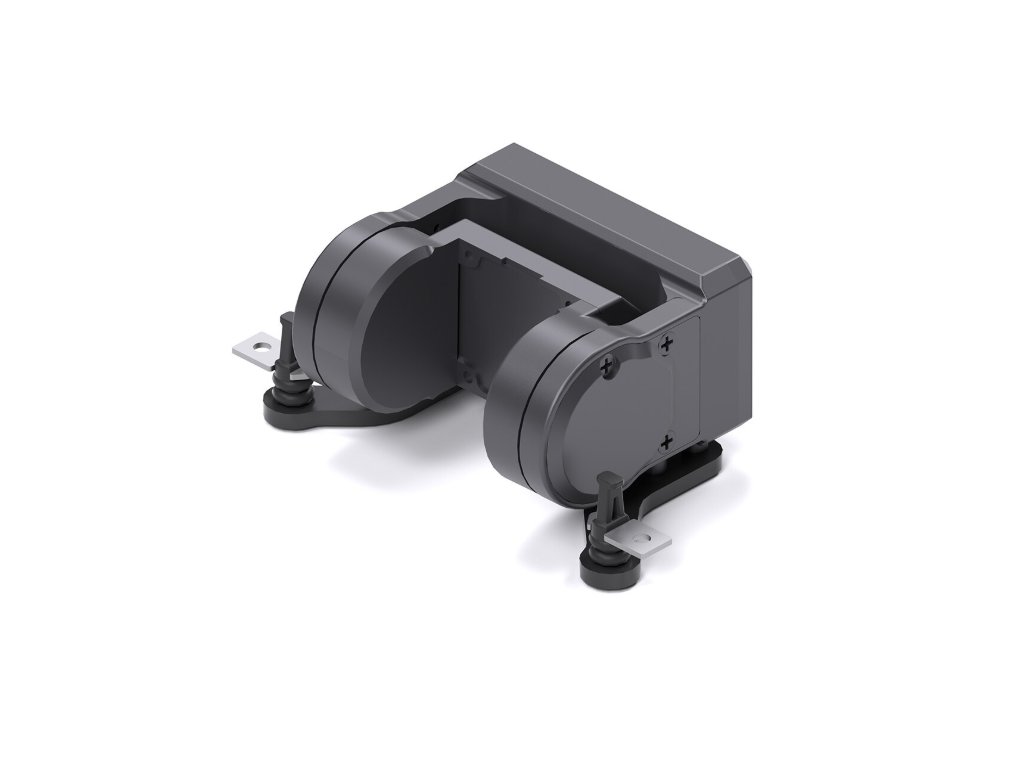

FPV Gimbal CaddxFPV AVATAR GM1 V2-19

CaddxFPV AVATAR GM1 V2-19 is a high-precision 3-axis mechanical gimbal designed for real-time image stabilization and smooth camera angle control in FPV setups. Fully compatible with Walksnail Avatar and Ascent 19mm cameras, it delivers ultra-stable footage and supports advanced head-tracking functionality for immersive flight experience.

Features:
- Advanced 3-axis mechanical stabilization for ultra-smooth FPV footage
- High-precision control with extremely accurate angle compensation
- Wide pitch rotation range for dynamic cinematic angles
- Supports head-tracking via UART and PPM protocols
- Automatic recognition of upright and inverted installation
- Multiple control options including UART, S.BUS, CRSF, Mavlink, and PWM
- Compatible with INAV, PX4, and ArduPilot firmware systems
- Optimized for Walksnail Avatar and Ascent 19mm cameras
- High rotational speed response for aggressive FPV maneuvers
- Lightweight and compact design ideal for custom drone builds
- Stable mounting with damping ball support for vibration isolation
- Designed for custom vehicle integration with user-defined mounting holes

Specifications:
Model: GM1 V2-19
Camera Compatibility: Avatar/Ascent Series 19mm Camera
Stabilization Accuracy: ±0.005°
Maximum Controllable Speed: ±1500°/s
Controllable Rotation Range: Pitch: ±120°
Control Method: Uart/ S.bus/ Crsf/ Mavlink/ PWM
Head Tracking Control: Supports
Static Power: 1W
Stall Power: 7.5W
Dimensions: 43x46.4x56.9mm
Weight: 32g

Package includes:
1x FPV Gimbal GM1 V2-19
1x Mounting bracket
Damping balls
Connection cables
