VTX Pilotix R3000 (4.9-6.2G 3W)

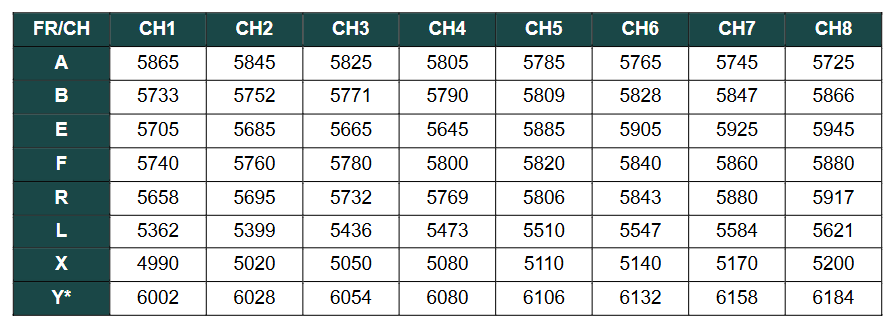

The Pilotix R3000 (4.9-6.2G 3W) is an FPV video transmitter operating across a frequency range of 4.9 GHz to 6.2 GHz. This VTX delivers adjustable output power with four selectable levels: 25mW, 1W, 2W, and 3W, providing flexibility for various flight scenarios. The transmitter supports 64 channels across eight bands (A, B, E, F, R, L, X, Y) and is compatible with both PAL and NTSC video formats. It features TBS SmartAudio protocol for remote configuration and uses an MMCX antenna interface with 50 ohm RF impedance. Video input impedance is rated at 75 ohm. The unit accepts input voltage from 7V to 36V (2S to 6S batteries) and includes a built-in fan for active cooling. Two buttons and a three-color light indicator provide user control and status feedback. The R3000 measures 53 x 29.5 x 14.7 mm, weighs 31 grams, and features 20 x 20 mm M2 mounting holes. Operating temperature ranges from -20 to 40 degrees Celsius with humidity tolerance of 20-95% RH non-condensing. The package includes a JST SH 1.0mm 8-Pin connector and pigtail, backed by a 2-year warranty.
