TX Module Jumper JP4IN1 MICRO CNC

The Jumper JP4IN1 MICRO CNC is a versatile multi-protocol RF transmitter module designed for compatibility with a wide range of RC receivers and radio-controlled devices (desinged compatibility with Jumper controllers T20 and T20s). Equipped with four integrated RF chips, this compact module provides broad protocol support and reliable wireless performance for FPV drones and other RC models.

Features:
- Multi-protocol transmitter module design
- Broad compatibility with popular RC receivers
- Integrated four-chip RF system
- Stable and reliable signal transmission
- Compact lightweight construction

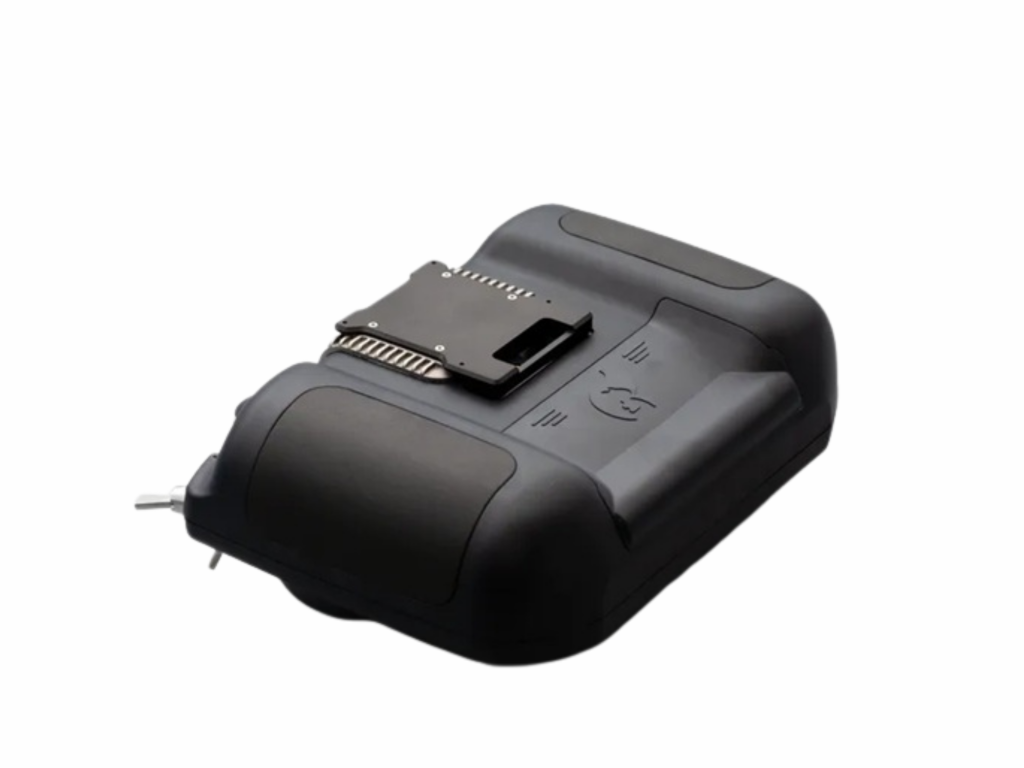

- Plug-and-play compatibility with Jumper T20 radios
- Efficient low power consumption
- Durable CNC-style compact housing
- Suitable for FPV drones and RC aircraft

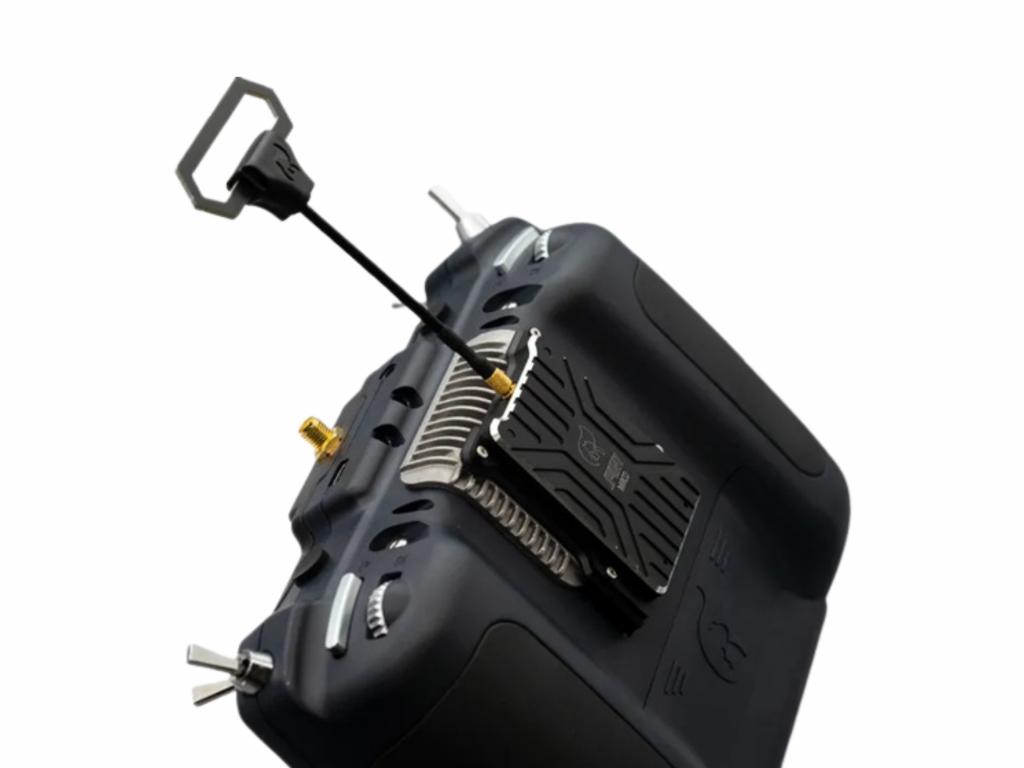

- External antenna support for improved signal coverage

Specifications:
Item Name: JP4IN1 Micro Transmitter Module
RF Chips: CC2500 / NRF24L01 / A7105 / CYRF6936
Main Control Chip: STM32F103CBT6
ROM: 128K
RAM: 20K
Operating Frequency: 2.4G ISM Band
RF Power: +22dBm
Working Voltage: 6-9V
Working Current: ≤100mA
Module Bay Compatibility: T20
Weight: 42g (including antenna)

Package includes:

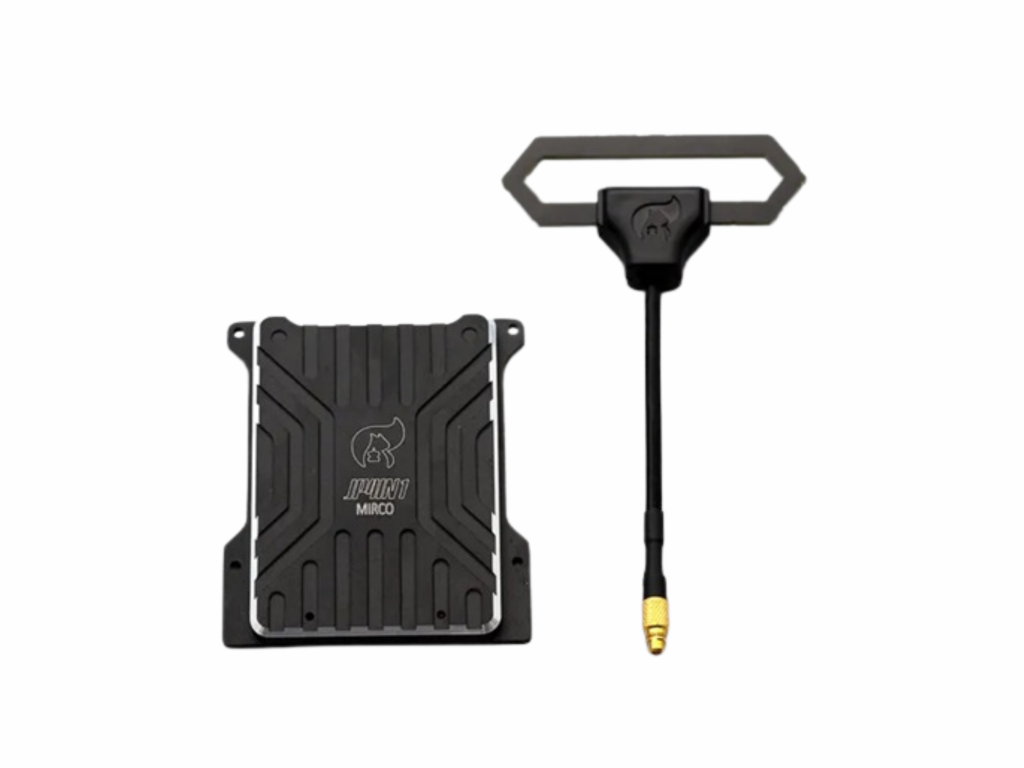

1x Jumper JP4IN1 MICRO Transmitter Module
1x Antenna
