Smart battery checker & balancer ISDT BL8

Product detailed description

Smart Battery checker & balancer ISDT BL8

The ISDT BL8 is a compact smart battery checker and active balancer designed for 2S–8S LiPo battery packs. It provides accurate per-cell and total voltage readings, while its active balancing system transfers energy between cells to efficiently reduce voltage differences without simply dissipating excess energy as heat.

Features:
- 2S–8S Battery Support: Compatible with LiPo battery packs from 2S to 8S
- 3A Active Balancing: Transfers energy between cells with up to 3A balancing current for efficient cell equalization
- High-Accuracy Voltage Measurement: Measures individual cell voltages with ±5mV accuracy and displays readings to three decimal places
- Wide Measurement Range: Supports cell voltage measurements from 0.8V to 5V

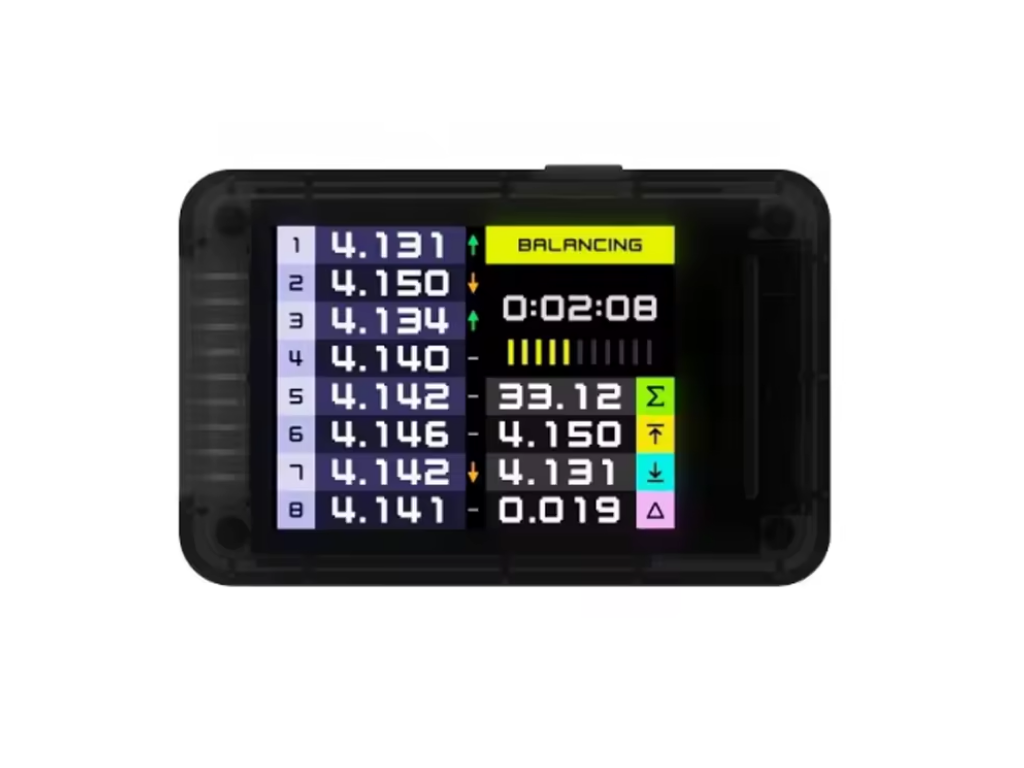

- Color Display: Bright, wide-view color screen provides clear visibility of individual cell voltages and total battery voltage
- Smart App Control: Monitor and control balancing sessions remotely via compatible applications on Windows, macOS, iOS, Android, HarmonyOS, and Linux
- Compact and Lightweight: Convenient for both bench work and field use

Specifications:
Type: Smart Battery Checker & Balancer
Supported Battery Series: 2S–8S
Power Input: 3.5–36V DC, 0.2A
Voltage Measurement Range: 0.8–5V per cell
Voltage Measurement Accuracy: ±5mV
Maximum Balancing Current: 3A
Dimensions: 66.13x42.77x13mm
Weight: 28.8g
Condition: 100% Brand New

Package includes:
1x ISDT BL8 Battery Checker & Balancer
1x User Manual
