Product detailed description

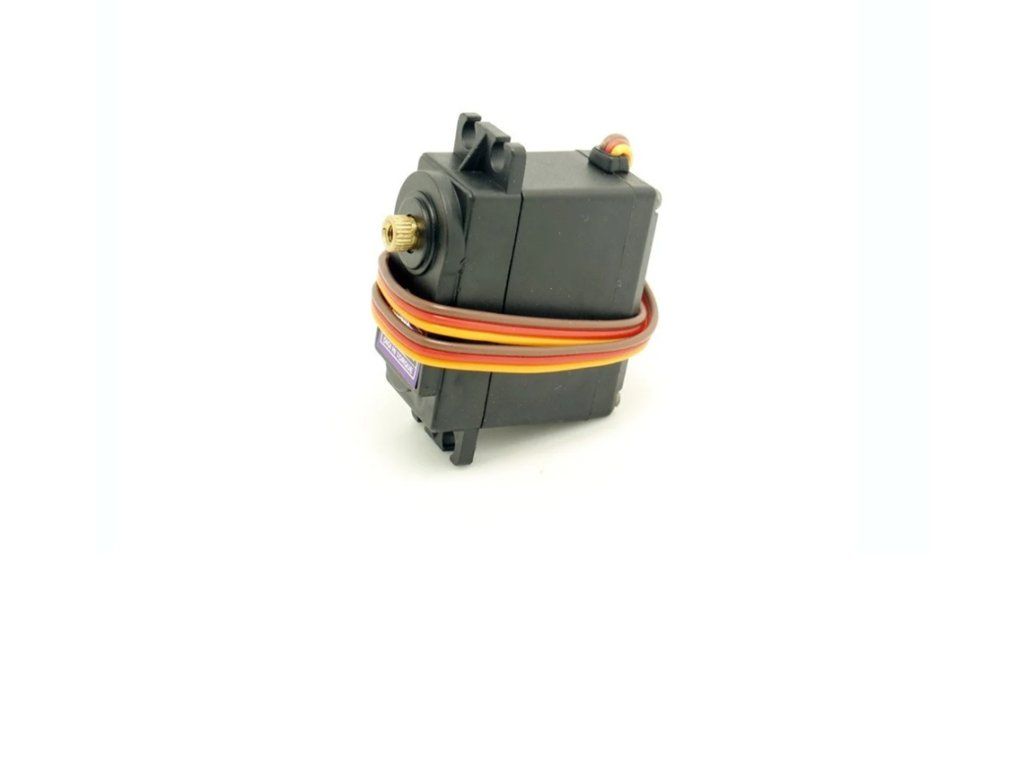

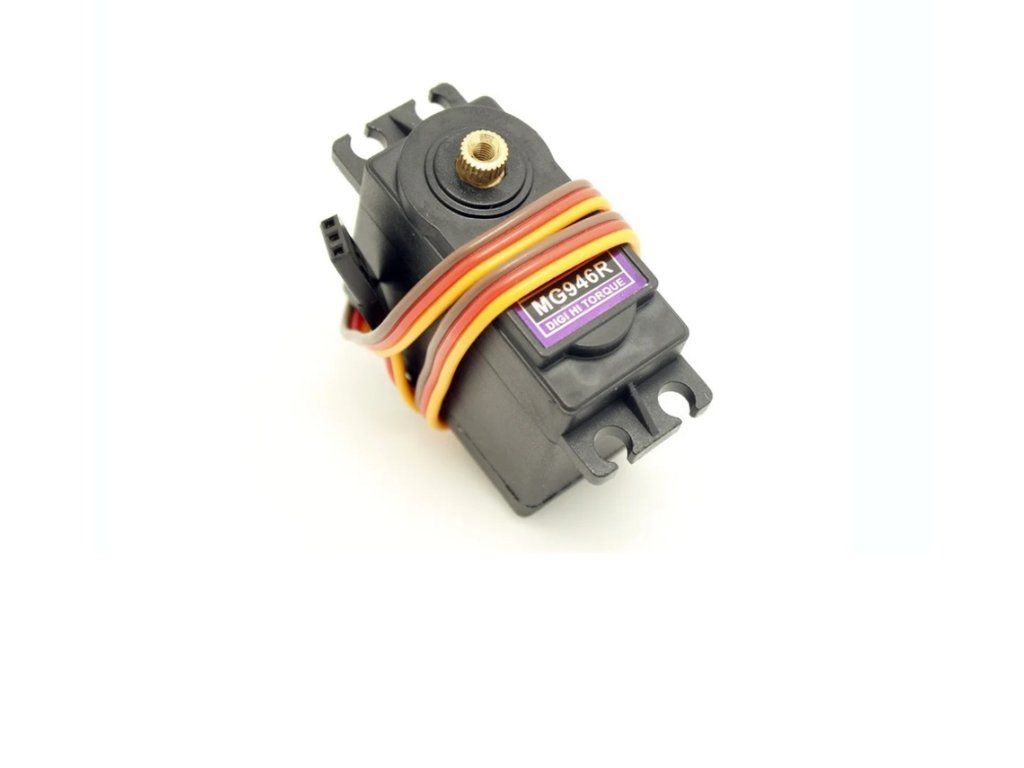

The Pilotix MG946R 180° Metal Gear is a digital servo designed for FPV applications, featuring robust metal gears and a 180° rotation angle. With stall torque reaching up to 13 kg·cm at 6.0V and operating speeds as fast as 0.17 sec/60° at 6.0V, this servo delivers reliable performance for demanding projects.
Key features
- ✓Digital servo — precise control via PWM signal
- ✓Metal gear construction — enhanced durability
- ✓High torque output — 10.5 kg·cm at 4.8V, 13 kg·cm at 6.0V
- ✓Fast operating speed — 0.20 sec/60° at 4.8V, 0.17 sec/60° at 6.0V
- ✓Compact dimensions — 43 × 40 × 19 mm, weighing 55 g
- ✓JR connector — 300 mm cable length
The MG946R operates within a voltage range of 4.8V to 6.0V with a no-load current of 120 mA. It functions reliably in temperatures from -20°C to 40°C and humidity levels of 20-95% RH (non-condensing). Backed by a 2-year warranty.
Product details
| Model |
MG946R 180° Metal Gear
|
| SKU |
8781
|
Specifications
| Servo type |
Digital
|
| Gear type |
Metal
|
| Rotation angle |
180°
|
| Stall torque |
10.5 kg·cm (4.8 V), 13 kg·cm (6.0 V)
|
| Operating speed |
0.20 s/60°(4.8 V), 0.17 s/60°(6.0 V)
|
Electrical specifications
| Operating voltage range |
4.8 - 6 V
|
| No-load operating current |
120 mA
|
| Control signal |
PWM
|
Mechanical specifications
| Dimensions |
43 x 40 x 19 mm
|
| Weight |
55 g
|
| Connector |
JR
|
| Cable length |
300 mm
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-20 - 40 °C
|
| Storage temperature |
-30 - 50 °C
|
