Antenna TrueRC X-AIR 5.8 MK II pair for Walksnail X - LHCP

Product detailed description

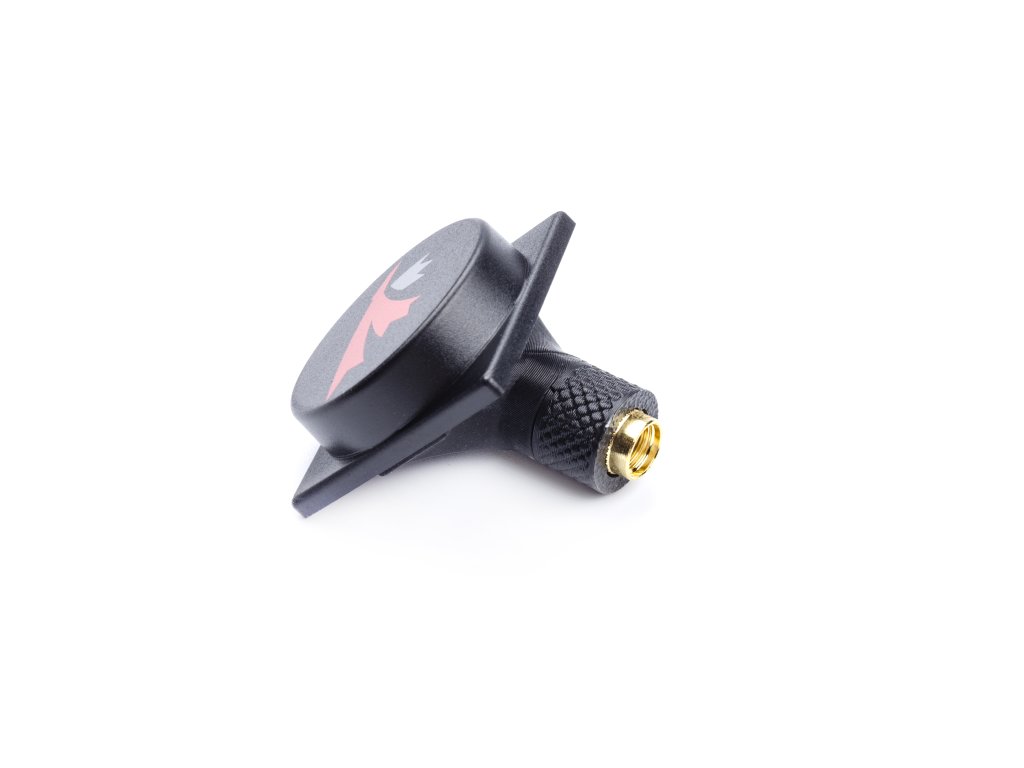

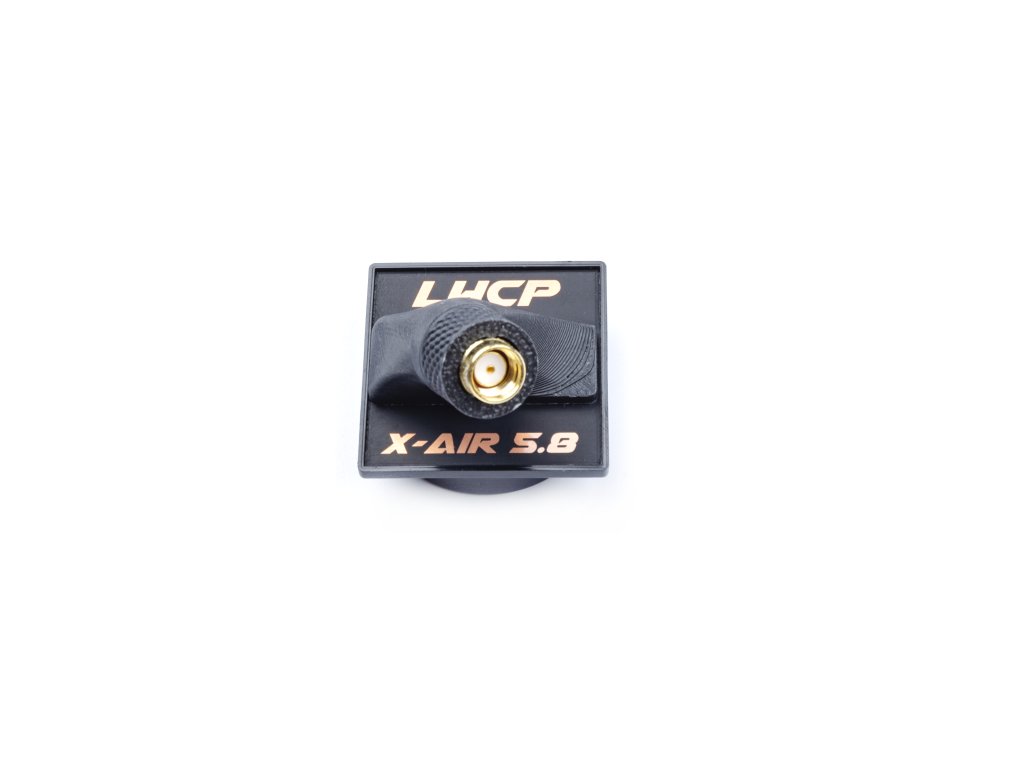

Antenna TrueRC X-AIR 5.8 MK II pair for Walksnail X - LHCP (X-air pair only)

High-efficiency X-AIR MK II with direct angled RP-SMA connectors for installing on the Walksnail avatar HD goggles X. Simply screw on the custom angled RP-SMA connectors on the top ports of the goggles. Great 10dBic gain combined with a healthy flyable beam width of 120deg, yield an amazing flight experience in compact and low profile package. The custom RP-SMA connector is made to fit your Walksnail avatar HD goggles X without adapter and make sure they end up facing forward with little uptilt for good measure.

Features:
- Circularly Polarized
- Mount direct on Walksnail avatar HD goggles X
- Compact low-profile design, easy to store and transport
- High 10 dBic for long range and signal penetration
- Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band
- Super wide 120 degree beam
- Custom RP-SMA connectors with compound angle to have the X-air antenna face forward

Specifications:

Bandwidth: 5.1GHz-6.7GHz
Gain: 9.5-10.5 dBic
Polarization: LHCP
Beam-width*: 120deg
Beam-width @-3dB**: 68deg.
Connector: RP-SMA male
Dimension: 34 x 34 x 34mm

*Coverage of individual antenna where reception is at least equivalent to an omni.
**Coverage of individual antenna where at least 70% of the max range is obtained

Package Includes:
2x X-air MKII antennas.
